0-22 — ENGINE MOUNTING (#74671) — 156 parça

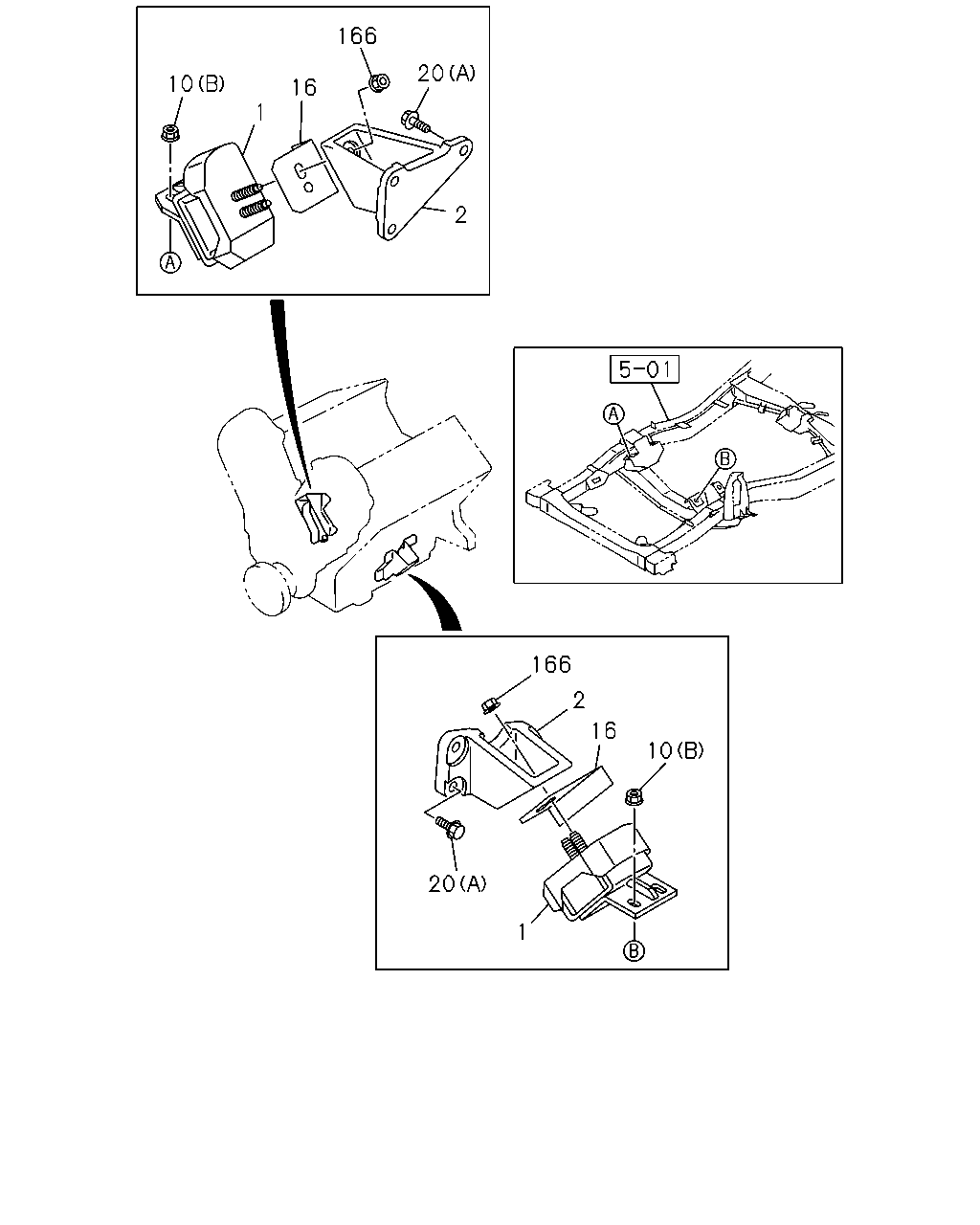

çizim 38869
166 20 10 16 1 2 166 2 16 10 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-332-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-331-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-335-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-475-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-476-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0805- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0805- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 1004- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98056-323-0 02 1 0805- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97327-570-3 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(A) 		8-92138-751-0 06 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (M) M10X50 FLANGE 		0-28161-050-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(K) M10X25 FLANGE 		0-28751-025-0 03 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(I) M10X16 FLANGE 		0-28151-016-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(L) M10X40 FLANGE 		0-28751-040-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(E) M10X20 FLANGE 		0-28051-020-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0805- ●
20 00.029 BOLT; ENG FOOT
03.613 (G) M10X40 FLANGE 		0-28651-040-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.181 (D) M10X100 FLANGE 		0-28051-000-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(H) M14X45 FLANGE 		0-28851-445-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.173 (F) M10X80 FLANGE 		0-28051-080-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (N) M8X35 FLANGE 		0-28650-835-0 04 1 0805- ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0805-1003 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 1004- ●

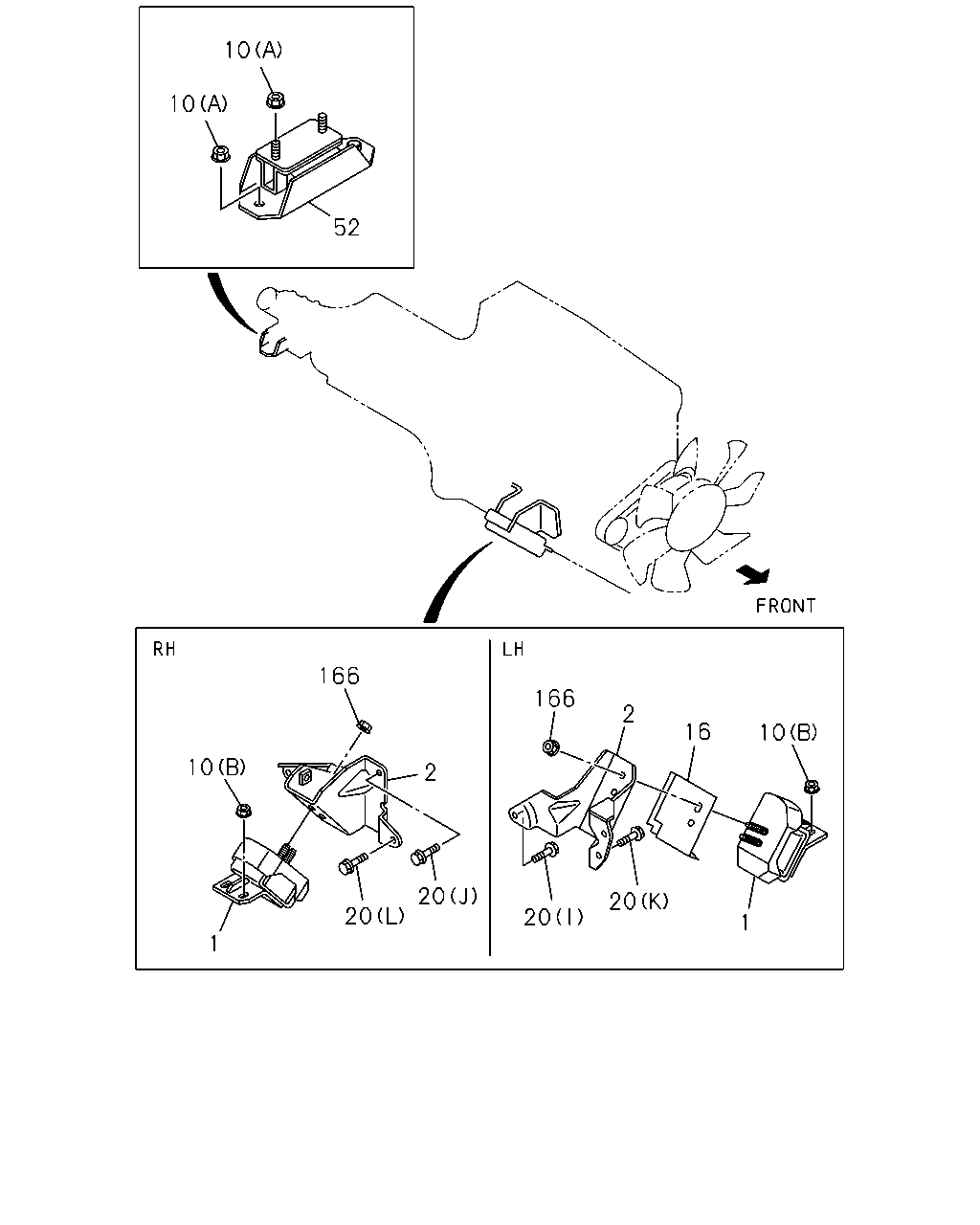

çizim 39152
10 10 52 166 166 2 16 10 10 2 20 20 20 20 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-332-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-331-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-335-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-475-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-476-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0805- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0805- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 1004- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98056-323-0 02 1 0805- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97327-570-3 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(A) 		8-92138-751-0 06 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (M) M10X50 FLANGE 		0-28161-050-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(K) M10X25 FLANGE 		0-28751-025-0 03 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(I) M10X16 FLANGE 		0-28151-016-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(L) M10X40 FLANGE 		0-28751-040-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(E) M10X20 FLANGE 		0-28051-020-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0805- ●
20 00.029 BOLT; ENG FOOT
03.613 (G) M10X40 FLANGE 		0-28651-040-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.181 (D) M10X100 FLANGE 		0-28051-000-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(H) M14X45 FLANGE 		0-28851-445-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.173 (F) M10X80 FLANGE 		0-28051-080-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (N) M8X35 FLANGE 		0-28650-835-0 04 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-HMD,ELEC(M30) 		8-98051-346-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 5 SPEED(MA5) 		8-98051-345-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98051-347-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 5 SPEED(MA5) 		8-98051-343-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 		8-98051-338-0 01 1 0805-1003 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-338-0 01 1 1004- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T AISIN(RMD) 		8-98051-348-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-98051-336-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-349-0 01 1 0805- ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0805-1003 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 1004- ●

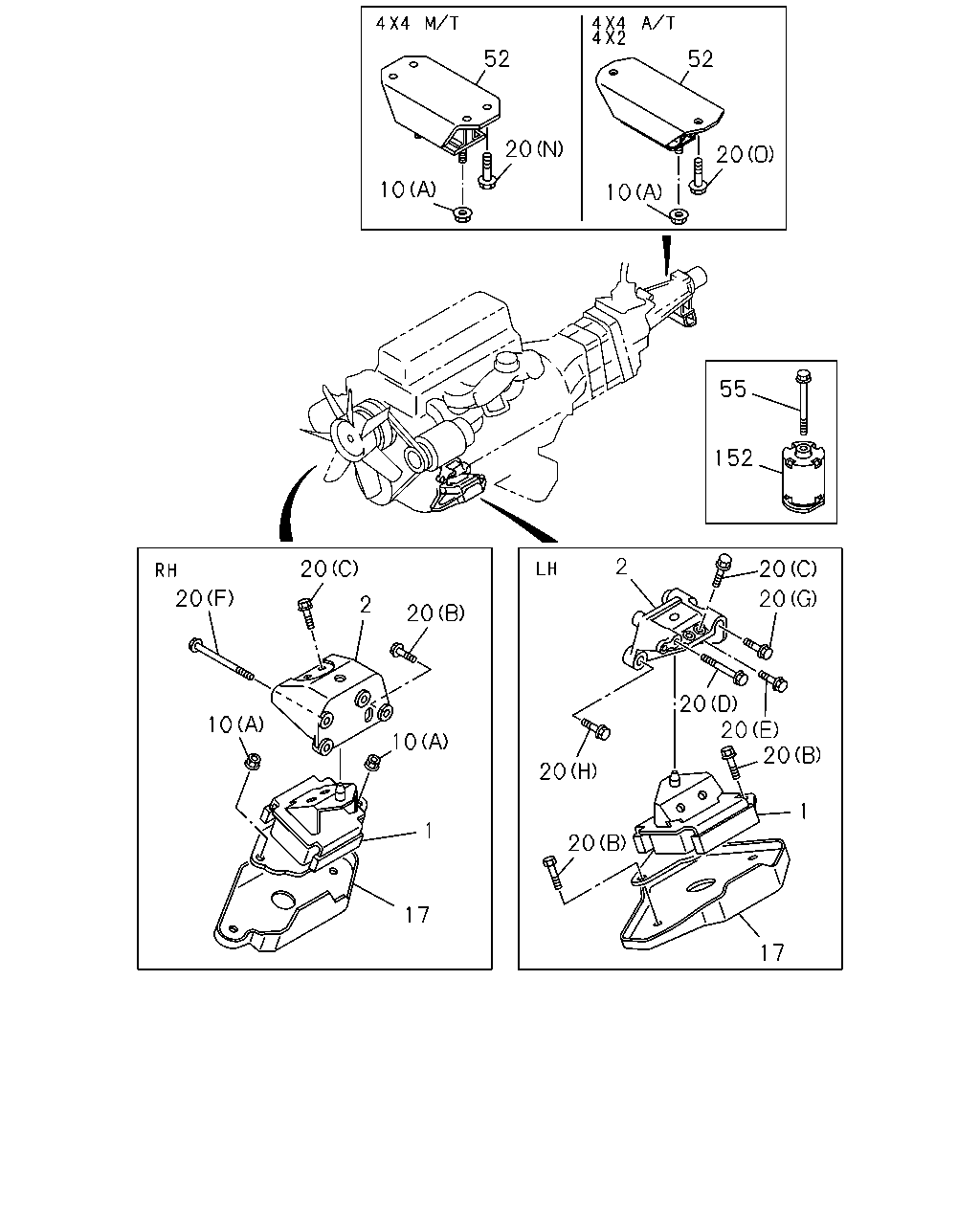

çizim 39154
52 52 20 20 10 10 55 152 2 20 20 20 20 2 20 20 20 20 10 10 20 1 1 20 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-332-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-331-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-335-0 01 1 0805-1003 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0805- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-475-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-92211-476-0 01 1 0805- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0805-1003 ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0805- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0805- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 1004- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0805- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(A) 		8-92138-751-0 06 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T AISIN(RMD) (O) M10X35 FLANGE 		0-28751-035-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (M) M10X50 FLANGE 		0-28161-050-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(K) M10X25 FLANGE 		0-28751-025-0 03 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(I) M10X16 FLANGE 		0-28151-016-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(L) M10X40 FLANGE 		0-28751-040-0 01 1 0805-1003 ●
20 00.029 BOLT; ENG FOOT
(E) M10X20 FLANGE 		0-28051-020-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0805- ●
20 00.029 BOLT; ENG FOOT
03.613 (G) M10X40 FLANGE 		0-28651-040-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.181 (D) M10X100 FLANGE 		0-28051-000-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
(H) M14X45 FLANGE 		0-28851-445-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
09.173 (F) M10X80 FLANGE 		0-28051-080-0 01 1 0805- ●
20 00.029 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 0805- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (N) M8X35 FLANGE 		0-28650-835-0 04 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-HMD,ELEC(M30) 		8-98051-346-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 5 SPEED(MA5) 		8-98051-345-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98051-347-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 5 SPEED(MA5) 		8-98051-343-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 		8-98051-338-0 01 1 0805-1003 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-338-0 01 1 1004- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T AISIN(RMD) 		8-98051-348-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-98051-336-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-349-0 01 1 0805- ●
55 00.002 BOLT; BRKT,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) M10X120 		8-98051-536-0 01 1 0805- ●
152 00.027 DAMPER; DYNAMIC,ENG MTG
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 		8-97373-873-0 01 1 0805- ●

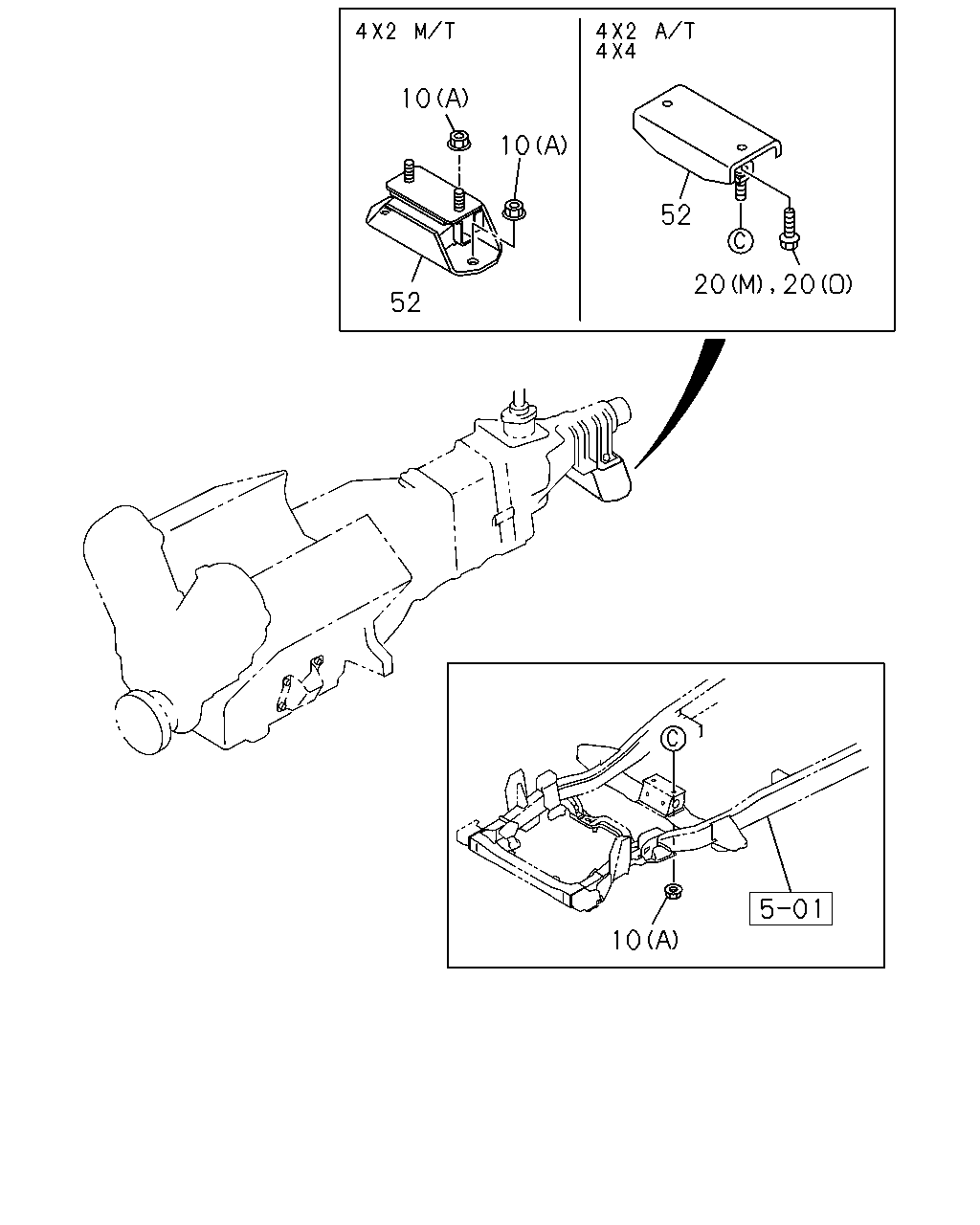

çizim 185815
10 10 52 52 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 1004- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0805-1003 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1004- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-HMD,ELEC(M30) 		8-98051-346-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 5 SPEED(MA5) 		8-98051-345-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98051-347-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 5 SPEED(MA5) 		8-98051-343-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 		8-98051-338-0 01 1 0805-1003 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-338-0 01 1 1004- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T AISIN(RMD) 		8-98051-348-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-98051-336-0 01 1 0805- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98051-349-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
