0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#74670) — 83 parça

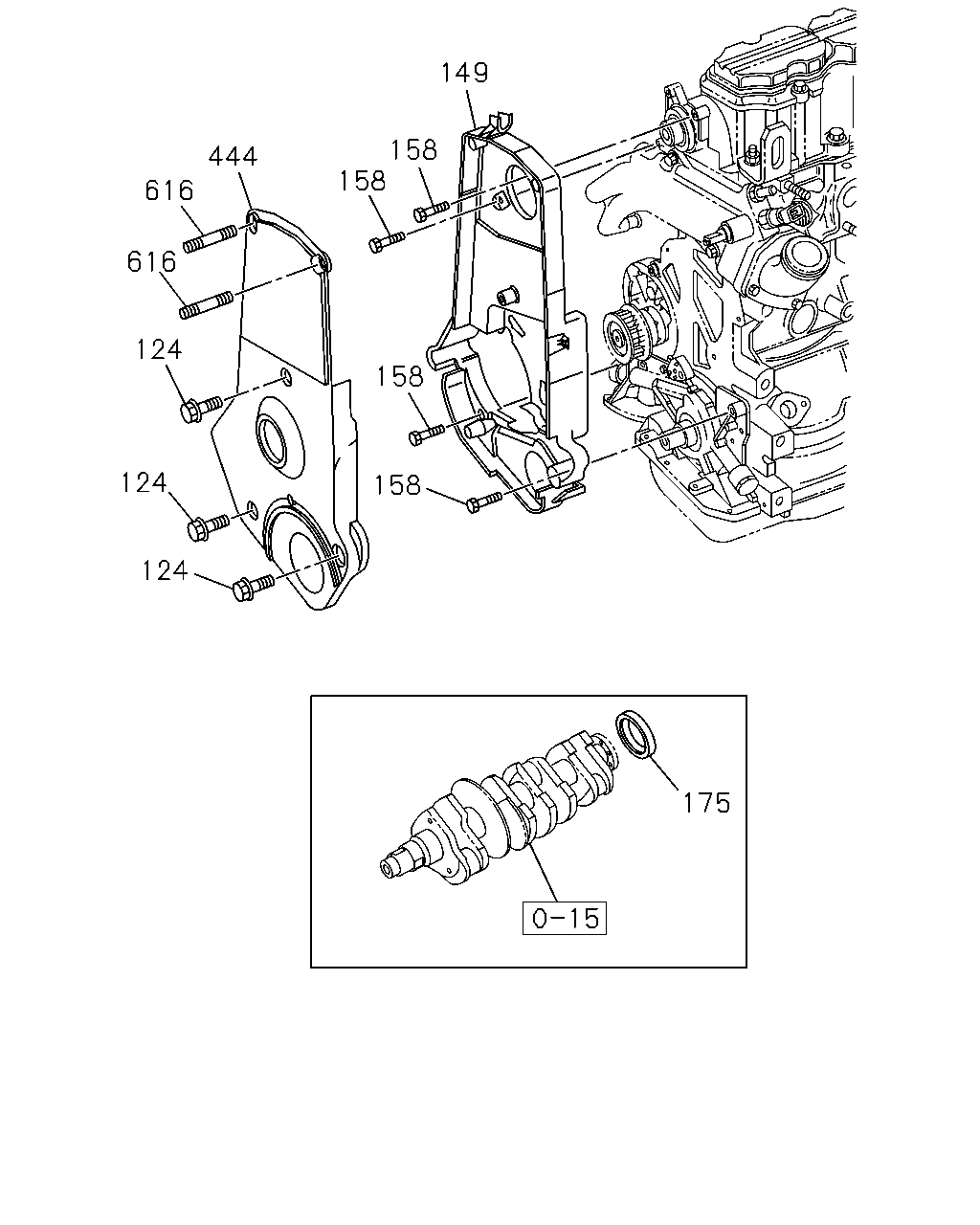

149 158 158 444 616 616 124 158 124 158 124 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
124	00.206 BOLT; TIMING COVER	8-11519-171-0	22	1	0805-	●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0805-1003		●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0805-			●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	0805-1003		●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	0805-1003		●
175	00.137 SEAL; OIL,CR/SHF,RR	8-90298-408-0	01	1	0805-1003		●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0805-			●
444	00.206 COVER; TIMING CASE	8-12601-269-0	01	1	0805-	●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	0805-1003		●
616	00.206 STUD; TIMING COVER	8-92064-377-0	03	1	0805-1003		●

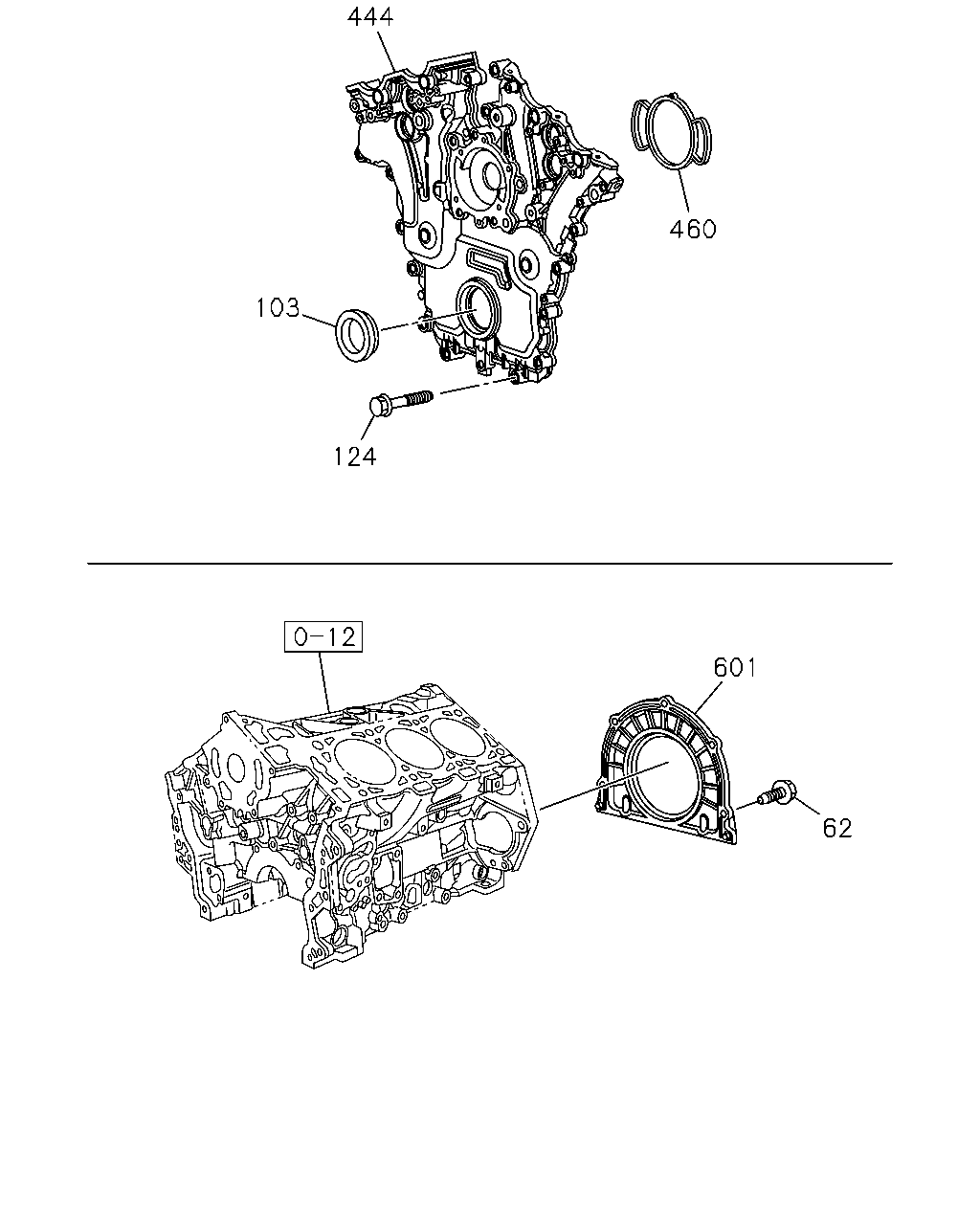

444 460 103 124 601 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	00.206 BOLT; COVER 01.430	8-11588-713-0	05	1	0805-	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-12592-355-0	01	1	0805-	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97943-951-0	01	1	0805-			●
124	00.206 BOLT; TIMING COVER	8-11519-171-0	22	1	0805-	●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0805-1003		●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0805-			●
444	00.206 COVER; TIMING CASE	8-12601-269-0	01	1	0805-	●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	0805-1003		●
460	01.079 SEAL; OIL,WATER PUMP	8-12593-045-0	01	1	0805-	●
601	00.206 COVER; REAR	8-12592-243-0	01	1	0805-	●

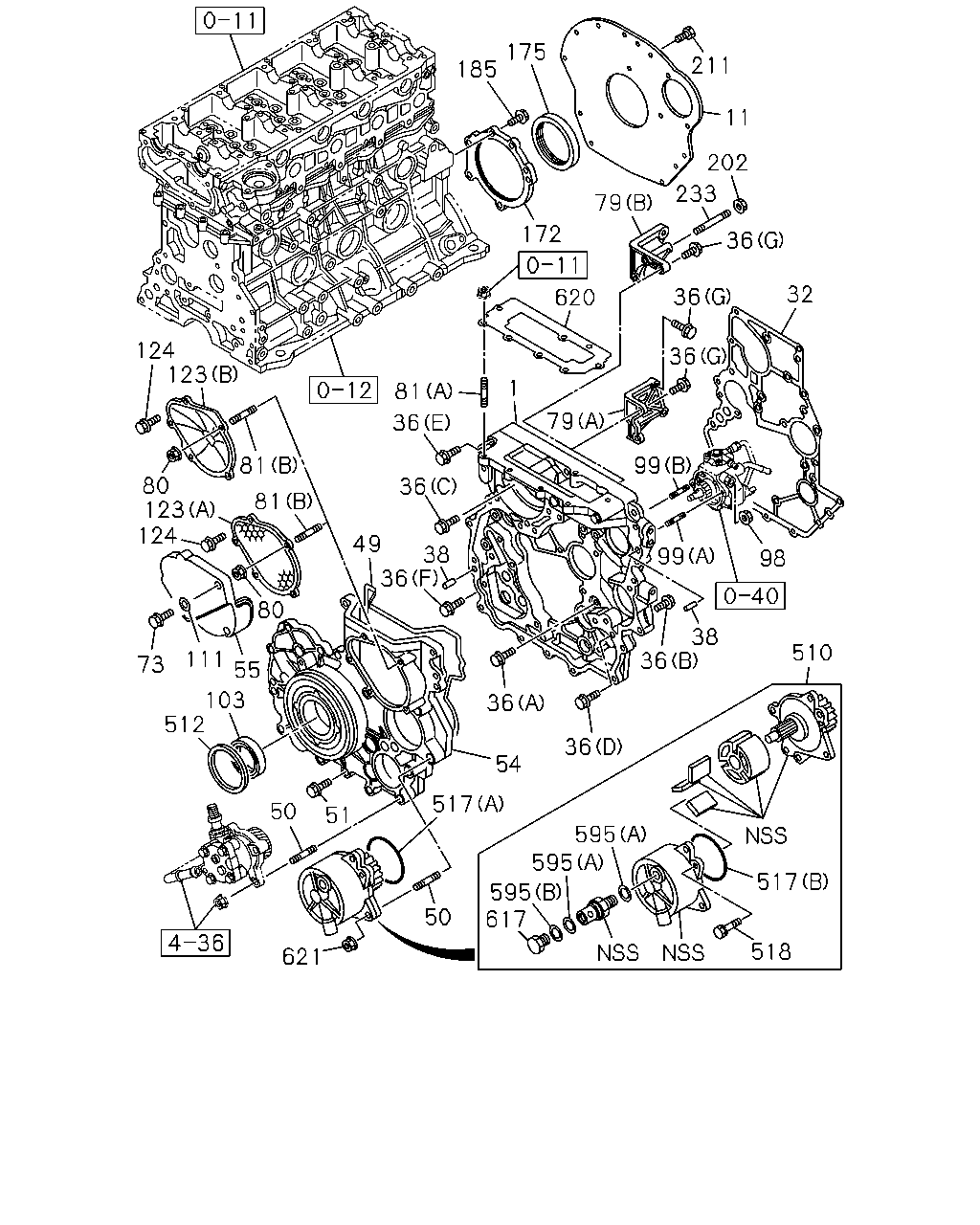

175 211 185 11 202 233 79 172 36 32 36 620 123 36 1 81 79 36 99 81 80 123 124 36 81 99 49 38 36 98 80 38 36 510 55 111 73 103 512 36 36 54 517 50 51 595 595 517 595 617 50 518 621 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR THAI ENGINEERING PRO 15X5.50F STAMP, BLACK	8-97367-309-3	01	1	0805-1007			●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1008-			●
1	00.206 CASE; TIMING GEAR SW & SONS CO.,LTD.	8-97945-261-1	01	1	0805-1007			●
11	00.683 PLATE; RR,C/BL A/T AISIN(RMD)	8-98020-515-1	01	1	0805-			●
11	00.683 PLATE; RR,C/BL M/T MUX 5 SPEED 5S(MZJ)	8-98011-507-2	01	1	0805-			●
32	00.207 GASKET; GEAR CASE TO C/BL	8-97312-221-2	01	1	0805-			●
36	00.206 BOLT; GEAR CASE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0805-			●
36	00.206 BOLT; GEAR CASE 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0805-			●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0805-			●
36	00.206 BOLT; GEAR CASE 09.173 (D) M8X45 FLANGE	0-28050-845-0	02	1	0805-			●
36	00.206 BOLT; GEAR CASE 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0805-			●
36	00.206 BOLT; GEAR CASE 06.216 (F) M8X25 FLANGE	0-28650-825-0	15	1	0805-			●
36	00.206 BOLT; GEAR CASE 03.403 (G) M8X30 FLANGE	0-28650-830-0	03	1	0805-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0805-			●
49	00.206 GASKET; GEAR CASE TO COVER	8-97945-298-0	01	1	0805-			●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0805-			●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0805-			●
54	00.206 COVER; GEAR CASE	8-97367-312-4	01	1	0805-1201			●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1202-			●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0805-1007			●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-1007			●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0805-1007			●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1008-			●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0805-			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0805-			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0805-			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0805-			●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48	0-49140-830-0	01	1	0805-1007			●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1008-			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63	0-49140-845-0	01	1	0805-1007			●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-12592-355-0	01	1	0805-	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97943-951-0	01	1	0805-			●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	0911-1007			●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	0805-0910			●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0805-1007			●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1008-			●
124	00.206 BOLT; TIMING COVER	8-11519-171-0	22	1	0805-	●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0805-1003		●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0805-			●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	0805-			●
175	00.137 SEAL; OIL,CR/SHF,RR	8-90298-408-0	01	1	0805-1003		●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0805-			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0805-			●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1008-			●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	0805-			●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-97367-083-0	01	1	1008-			●
510	04.895 PUMP ASM; VACUUM	8-97312-081-5	01	1	0805-1004			●
510	04.895 PUMP ASM; VACUUM	8-98162-749-0	01	1	1005-1009			●
510	04.895 PUMP ASM; VACUUM	8-98178-027-2	01	1	1010-1302			●
510	04.895 PUMP ASM; VACUUM	8-98211-157-0	01	1	1303-1312			●
510	04.895 PUMP ASM; VACUUM	8-98251-765-0	01	1	1401-			●
512	04.895 RUBBER; SPACE	8-97373-716-0	01	1	0805-			●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0805-			●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0805-1312			●
517	04.895 GASKET; VAC PUMP (B)	8-98251-768-0	01	1	1401-			●
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	0805-			●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24	5-19679-002-0	02	1	0805-			●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24	5-19679-003-0	01	1	0805-			●
617	00.206 BOLT; CHECK VLV	8-97376-402-0	01	1	0805-			●
620	00.207 GASKET; GEAR CASE T=1.40 1-NOTCH	8-97328-828-2	01	1	0805-			●
620	00.207 GASKET; GEAR CASE T=1.45 2-NOTCH	8-97331-631-2	01	1	0805-			●
620	00.207 GASKET; GEAR CASE T=1.50 3-NOTCH	8-97331-632-2	01	1	0805-			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0805-			●
