0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#74669) — 227 parça

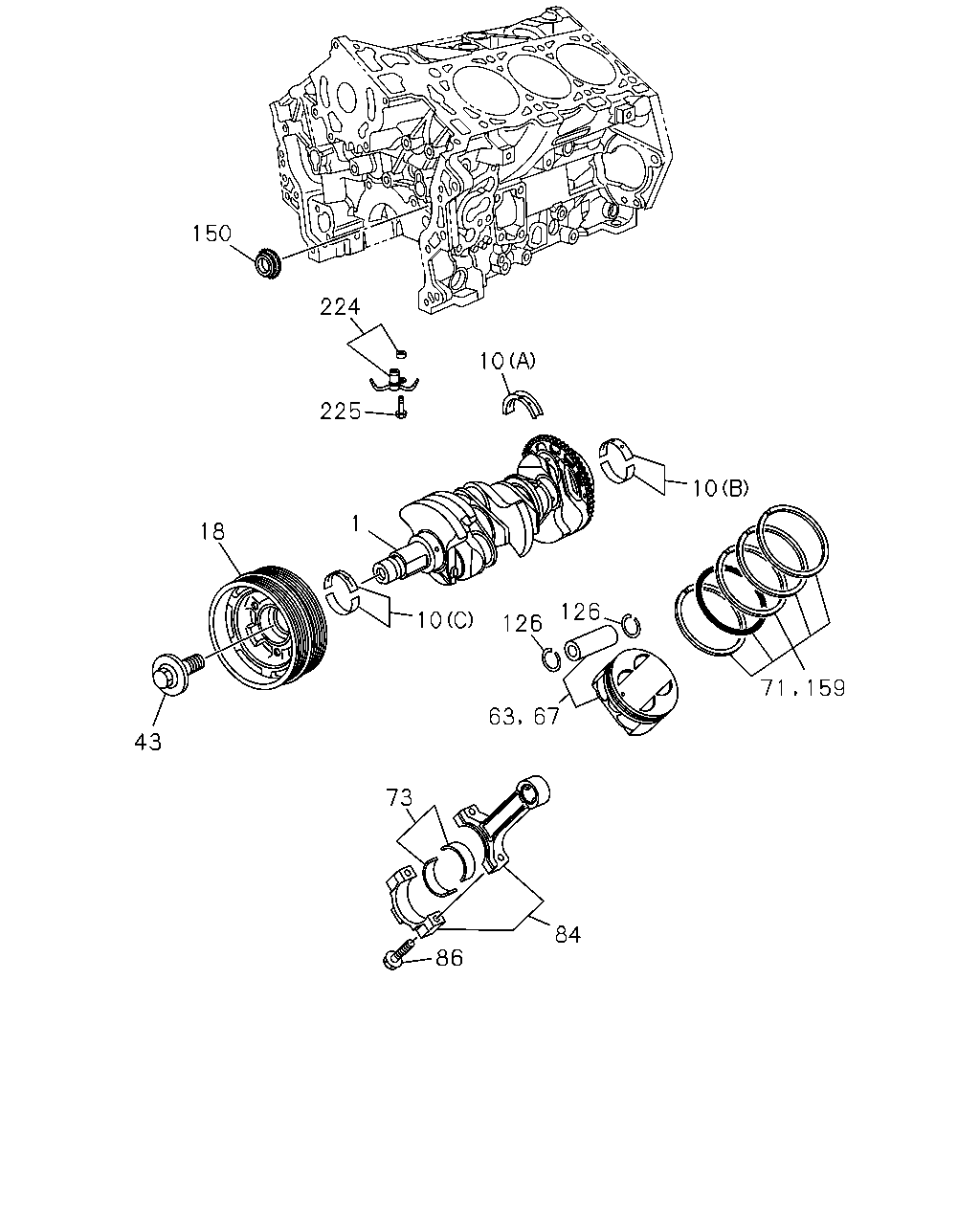

çizim 37715
150 224 10 225 10 1 18 126 10 126 71 159 63 67 43 73 84 86
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ●
1 00.646 CRANKSHAFT 8-12571-127-0 01 1 0805- ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0805-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-12594-223-0 04 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) 		8-12594-225-0 03 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) 		8-12594-226-0 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(E) 		8-92066-633-0 01 1 0805-1003 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) GREEN 		8-97388-502-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLACK 		8-97388-503-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLUE 		8-97388-504-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) YELLOW 		8-97388-505-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) RED 		8-97388-506-0 05 1 0805- ●
18 00.659 PULLEY; CR/SHF 8-12597-654-0 01 1 0805- ●
43 00.662 BOLT; CR/SHF PULLEY 8-11569-873-0 01 1 0805- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0805- ●
63 00.629 PISTON 8-92068-324-0 06 1 0805- ●
63 00.629 PISTON 8-93292-774-0 04 1 0805-1003 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0805-1003 ●
67 00.629 PISTON; O/S=0.25 8-92068-325-0 06 1 0805- ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0805-1201 ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1202- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-92068-453-0 06 1 0805- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98096-561-1 04 1 0805-1112 ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1201- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-12589-621-0 12 1 0805- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0805- ●
84 00.603 ROD ASM; CONN 8-12603-773-0 06 1 0805- ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0805-1003 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0805- ●
86 00.623 BOLT; CONNROD 8-11519-680-0 12 1 0805- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0805-1003 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0805- ●
126 00.639 RING; SNAP,PISTON PIN 8-12566-186-0 12 1 0805- ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0805- ●
150 00.659 SPROCKET; CR/SHF 8-12599-721-0 01 1 0805- ●
159 00.639 RING KIT; PISTON,STANDARD 8-92068-452-0 06 1 0805- ●
224 00.648 NOZZLE; PSTN OIL 8-12590-118-0 03 1 0805- ●
225 00.648 BOLT; NOZZLE
04.197 M6X20 FLANGE 		8-11588-712-0 03 1 0805- ●

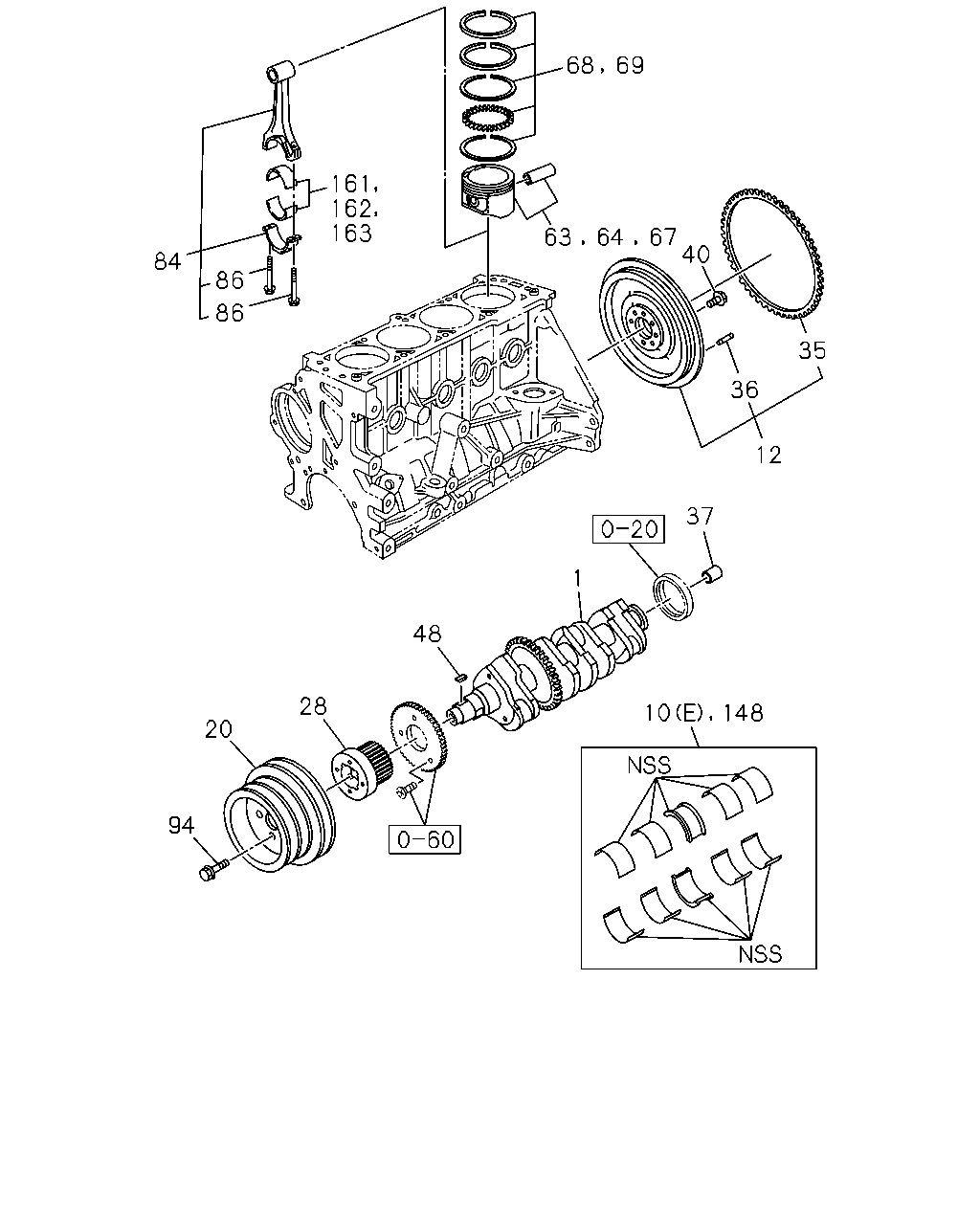

çizim 37971
68 69 161 162 163 63 64 67 40 84 86 86 35 36 12 37 1 48 28 10 148 20 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ●
1 00.646 CRANKSHAFT 8-12571-127-0 01 1 0805- ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0805-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-12594-223-0 04 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) 		8-12594-225-0 03 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) 		8-12594-226-0 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(E) 		8-92066-633-0 01 1 0805-1003 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) GREEN 		8-97388-502-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLACK 		8-97388-503-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLUE 		8-97388-504-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) YELLOW 		8-97388-505-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) RED 		8-97388-506-0 05 1 0805- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-12572-046-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-12572-046-0 01 1 1004- ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-12575-412-0 01 1 0805- ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0805- ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0805- ●
20 00.659 DAMPER; CR/SHF 8-92063-589-0 01 1 0805-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0805-1003 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0805- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0805-1003 ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=108 		8-97912-516-1 01 1 0805- ●
35 00.673 GEAR; RING
M/T MUX 5 SPEED 5S(MZJ) Z=122 		8-94364-395-1 01 1 0805- ●
36 00.862 PIN; FLYWHEEL 8-92061-816-0 03 1 0805-1003 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) 		8-90105-743-0 01 1 0805-1003 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
4X2(TFB***) 		8-90105-743-0 01 1 0805-1003 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) 		8-90105-743-0 01 1 1004- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-11518-862-0 08 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-11518-862-0 08 1 1004- ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-11588-884-0 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0805- ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-11010-612-0 01 1 0805-1003 ●
63 00.629 PISTON 8-92068-324-0 06 1 0805- ●
63 00.629 PISTON 8-93292-774-0 04 1 0805-1003 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0805-1003 ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0805-1201 ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1202- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0805-1003 ●
67 00.629 PISTON; O/S=0.25 8-92068-325-0 06 1 0805- ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0805-1201 ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1202- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0805-1003 ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0805-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 0805-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1201- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0805- ●
84 00.603 ROD ASM; CONN 8-12603-773-0 06 1 0805- ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0805-1003 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0805- ●
86 00.623 BOLT; CONNROD 8-11519-680-0 12 1 0805- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0805-1003 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0805- ●
94 00.659 BOLT; DAMPER
02.183 		8-11094-881-0 04 1 0805-1003 ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.25 		8-92066-634-0 01 1 0805-1003 ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.50 		8-92066-635-0 01 1 0805-1003 ●
161 00.616 METAL KIT; CONN ROD,STANDARD
00.094 		8-92028-817-0 01 1 0805-1003 ●
162 00.616 METAL KIT; CONN ROD,U/S=0.25
00.094 		8-92028-818-0 01 1 0805-1003 ●
163 00.616 METAL KIT; CONN ROD,U/S=0.50
00.094 		8-92028-819-0 01 1 0805-1003 ●

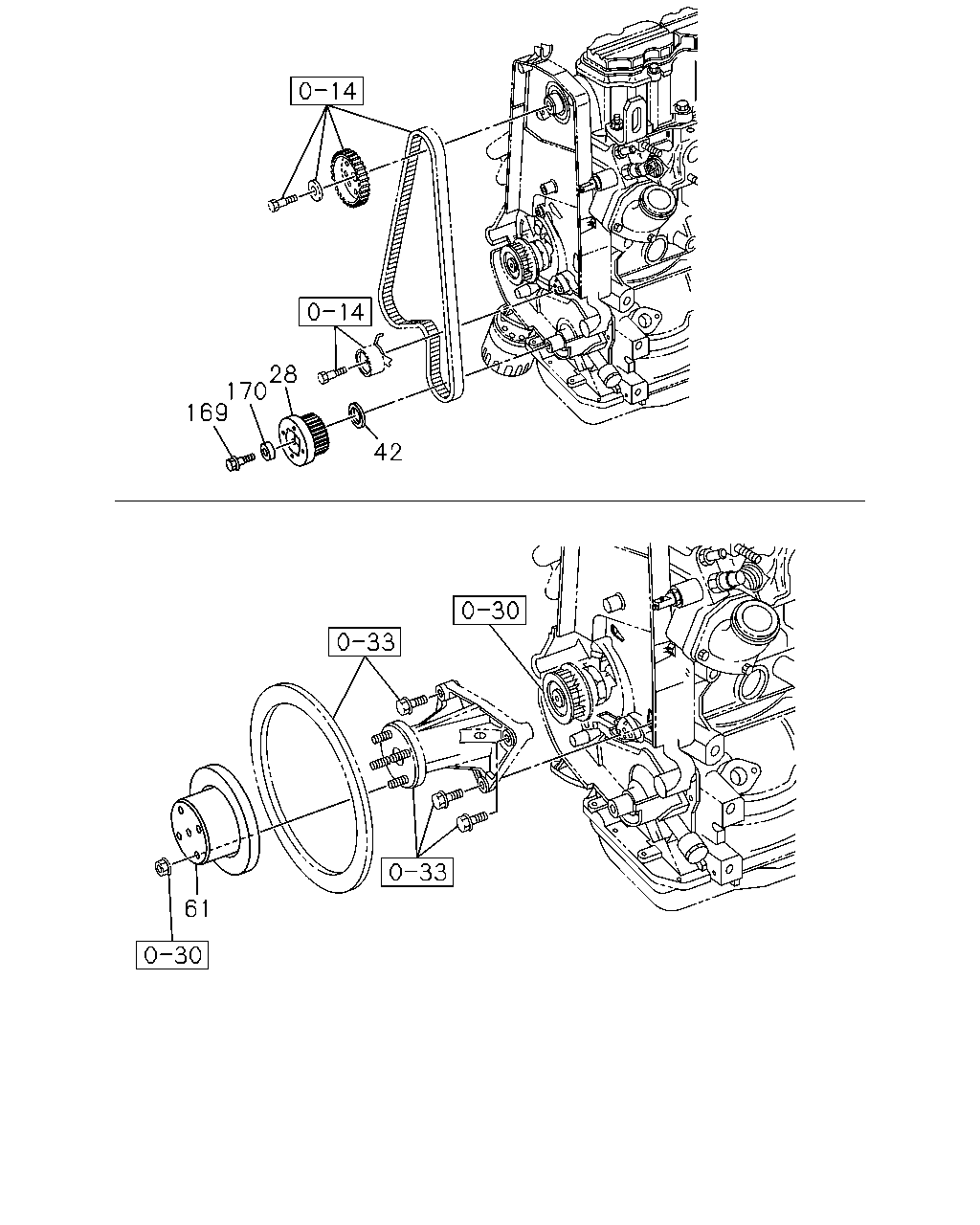

çizim 38043
28 170 169 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0805-1003 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0805- ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0805-1003 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0805- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0805-1003 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0805- ●
169 00.659 BOLT; GEAR TO CRANKSHAFT 8-11085-932-0 01 1 0805-1003 ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-92023-395-0 01 1 0805-1003 ●

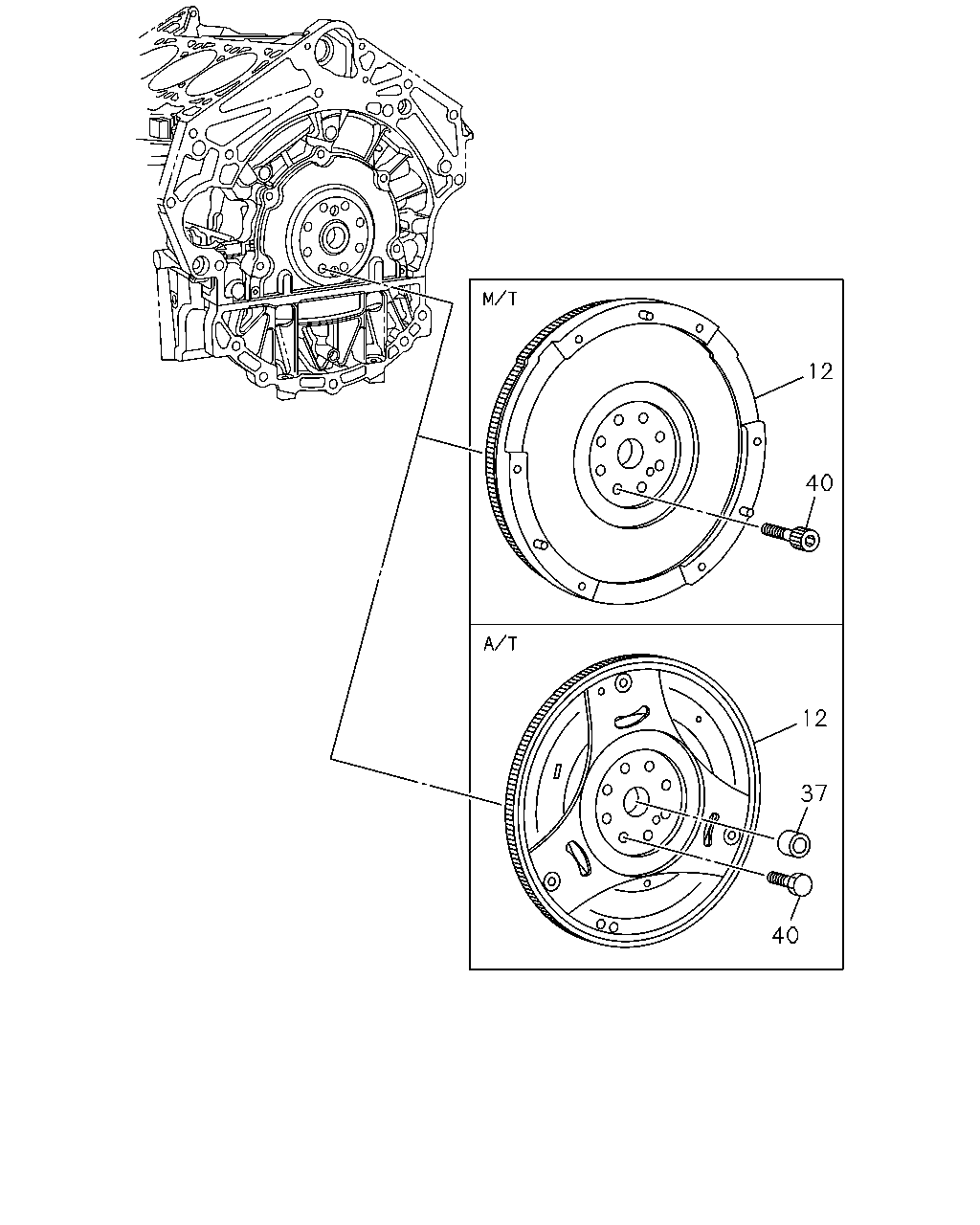

çizim 185807
12 40 12 37 40
BalonParca AdiParca NoAdetTipApplied Date A B C
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-12572-046-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-12572-046-0 01 1 1004- ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-12575-412-0 01 1 0805- ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0805- ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0805- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) 		8-90105-743-0 01 1 0805-1003 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
4X2(TFB***) 		8-90105-743-0 01 1 0805-1003 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) 		8-90105-743-0 01 1 1004- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-11518-862-0 08 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-11518-862-0 08 1 1004- ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-11588-884-0 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0805- ●

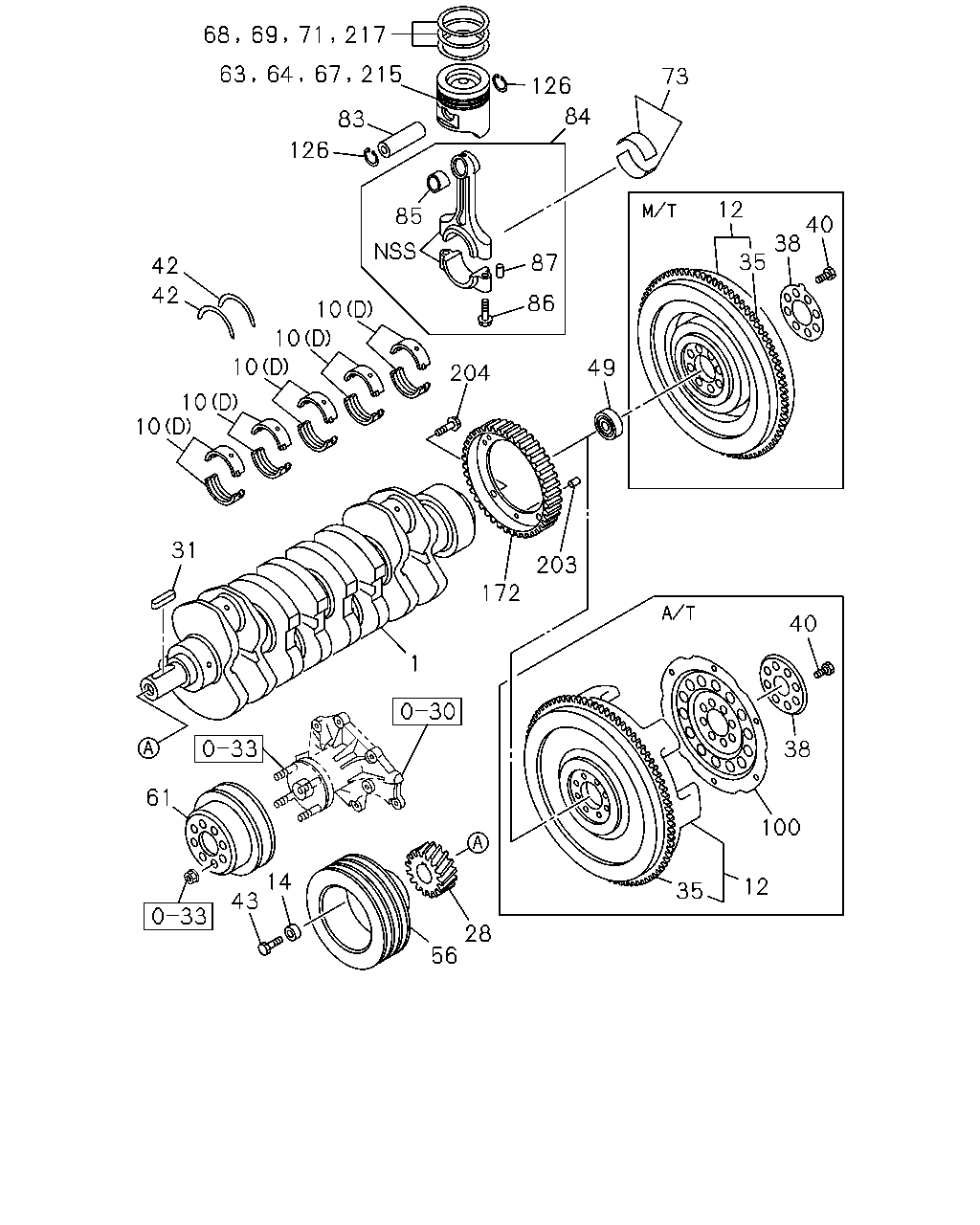

çizim 185814
68 69 71 217 215 67 64 63 83 126 85 126 73 84 12 35 38 40 49 86 87 10 10 10 10 10 42 42 204 203 172 1 61 43 14 28 56 35 12 100 38 40 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ●
1 00.646 CRANKSHAFT 8-12571-127-0 01 1 0805- ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0805-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-12594-223-0 04 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) 		8-12594-225-0 03 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) 		8-12594-226-0 01 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(E) 		8-92066-633-0 01 1 0805-1003 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) GREEN 		8-97388-502-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLACK 		8-97388-503-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) BLUE 		8-97388-504-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) YELLOW 		8-97388-505-0 05 1 0805- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) RED 		8-97388-506-0 05 1 0805- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-12572-046-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-12572-046-0 01 1 1004- ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-12575-412-0 01 1 0805- ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0805-1003 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0805- ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0805- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0805- ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0805-1003 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0805- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1404- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 0805- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0805-1003 ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=108 		8-97912-516-1 01 1 0805- ●
35 00.673 GEAR; RING
M/T MUX 5 SPEED 5S(MZJ) Z=122 		8-94364-395-1 01 1 0805- ●
38 00.862 WASHER; FLYWHEEL
A/T AISIN(RMD) 		8-97038-939-1 01 1 0805- ●
38 00.862 WASHER; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 00.669 		8-94133-970-1 01 1 0805- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) EURO3 SPECIFICATION<NT3> 		8-11518-862-0 08 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-11518-862-0 08 1 1004- ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-11588-884-0 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0805-1003 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0805- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0805- ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0805-1003 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0805- ●
43 00.662 BOLT; CR/SHF PULLEY 8-11569-873-0 01 1 0805- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0805- ●
49 00.669 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) 00.096 NSK 		8-97920-344-2 01 1 0805- ●
49 00.669 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) NACHI 		8-97922-552-1 01 1 0805- ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 0805- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0805-1003 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0805- ●
63 00.629 PISTON 8-92068-324-0 06 1 0805- ●
63 00.629 PISTON 8-93292-774-0 04 1 0805-1003 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0805-1201 ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0805-1003 ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0805-1201 ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1202- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0805-1003 ●
67 00.629 PISTON; O/S=0.25 8-92068-325-0 06 1 0805- ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0805-1201 ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1202- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0805-1003 ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0805-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 0805-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1201- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0805- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-92068-453-0 06 1 0805- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98096-561-1 04 1 0805-1112 ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1201- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-12589-621-0 12 1 0805- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0805- ●
83 00.636 PIN; PISTON 8-97311-928-2 04 1 0805-0910 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 0911- ●
84 00.603 ROD ASM; CONN 8-12603-773-0 06 1 0805- ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0805-1003 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0805- ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 0805- ●
86 00.623 BOLT; CONNROD 8-11519-680-0 12 1 0805- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0805-1003 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0805- ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0805- ●
100 00.666 PLATE; FLEX
A/T AISIN(RMD) 		8-97118-308-0 01 1 0805- ●
126 00.639 RING; SNAP,PISTON PIN 8-12566-186-0 12 1 0805- ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0805- ●
172 02.383 ROTOR; CRANK SENSOR 8-97312-337-0 01 1 0805- ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 0805- ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 0805- ●
215 00.629 PISTON; O/S=0.75 8-98028-032-0 04 1 0805-1201 ●
215 00.629 PISTON; O/S=0.75 8-98132-712-1 04 1 1202- ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98096-563-1 04 1 0805-1112 ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-047-0 04 1 1201- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
