0-14 — CAMSHAFT AND VALVE (#74668) — 199 parça

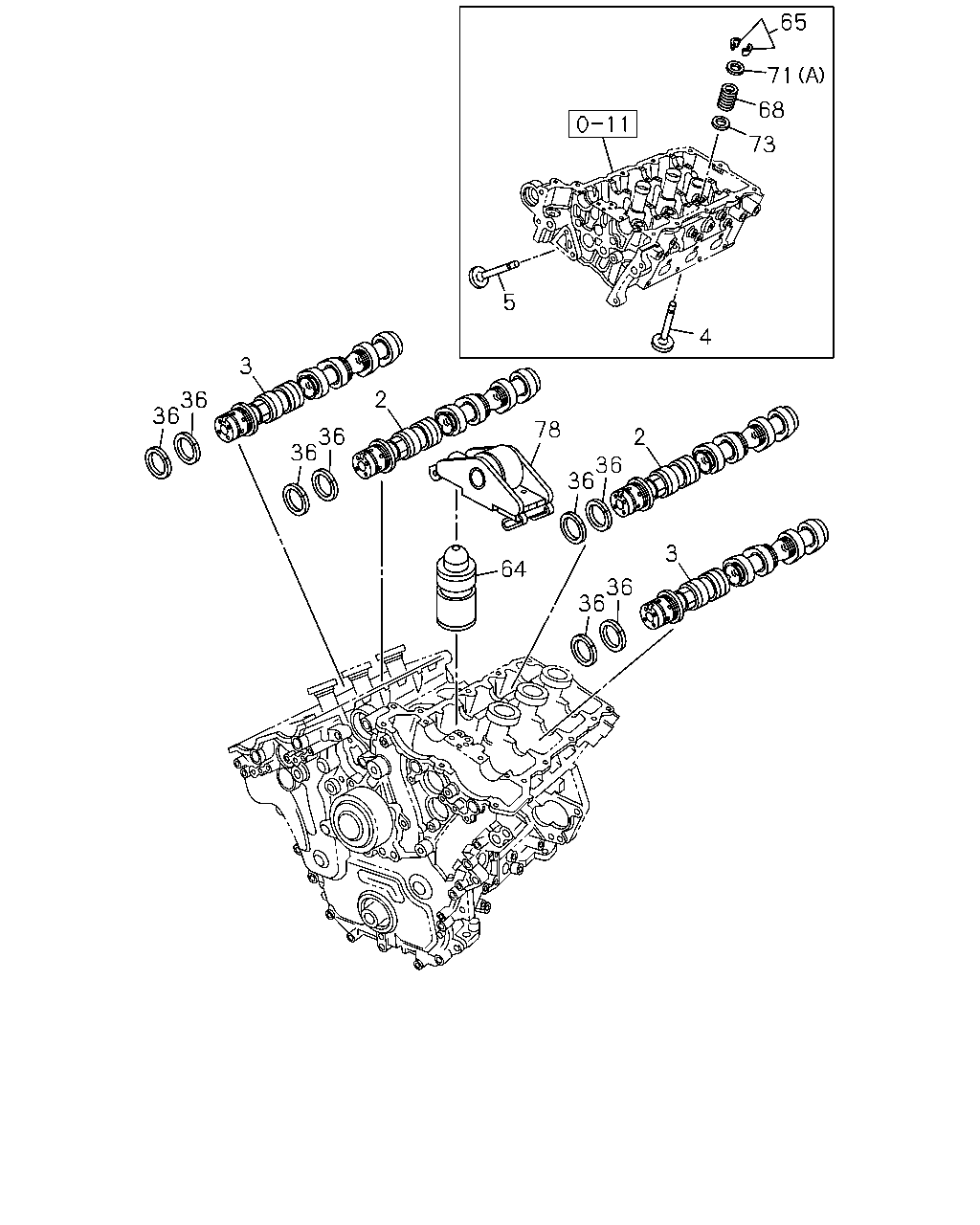

65 71 68 73 5 4 3 2 36 36 78 36 36 2 36 36 3 64 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.519 CAMSHAFT; INL	8-12603-542-0	01	1	0805-	●
2	00.519 CAMSHAFT; INL	8-12603-543-0	01	1	0805-	●
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	0805-		●
3	00.519 CAMSHAFT; EXH	8-12591-218-0	01	1	0805-	●
3	00.519 CAMSHAFT; EXH	8-12591-219-0	01	1	0805-	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	0805-		●
4	00.296 VALVE; INL	8-12575-351-0	12	1	0805-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0805-1003			●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0805-		●
5	00.297 VALVE; EXH	8-12575-354-0	12	1	0805-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0805-1003			●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0805-		●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-12574-477-0	08	1	0805-	●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-90280-463-0	01	1	0805-1003			●
64	00.459 ADJUSTER; VLV LASH	8-12572-638-0	24	1	0805-	●
64	00.459 ADJUSTER; VLV LASH	8-05233-315-0	08	1	0805-1003			●
65	00.310 COLLAR; SPLIT	8-12575-197-0	48	1	0805-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0805-1003			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0805-		●
68	00.303 SPRING; VLV	8-12575-355-0	24	1	0805-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0805-1003			●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0805-		●
71	00.309 SEAT; SPR (A)	8-12575-196-0	24	1	0805-	●
71	00.309 SEAT; SPR (D)	8-90128-720-0	04	1	0805-1003			●
71	00.309 SEAT; SPR 00.283 (E)	8-90499-099-0	04	1	0805-1003			●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	0805-		●
71	00.309 SEAT; SPR (C) OD=29.5	8-97311-668-0	16	1	0805-		●
73	00.309 SEAL; VLV GUIDE	8-12565-836-0	24	1	0805-	●
73	00.309 SEAL; VLV GUIDE	8-90215-296-0	08	1	0805-1003			●
78	00.333 ARM; ROCKER	8-24100-294-0	24	1	0805-	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0805-		●

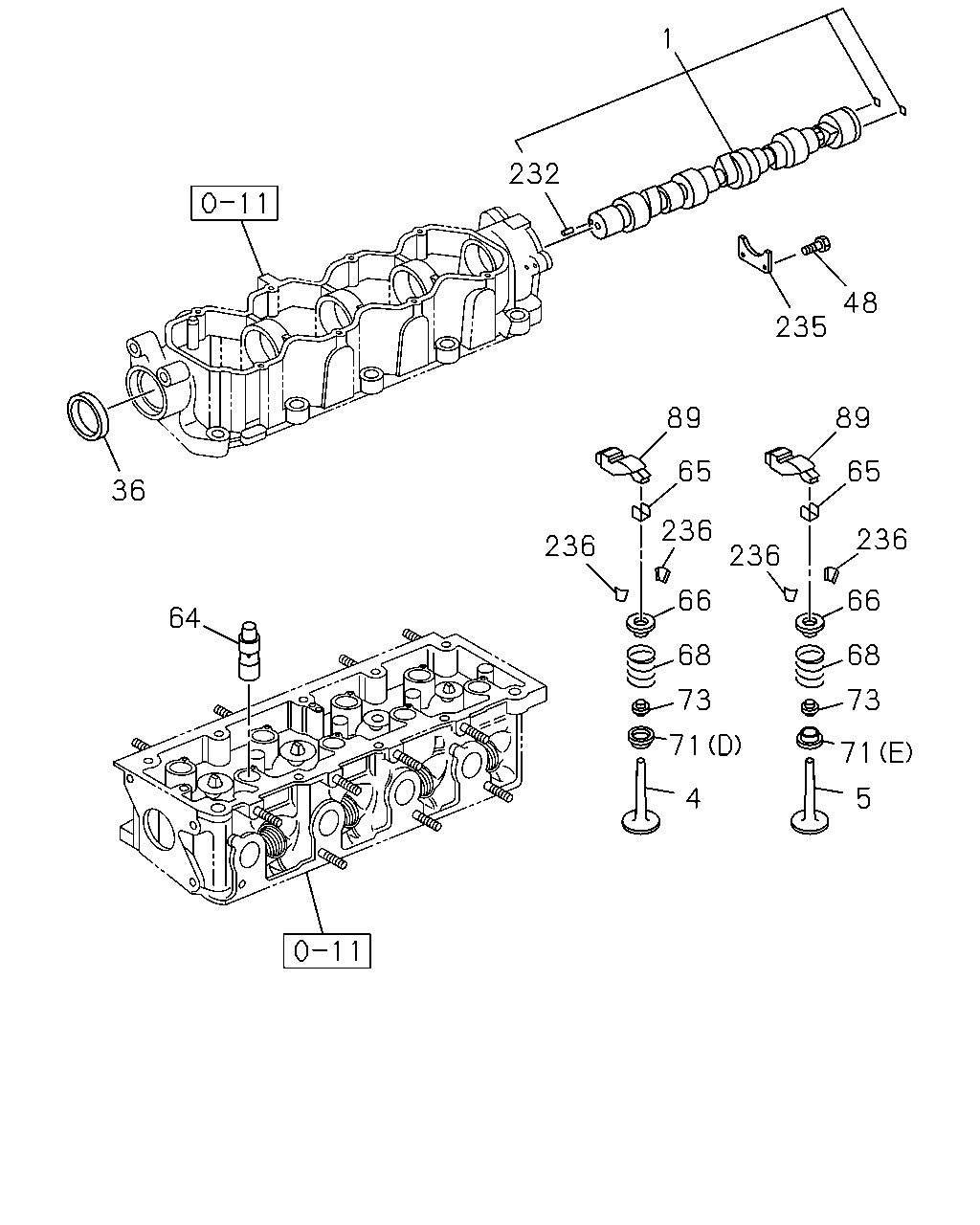

1 232 48 235 89 89 65 65 36 236 236 236 236 66 66 64 68 68 73 73 71 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT	8-92065-519-0	01	1	0805-1003			●
4	00.296 VALVE; INL	8-12575-351-0	12	1	0805-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0805-1003			●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0805-		●
5	00.297 VALVE; EXH	8-12575-354-0	12	1	0805-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0805-1003			●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0805-		●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-12574-477-0	08	1	0805-	●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-90280-463-0	01	1	0805-1003			●
48	00.724 BOLT; RET	8-90264-407-0	02	1	0805-1003			●
64	00.459 ADJUSTER; VLV LASH	8-12572-638-0	24	1	0805-	●
64	00.459 ADJUSTER; VLV LASH	8-05233-315-0	08	1	0805-1003			●
65	00.310 COLLAR; SPLIT	8-12575-197-0	48	1	0805-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0805-1003			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0805-		●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	0805-1003			●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0805-0910		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-		●
68	00.303 SPRING; VLV	8-12575-355-0	24	1	0805-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0805-1003			●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0805-		●
71	00.309 SEAT; SPR (A)	8-12575-196-0	24	1	0805-	●
71	00.309 SEAT; SPR (D)	8-90128-720-0	04	1	0805-1003			●
71	00.309 SEAT; SPR 00.283 (E)	8-90499-099-0	04	1	0805-1003			●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	0805-		●
71	00.309 SEAT; SPR (C) OD=29.5	8-97311-668-0	16	1	0805-		●
73	00.309 SEAL; VLV GUIDE	8-12565-836-0	24	1	0805-	●
73	00.309 SEAL; VLV GUIDE	8-90215-296-0	08	1	0805-1003			●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	0805-1003			●
232	00.662 PIN; GEAR SET	8-11055-129-0	01	1	0805-1003			●
235	00.724 RETAINER; CM/SHF	8-90233-647-0	01	1	0805-1003			●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-90076-732-0	16	1	0805-1003			●

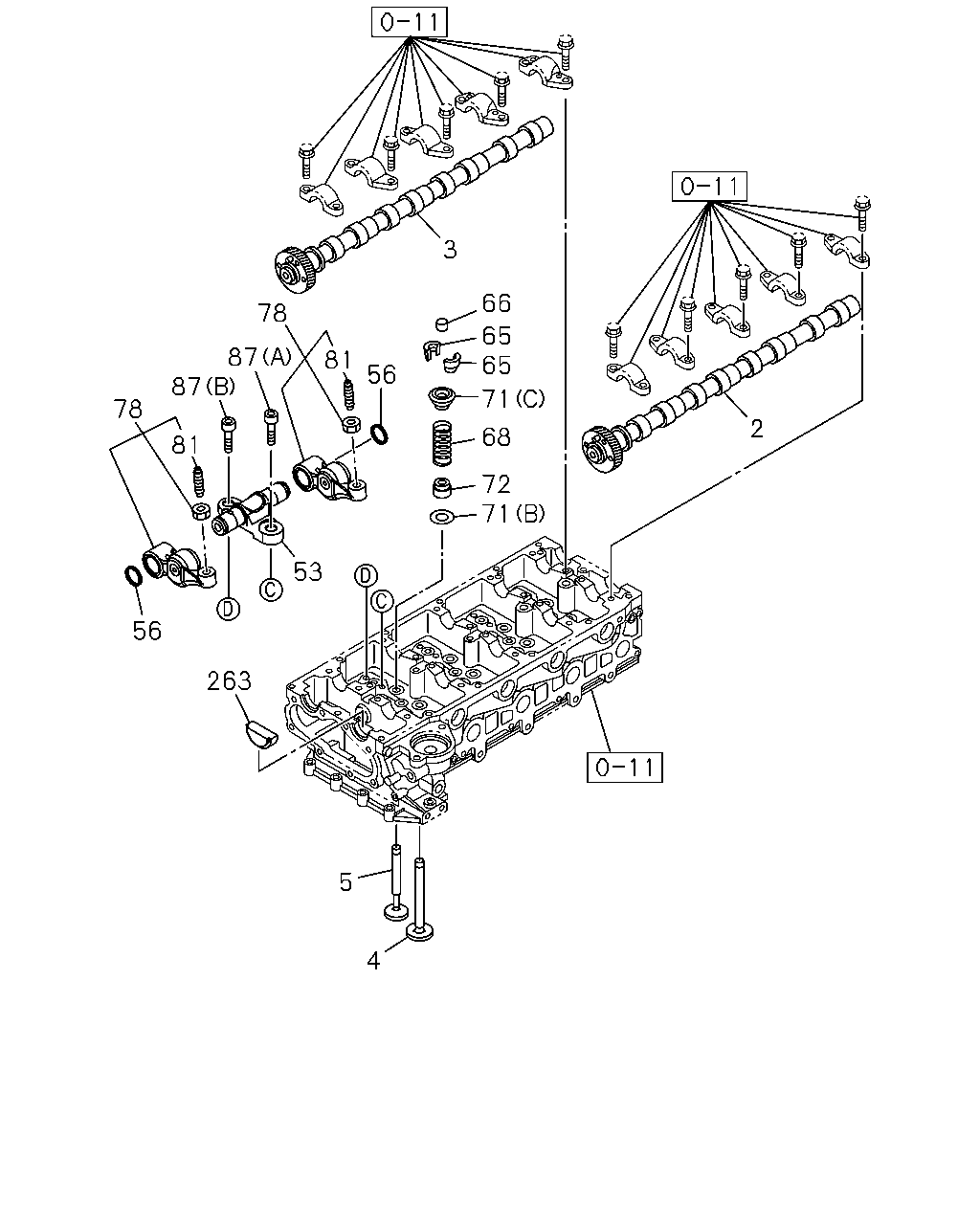

3 66 78 65 65 87 87 81 56 71 78 2 68 81 72 71 53 56 263 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.519 CAMSHAFT; INL	8-12603-542-0	01	1	0805-	●
2	00.519 CAMSHAFT; INL	8-12603-543-0	01	1	0805-	●
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	0805-		●
3	00.519 CAMSHAFT; EXH	8-12591-218-0	01	1	0805-	●
3	00.519 CAMSHAFT; EXH	8-12591-219-0	01	1	0805-	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	0805-		●
4	00.296 VALVE; INL	8-12575-351-0	12	1	0805-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0805-1003			●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0805-1003			●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0805-		●
5	00.297 VALVE; EXH	8-12575-354-0	12	1	0805-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0805-1003			●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0805-1003			●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0805-		●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	0805-		●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	0805-		●
56	00.349 RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	0805-		●
65	00.310 COLLAR; SPLIT	8-12575-197-0	48	1	0805-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0805-1003			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0805-		●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	0805-1003			●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0805-0910		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-		●
68	00.303 SPRING; VLV	8-12575-355-0	24	1	0805-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0805-1003			●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0805-		●
71	00.309 SEAT; SPR (A)	8-12575-196-0	24	1	0805-	●
71	00.309 SEAT; SPR (D)	8-90128-720-0	04	1	0805-1003			●
71	00.309 SEAT; SPR 00.283 (E)	8-90499-099-0	04	1	0805-1003			●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	0805-		●
71	00.309 SEAT; SPR (C) OD=29.5	8-97311-668-0	16	1	0805-		●
72	00.308 SEAL; VLV GUIDE	8-97328-647-0	16	1	0805-		●
78	00.333 ARM; ROCKER	8-24100-294-0	24	1	0805-	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0805-		●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1103-		●
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	0805-		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	0805-		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97947-079-0	04	1	0805-		●

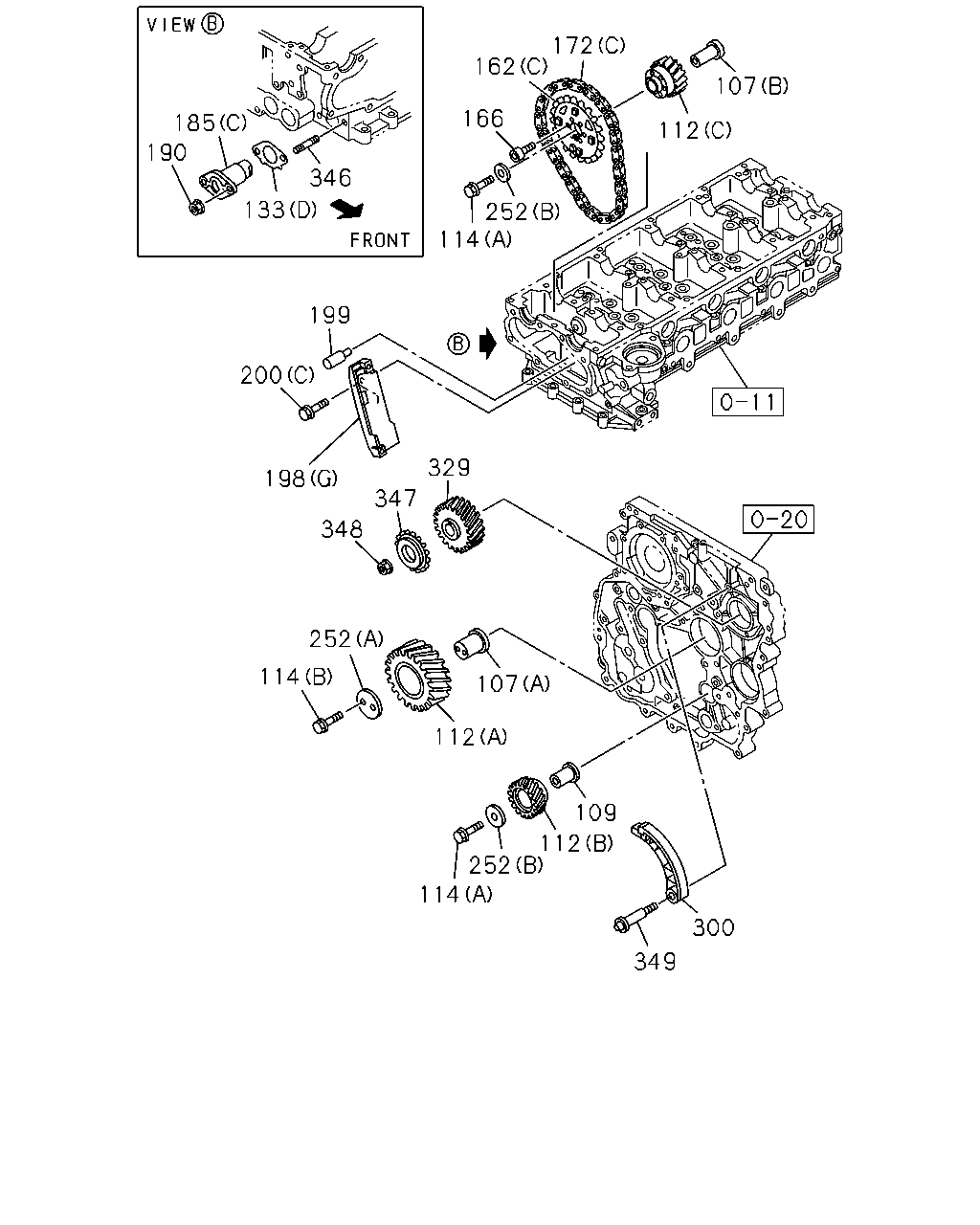

300 109 112 252 114 112 107 252 114 348 329 198 200 199 114 252 166 162 172 107 112 133 346 185 190 347 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	0805-		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	0805-		●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0805-		●
112	00.724 GEAR; IDLE (A) Z=80	8-98021-050-2	01	1	0805-		●
112	00.724 GEAR; IDLE (B) Z=34	8-98021-052-1	01	1	0805-		●
112	00.724 GEAR; IDLE (C) Z=35	8-98021-053-3	01	1	0805-		●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0805-		●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0805-		●
133	00.356 GASKET; CHAIN TENSIONER (A)	8-12589-477-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (B)	8-12589-478-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (C)	8-12589-479-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (D)	8-97312-336-0	01	1	0805-		●
162	00.736 SPROCKET; IDLE (B)	8-12600-459-0	01	1	0805-	●
162	00.736 SPROCKET; IDLE (A)	8-12600-460-0	01	1	0805-	●
162	00.736 SPROCKET; IDLE (C)	8-97312-331-1	01	1	0805-		●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0805-		●
172	00.724 CHAIN; TIMING,CM/SHF (A)	8-12599-716-0	02	1	0805-	●
172	00.724 CHAIN; TIMING,CM/SHF (B)	8-12599-718-0	01	1	0805-	●
172	00.724 CHAIN; TIMING,CM/SHF (C)	8-97945-067-0	01	1	0805-0908		●
172	00.724 CHAIN; TIMING,CM/SHF (C)	8-98119-279-1	01	1	0909-		●
185	00.724 TENSIONER; CHAIN (B)	8-12609-260-0	01	1	0805-	●
185	00.724 TENSIONER; CHAIN (A)	8-12609-258-0	01	1	0805-	●
185	00.724 TENSIONER; CHAIN (C)	8-97945-068-1	01	1	0805-		●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0805-		●
198	00.724 GUIDE; TIMING CHAIN (C)	8-12586-959-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (A)	8-12597-417-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (D)	8-12586-960-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (F)	8-12600-461-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (E)	8-12586-961-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (B)	8-12600-462-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (G)	8-97945-069-0	01	1	0805-1009		●
198	00.724 GUIDE; TIMING CHAIN (G)	8-98173-188-0	01	1	1010-		●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0805-		●
200	00.724 BOLT; CHAIN GUIDE,LWR (A)	8-11588-255-0	04	1	0805-	●
200	00.724 BOLT; CHAIN GUIDE,LWR (B)	8-11588-725-0	02	1	0805-	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 (C) M8X20	1-09070-120-1	02	1	0805-		●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	0805-		●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	0805-		●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0805-0809		●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	0810-		●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	0805-		●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0805-		●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0805-		●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0805-		●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0805-		●

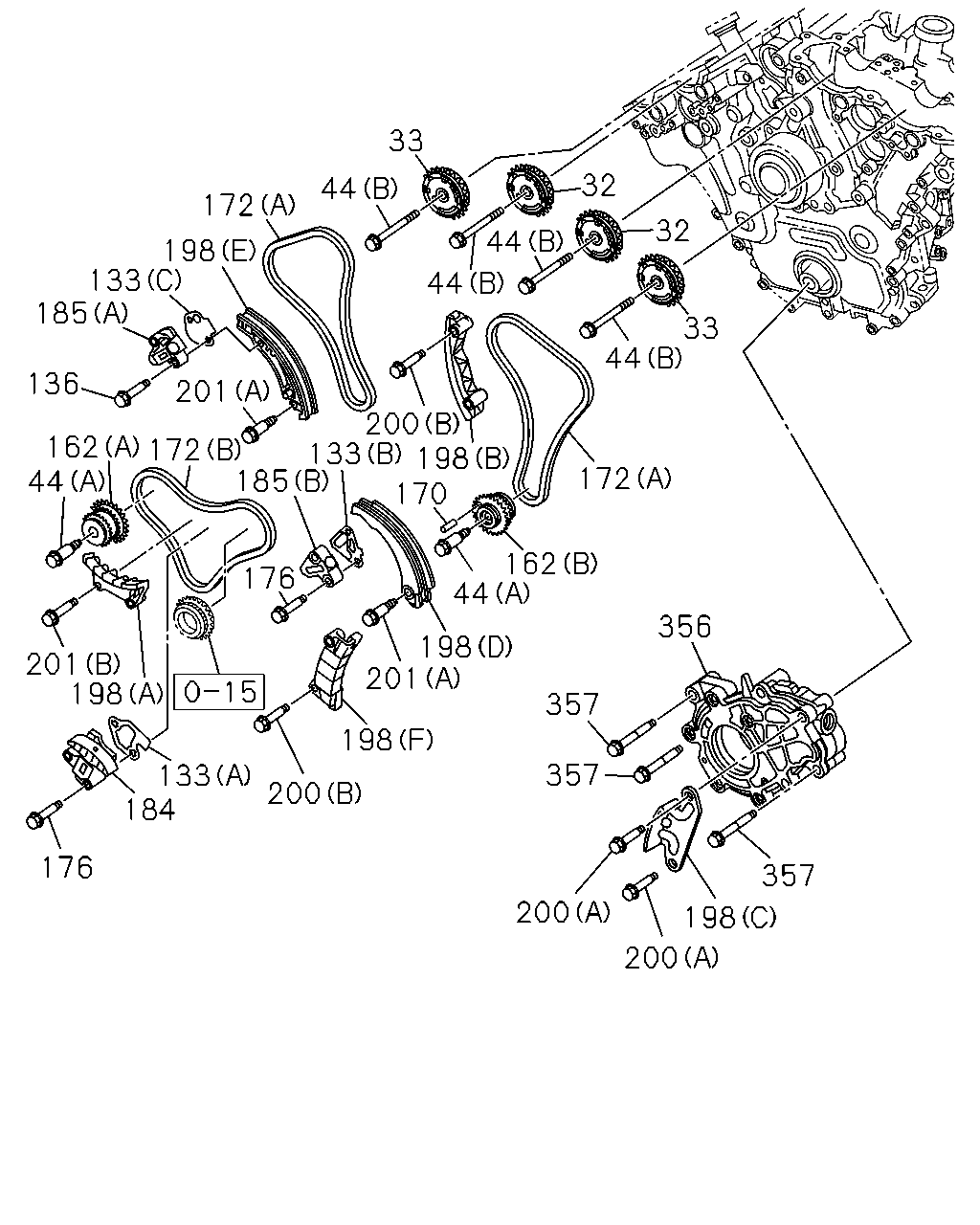

33 32 44 172 32 44 198 133 185 44 33 44 136 201 200 172 33 198 185 170 162 44 172 162 44 176 356 198 201 201 198 357 198 357 133 184 200 176 357 200 198 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	00.736 SPROCKET; CM/SHF INL	8-92068-228-0	02	1	0805-	●
33	00.736 SPROCKET; CM/SHF EXH	8-12599-724-0	02	1	0805-	●
44	00.738 BOLT (A)	8-11588-252-0	02	1	0805-	●
44	00.738 BOLT (B)	8-11588-279-0	04	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (A)	8-12589-477-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (B)	8-12589-478-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (C)	8-12589-479-0	01	1	0805-	●
133	00.356 GASKET; CHAIN TENSIONER (D)	8-97312-336-0	01	1	0805-		●
136	00.724 BOLT; TENSIONER	8-11588-255-0	02	1	0805-	●
162	00.736 SPROCKET; IDLE (B)	8-12600-459-0	01	1	0805-	●
162	00.736 SPROCKET; IDLE (A)	8-12600-460-0	01	1	0805-	●
162	00.736 SPROCKET; IDLE (C)	8-97312-331-1	01	1	0805-		●
170	00.724 PIN; SPROCKET	8-12585-420-0	02	1	0805-	●
172	00.724 CHAIN; TIMING,CM/SHF (A)	8-12599-716-0	02	1	0805-	●
172	00.724 CHAIN; TIMING,CM/SHF (B)	8-12599-718-0	01	1	0805-	●
172	00.724 CHAIN; TIMING,CM/SHF (C)	8-97945-067-0	01	1	0805-0908		●
172	00.724 CHAIN; TIMING,CM/SHF (C)	8-98119-279-1	01	1	0909-		●
176	00.724 BOLT; TENSIONER,SECONDARY	8-11588-255-0	04	1	0805-	●
184	00.724 TENSIONER; CHAIN,PRIMARY	8-12609-262-0	01	1	0805-	●
185	00.724 TENSIONER; CHAIN (B)	8-12609-260-0	01	1	0805-	●
185	00.724 TENSIONER; CHAIN (A)	8-12609-258-0	01	1	0805-	●
185	00.724 TENSIONER; CHAIN (C)	8-97945-068-1	01	1	0805-		●
198	00.724 GUIDE; TIMING CHAIN (C)	8-12586-959-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (A)	8-12597-417-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (D)	8-12586-960-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (F)	8-12600-461-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (E)	8-12586-961-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (B)	8-12600-462-0	01	1	0805-	●
198	00.724 GUIDE; TIMING CHAIN (G)	8-97945-069-0	01	1	0805-1009		●
198	00.724 GUIDE; TIMING CHAIN (G)	8-98173-188-0	01	1	1010-		●
200	00.724 BOLT; CHAIN GUIDE,LWR (A)	8-11588-255-0	04	1	0805-	●
200	00.724 BOLT; CHAIN GUIDE,LWR (B)	8-11588-725-0	02	1	0805-	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 (C) M8X20	1-09070-120-1	02	1	0805-		●
201	00.724 BOLT; CHAIN GUIDE,UPR (A)	8-11561-619-0	02	1	0805-	●
201	00.724 BOLT; CHAIN GUIDE,UPR (B)	8-11588-255-0	02	1	0805-	●
356	01.652 PUMP ASM; OIL 01.723	8-12590-152-0	01	1	0805-	●
357	01.652 BOLT; OIL PUMP	8-11588-729-0	03	1	0805-	●

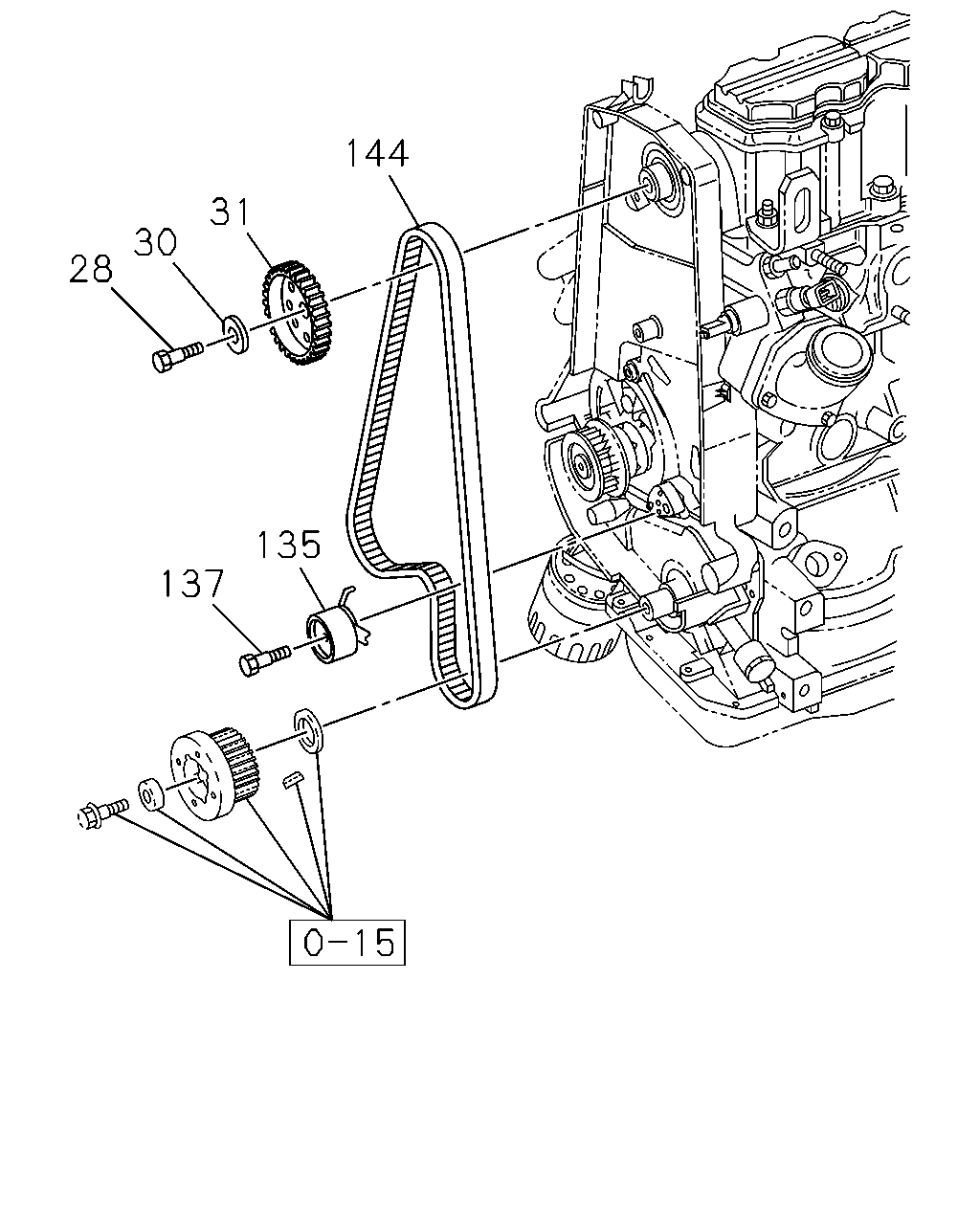

144 31 30 28 135 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
28	00.738 BOLT; CAM PULLEY	8-11073-824-0	01	1	0805-1003	●
30	00.662 WASHER; PULLEY	8-90067-443-0	01	1	0805-1003	●
31	00.736 SPROCKET; CM/SHF	8-93262-588-0	01	1	0805-1003	●
135	00.724 PULLEY; TENSIONER	8-09158-003-0	01	1	0805-1003	●
137	00.724 BOLT; TENSIONER	8-11084-141-0	01	1	0805-1003	●
144	00.724 BELT; TIMING	8-12065-303-0	01	1	0805-1003	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
