0-12 — CYLINDER BLOCK (#74666) — 119 parça

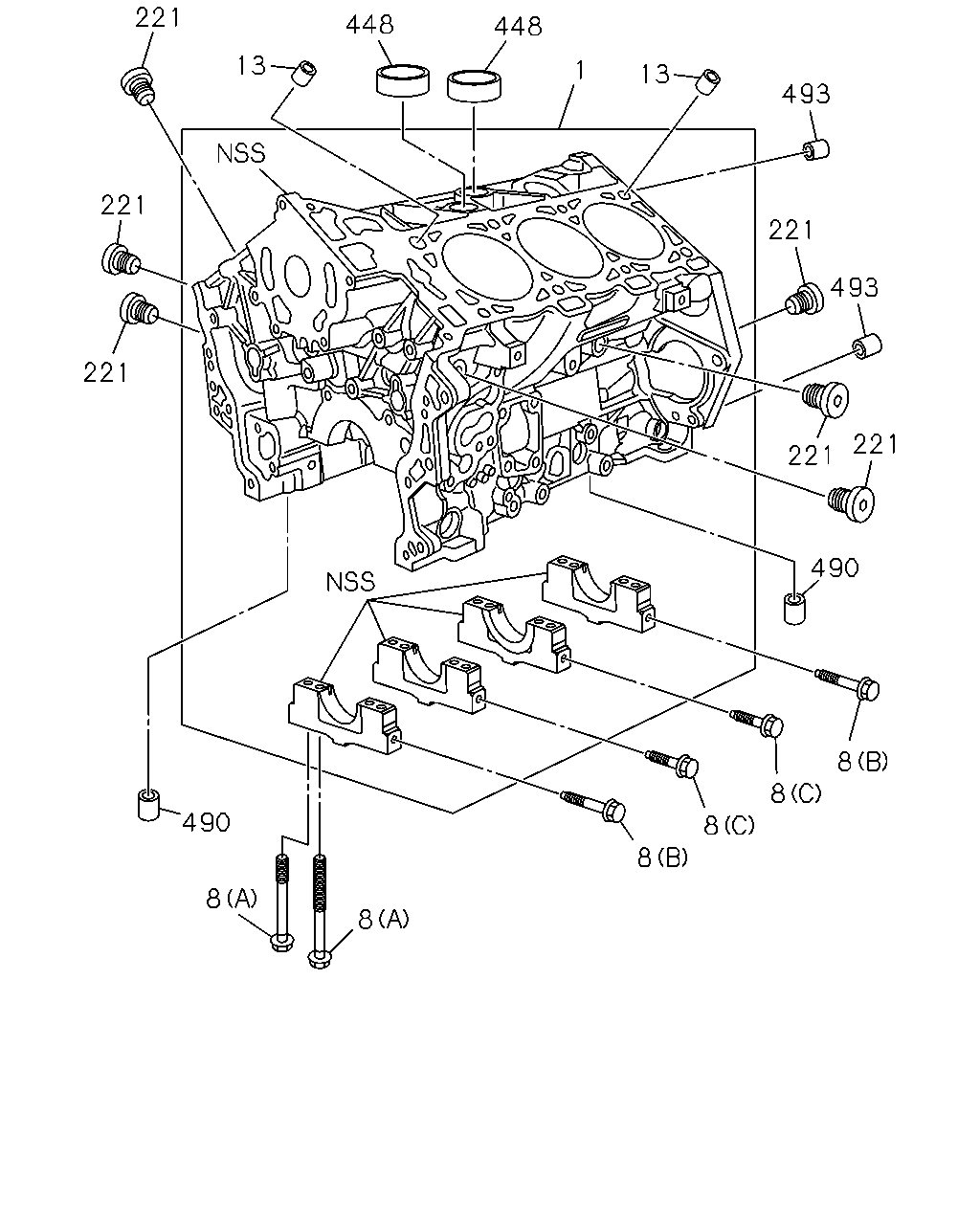

çizim 28038
221 448 448 13 1 13 493 221 221 493 221 221 221 490 8 8 490 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-12600-127-0 01 1 0805- ●
1 00.033 BLOCK ASM; CYL 8-98013-824-2 01 1 0805-1209 ●
1 00.033 BLOCK ASM; CYL 8-98231-833-0 01 1 1210-1302 ●
1 00.033 BLOCK ASM; CYL 8-98223-994-0 01 1 1303- ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1009- ●
8 00.056 BOLT; BRG CAP
(A) 		8-11518-861-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(B) 		8-11589-000-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(C) 		8-11589-001-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(A) M10X102 		8-12560-272-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(E) 		8-90502-412-0 10 1 0805-1003 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 0805-1007 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1008-1008 ●
13 00.293 DOWEL; C/BL TO HD 8-12570-326-0 04 1 0805- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0805-1003 ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0805- ●
221 01.531 PLUG; OIL GALLERY 8-11561-583-0 10 1 0805- ●
221 01.531 PLUG; OIL GALLERY 8-11056-321-0 04 1 0805-1003 ●
448 00.034 PLUG; C/BL 8-11569-584-0 02 1 0805- ●
448 00.034 PLUG; C/BL 8-97379-656-1 01 1 0805- ●
490 00.293 DOWEL; C/BL TO OIL PAN 8-22531-637-0 04 1 0805- ●
493 00.293 DOWEL 8-12597-210-0 02 1 0805- ●

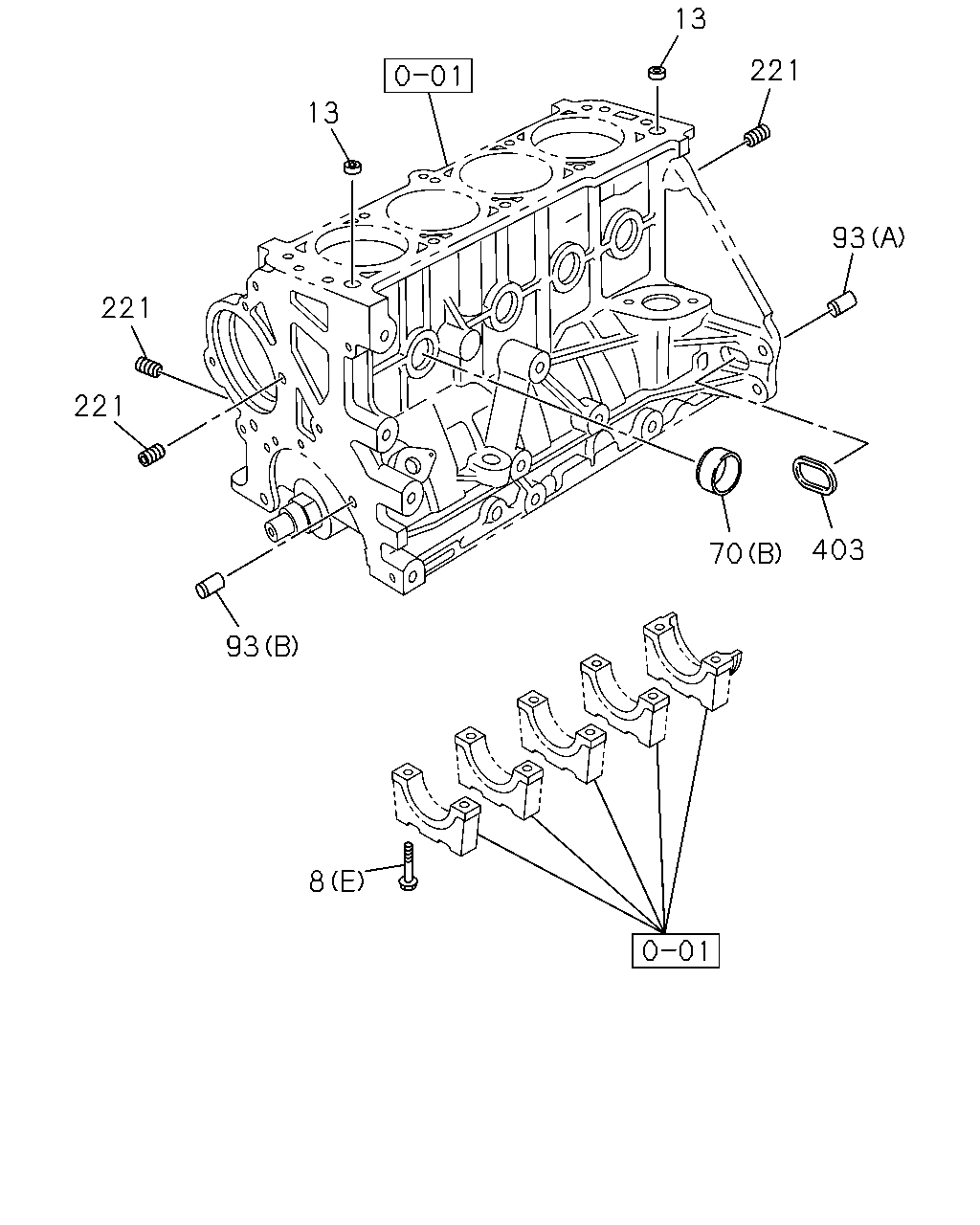

çizim 28814
13 221 13 93 221 221 403 70 93 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1009- ●
8 00.056 BOLT; BRG CAP
(A) 		8-11518-861-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(B) 		8-11589-000-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(C) 		8-11589-001-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(A) M10X102 		8-12560-272-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(E) 		8-90502-412-0 10 1 0805-1003 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 0805-1007 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1008-1008 ●
13 00.293 DOWEL; C/BL TO HD 8-12570-326-0 04 1 0805- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0805-1003 ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0805- ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=34 		8-11056-093-0 07 1 0805-1003 ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=36 		8-11070-803-0 07 1 0805-1003 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 06 1 0805- ●
93 00.206 DOWEL; RET TO C/BL
(A) 		8-90108-591-0 02 1 0805-1003 ●
93 00.206 DOWEL; RET TO C/BL
01.609 (B) 		8-90351-709-0 02 1 0805-1003 ●
221 01.531 PLUG; OIL GALLERY 8-11561-583-0 10 1 0805- ●
221 01.531 PLUG; OIL GALLERY 8-11056-321-0 04 1 0805-1003 ●
403 01.519 GUIDE; GALLERY 8-90501-712-0 01 1 0805-1003 ●

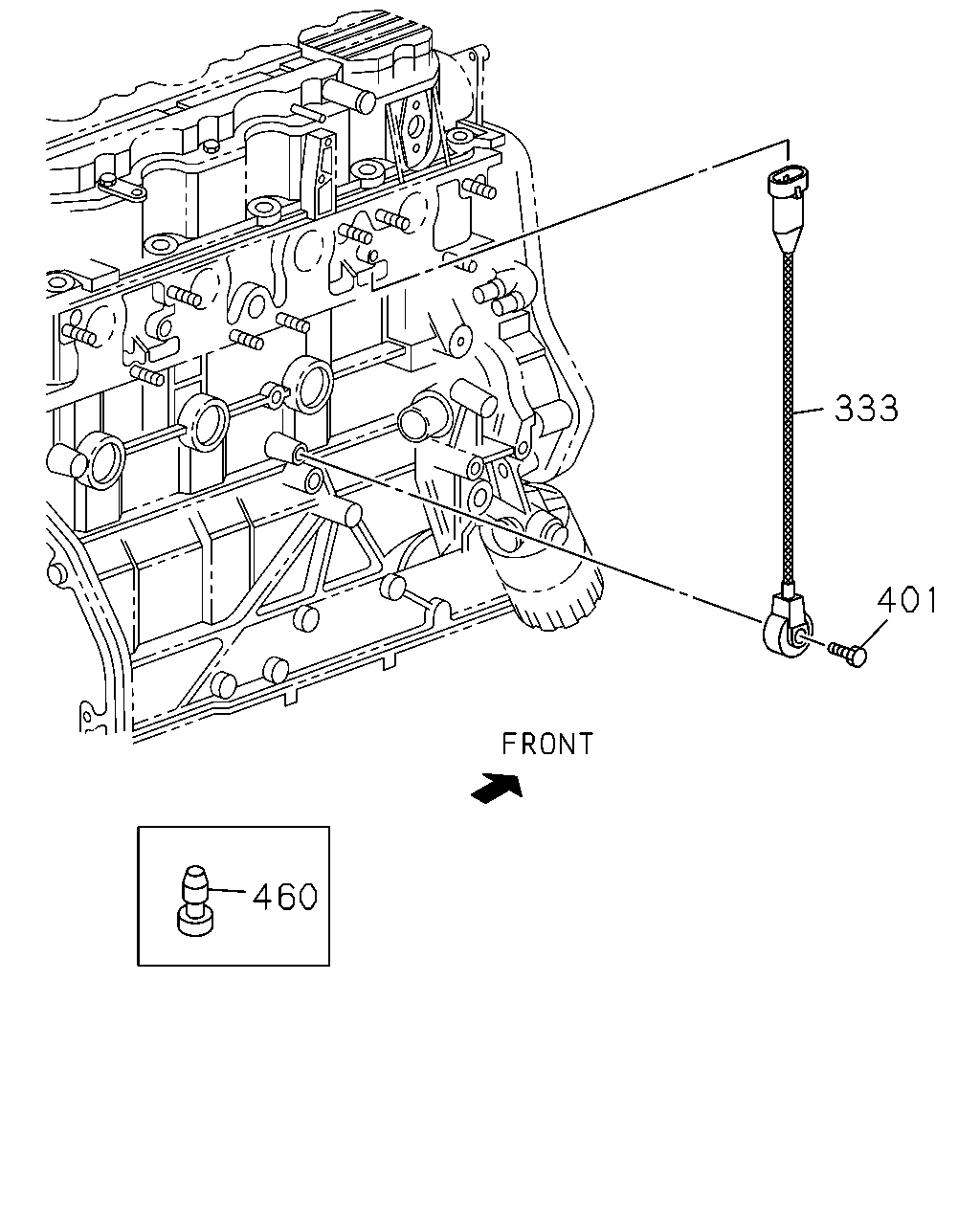

çizim 185809
333 401 460
BalonParca AdiParca NoAdetTipApplied Date A B C
333 03.682 SENSOR; KNOCK 8-12566-845-0 02 1 0805- ●
333 03.682 SENSOR; KNOCK 8-10456-669-0 01 1 0805-1003 ●
401 00.724 BOLT; SENSOR 8-11519-980-0 02 1 0805- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0805-1003 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●
460 00.034 SEAL; CYL BLOCK 8-97163-071-0 01 1 0805-1003 ●

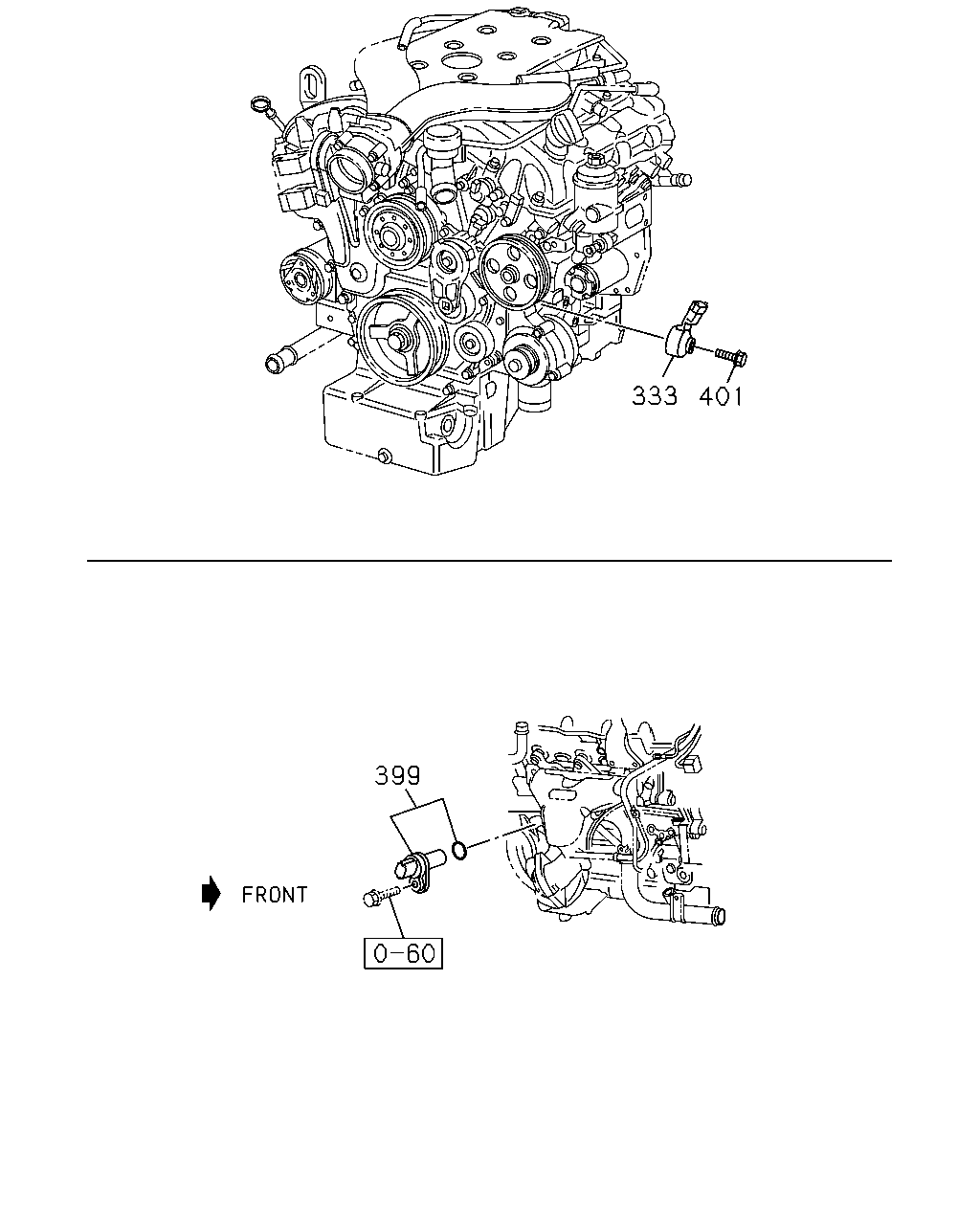

çizim 185811
333 401 399
BalonParca AdiParca NoAdetTipApplied Date A B C
333 03.682 SENSOR; KNOCK 8-12566-845-0 02 1 0805- ●
333 03.682 SENSOR; KNOCK 8-10456-669-0 01 1 0805-1003 ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-12582-652-0 01 1 0805- ●
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 0805- ●
401 00.724 BOLT; SENSOR 8-11519-980-0 02 1 0805- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0805-1003 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●

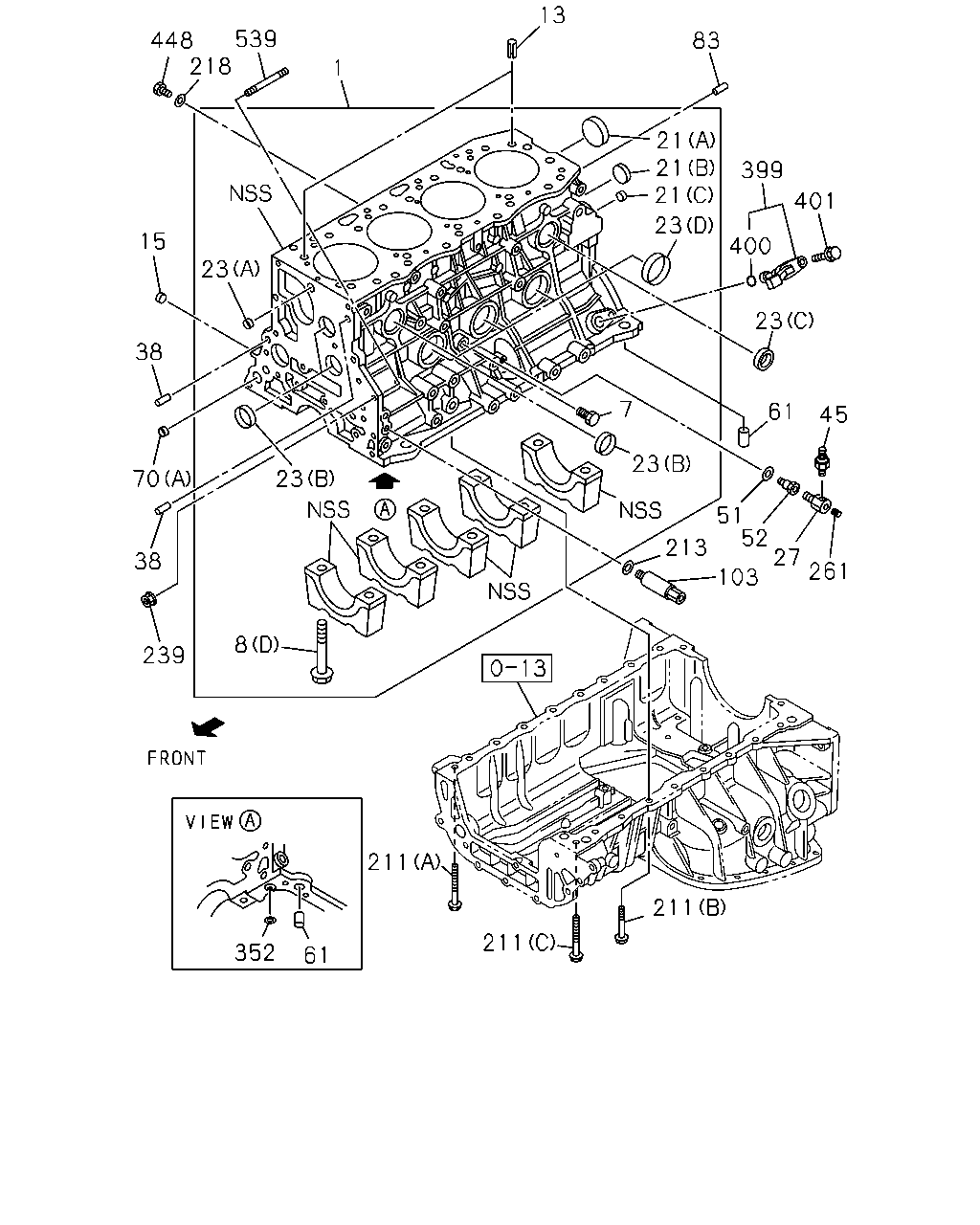

çizim 185812
13 448 539 218 83 1 21 21 21 399 401 23 15 400 23 23 38 7 61 45 23 23 70 51 52 27 261 213 38 103 8 239 211 211 211 352 61
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-12600-127-0 01 1 0805- ●
1 00.033 BLOCK ASM; CYL 8-98013-824-2 01 1 0805-1209 ●
1 00.033 BLOCK ASM; CYL 8-98231-833-0 01 1 1210-1302 ●
1 00.033 BLOCK ASM; CYL 8-98223-994-0 01 1 1303- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1009- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0805-1007 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1008-1008 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1009- ●
8 00.056 BOLT; BRG CAP
(A) 		8-11518-861-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(B) 		8-11589-000-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(C) 		8-11589-001-0 04 1 0805- ●
8 00.056 BOLT; BRG CAP
(A) M10X102 		8-12560-272-0 08 1 0805- ●
8 00.056 BOLT; BRG CAP
(E) 		8-90502-412-0 10 1 0805-1003 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 0805-1007 ●
8 00.056 BOLT; BRG CAP
(D) M14X89 FLANGE 		8-94432-642-0 10 1 1008-1008 ●
13 00.293 DOWEL; C/BL TO HD 8-12570-326-0 04 1 0805- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0805-1003 ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0805- ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 0805- ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1009- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1009- ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1009- ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 0805-1007 ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1008-1008 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0805-1007 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1008-1008 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0805-1007 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1008-1008 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 02 1 1009- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=32 		5-11219-015-0 04 1 1009- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1009- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 02 1 0805-1007 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 02 1 1008-1008 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=32 		5-11219-015-0 04 1 0805-1007 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=32 		5-11219-015-0 04 1 1008-1008 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0805- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 0805-1007 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1008-1008 ●
27 01.531 NIPPLE; OIL GALLERY 8-98005-299-1 01 1 0805- ●
38 00.206 PIN; TIMING GEAR CASE
00.669 OD=10 L=20 		9-08151-020-0 02 1 0805- ●
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0805- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B 8-97912-498-0 01 1 0805- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98084-434-0 01 1 0805- ●
61 00.206 PIN; STRAIGHT
01.453 L=31 		8-97920-964-1 02 1 0805- ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=34 		8-11056-093-0 07 1 0805-1003 ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=36 		8-11070-803-0 07 1 0805-1003 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 06 1 0805- ●
83 00.685 PIN; FLYWHEEL HSG
A/T AISIN(RMD) 08.939 OD=10 L=32 		9-08161-032-0 01 1 0805- ●
103 01.531 NIPPLE; OIL FEED 8-97316-983-4 01 1 0805- ●
211 01.428 BOLT; CRANKCASE
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 0805- ●
211 01.428 BOLT; CRANKCASE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 14 1 0805- ●
211 01.428 BOLT; CRANKCASE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 01 1 0805- ●
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 0805- ●
218 01.531 GASKET; PLUG,C/BL SIDE
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0805- ●
239 02.100 NUT; STUD,C/BL
A/T AISIN(RMD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0805- ●
261 00.034 PLUG; OIL PRESS UNIT
01.531 PT1/8 		1-09605-050-0 01 1 0805- ●
352 01.429 GASKET; C/BL TO CRANKCASE 9-09566-116-0 01 1 0805- ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-12582-652-0 01 1 0805- ●
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 0805- ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 0805- ●
401 00.724 BOLT; SENSOR 8-11519-980-0 02 1 0805- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0805-1003 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●
448 00.034 PLUG; C/BL 8-11569-584-0 02 1 0805- ●
448 00.034 PLUG; C/BL 8-97379-656-1 01 1 0805- ●
539 01.428 STUD; REAMER
A/T AISIN(RMD) 00.862 M10X40 L=75.5 		8-97371-842-1 01 1 0805- ●
