◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#74665) — 146 parça

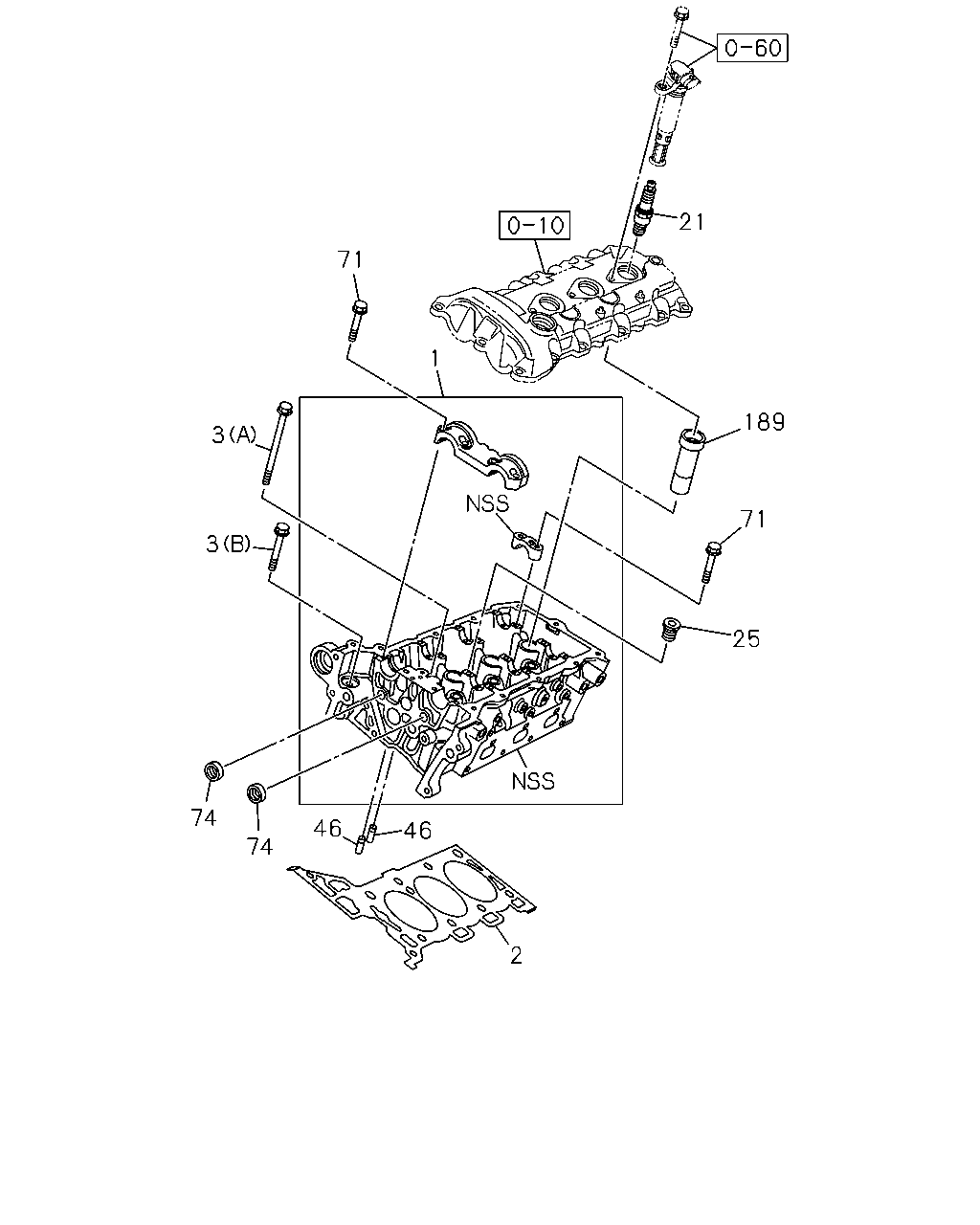

çizim 15276
21 71 1 189 3 71 3 25 74 46 46 74 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0805-1003 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0805-1009 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1010-1210 ●
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211- ●
2 00.289 GASKET; CYL HD 8-12590-735-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-12590-736-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-93282-665-0 01 1 0805-1003 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) 		8-11518-863-0 16 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
09.181 (B) 		8-11588-734-0 03 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) 		8-90325-498-0 09 1 0805-1003 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0805-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ●
21 02.270 PLUG; SPARK 8-92067-204-0 06 1 0805- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0805-1003 ●
25 00.293 PLUG; CYL HD 8-12565-988-0 04 1 0805- ●
46 00.293 VALVE; OIL CHECK,CYL HD 8-12580-965-0 04 1 0805- ●
71 00.413 BOLT; CAM BRKT 8-11518-856-0 32 1 0805- ●
74 01.531 PLUG; OIL GALLERY 8-12566-290-0 04 1 0805- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0805-1003 ●
189 02.251 SLEEVE; SPARK PLUG 8-12578-361-0 06 1 0805- ●

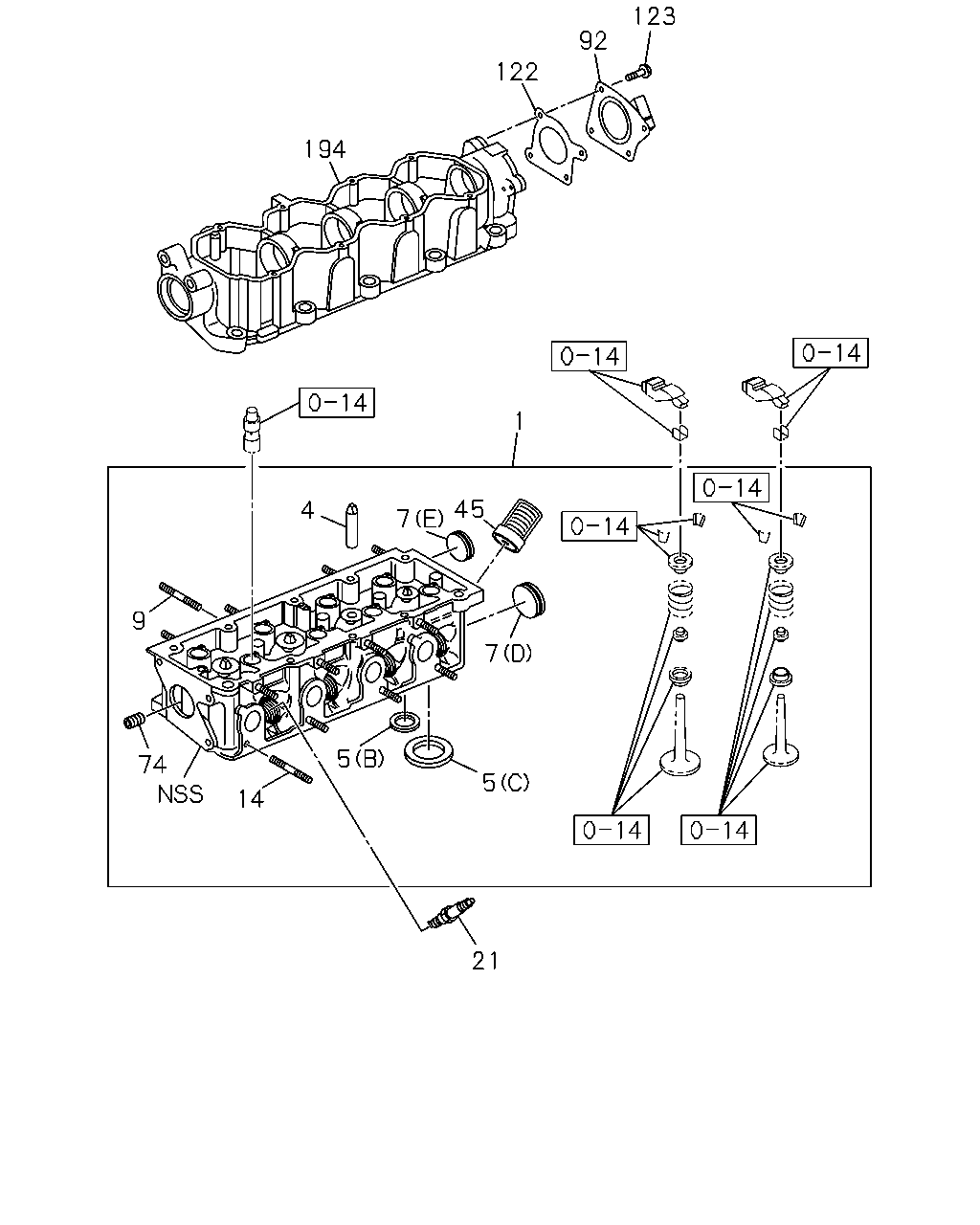

çizim 19895
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0805-1003 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0805-1009 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1010-1210 ●
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0805-1003 ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0805-1003 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0805- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-708-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(C) INLET 		8-90233-712-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-90233-713-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0805- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) STD OD=26 		8-11044-142-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=30.8 		8-11067-433-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=30 		8-11072-963-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OVSI OD=28 		8-11084-312-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 0805- ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0805-1003 ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0805-1003 ●
21 02.270 PLUG; SPARK 8-92067-204-0 06 1 0805- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0805-1003 ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0805-1003 ●
74 01.531 PLUG; OIL GALLERY 8-12566-290-0 04 1 0805- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0805-1003 ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0805-1003 ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0805-1003 ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0805-1003 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0805- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0805-1003 ●

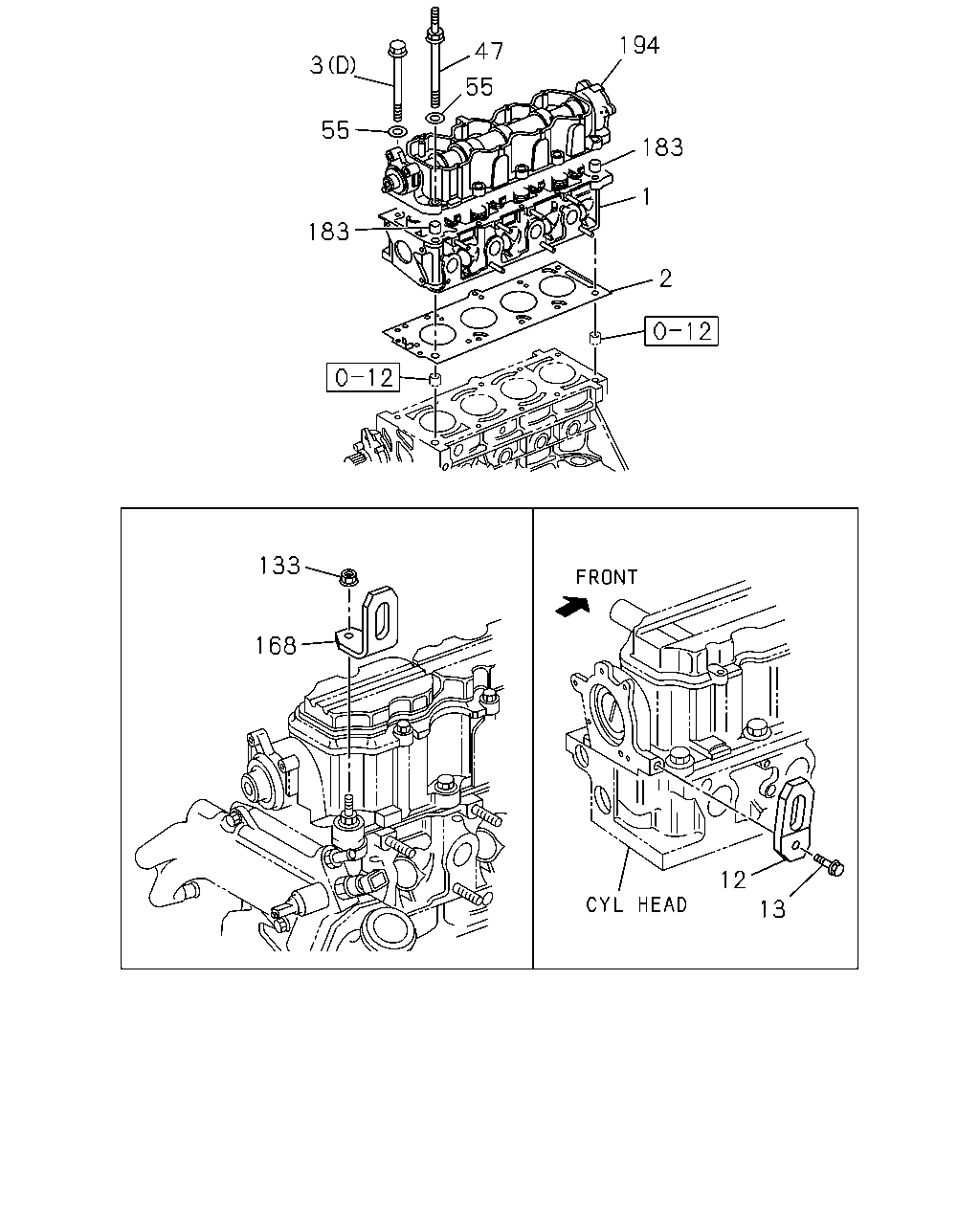

çizim 27816
194 47 3 55 55 183 1 183 2 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0805-1003 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0805-1009 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1010-1210 ●
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211- ●
2 00.289 GASKET; CYL HD 8-12590-735-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-12590-736-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-93282-665-0 01 1 0805-1003 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) 		8-11518-863-0 16 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
09.181 (B) 		8-11588-734-0 03 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) 		8-90325-498-0 09 1 0805-1003 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0805-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0805-1003 ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0805-1003 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0805-1003 ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0805-1003 ●
133 00.004 NUT; HANGER 8-92066-006-0 01 1 0805-1003 ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0805-1003 ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0805-1003 ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0805-1003 ●

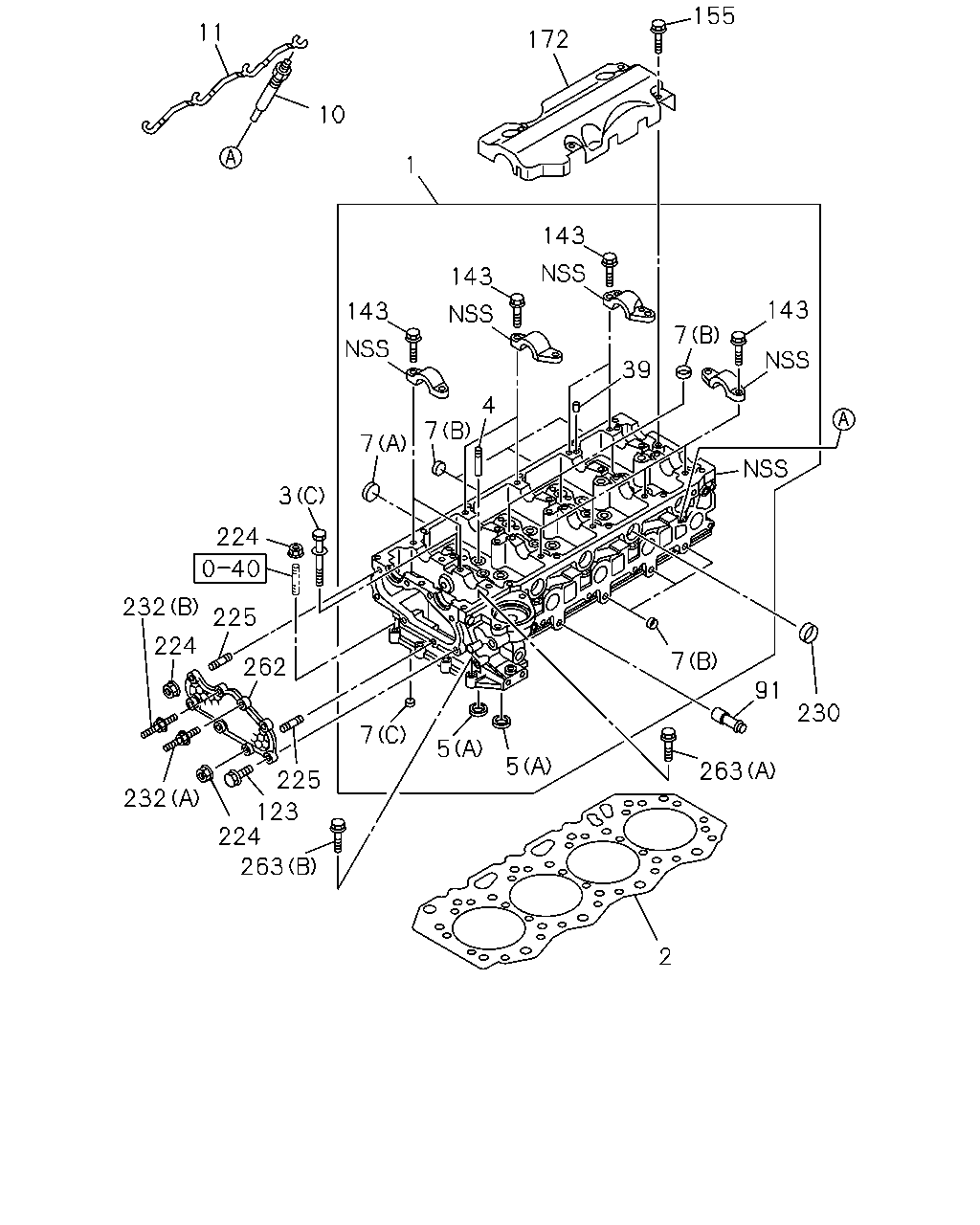

çizim 28338
155 11 172 10 1 143 143 143 143 7 39 4 7 7 3 224 232 225 224 7 262 91 7 230 5 225 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0805- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0805-1003 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0805-1009 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1010-1210 ●
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211- ●
2 00.289 GASKET; CYL HD 8-12590-735-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-12590-736-0 01 1 0805- ●
2 00.289 GASKET; CYL HD 8-93282-665-0 01 1 0805-1003 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0805-1307 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) 		8-11518-863-0 16 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
09.181 (B) 		8-11588-734-0 03 1 0805- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) 		8-90325-498-0 09 1 0805-1003 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0805-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0805-1003 ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0805-1003 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0805- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-708-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(C) INLET 		8-90233-712-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-90233-713-0 04 1 0805-1003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0805- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) STD OD=26 		8-11044-142-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=30.8 		8-11067-433-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=30 		8-11072-963-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OVSI OD=28 		8-11084-312-0 01 1 0805-1003 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 0805- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 0805- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0805-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1010-1109 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98200-051-0 04 1 1110- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0805-1303 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0805- ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0805- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0805-1003 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0805- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0805- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0805- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 0805- ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0805- ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0805- ●
230 03.300 GASKET; SLEEVE,INJECTOR 8-97943-955-0 04 1 0805- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0805- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0805- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0805- ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0805- ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
