◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#74663) — 26 parça

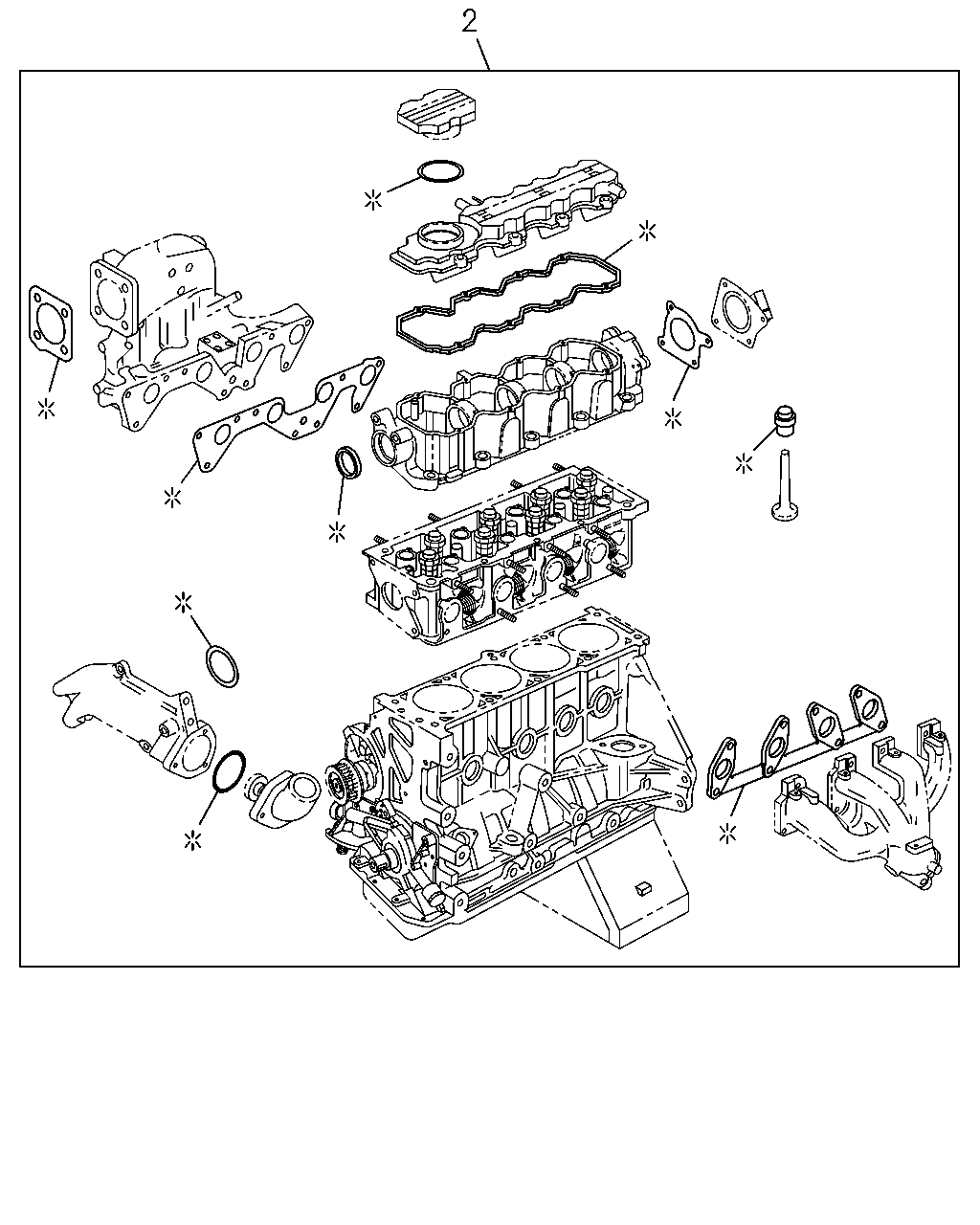

çizim 15298
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1007 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1007 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1007 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0805-1003 ●

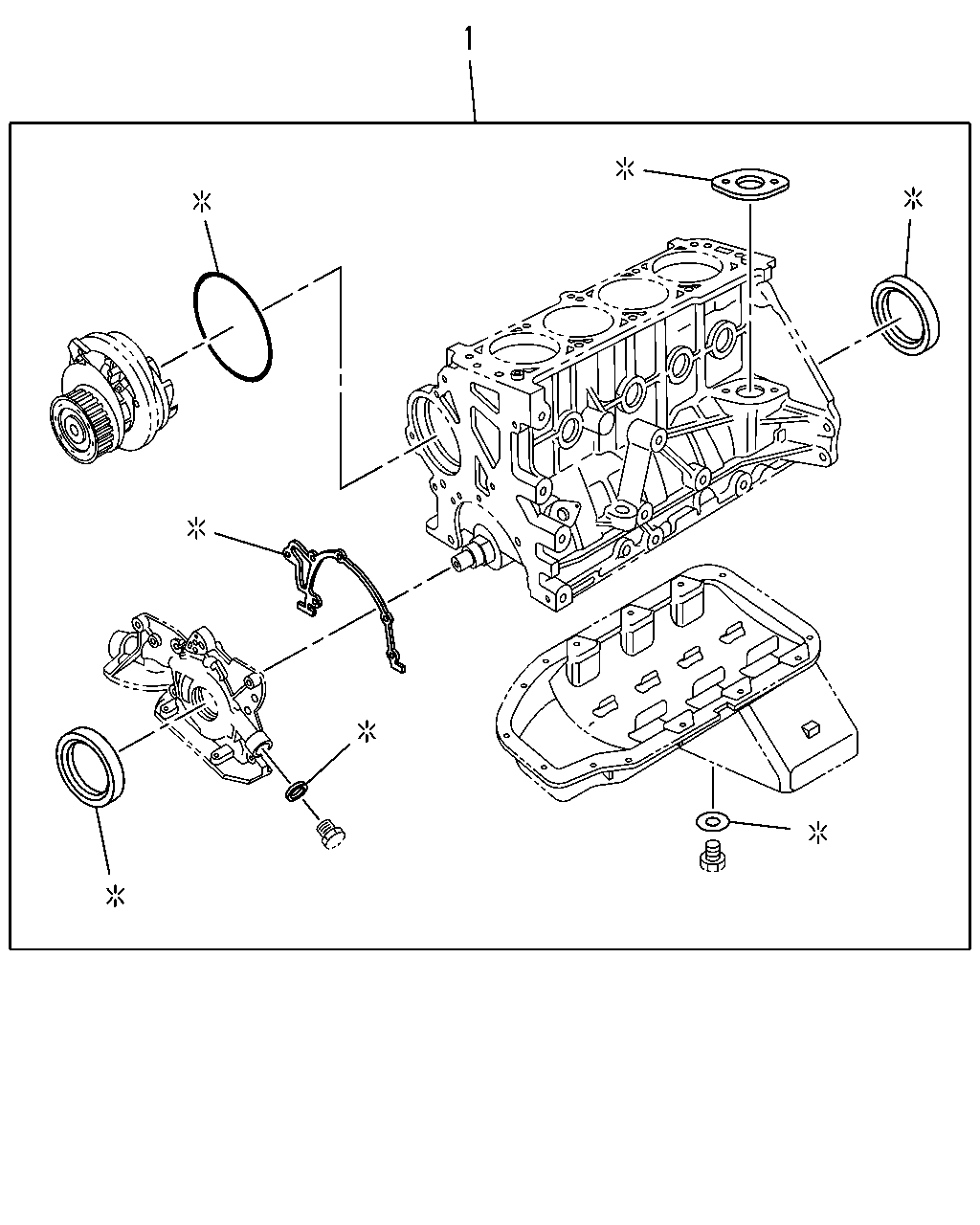

çizim 185805
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0805-1003 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
