9-01 — TOOLS (#74661) — 56 parça

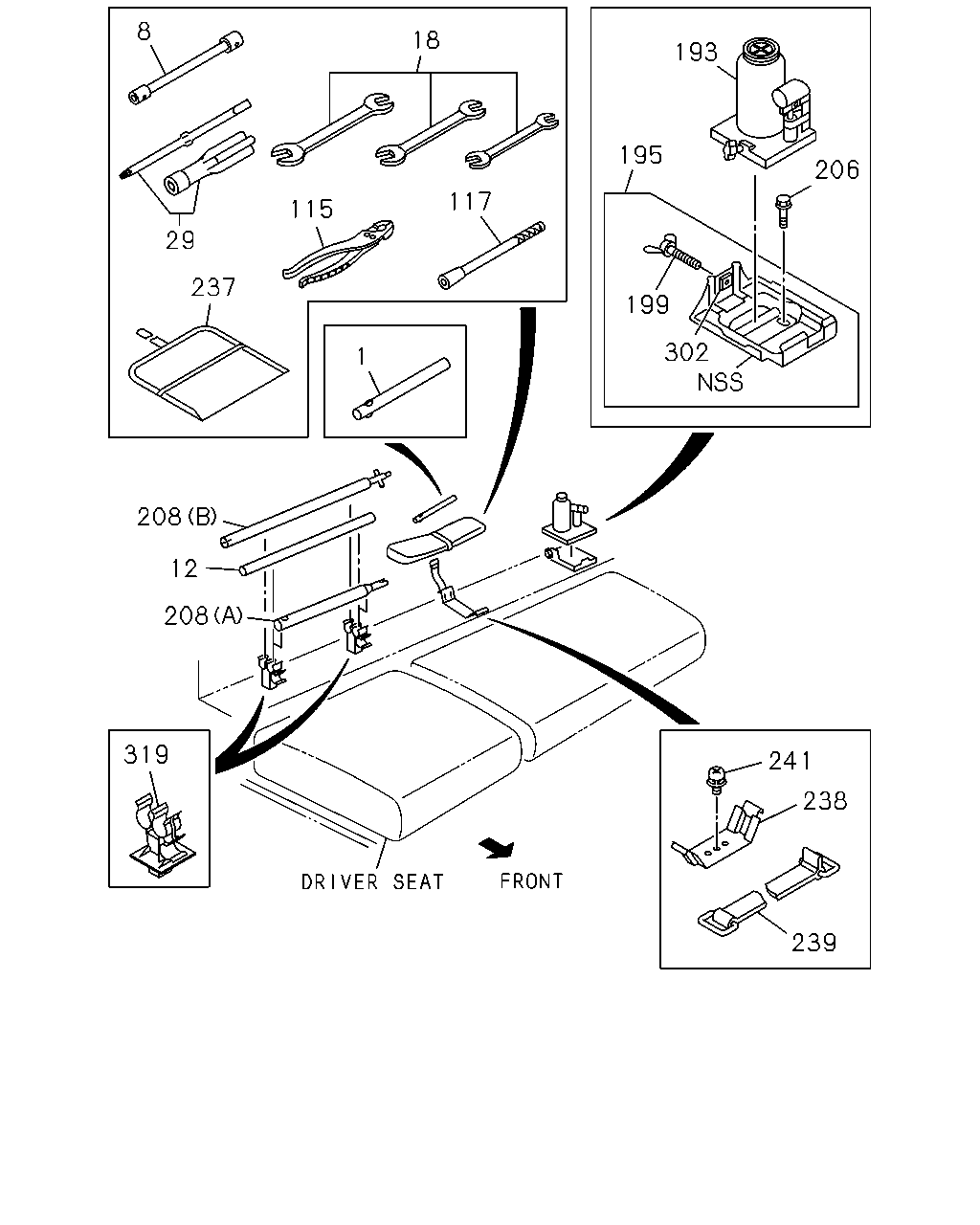

çizim 14315
8 18 193 195 206 117 115 29 237 199 302 1 208 12 208 319 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM<41W> 		8-97218-985-0 01 1 0811- ●
1 HANDLE; SPARE TIRE CARRIER
L=280 		1-85515-007-0 01 1 0803-0810 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> L=280 		1-85515-007-0 01 1 0811-1108 ● ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> L=280 		8-98181-251-0 01 1 1109- ● ●
8 WRENCH; WHEEL
B=41X21 L=440 THA 		1-85113-015-1 02 1 0803-0810 ●
8 WRENCH; WHEEL
B=41X21 L=440 THA 		1-85113-015-1 02 1 0811- ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=590 		8-97332-988-0 01 1 0811-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
18 WRENCH KIT
THA 		9-85161-902-0 02 1 0803-0810 ●
18 WRENCH KIT
THA 		9-85161-902-0 02 1 0811- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 02 1 0803-0810 ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 02 1 0811- ● ●
115 PLIER
THA 		5-85171-002-0 01 1 0803-0810 ●
115 PLIER
THA 		5-85171-002-0 01 1 0811-1410 ● ●
115 PLIER
THA 		8-98282-845-0 01 1 1411- ● ●
117 WRENCH; VALVE CAP
THA 		9-85163-906-1 02 1 0803-0810 ●
117 WRENCH; VALVE CAP
THA 		9-85163-906-1 02 1 0811- ● ●
193 JACK ASM
FRT&RR 8.25R-16-14 16X6.00GS-135 6-WHL/NUT<CUK>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 5TON 		8-98114-045-0 01 1 0811-0902 ●
193 JACK ASM
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 5TON 		8-98114-045-0 01 1 0903-1005 ●
193 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 5TON 		8-98114-045-0 01 1 1006- ●
193 JACK ASM
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 5TON 		8-97371-124-0 01 1 0803-0805 ●
193 JACK ASM
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 5TON 		8-98114-047-0 01 1 0806-0902 ●
193 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 5TON 		8-98114-047-0 01 1 0903-1005 ●
193 JACK ASM
FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 5TON 		8-98114-047-0 01 1 1006- ●
195 BRACKET; JACK 8-98033-737-1 01 1 0803-0805 ●
195 BRACKET; JACK 8-97589-376-2 01 1 0806-0810 ●
195 BRACKET; JACK 8-97589-376-2 01 1 0811- ● ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0803-0805 ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0806-0810 ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0811- ● ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
208 HANDLE; JACK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) L=642 THA 		8-97217-800-0 01 1 0811-1108 ●
208 HANDLE; JACK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) L=642 		8-98181-477-0 01 1 1109- ●
208 HANDLE; JACK
(A) L=580 		1-85515-005-1 01 1 0803-0810 ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) L=580 		1-85515-005-1 01 1 0811-1108 ● ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) L=580 		8-98181-249-0 01 1 1109- ● ●
237 BAG; TOOL 8-97130-903-1 01 1 0803-0810 ●
237 BAG; TOOL 8-97130-903-1 01 1 0811- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0803-0810 ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0811- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0803-0810 ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0811- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0803-0810 ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0811- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0803-0810 ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0811- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0803-0810 ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0811- ● ●

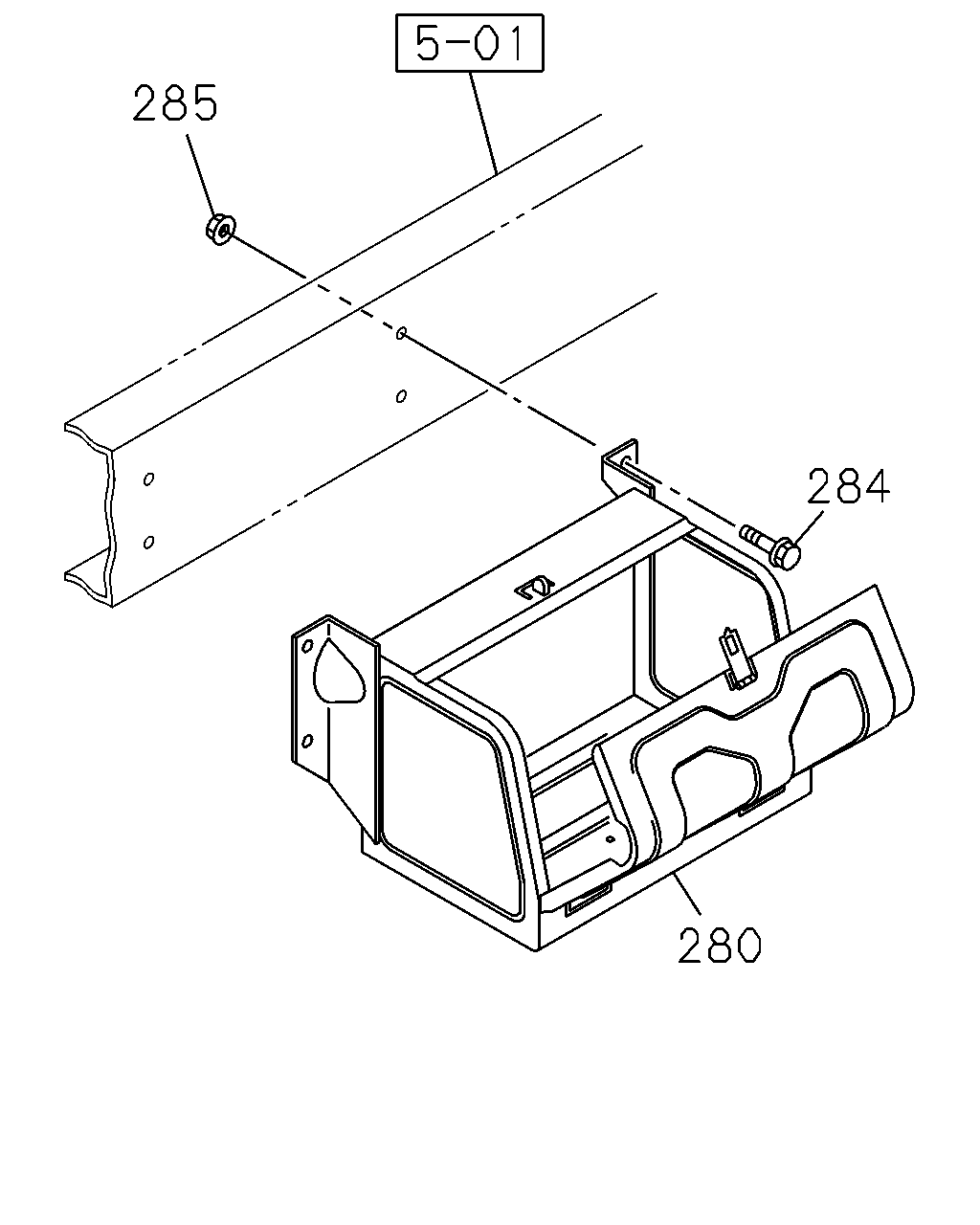

çizim 185673
285 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
4HK1-TCN ENG<RDQ> TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0803-0810 ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0811- ● ●
284 BOLT; TOOL BOX
4HK1-TCN ENG<RDQ> TOOL & STORAGE BOX<VK2> M10X30 FLANGE THA 		0-28651-030-0 04 1 0803-0810 ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE THA 		0-28651-030-0 04 1 0811- ● ●
285 NUT; TOOL BOX
4HK1-TCN ENG<RDQ> TOOL & STORAGE BOX<VK2> M10 FLANGE THA 		0-91180-110-0 04 1 0803-0810 ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE THA 		0-91180-110-0 04 1 0811- ● ●
