Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#74660) — 27 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

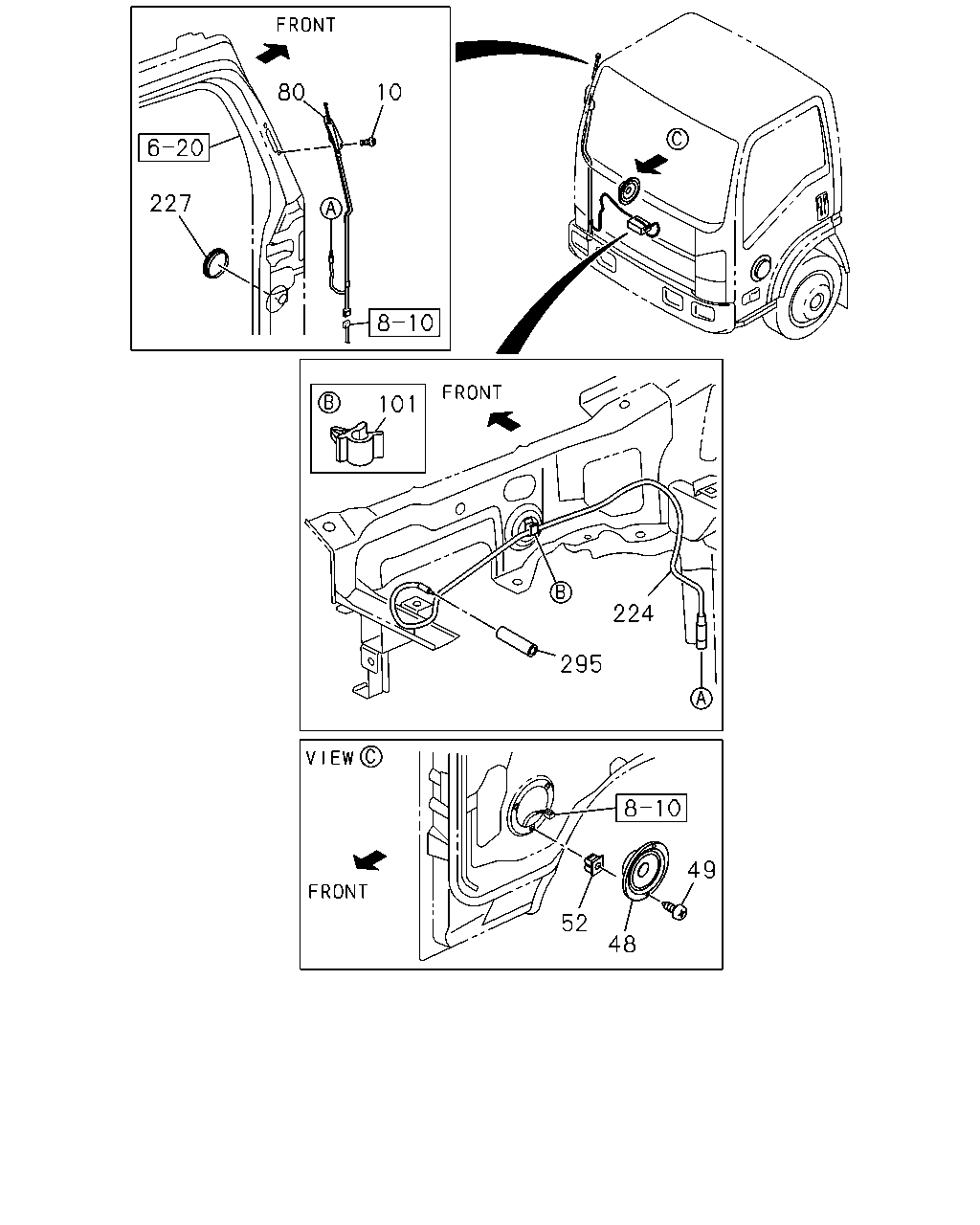

[890A] RADIO ANTENNA AND SPEAKER (19 parça)
[890A] AUDIOLESS COVER (8 parça)
▶
80
10
227
101
224
295
49
52
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
0803-0810
●
10
SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
0811-
●
●
48
SPEAKER; AUDIO
THA
8-97923-687-0
02
1
0803-0806
●
48
SPEAKER; AUDIO
THA
8-97317-001-1
02
1
0807-0810
●
48
SPEAKER; AUDIO
THA
8-97317-001-1
02
1
0811-
●
●
49
SCREW; SPEAKER
M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0803-0810
●
49
SCREW; SPEAKER
M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0811-
●
●
52
GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0803-0810
●
52
GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0811-
●
●
80
ANTENNA
8-97387-265-3
01
1
0803-0810
●
80
ANTENNA
8-97387-265-3
01
1
0811-
●
●
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
01
1
0803-0810
●
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
01
1
0811-
●
●
224
CABLE; EXT,FEEDER
4HK1-TCN ENG<RDQ> THA
8-98029-970-1
01
1
0803-0810
●
224
CABLE; EXT,FEEDER
THA
8-98029-970-1
01
1
0811-
●
●
227
PROTECTOR; EDGE
8-98053-117-0
01
1
0803-0810
●
227
PROTECTOR; EDGE
8-98053-117-0
01
1
0811-
●
●
295
INSULATOR; ANTENNA
8-98095-617-1
01
1
0803-0810
●
295
INSULATOR; ANTENNA
8-98095-617-1
01
1
0811-
●
●
226
6
6
36
33
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
0803-0810
●
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
0811-
●
●
33
COVER; RADIO
BLACK
8-97407-896-2
01
1
0803-0810
●
33
COVER; RADIO
BLACK
8-97407-896-2
01
1
0811-
●
●
36
SCREW; COVER
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0803-0810
●
36
SCREW; COVER
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0811-
●
●
226
BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0803-0810
●
226
BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0811-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
