◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#74659) — 70 parça

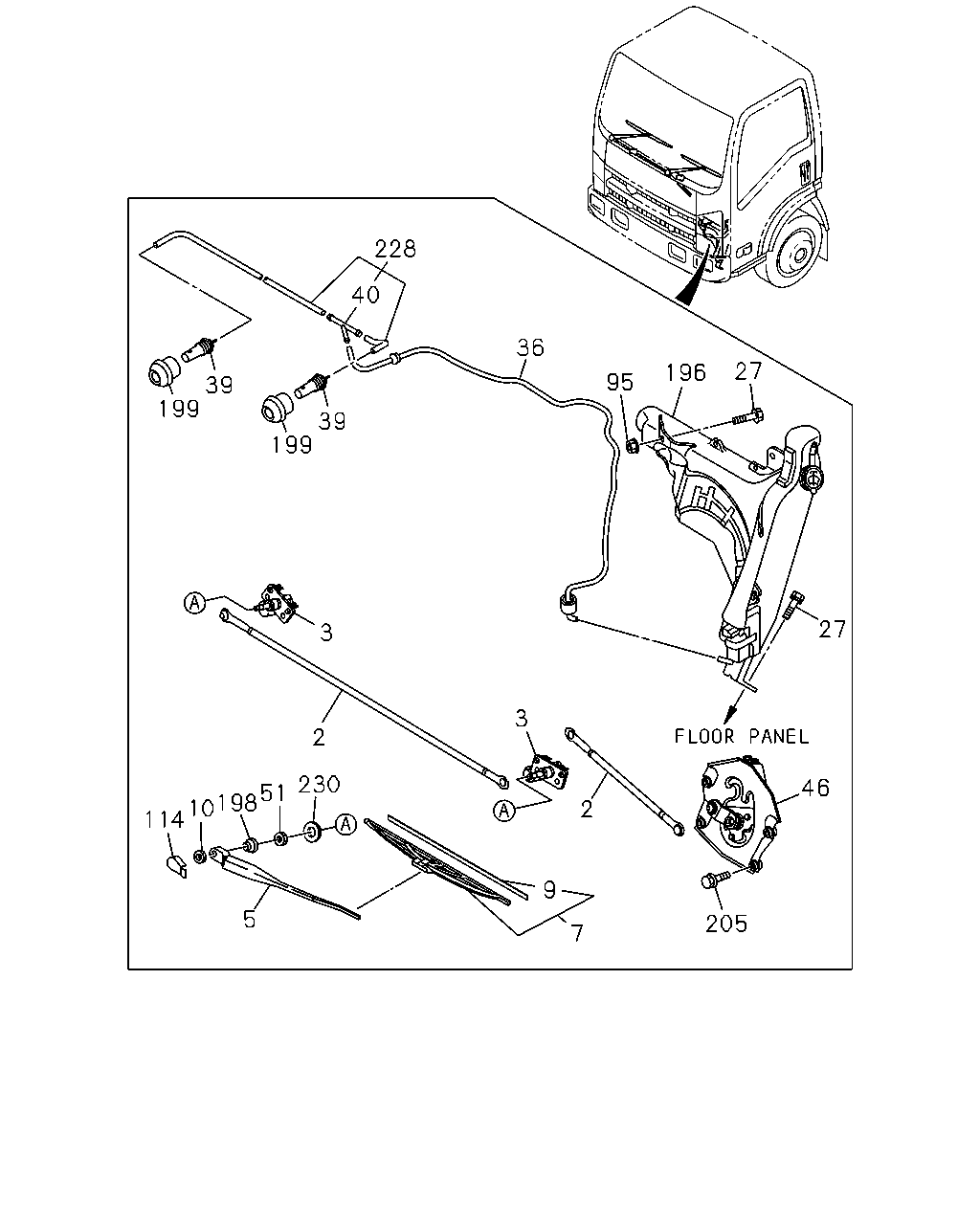

çizim 158298
228 40 36 27 196 95 39 199 39 199 27 3 3 2 230 46 51 198 10 114 2 9 5 205 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
L=350 W/CAP STAMP P 		8-98053-765-0 01 1 0803-0810 ●
2 LINK; FRT WIPER
L=350 W/CAP STAMP P 		8-98053-765-0 01 1 0811- ● ●
2 LINK; FRT WIPER
L=840 W/CAP 		8-98053-769-0 01 1 0803-0810 ●
2 LINK; FRT WIPER
L=840 W/CAP 		8-98053-769-0 01 1 0811- ● ●
3 PIVOT ASM; FRT WIPER 8-98053-762-0 01 1 0803-0810 ●
3 PIVOT ASM; FRT WIPER 8-98053-762-0 01 1 0811- ● ●
3 PIVOT ASM; FRT WIPER 8-98053-764-0 01 1 0803-0810 ●
3 PIVOT ASM; FRT WIPER 8-98053-764-0 01 1 0811- ● ●
5 ARM; WIPER 8-98053-779-0 01 1 0803-0810 ●
5 ARM; WIPER 8-98053-779-0 01 1 0811- ● ●
5 ARM; WIPER 8-98053-778-0 01 1 0803-0810 ●
5 ARM; WIPER 8-98053-778-0 01 1 0811- ● ●
7 BLADE; WIPER 8-98053-788-0 02 1 0803-0810 ●
7 BLADE; WIPER 8-98053-788-0 02 1 0811- ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 0803-0810 ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 0811- ● ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-98053-792-0 02 1 0803-0810 ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-98053-792-0 02 1 0811- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 THA 		0-91110-508-0 02 1 0803-0810 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 THA 		0-91110-508-0 02 1 0811- ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0803-0810 ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0811- ● ●
36 HOSE; WASHER 8-98029-172-3 01 1 0803-0810 ●
36 HOSE; WASHER 8-98029-172-3 01 1 0811- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 0803-0810 ●
39 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 0811- ● ●
40 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 0803-0810 ●
40 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 0811- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0803-0810 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0811- ● ●
51 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 0803-0810 ●
51 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 0811- ● ●
95 NUT; WASHER TANK
M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
95 NUT; WASHER TANK
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
114 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 0803-0810 ●
114 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 0811- ● ●
196 TANK; WASHER 8-98029-135-3 01 1 0803-0810 ●
196 TANK; WASHER 8-98029-135-3 01 1 0811- ● ●
198 COVER; PIVOT,WIPER 8-98029-164-0 02 1 0803-0810 ●
198 COVER; PIVOT,WIPER 8-98029-164-0 02 1 0811- ● ●
199 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 0803-0810 ●
199 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 0811- ● ●
205 BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0803-0810 ●
205 BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0811- ● ●
228 HOSE ASM; WASHER 8-98029-168-1 01 1 0803-0810 ●
228 HOSE ASM; WASHER 8-98029-168-1 01 1 0811- ● ●
230 COLLAR; WIPER LINK 8-98029-097-0 02 1 0803-0810 ●
230 COLLAR; WIPER LINK 8-98029-097-0 02 1 0811- ● ●

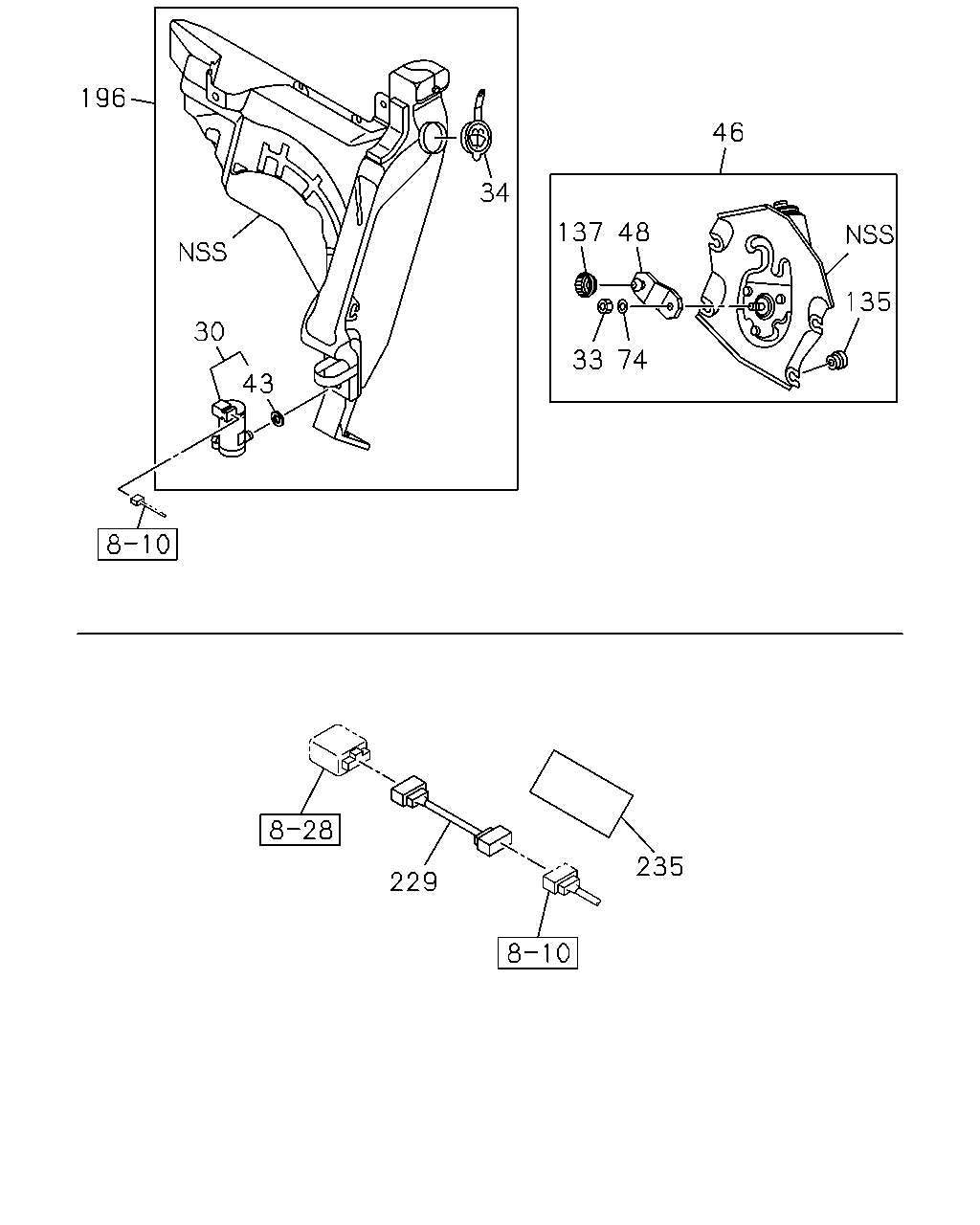

çizim 158333
196 34 30 43 46 48 135 74 33 137 235 229
BalonParca AdiParca NoAdetTipApplied Date A B
30 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0803-0810 ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0811- ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0803-0810 ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0811- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0803-0810 ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0811- ● ●
43 RUBBER; GASKET,TANK 8-94352-050-0 01 1 0803-0810 ●
43 RUBBER; GASKET,TANK 8-94352-050-0 01 1 0811- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0803-0810 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0811- ● ●
48 ARM; WIPER MOTOR 8-98052-215-0 01 1 0803-0810 ●
48 ARM; WIPER MOTOR 8-98052-215-0 01 1 0811- ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0803-0810 ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0811- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 0803-0810 ●
135 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 0811- ● ●
137 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 0803-0810 ●
137 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 0811- ● ●
196 TANK; WASHER 8-98029-135-3 01 1 0803-0810 ●
196 TANK; WASHER 8-98029-135-3 01 1 0811- ● ●
229 HARNESS; WASHER TANK 8-98236-608-0 01 1 1302-1308 ● ●
235 INSULATOR; HARNESS 8-98236-321-0 01 1 1302-1308 ● ●
