8-73 — BLOWER UNIT (#74657) — 46 parça

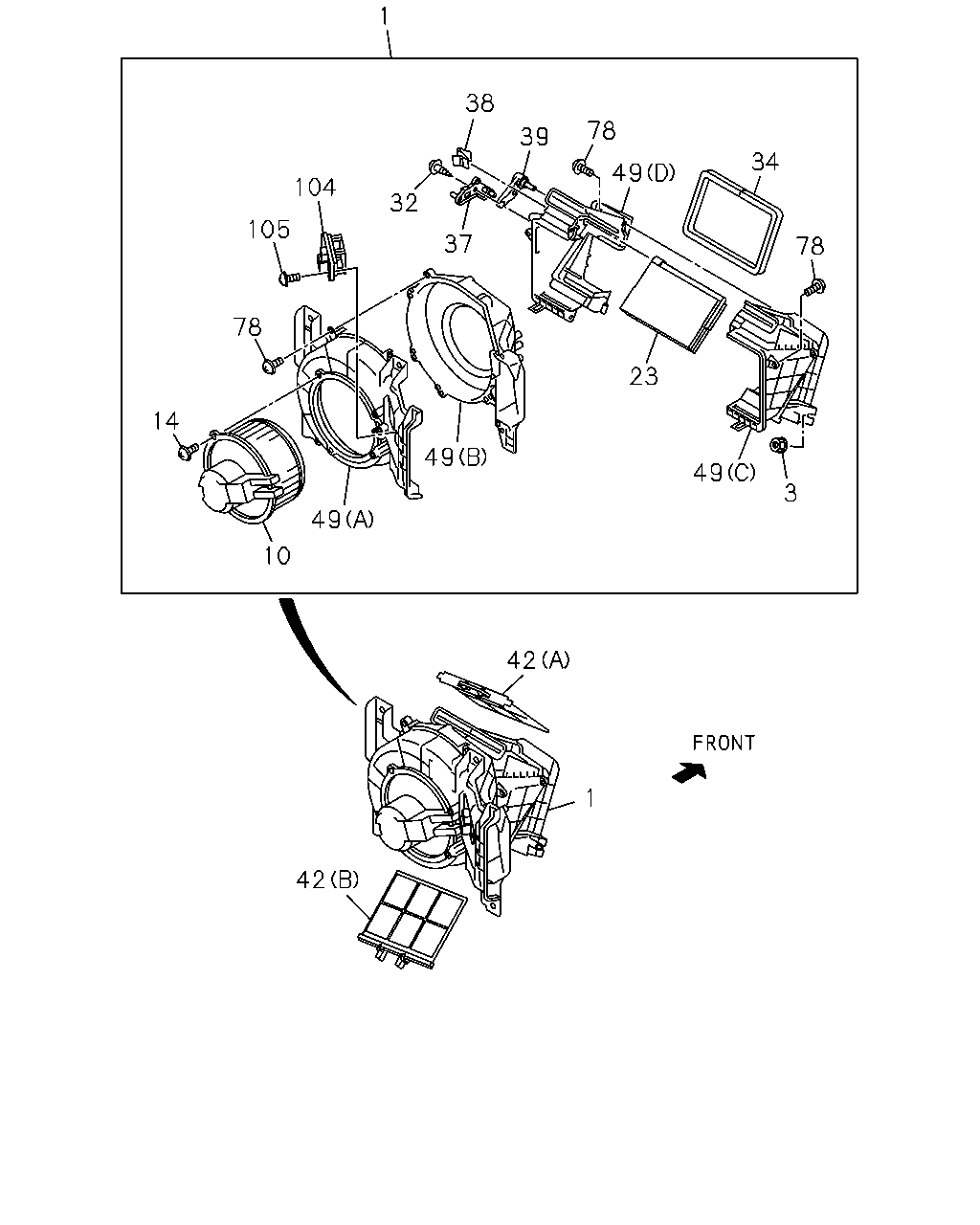

çizim 158146
1 38 78 39 34 49 104 32 105 37 78 78 23 14 49 49 3 49 10 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98021-976-3 01 1 0803-0810 ●
1 BLOWER ASM
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98021-976-3 01 1 0811-1102 ● ●
1 BLOWER ASM
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98183-589-0 01 1 1103-1103 ● ●
1 BLOWER ASM
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98171-719-0 01 1 1103- ● ●
3 NUT; CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 		8-98047-419-0 02 1 0803-0810 ●
3 NUT; CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 		8-98047-419-0 02 1 0811-1102 ● ●
3 NUT; CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 THA 		1-83539-354-0 02 1 1103- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-767-0 01 1 0803-0810 ●
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-767-0 01 1 0811-1102 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98183-924-0 01 1 1103- ● ●
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 		8-98047-448-0 03 1 0803-0810 ●
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 		8-98047-448-0 03 1 0811- ● ●
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-437-0 01 1 0803-0810 ●
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-437-0 01 1 0811-1102 ● ●
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98171-863-0 01 1 1103- ● ●
32 SCREW; LEVER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-416-0 01 1 0803-0810 ●
32 SCREW; LEVER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-416-0 01 1 0811- ● ●
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-430-0 01 1 0803-0810 ●
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-430-0 01 1 0811- ● ●
37 LEVER; MODE LEVER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-436-0 01 1 0803-0810 ●
37 LEVER; MODE LEVER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-436-0 01 1 0811- ● ●
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-432-0 01 1 0803-0810 ●
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-432-0 01 1 0811-1102 ● ●
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-417-0 01 1 1103- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-435-0 01 1 0803-0810 ●
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-435-0 01 1 0811- ● ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97387-096-1 01 1 0803-0810 ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97387-096-1 01 1 0811- ● ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98025-006-1 01 1 0803-0810 ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98025-006-1 01 1 0811- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98047-440-0 01 1 0803-0810 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98047-440-0 01 1 0811- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98047-441-0 01 1 0803-0810 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98047-441-0 01 1 0811- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) 		8-98047-442-0 01 1 0803-0810 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) 		8-98047-442-0 01 1 0811- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D) 		8-98047-443-0 01 1 0803-0810 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D) 		8-98047-443-0 01 1 0811- ● ●
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-418-0 15 1 0803-0810 ●
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-418-0 15 1 0811-1102 ● ●
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 15 1 1103- ● ●
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98074-113-0 01 1 0803-0810 ●
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98074-113-0 01 1 0811- ● ●
105 SCREW; RESISTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-418-0 02 1 0803-0810 ●
105 SCREW; RESISTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 		8-98047-418-0 02 1 0811-1102 ● ●
105 SCREW; RESISTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 02 1 1103- ● ●
