8-60 — HEATER UNIT; FRONT (#74654) — 122 parça

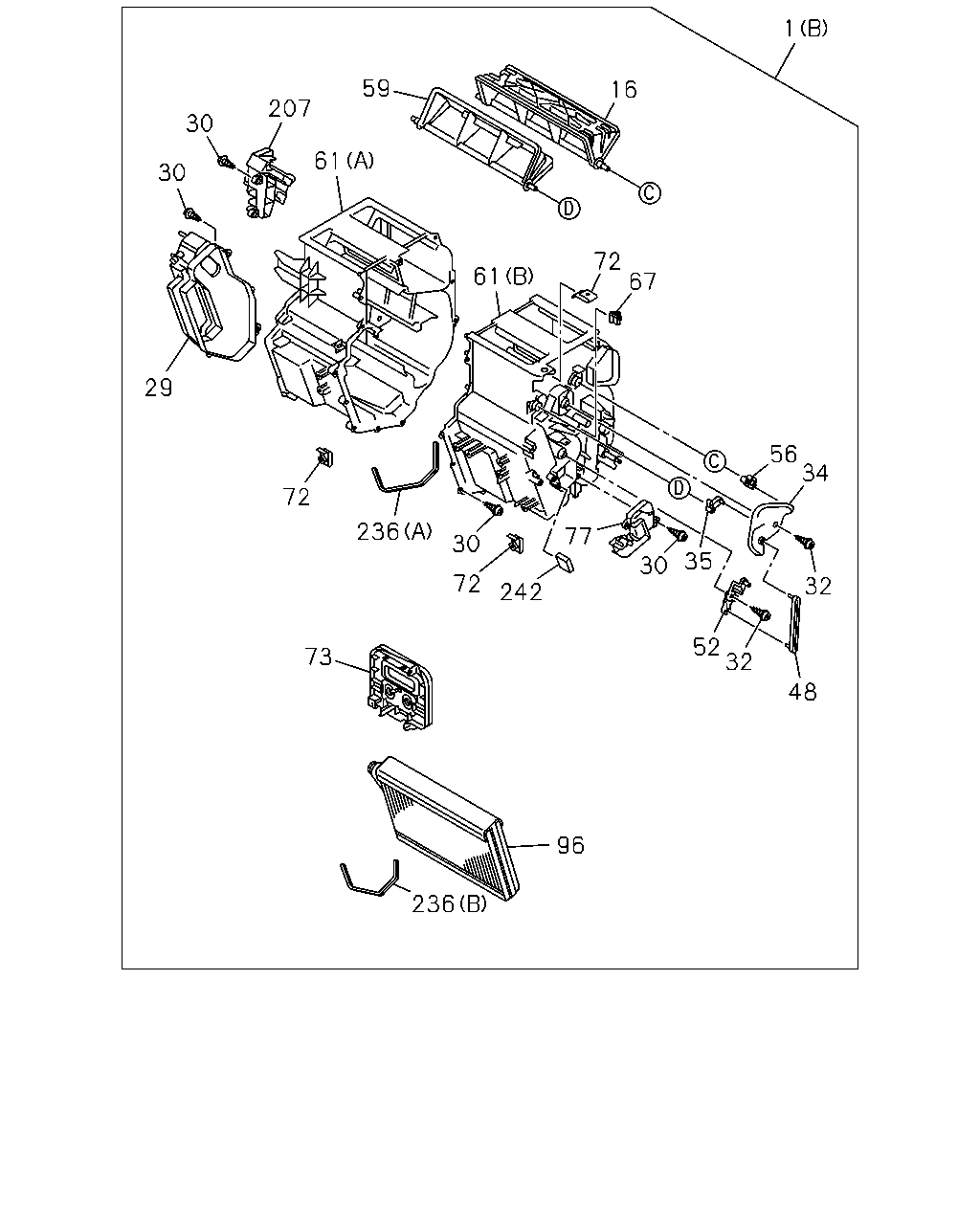

1 59 16 207 30 61 30 72 67 61 29 56 34 72 77 236 30 35 30 72 32 242 52 32 73 48 96 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT COOLER WO/HEATER<C65> (A)	8-98057-980-2	01	1	0803-0810	●
1	HEATER UNIT COOLER WO/HEATER<C65> (A)	8-98057-980-2	01	1	0811-	●	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98062-757-1	01	1	0803-0810	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98062-757-1	01	1	0811-1301	●	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98214-400-1	01	1	1302-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-387-0	01	1	0803-0810	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-387-0	01	1	0811-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>	8-98231-367-0	01	1	1302-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98074-119-0	01	1	0803-0810	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98074-119-0	01	1	0811-1301	●	●
29	COVER; HTR UNIT COOLER WO/HEATER<C65>	8-98074-119-0	01	1	1302-	●	●
30	SCREW; HTR UNIT COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	27	1	0803-0810	●
30	SCREW; HTR UNIT COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	27	1	0811-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	25	1	0803-0810	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	25	1	0811-1301	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	20	1	1302-	●	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16	8-98047-416-0	02	1	0803-0810	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16	8-98047-416-0	02	1	0811-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-389-0	01	1	0803-0810	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-389-0	01	1	0811-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-392-0	01	1	0803-0810	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-392-0	01	1	0811-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-391-0	01	1	0803-0810	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-391-0	01	1	0811-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-390-0	01	1	0803-0810	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-390-0	01	1	0811-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-393-0	01	1	0803-0810	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-393-0	01	1	0811-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-386-0	01	1	0803-0810	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-386-0	01	1	0811-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98077-422-0	01	1	0803-0810	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98077-422-0	01	1	0811-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98077-423-0	01	1	0803-0810	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98077-423-0	01	1	0811-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-417-0	01	1	0803-0810	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-417-0	01	1	0811-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6	8-98047-428-0	03	1	0803-0810	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6	8-98047-428-0	03	1	0811-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98077-420-0	01	1	0803-0810	●
73	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98077-420-0	01	1	0811-	●	●
73	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98077-419-0	01	1	0803-0810	●
73	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98077-419-0	01	1	0811-1301	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-414-0	01	1	0803-0810	●
77	COVER; HTR CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-414-0	01	1	0811-	●	●
96	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98048-815-0	01	1	0803-0810	●
96	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98048-815-0	01	1	0811-1301	●	●
207	CLAMP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-379-0	01	1	0803-0810	●
207	CLAMP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-379-0	01	1	0811-1301	●	●
207	CLAMP; HTR UNIT COOLER WO/HEATER<C65>	8-98047-379-0	01	1	1302-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98047-420-0	01	1	0803-0810	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98047-420-0	01	1	0811-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98047-421-0	01	1	0803-0810	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98047-421-0	01	1	0811-	●	●
242	GASKET; CASE FORGED AIR VENTILATION<C39>	8-98048-816-0	01	1	0803-0810	●
242	GASKET; CASE FORGED AIR VENTILATION<C39>	8-98048-816-0	01	1	0811-1411	●	●

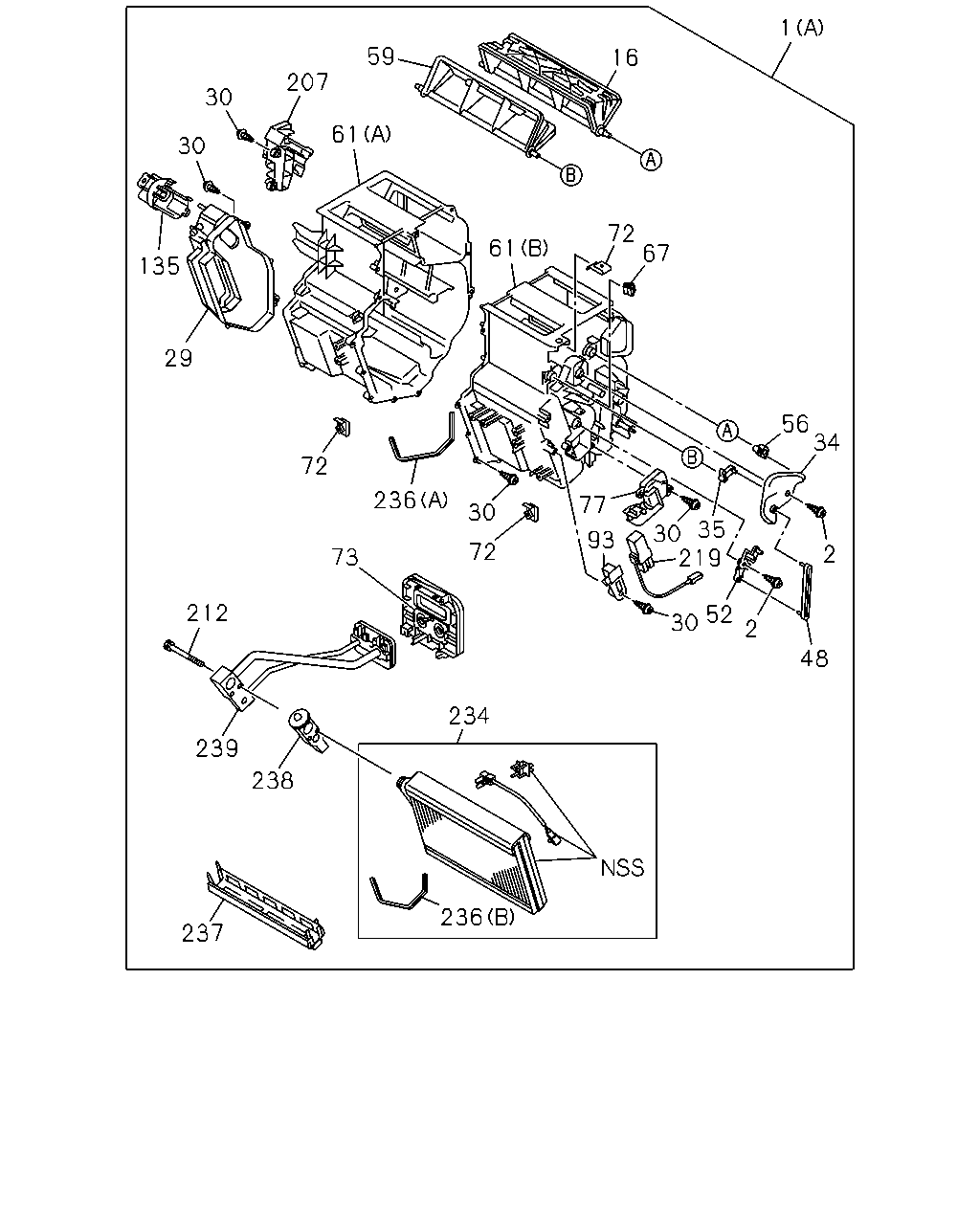

1 59 16 207 30 61 30 72 67 61 135 29 56 34 72 236 77 30 30 35 219 93 72 2 73 212 52 30 2 48 234 239 238 236 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT COOLER WO/HEATER<C65> (A)	8-98057-980-2	01	1	0803-0810	●
1	HEATER UNIT COOLER WO/HEATER<C65> (A)	8-98057-980-2	01	1	0811-	●	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98062-757-1	01	1	0803-0810	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98062-757-1	01	1	0811-1301	●	●
1	HEATER UNIT FORGED AIR VENTILATION<C39> (B)	8-98214-400-1	01	1	1302-	●	●
2	SCREW; LEVER COOLER WO/HEATER<C65> M4X16	8-98047-416-0	02	1	0803-0810	●
2	SCREW; LEVER COOLER WO/HEATER<C65> M4X16	8-98047-416-0	02	1	0811-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-387-0	01	1	0803-0810	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-387-0	01	1	0811-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>	8-98231-367-0	01	1	1302-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98074-119-0	01	1	0803-0810	●
29	COVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98074-119-0	01	1	0811-1301	●	●
29	COVER; HTR UNIT COOLER WO/HEATER<C65>	8-98074-119-0	01	1	1302-	●	●
30	SCREW; HTR UNIT COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	27	1	0803-0810	●
30	SCREW; HTR UNIT COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	27	1	0811-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	25	1	0803-0810	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	25	1	0811-1301	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION<C39> M4X16 TAPPING	8-97957-708-0	20	1	1302-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-389-0	01	1	0803-0810	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-389-0	01	1	0811-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-392-0	01	1	0803-0810	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-392-0	01	1	0811-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-391-0	01	1	0803-0810	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-391-0	01	1	0811-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-390-0	01	1	0803-0810	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-390-0	01	1	0811-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-393-0	01	1	0803-0810	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-393-0	01	1	0811-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-386-0	01	1	0803-0810	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-386-0	01	1	0811-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98077-422-0	01	1	0803-0810	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98077-422-0	01	1	0811-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98077-423-0	01	1	0803-0810	●
61	CASE; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98077-423-0	01	1	0811-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-417-0	01	1	0803-0810	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-417-0	01	1	0811-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6	8-98047-428-0	03	1	0803-0810	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6	8-98047-428-0	03	1	0811-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98077-420-0	01	1	0803-0810	●
73	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98077-420-0	01	1	0811-	●	●
73	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98077-419-0	01	1	0803-0810	●
73	PLATE; HTR UNIT FORGED AIR VENTILATION<C39>	8-98077-419-0	01	1	0811-1301	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-414-0	01	1	0803-0810	●
77	COVER; HTR CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-414-0	01	1	0811-	●	●
93	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98047-427-0	01	1	0803-0810	●
93	PLATE; HTR UNIT COOLER WO/HEATER<C65>	8-98047-427-0	01	1	0811-	●	●
135	COVER; HTR COOLER WO/HEATER<C65>	8-98047-384-0	01	1	0803-0810	●
135	COVER; HTR COOLER WO/HEATER<C65>	8-98047-384-0	01	1	0811-	●	●
207	CLAMP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-379-0	01	1	0803-0810	●
207	CLAMP; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-379-0	01	1	0811-1301	●	●
207	CLAMP; HTR UNIT COOLER WO/HEATER<C65>	8-98047-379-0	01	1	1302-	●	●
212	BOLT; HTR UNIT COOLER WO/HEATER<C65> M5X61	8-98047-415-0	02	1	0803-0810	●
212	BOLT; HTR UNIT COOLER WO/HEATER<C65> M5X61	8-98047-415-0	02	1	0811-	●	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER<C65>	8-98064-733-0	01	1	0803-0810	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER<C65>	8-98064-733-0	01	1	0811-	●	●
234	EVAPORATOR ASM; HEATER COOLER WO/HEATER<C65>	8-98074-116-1	01	1	0803-0810	●
234	EVAPORATOR ASM; HEATER COOLER WO/HEATER<C65>	8-98074-116-1	01	1	0811-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98047-420-0	01	1	0803-0810	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98047-420-0	01	1	0811-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98047-421-0	01	1	0803-0810	●
236	GASKET; HEATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98047-421-0	01	1	0811-	●	●
237	INSULATOR; EVAPORATOR COOLER WO/HEATER<C65>	8-98047-382-0	01	1	0803-0810	●
237	INSULATOR; EVAPORATOR COOLER WO/HEATER<C65>	8-98047-382-0	01	1	0811-	●	●
238	VALVE; EXPANSION COOLER WO/HEATER<C65>	8-98047-383-0	01	1	0803-0810	●
238	VALVE; EXPANSION COOLER WO/HEATER<C65>	8-98047-383-0	01	1	0811-	●	●
239	TUBE ASM; HEATER COOLER WO/HEATER<C65>	8-98074-115-0	01	1	0803-0810	●
239	TUBE ASM; HEATER COOLER WO/HEATER<C65>	8-98074-115-0	01	1	0811-	●	●
