8-50 — AIR CONDITIONING SYSTEM; FRONT (#74652) — 48 parça

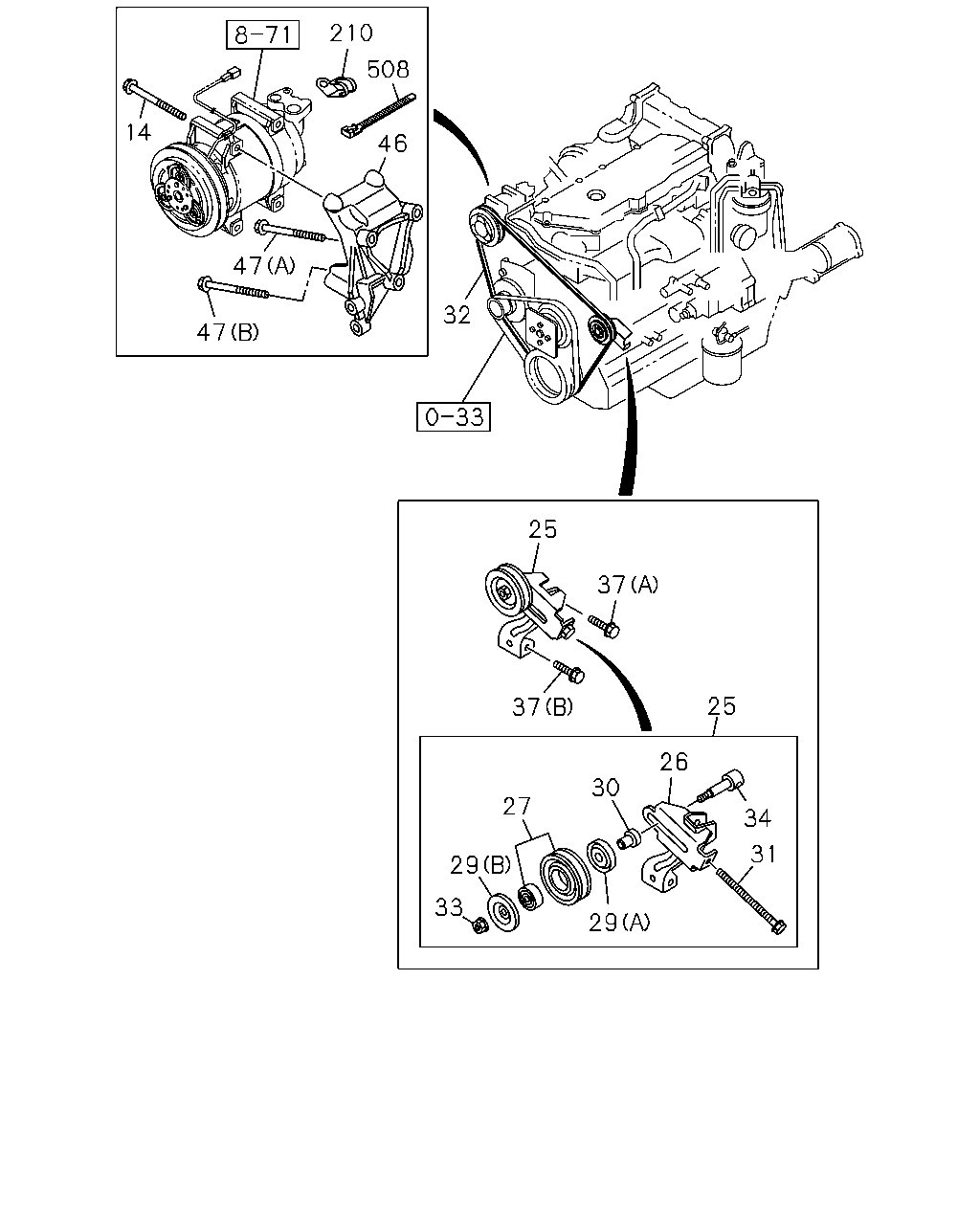

çizim 141046
210 508 46 14 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> M8X90 FLANGE 		0-28050-890-0 04 1 0803-0810 ●
14 BOLT; CMPR
COOLER WO/HEATER<C65> M8X90 FLANGE 		0-28050-890-0 04 1 0811- ● ●
25 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 1-GROOVE 		8-97161-198-1 01 1 0803-0810 ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE 		8-97161-198-1 01 1 0811- ● ●
26 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97161-031-1 01 1 0803-0810 ●
26 BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<C65> 		8-97161-031-1 01 1 0811- ● ●
27 PULLEY; IDLE,A/C
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97386-869-0 01 1 0803-0810 ●
27 PULLEY; IDLE,A/C
COOLER WO/HEATER<C65> 		8-97386-869-0 01 1 0811- ● ●
29 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (B) 		8-97384-114-0 01 1 0803-0810 ●
29 COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (B) 		8-97384-114-0 01 1 0811- ● ●
29 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (A) 		8-97384-115-0 01 1 0803-0810 ●
29 COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (A) 		8-97384-115-0 01 1 0811- ● ●
30 COLLAR; IDLE PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97384-117-0 01 1 0803-0810 ●
30 COLLAR; IDLE PULLEY
COOLER WO/HEATER<C65> 		8-97384-117-0 01 1 0811- ● ●
31 BOLT; ADJ,IDLE PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97384-113-0 01 1 0803-0810 ●
31 BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<C65> 		8-97384-113-0 01 1 0811- ● ●
32 BELT; A/C CMPR
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> L=1674 		8-98010-841-1 01 1 0803-0810 ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1674 		8-98010-841-1 01 1 0811- ● ●
33 NUT; IDLER PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97384-118-0 01 1 0803-0810 ●
33 NUT; IDLER PULLEY
COOLER WO/HEATER<C65> 		8-97384-118-0 01 1 0811- ● ●
34 SHAFT; IDLE PULLEY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> 		8-97384-116-0 01 1 0803-0810 ●
34 SHAFT; IDLE PULLEY
COOLER WO/HEATER<C65> 		8-97384-116-0 01 1 0811- ● ●
37 BOLT; PULLEY BRKT
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA 		0-28050-850-0 01 1 0803-0810 ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA 		0-28050-850-0 01 1 0811- ● ●
37 BOLT; PULLEY BRKT
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (B) M10X65 FLANGE 		8-94344-540-1 01 1 0803-0810 ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (B) M10X65 FLANGE 		8-94344-540-1 01 1 0811- ● ●
46 BRACKET; CMPR
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> THA 		8-98006-515-3 01 1 0803-0810 ●
46 BRACKET; CMPR
COOLER WO/HEATER<C65> THA 		8-98006-515-3 01 1 0811- ● ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (A) M10X90 FLANGE 		0-28151-090-0 02 1 0803-0810 ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M10X90 FLANGE 		0-28151-090-0 02 1 0811- ● ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (B) M10X120 FLANGE 		0-28156-012-0 02 1 0803-0809 ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG<RDQ> COOLER WO/HEATER<C65> (B) M10X120 FLANGE 		0-28156-012-0 01 1 0810-0810 ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M10X120 FLANGE 		0-28156-012-0 01 1 0811- ● ●
210 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1004-1104 ● ●
508 CLIP; HARNESS
4HK1-TCN ENG<RDQ> L=140 THA 		5-09707-031-1 01 1 0803-0810 ●
508 CLIP; HARNESS
L=140 THA 		5-09707-031-1 01 1 0811- ● ●

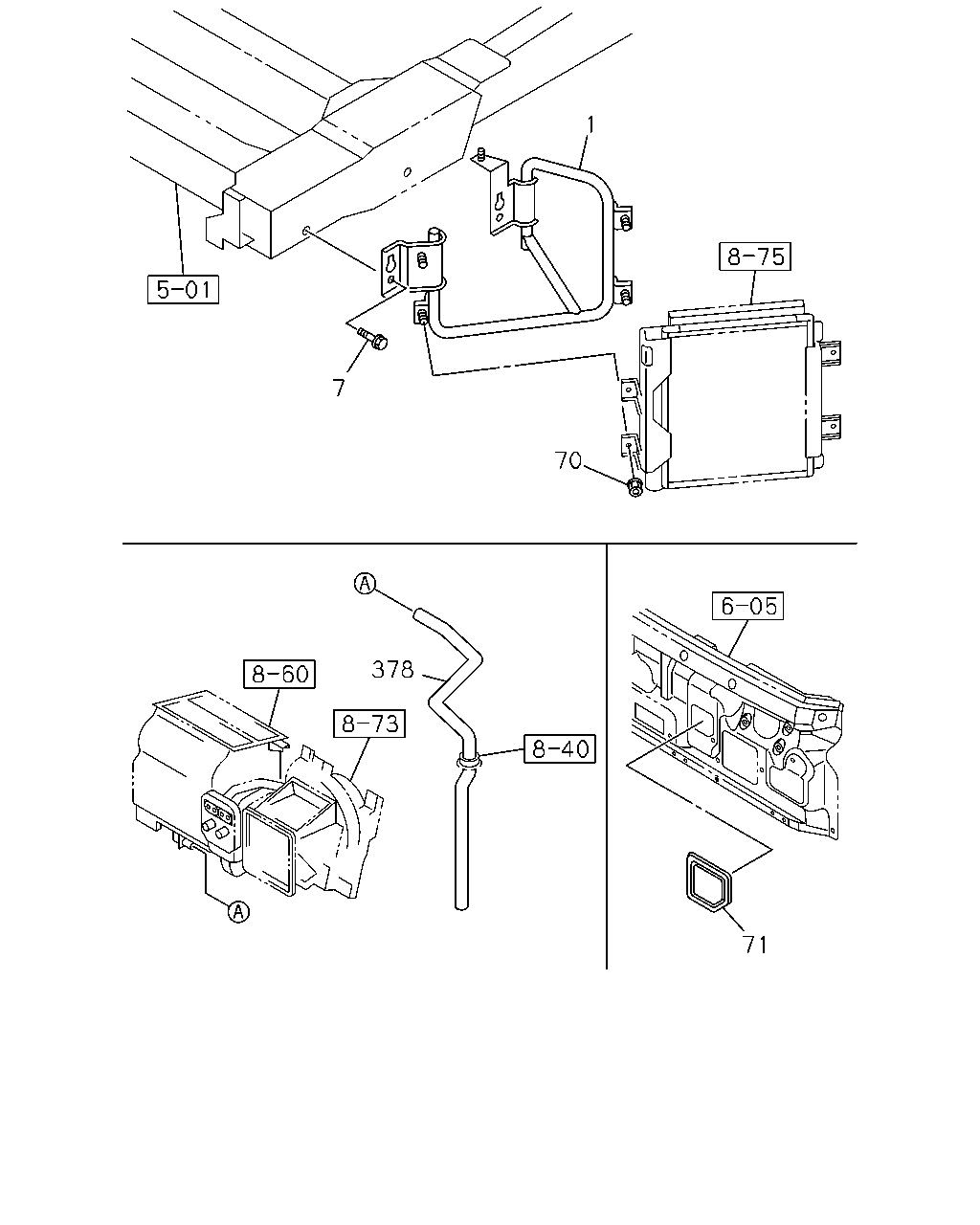

çizim 141175
1 7 70 378 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
COOLER WO/HEATER<C65> 		8-97387-182-0 01 1 0803-0810 ●
1 BRACKET; A/C
COOLER WO/HEATER<C65> 		8-97387-182-0 01 1 0811-1303 ● ●
1 BRACKET; A/C
COOLER WO/HEATER<C65> 		8-98214-411-0 01 1 1304- ● ●
7 BOLT; BRKT
COOLER WO/HEATER<C65> M12X30 FLANGE THA 		0-28651-230-0 04 1 0803-0810 ●
7 BOLT; BRKT
COOLER WO/HEATER<C65> M12X30 FLANGE THA 		0-28651-230-0 04 1 0811- ● ●
70 NUT; EVAP,A/C
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 04 1 0803-0810 ●
70 NUT; EVAP,A/C
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 04 1 0811- ● ●
71 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98017-234-1 01 1 0803-0810 ●
71 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98017-234-1 01 1 0811-1301 ● ●
71 COVER; EVAP,A/C
EXC. COOLER WO/HEATER<C65> 		8-98017-234-1 01 1 1302- ● ●
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-97387-174-2 01 1 0803-0810 ●
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-97387-174-2 01 1 0811- ● ●
