8-40 — HEATER SYSTEM (#74650) — 118 parça

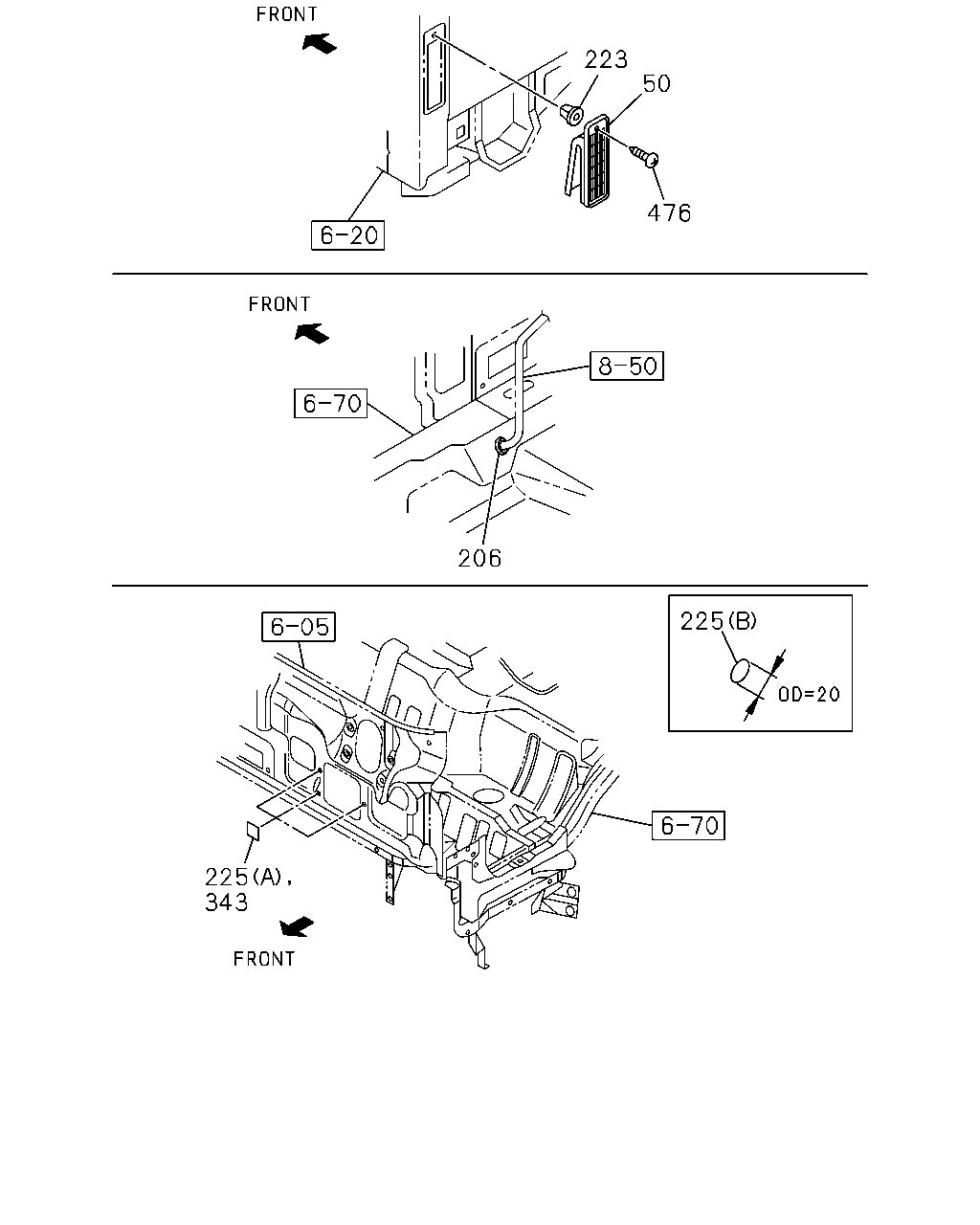

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR THA	8-97925-112-0	01	1	0911-	●	●
50	VALVE ASM; HTR	8-98080-998-1	01	1	0803-0810	●
50	VALVE ASM; HTR	8-98080-998-1	01	1	0811-0910	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0803-0810	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0811-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0803-0810	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0811-	●	●
225	SEAL; WATER COOLER WO/HEATER<C65> (A)	8-97856-616-0	01	1	1303-	●	●
225	SEAL; WATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97856-616-0	03	1	0803-0810	●
225	SEAL; WATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97856-616-0	03	1	0811-1302	●	●
225	SEAL; WATER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97856-616-0	02	1	1303-	●	●
225	SEAL; WATER EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0803-0810	●
225	SEAL; WATER EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0811-1301	●	●
225	SEAL; WATER EXC. COOLER WO/HEATER<C65> (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-	●	●
343	SEAL; AIR DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97856-616-0	02	1	0803-0810	●
343	SEAL; AIR DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97856-616-0	02	1	0811-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0803-0810	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0811-	●	●

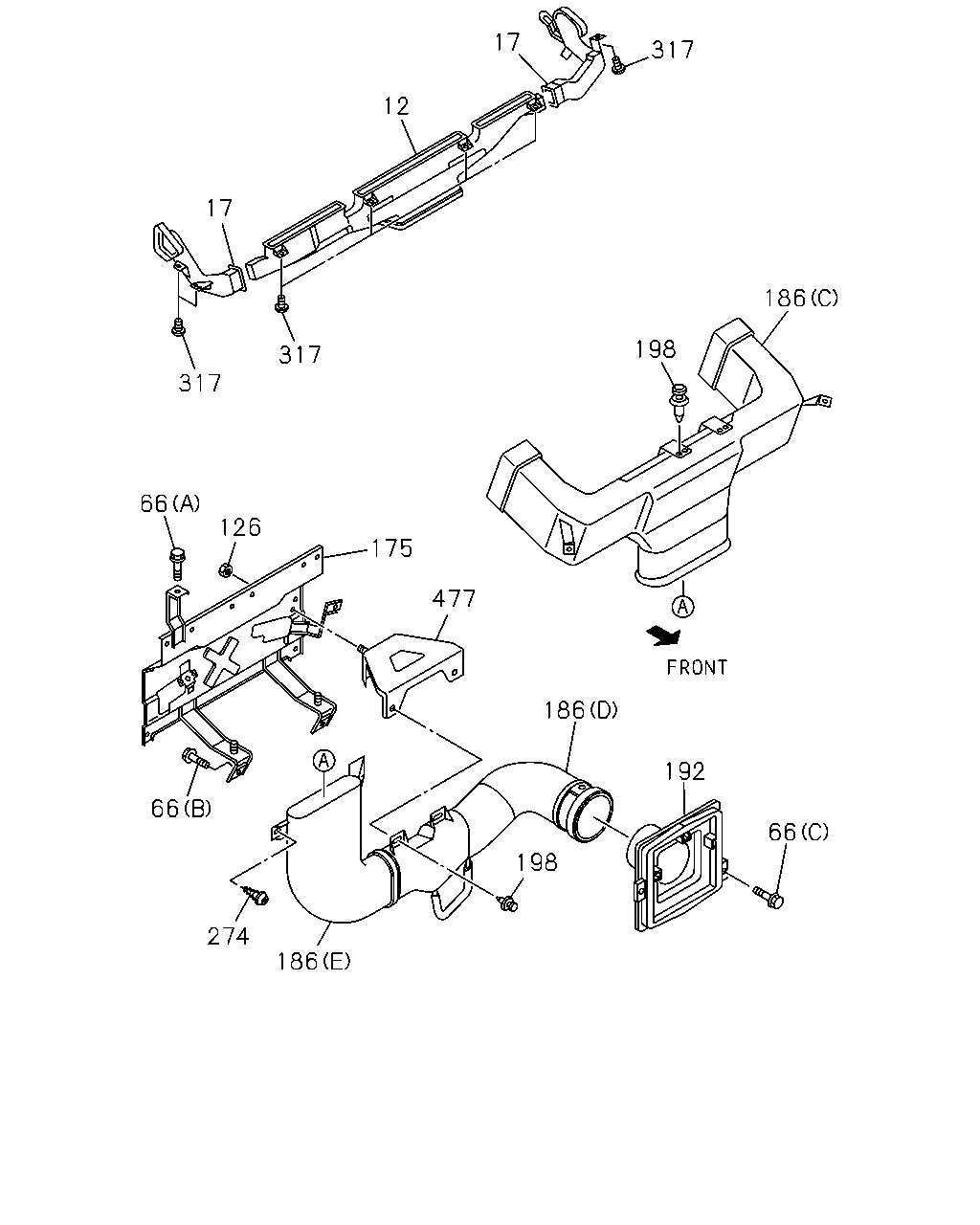

186 198 317 17 12 17 317 317 126 175 477 186 192 66 198 186 274 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0803-0810	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0811-	●	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-475-5	01	1	0803-0810	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-475-5	01	1	0811-	●	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-469-1	01	1	0803-0810	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-469-1	01	1	0811-	●	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0803-0810	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0811-	●	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0810	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0811-	●	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0803-0810	●
66	BOLT; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0811-	●	●
126	NUT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	0803-0810	●
126	NUT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	0811-	●	●
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98091-544-5	01	1	0803-0810	●
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98091-544-5	01	1	0811-1206	●	●
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98221-688-0	01	1	1207-	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-97585-486-6	01	1	0803-0810	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-97585-486-6	01	1	0811-1410	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98285-585-0	01	1	1411-	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97585-466-7	01	1	0803-0810	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97585-466-7	01	1	0811-1410	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98285-582-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C)	8-98054-363-0	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C)	8-98054-363-0	01	1	0811-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (E)	8-98054-371-0	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (E)	8-98054-371-0	01	1	0811-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D)	8-98054-379-2	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D)	8-98054-379-2	01	1	0811-	●	●
192	DUCT; RAM AIR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98054-386-4	01	1	0803-0810	●
192	DUCT; RAM AIR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98054-386-4	01	1	0811-	●	●
198	CLIP; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98056-059-0	05	1	0803-0803	●
198	CLIP; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	1-09987-144-0	05	1	0803-0810	●
198	CLIP; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	1-09987-144-0	05	1	0811-	●	●
274	SCREW; VENT DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0810	●
274	SCREW; VENT DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0811-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0803-0810	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0811-	●	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0803-0808	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-0810	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0811-	●	●
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98091-304-0	01	1	0803-0810	●
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98091-304-0	01	1	0811-	●	●

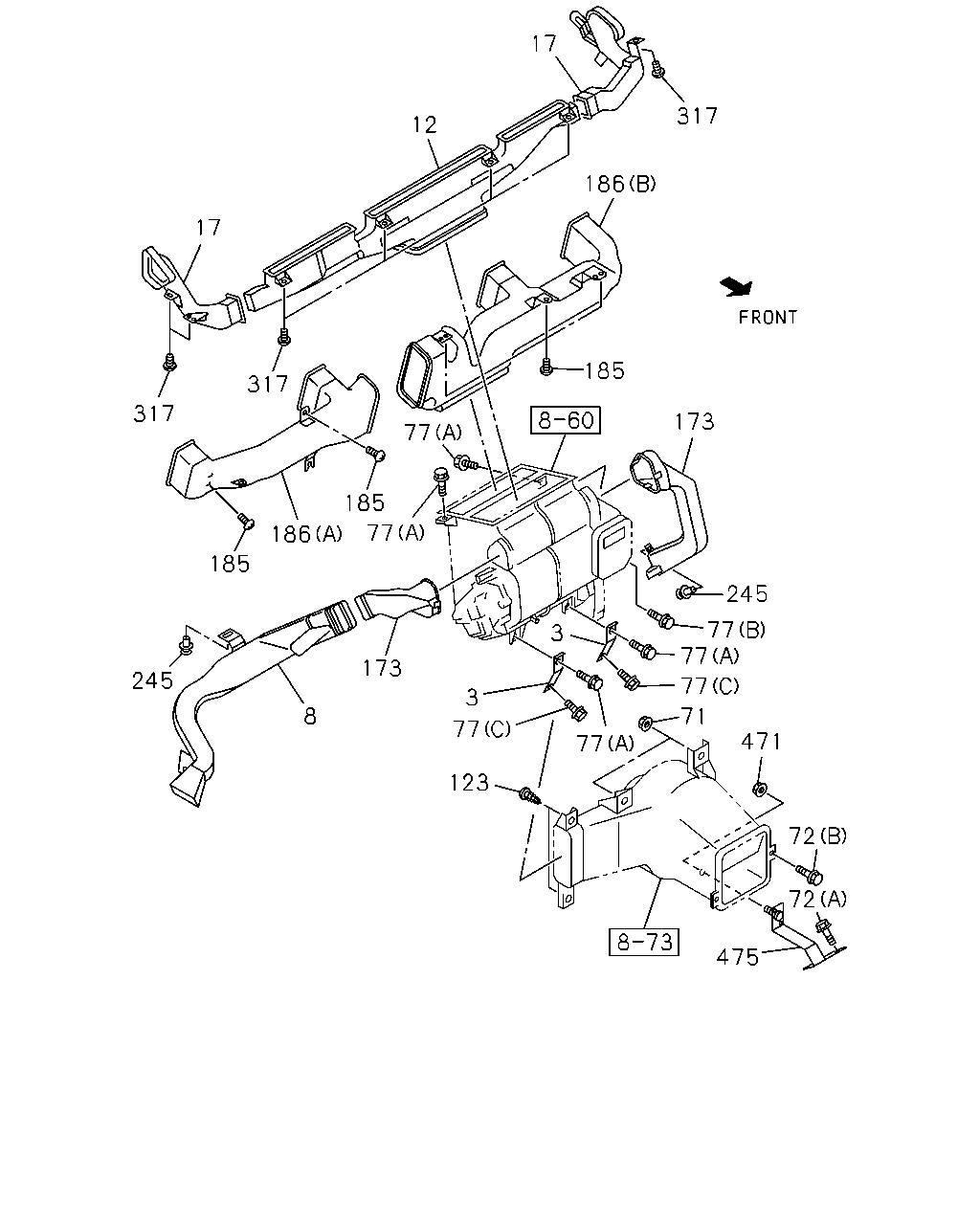

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98082-473-1	02	1	0803-0810	●
3	BRACKET; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98082-473-1	02	1	0811-	●	●
8	DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98084-146-0	01	1	0803-0810	●
8	DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98084-146-0	01	1	0811-	●	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0803-0810	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0811-	●	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-475-5	01	1	0803-0810	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-475-5	01	1	0811-	●	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-469-1	01	1	0803-0810	●
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-469-1	01	1	0811-	●	●
71	NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	02	1	0803-0810	●
71	NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	02	1	0811-	●	●
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0803-0810	●
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0811-	●	●
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0810	●
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0811-	●	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	04	1	0803-0810	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	04	1	0811-	●	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0803-0810	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0811-1301	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0803-0810	●
77	BOLT; HTR UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0811-	●	●
123	SCREW; DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0810	●
123	SCREW; DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0811-	●	●
173	DUCT; FOOT,HTR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-504-3	01	1	0803-0810	●
173	DUCT; FOOT,HTR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97585-504-3	01	1	0811-	●	●
173	DUCT; FOOT,HTR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98084-145-0	01	1	0803-0810	●
173	DUCT; FOOT,HTR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98084-145-0	01	1	0811-1411	●	●
173	DUCT; FOOT,HTR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98246-555-0	01	1	1412-	●	●
185	SCREW; VENT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0803-0810	●
185	SCREW; VENT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0811-1003	●	●
185	SCREW; VENT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-97585-486-6	01	1	0803-0810	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-97585-486-6	01	1	0811-1410	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98285-585-0	01	1	1411-	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97585-466-7	01	1	0803-0810	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97585-466-7	01	1	0811-1410	●	●
186	DUCT; VENTILATOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98285-582-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C)	8-98054-363-0	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C)	8-98054-363-0	01	1	0811-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (E)	8-98054-371-0	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (E)	8-98054-371-0	01	1	0811-	●	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D)	8-98054-379-2	01	1	0803-0810	●
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D)	8-98054-379-2	01	1	0811-	●	●
245	CLIP; FOOT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98056-059-0	02	1	0803-0803	●
245	CLIP; FOOT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	1-09987-144-0	02	1	0803-0810	●
245	CLIP; FOOT DUCT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	1-09987-144-0	02	1	0811-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0803-0810	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0811-	●	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0803-0808	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-0810	●
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0811-	●	●
471	NUT; BLOWER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	0803-0810	●
471	NUT; BLOWER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	0811-	●	●
475	BRACKET; BLOWER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97387-092-2	01	1	0803-0810	●
475	BRACKET; BLOWER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-97387-092-2	01	1	0811-	●	●
