8-28 — CHASSIS ELECTRICAL (#74649) — 30 parça
çizim 144129
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
4HK1-TCN ENG<RDQ> 24V 30A MITSUBA 		8-97238-540-0 01 1 0803-0803 ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0803-0810 ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0811-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 RELAY; STARTER
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0803-0810 ●
666 RELAY; STARTER
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0811-1005 ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●

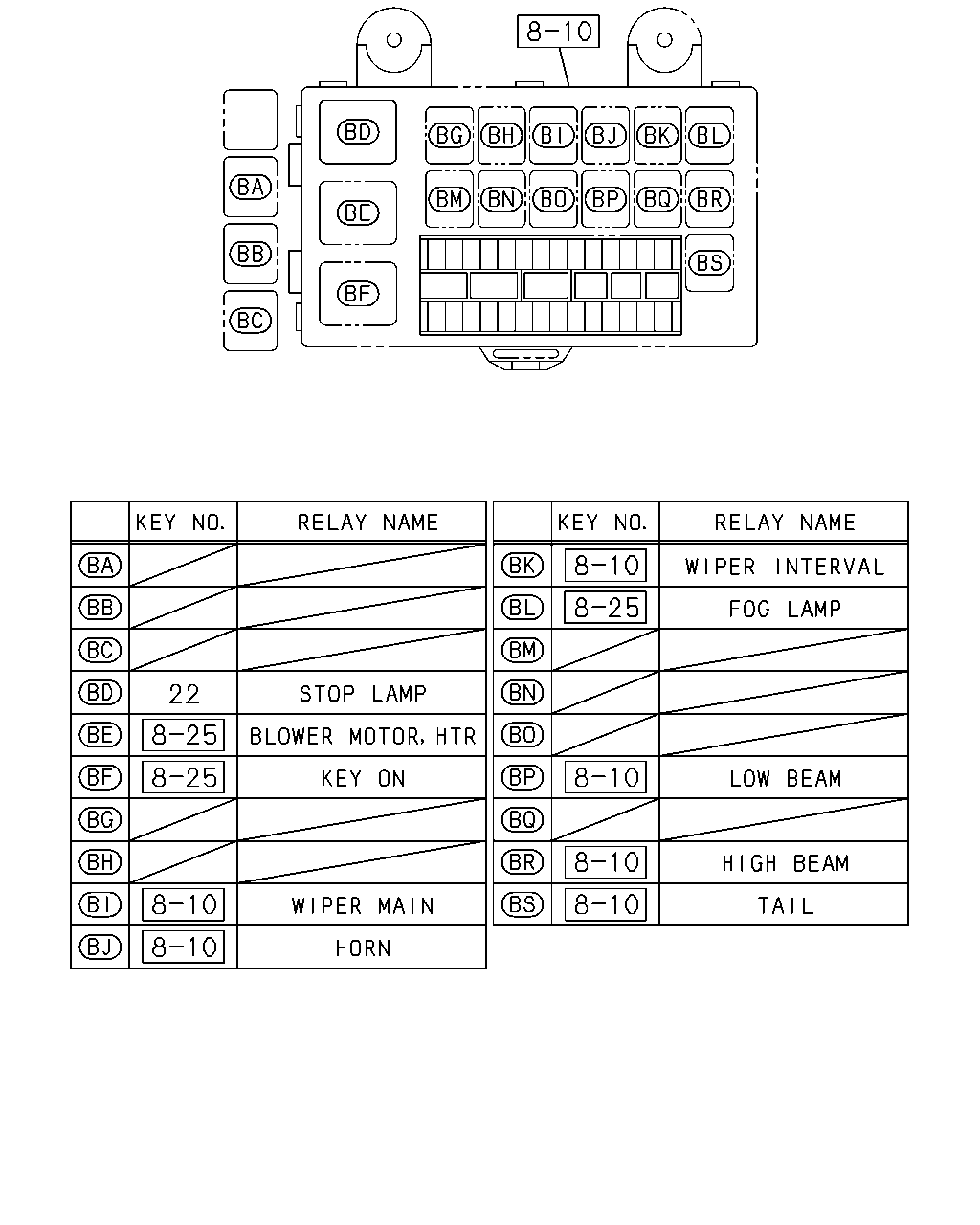

çizim 185669
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0810 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0811- ● ●

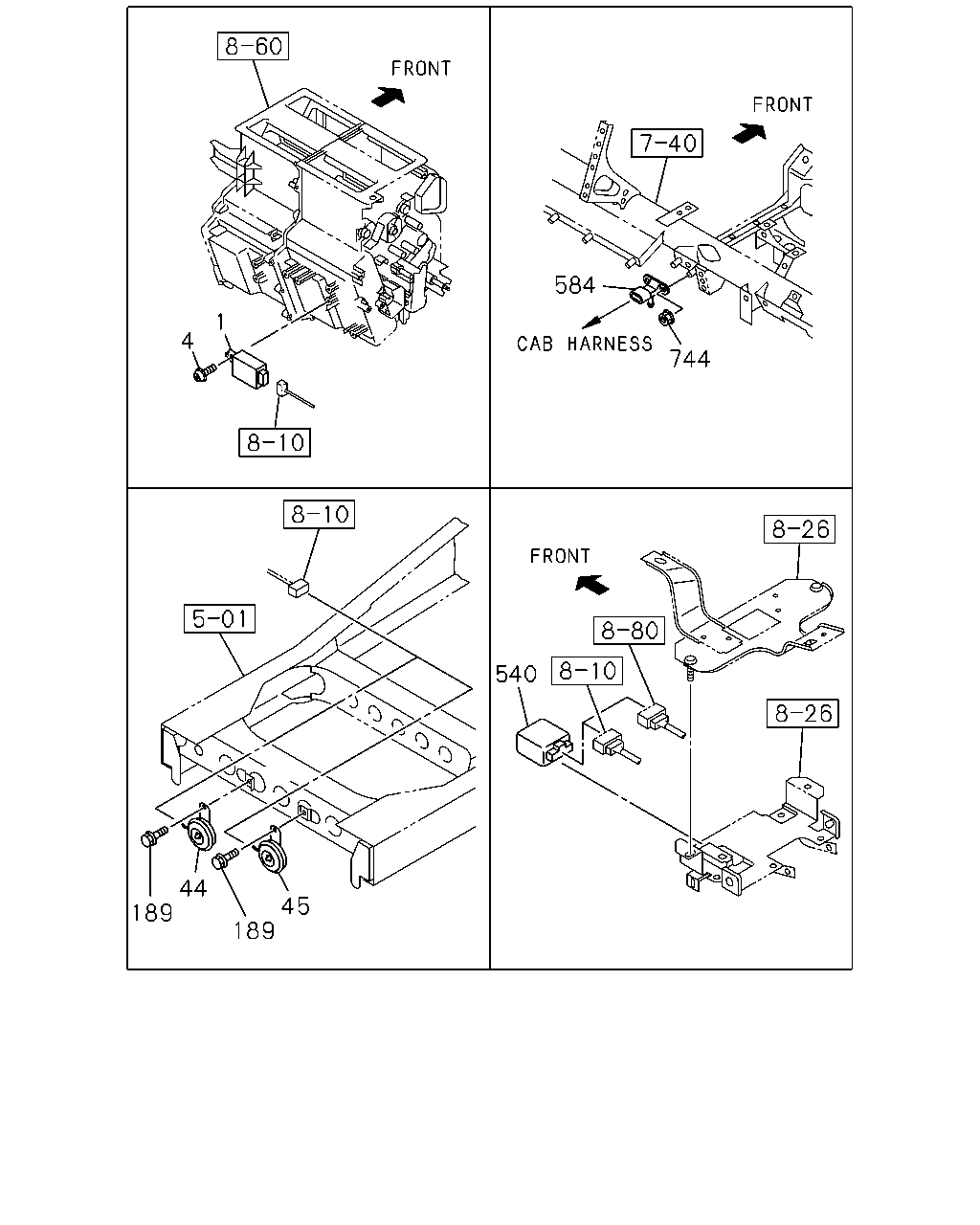

çizim 185671
1 4 189 44 189 45 540 744 584
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0803-0810 ●
1 UNIT; FLASHER 8-98025-533-1 01 1 0811- ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0810 ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0811- ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98070-080-0 01 1 0803-0810 ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98070-080-0 01 1 0811- ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 0803-0810 ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 0811- ● ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803-0810 ●
189 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803-0810 ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0811- ● ●
189 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0811- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0803-0810 ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0811-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
584 SENSOR; PRESSURE
4HK1-TCN ENG<RDQ> 		8-98020-514-0 01 1 0803-0810 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0811- ● ●
744 NUT; SENSOR
M6 FLANGE THA 		0-91180-106-0 02 1 0803-0810 ●
744 NUT; SENSOR
M6 FLANGE THA 		0-91180-106-0 02 1 0811- ● ●

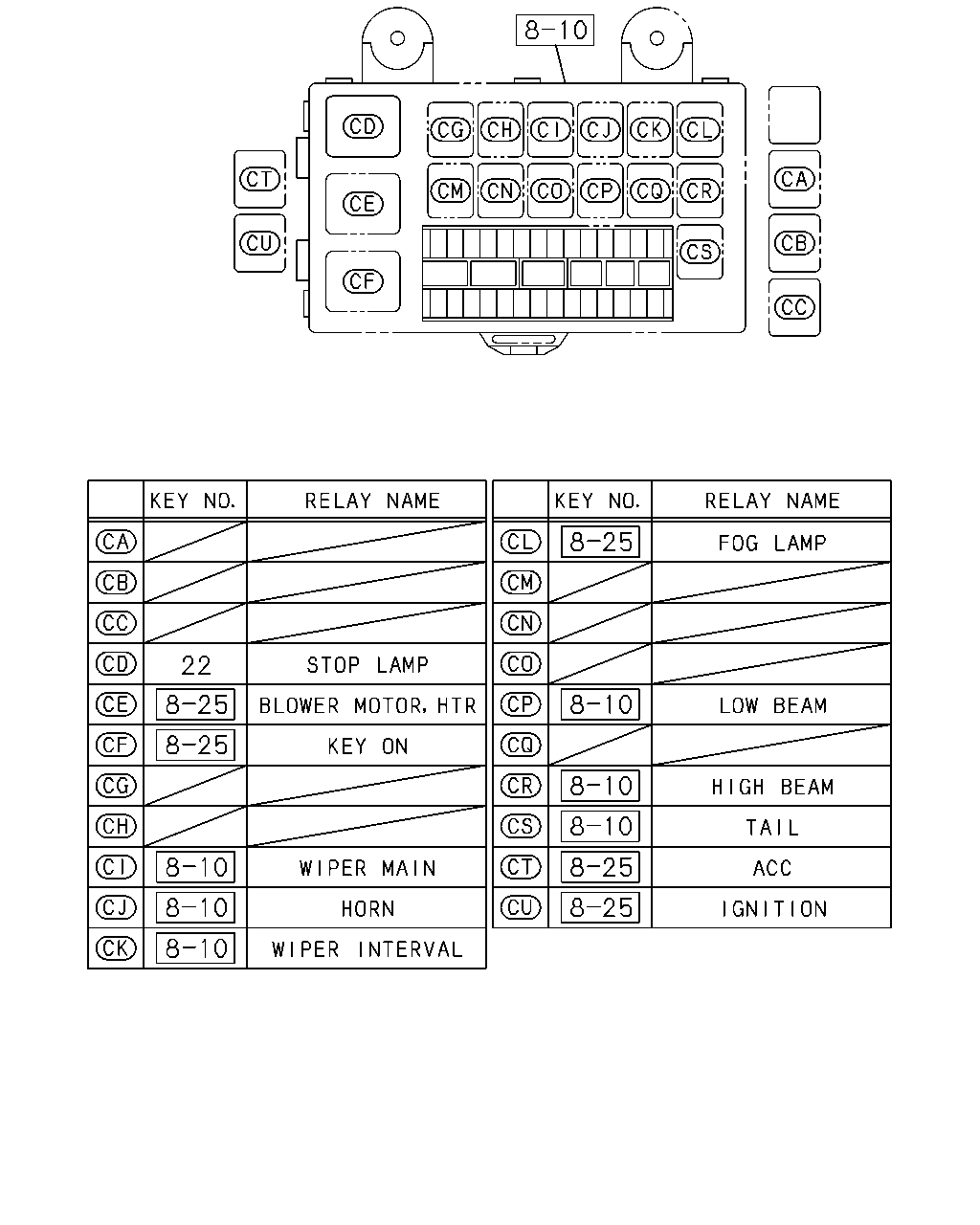

çizim 284347
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0810 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0811- ● ●
