Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶

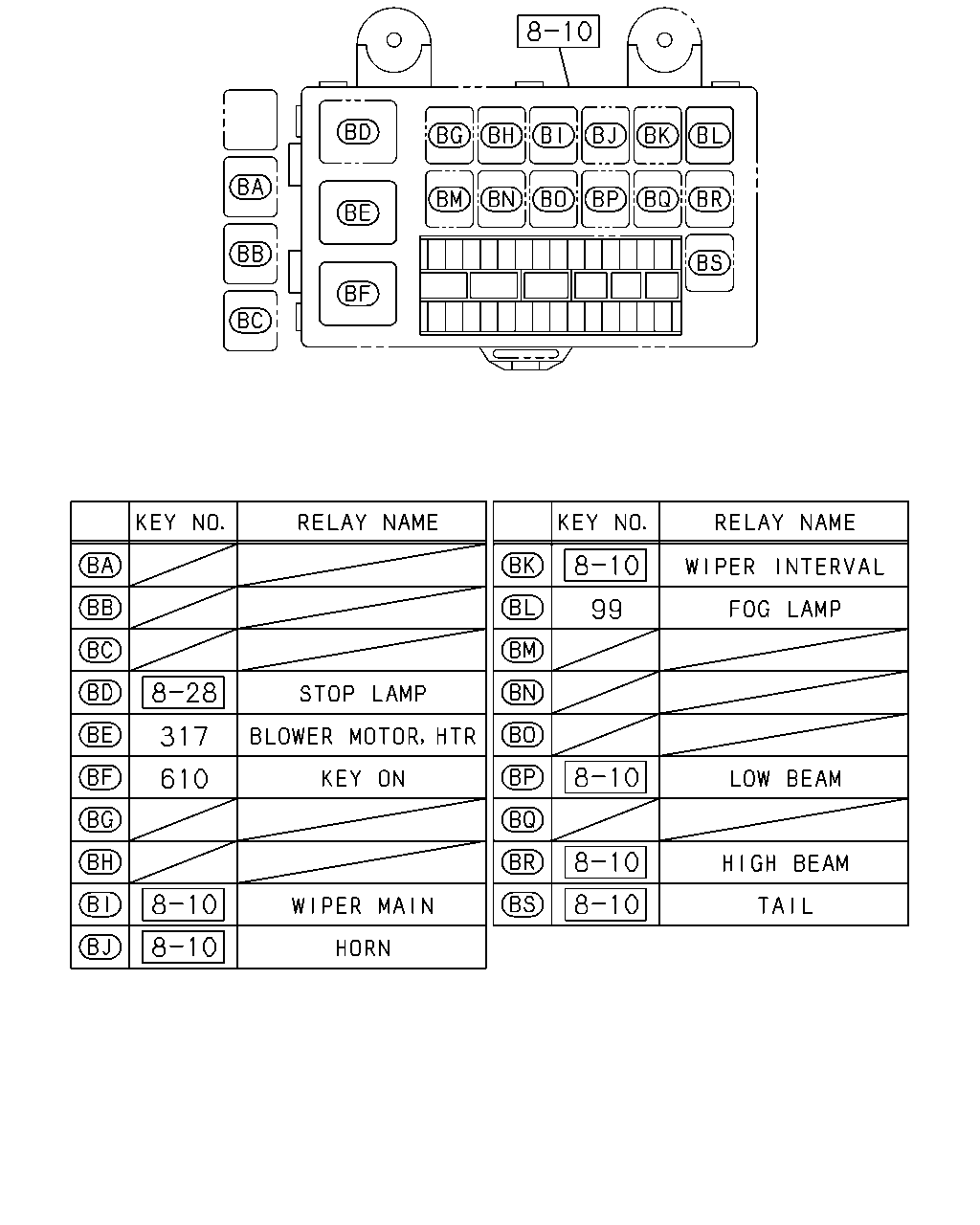

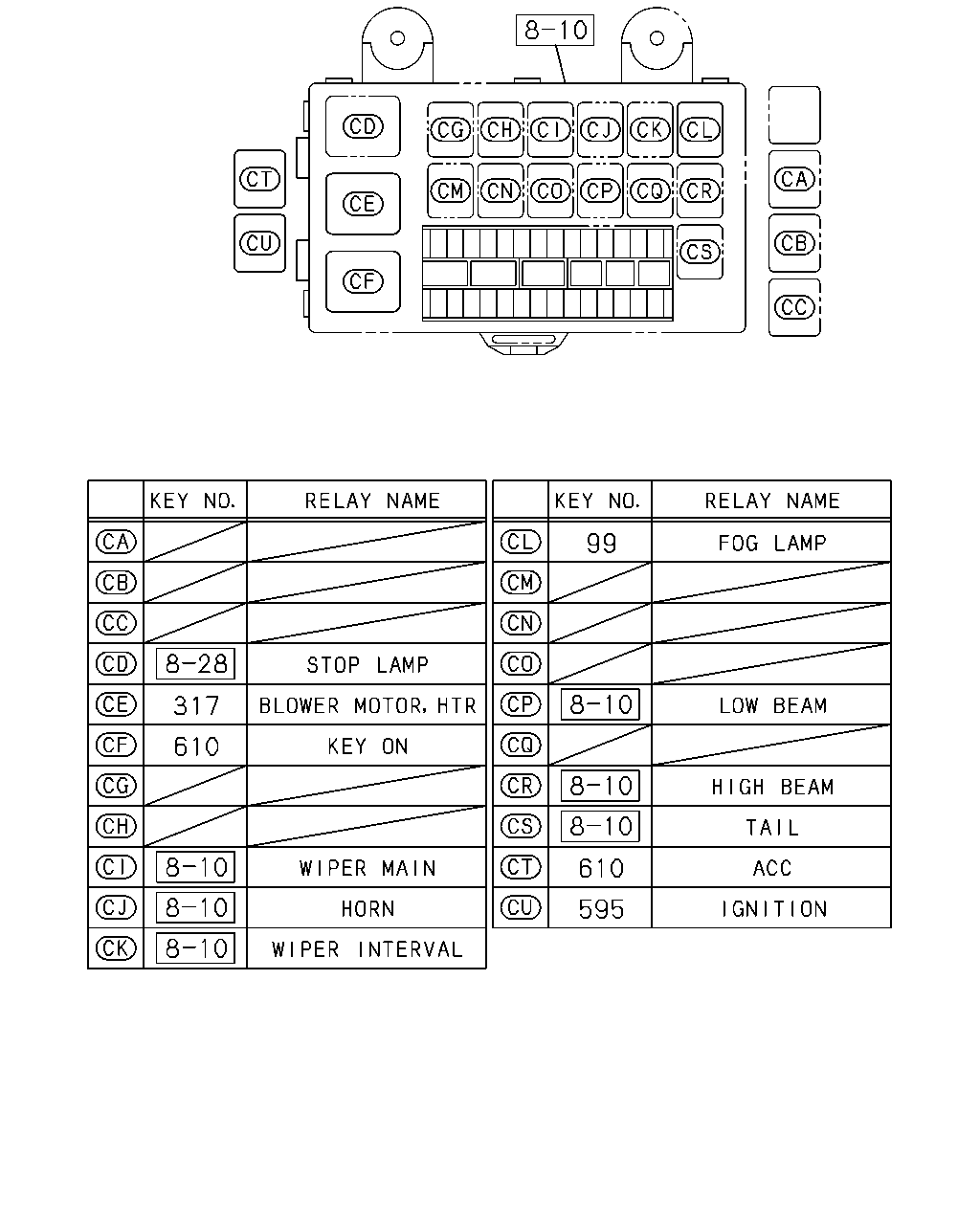

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#74647) — 65 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[825A] RELAY;FRAME HARNESS (6 parça)
[825A] '12/2-'12/8 RELAY;CAB HARNESS (10 parça)
[825A] SWITCH(NO.1) (24 parça)
[825A] -'12/1,'12/9- RELAY;CAB HARNESS (9 parça)
[825A] SWITCH(NO.2) (16 parça)
▶
151
154
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0810
●
151
RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
●
●
154
RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A PANASONIC THA
8-97173-035-1
01
1
0803-0810
●
154
RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A PANASONIC THA
8-97173-035-1
01
1
0811-
●
●
315
RELAY; EXH BRAKE CONT
4HK1-TCN ENG<RDQ> 24V 10A PANASONIC THA
8-97173-035-1
01
1
0803-0810
●
315
RELAY; EXH BRAKE CONT
24V 10A PANASONIC THA
8-97173-035-1
01
1
0811-
●
●
99
317
610
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
0803-0810
●
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
0811-
●
●
317
RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0810
●
317
RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
●
●
595
RELAY; IGNITION
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1208
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0810
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-1201
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1208
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1208
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1209-
●
●
21
1
3
30
29
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

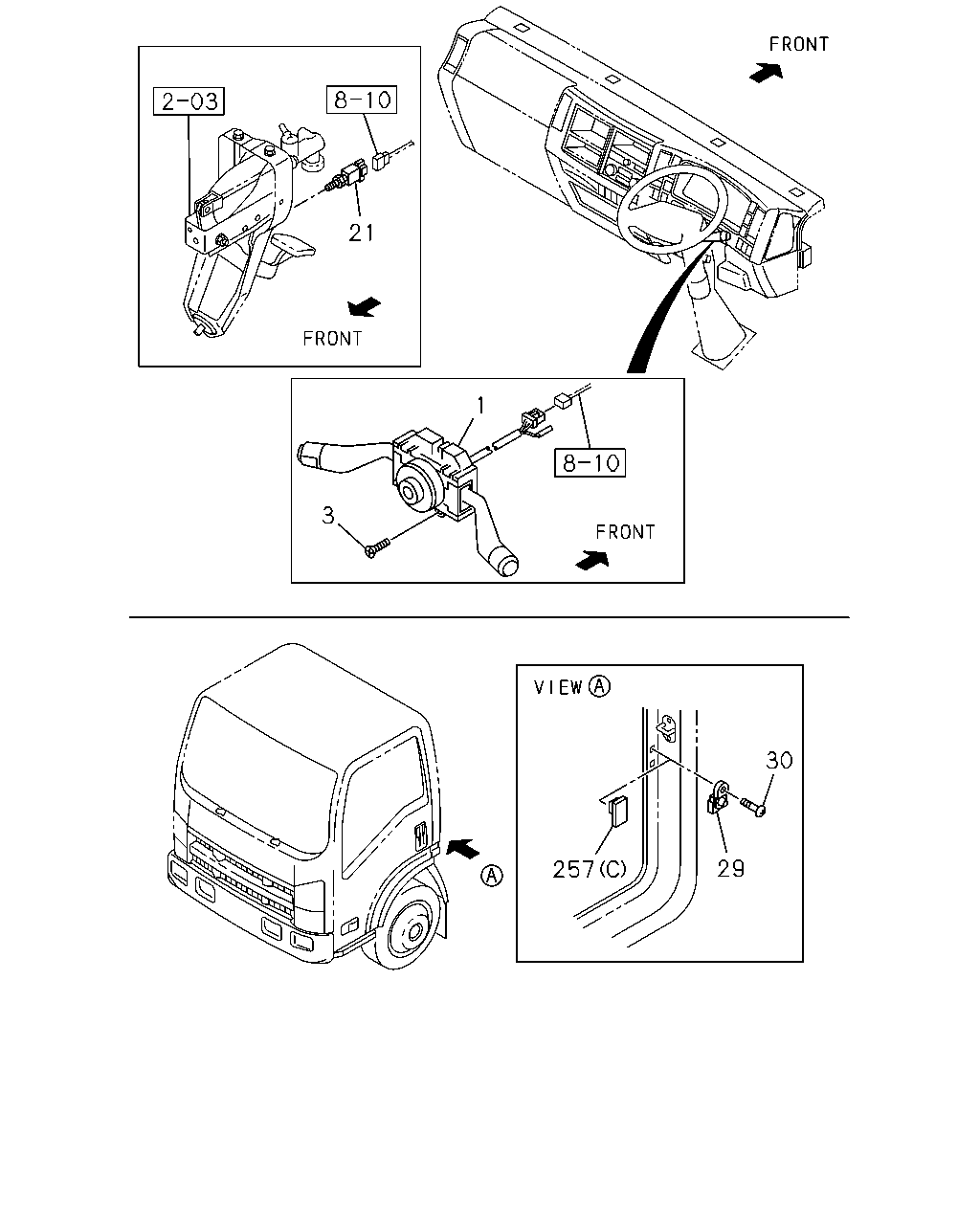

1
SWITCH; COMB
8-98069-995-1
01
1
0803-0810
●
1
SWITCH; COMB
8-98069-995-1
01
1
0811-1310
●
●
1
SWITCH; COMB
8-98243-729-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0803-0810
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0811-
●
●
21
SWITCH; CLU
8-97358-248-0
01
1
0803-0810
●
21
SWITCH; CLU
8-97358-248-0
01
1
0811-
●
●
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0803-0810
●
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0811-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
02
1
0803-0809
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0810-0810
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0803-0809
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
09
1
0803-0809
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0803-0810
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0803-0810
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0811-
●
●
99
317
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
0803-0810
●
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
0811-
●
●
317
RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0810
●
317
RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0810
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-1201
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1208
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1208
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1209-
●
●
249
257
257
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

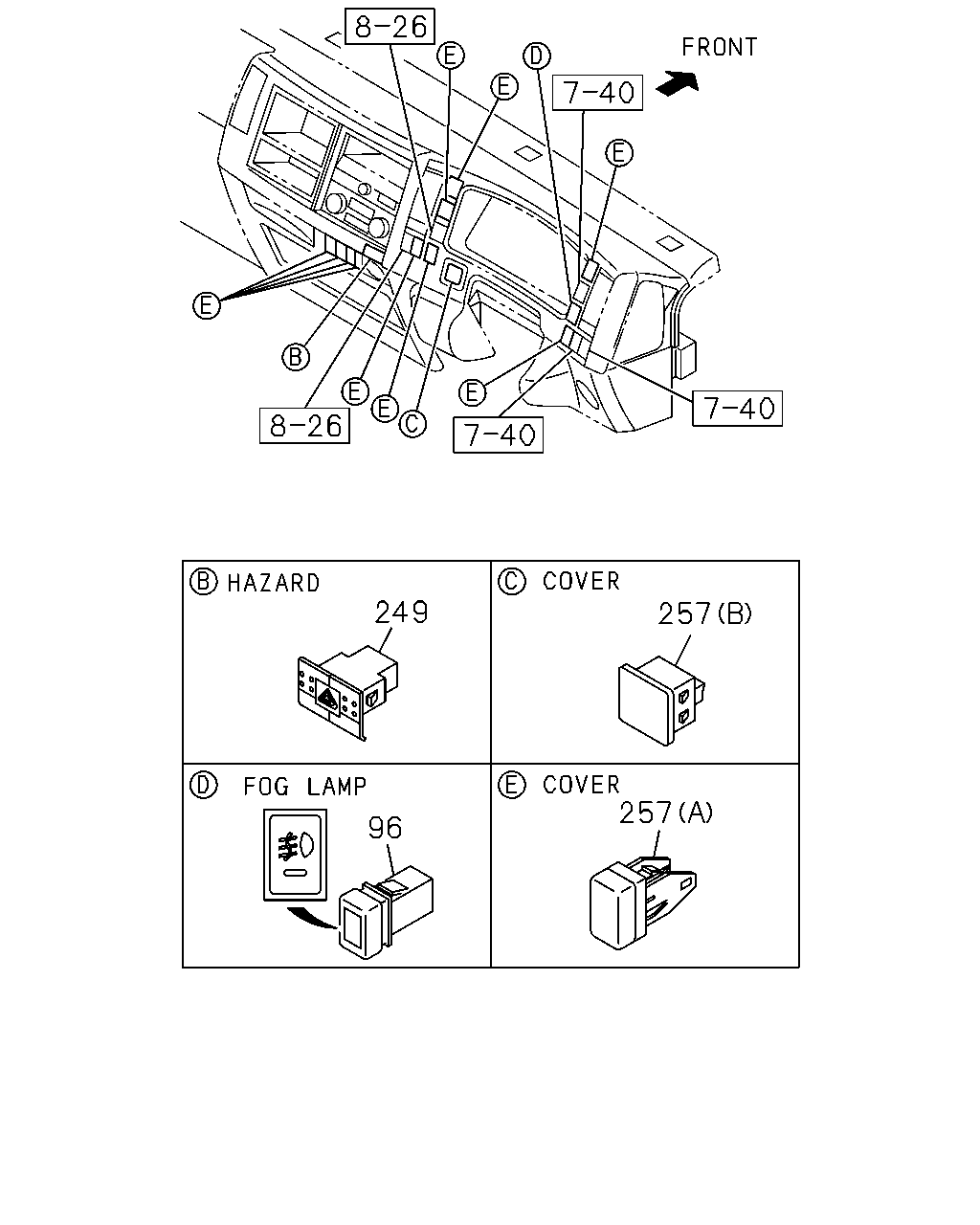

96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
0803-0810
●
96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
0811-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0803-0810
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0803-0809
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
09
1
0803-0809
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0810-0810
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0803-0810
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0811-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0803-0810
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0811-
●
●
