Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#74645) — 249 parça

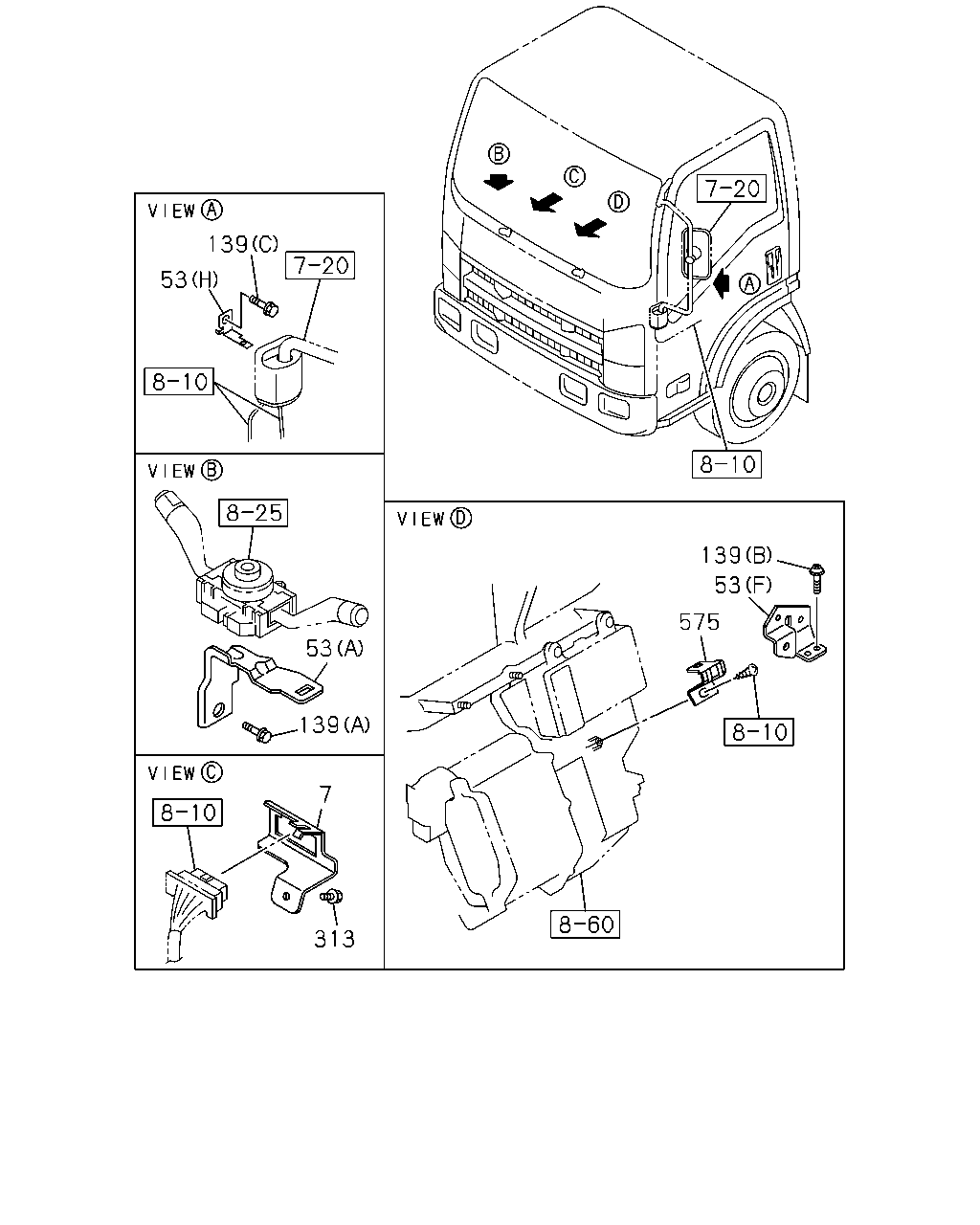

150 313 139 139 516 480 529 304 480 377 377 386 386 139 24 515 577 219 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	0905-	●	●
24	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	01	1	0807-0810	●
24	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	01	1	0811-	●	●
24	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	01	1	0803-0810	●
24	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	01	1	0811-1409	●	●
24	NUT; HARNESS (A) M6 FLANGE STAINLESS THA	8-98297-112-0	01	1	1410-	●	●
24	NUT; HARNESS 4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
24	NUT; HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0803-0810	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0811-	●	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0810	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-	●	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0803-0805	●
150	BOLT; CLIP VIN MODEL YEAR 2010<VZA> M6X10 FLANGE THA	0-28050-610-0	01	1	1004-1104	●	●
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0811-0812	●	●
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1012-	●	●
294	NUT 4HK1-TCN ENG<RDQ> M8 W/LK WASHER THA	8-94413-537-0	01	1	0803-0810	●
294	NUT M8 W/LK WASHER THA	8-94413-537-0	01	1	0811-0904	●	●
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	0905-	●	●
304	BOLT; ENG HARNESS CLIP 4HK1-TCN ENG<RDQ> M10X16 FLANGE THA	0-28151-016-0	01	1	0803-0810	●
304	BOLT; ENG HARNESS CLIP M10X16 FLANGE THA	0-28151-016-0	01	1	0811-	●	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	0803-0810	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	0811-	●	●
377	BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0803-0810	●
377	BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0811-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0803-0810	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0811-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-0810	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0811-	●	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0803-0810	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0811-	●	●
480	BOLT; BRKT (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0904-	●	●
480	BOLT; BRKT 4HK1-TCN ENG<RDQ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0807-0810	●
480	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
480	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0803	●
480	BOLT; BRKT 4HK1-TCN ENG<RDQ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
480	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
480	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0803	●
480	BOLT; BRKT 4HK1-TCN ENG<RDQ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0810	●
480	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	0803-0810	●
515	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (B) M8 FLANGE	8-98040-024-0	01	1	0803-0810	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0811-	●	●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0803-0810	●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0811-	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0803-0810	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0811-	●	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (A) M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
577	NUT; FUSE BOX M6 FLANGE THA	0-91180-106-0	02	1	0803-0810	●
577	NUT; FUSE BOX M6 FLANGE THA	0-91180-106-0	02	1	0811-	●	●

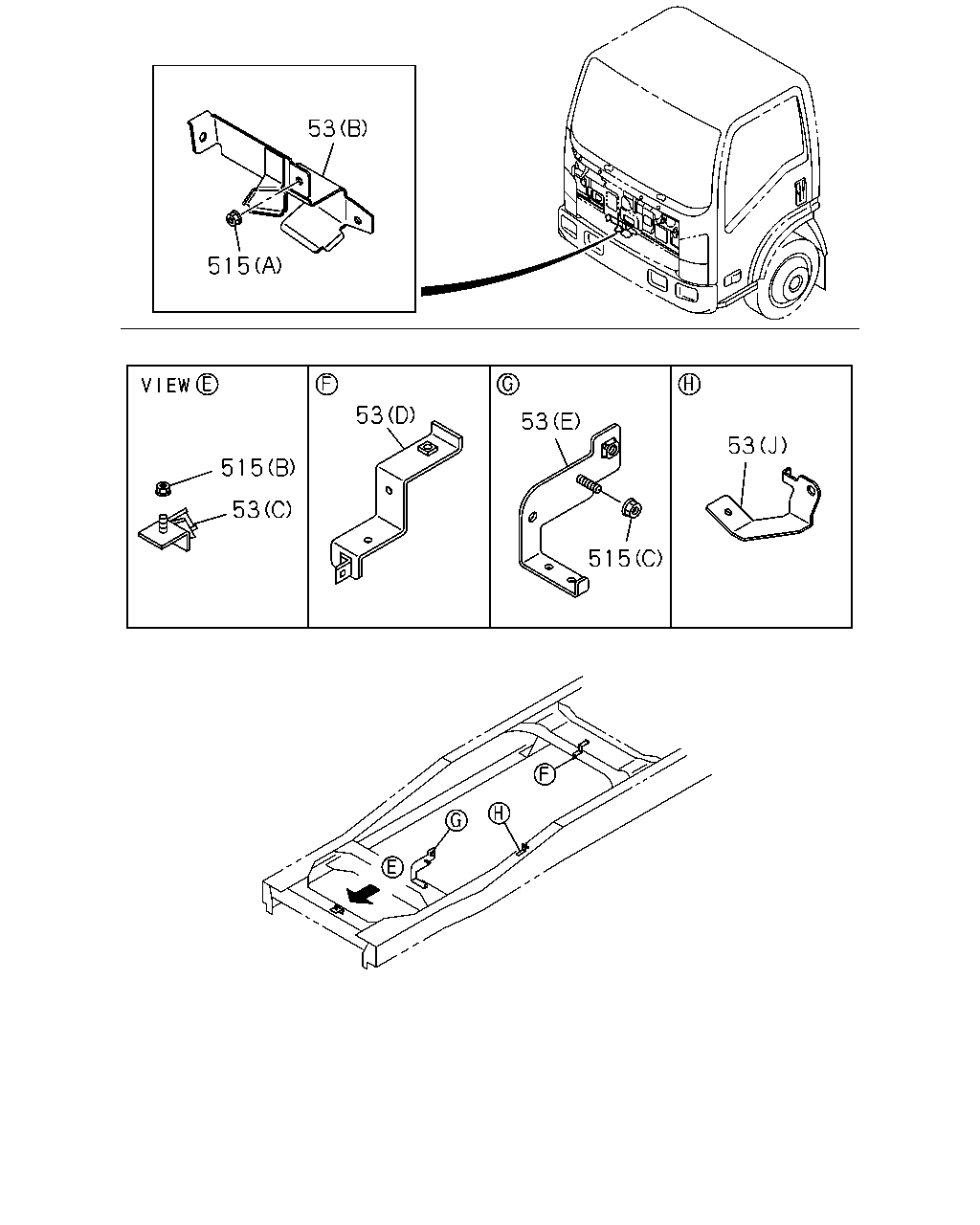

53 515 53 53 53 515 53 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0810	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0811-	●	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	0803-0810	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0811-	●	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (J)	8-98094-629-0	01	1	0803-0810	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0811-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0803-0810	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0811-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0803-0810	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0811-	●	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0803-0805	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	0803-0810	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	0803-0810	●
53	BRACKET; HARNESS (B)	8-98051-457-0	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (G)	8-98052-804-0	01	1	0803-0810	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (I)	8-98055-636-0	01	1	0803-0810	●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	0811-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●
515	NUT; BRKT 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-110-0	01	1	0811-		●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	0803-0810	●
515	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	01	1	0811-	●	●
515	NUT; BRKT 4HK1-TCN ENG<RDQ> (B) M8 FLANGE	8-98040-024-0	01	1	0803-0810	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0811-	●	●

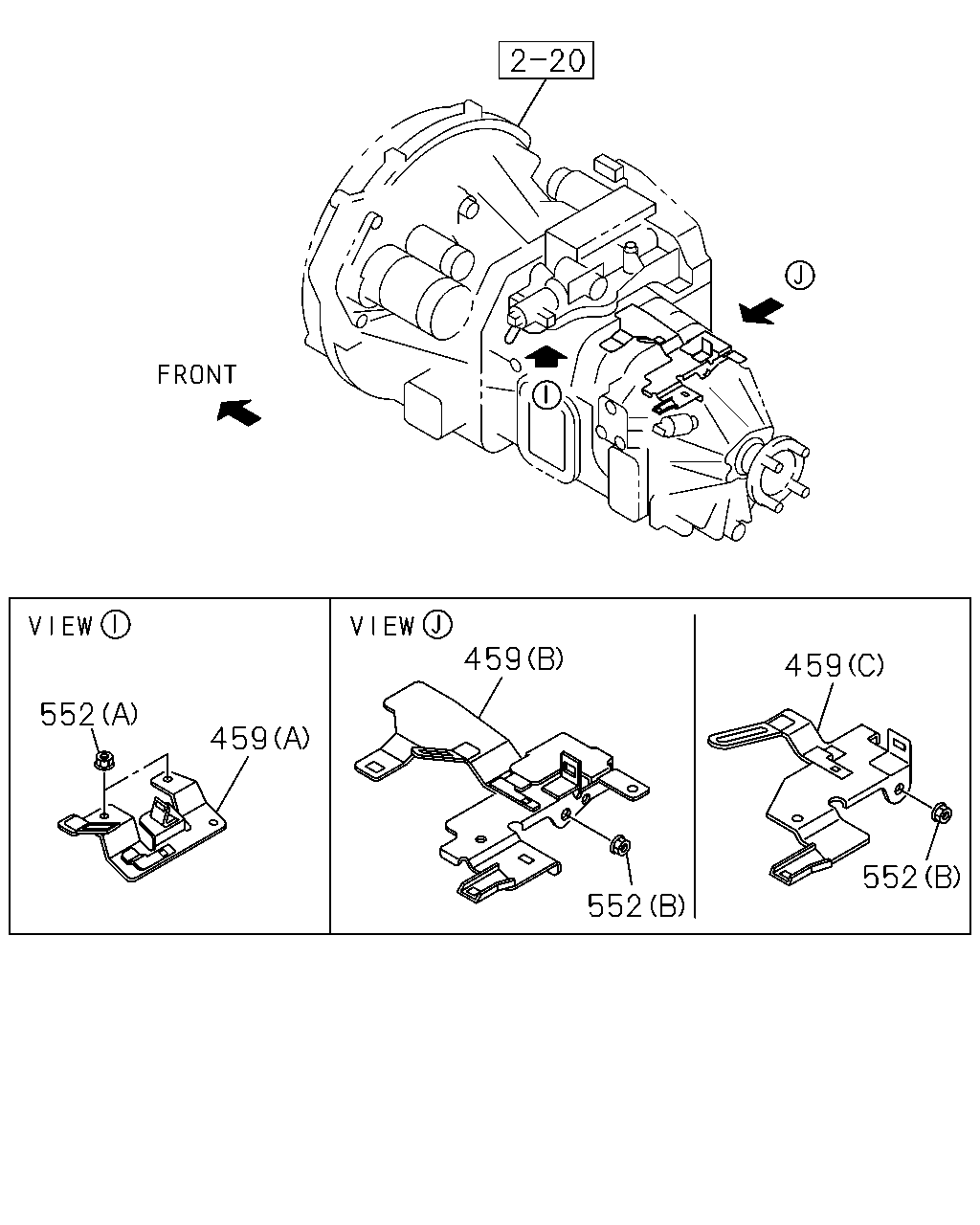

459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> (A)	8-98020-227-3	01	1	0803-0810	●
459	BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0811-	●	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98030-990-2	01	1	0803-0810	●
459	BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0811-1109	●	●
459	BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (A) M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
552	NUT; BRKT,HARNESS 4HK1-TCN ENG<RDQ> (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●

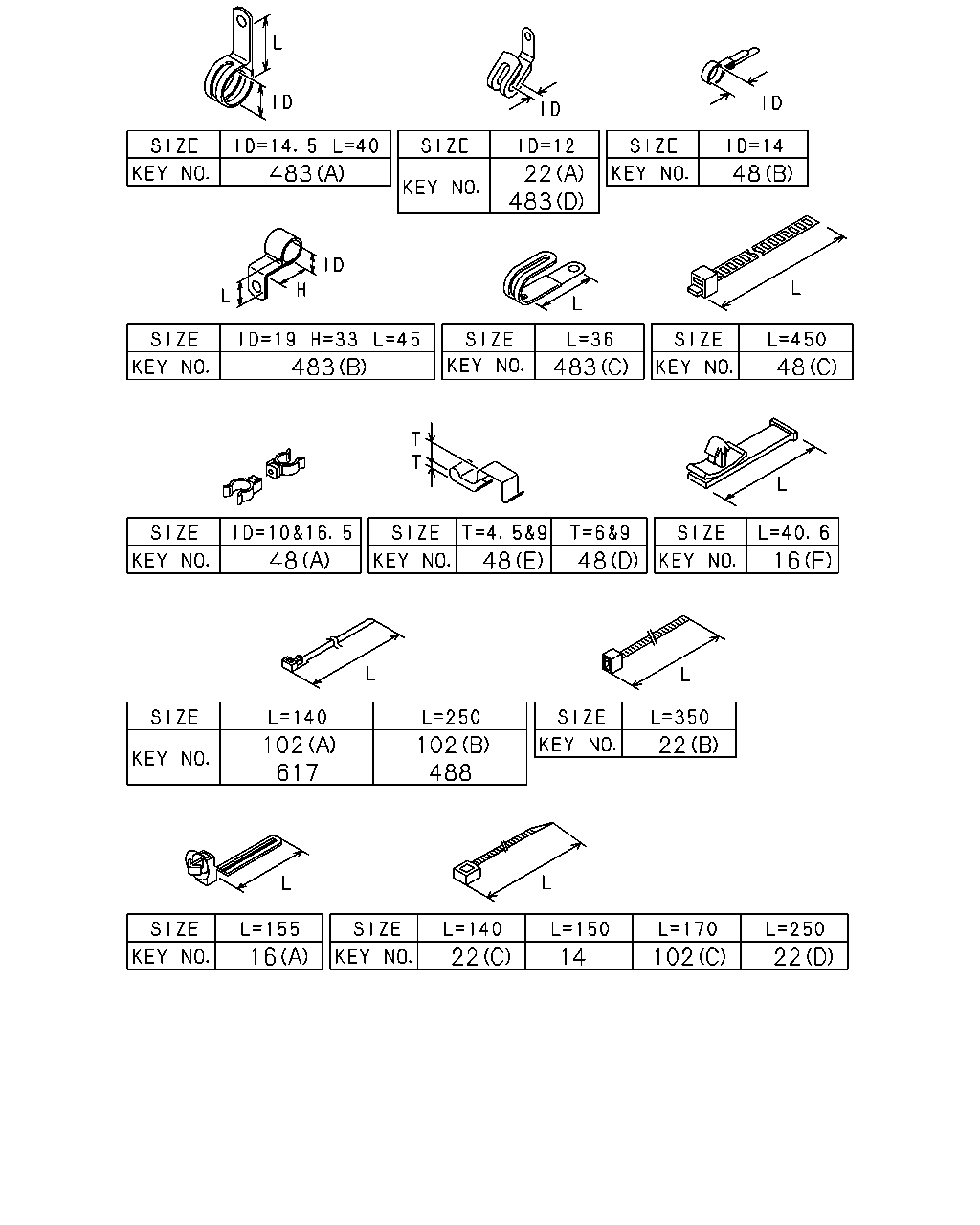

483 22 483 48 483 483 48 48 48 48 16 102 617 102 488 22 16 22 102 22 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> L=150	8-97355-273-0	01	1	0803-0810	●
14	CLIP; BAND,HARNESS L=150	8-97355-273-0	01	1	0811-0811	●	●
14	CLIP; BAND,HARNESS L=150	8-97355-273-0	02	1	0811-0906	●	●
14	CLIP; BAND,HARNESS L=150	8-97355-273-0	01	1	0907-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (F) L=40.6 THA	8-97229-357-0	02	1	1004-1104	●	●
16	CLIP; HARNESS (F) L=40.6 THA	8-97229-357-0	02	1	1105-	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	0803-0810	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	0811-	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	0803-0810	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	0811-	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	0803-0810	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	0811-1003	●	●
16	CLIP; HARNESS CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA	8-97173-307-0	14	1	1004-1104	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA	8-97173-307-0	14	1	1004-1104	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	1105-	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	0811-1003	●	●
16	CLIP; HARNESS CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA	8-98052-679-0	02	1	1004-1104	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA	8-98052-679-0	02	1	1004-1104	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1105-	●	●
16	CLIP; HARNESS 4HK1-TCN ENG<RDQ> (E)	8-97101-436-0	01	1	0803-0810	●
16	CLIP; HARNESS (E)	8-97101-436-0	01	1	0811-	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (C) L=140 THA	5-09707-031-1	01	1	0810-0810	●
22	CLIP; ENG HARNESS (C) L=140 THA	5-09707-031-1	01	1	0811-0811	●	●
22	CLIP; ENG HARNESS (C) L=140 THA	8-97920-656-0	01	1	0811-0902	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (D) L=250 THA	5-09707-030-1	01	1	0805-0810	●
22	CLIP; ENG HARNESS (D) L=250 THA	5-09707-030-1	01	1	0811-0902	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (C) L=140 THA	5-09707-031-1	01	1	0805-0810	●
22	CLIP; ENG HARNESS (C) L=140 THA	5-09707-031-1	01	1	0811-0902	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (B) L=350	8-94152-256-1	02	1	0803-0810	●
22	CLIP; ENG HARNESS (B) L=350	8-94152-256-1	02	1	0811-0902	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-0810	●
22	CLIP; ENG HARNESS (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0811-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM<41W> (B) ID=14 L=47	5-09700-319-0	03	1	0811-		●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (C) L=450	1-09707-142-1	01	1	0803-0810	●
48	CLIP; FRAME HARNESS (C) L=450	1-09707-142-1	01	1	0811-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (D) T=6.0	5-09709-024-0	01	1	0803-0804	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (E) T=4.5 & 9	8-97371-947-0	01	1	0805-0805	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (D) T=6.0	5-09709-024-0	01	1	0806-0810	●
48	CLIP; FRAME HARNESS (D) T=6.0	5-09709-024-0	01	1	0811-	●	●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	0803-0803	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG<RDQ> (A) ID=10 & 16.5	8-94424-440-0	01	1	0803-0810	●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	0811-	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0803-0805	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	04	1	0806-0810	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	04	1	0811-0901	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0902-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) ID=14 L=47	5-09700-319-0	01	1	0803-0810	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) ID=14 L=47	5-09700-319-0	01	1	0811-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W> (B) ID=14 L=47	5-09700-319-0	01	1	0811-		●
102	CLIP; BAND EXC. VIN MODEL YEAR 2010<VZA> (A) L=140 THA	5-09707-031-1	03	1	1004-1104	●	●
102	CLIP; BAND (A) L=140 THA	5-09707-031-1	03	1	1105-	●	●
102	CLIP; BAND 4HK1-TCN ENG<RDQ> (B) L=250 THA	5-09707-030-1	01	1	0803-0810	●
102	CLIP; BAND (B) L=250 THA	5-09707-030-1	01	1	0811-1103	●	●
102	CLIP; BAND (C) L=170	5-09707-054-0	01	1	1104-	●	●
102	CLIP; BAND 4HK1-TCN ENG<RDQ> (A) L=140 THA	5-09707-031-1	03	1	0803-0810	●
102	CLIP; BAND (A) L=140 THA	5-09707-031-1	03	1	0811-1003	●	●
102	CLIP; BAND VIN MODEL YEAR 2010<VZA> (A) L=140 THA	5-09707-031-1	04	1	1004-1004	●	●
102	CLIP; BAND VIN MODEL YEAR 2010<VZA> (A) L=140 THA	5-09707-031-1	05	1	1004-1104	●	●
102	CLIP; BAND 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (B) L=250 THA	5-09707-030-1	01	1	0803-0810	●
102	CLIP; BAND (B) L=250 THA	5-09707-030-1	01	1	0811-1103	●	●
102	CLIP; BAND (C) L=170	5-09707-054-0	01	1	1104-	●	●
102	CLIP; BAND 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (A) L=140 THA	5-09707-031-1	03	1	0803-0810	●
102	CLIP; BAND (A) L=140 THA	5-09707-031-1	03	1	0811-	●	●
483	CLIP; ENG HARNESS VIN MODEL YEAR 2010<VZA> (D) ID=12	8-98170-218-0	01	1	1004-1104	●	●
483	CLIP; ENG HARNESS VIN MODEL YEAR 2010<VZA> (D) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1004-1104	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (A) ID=14.5 L=40	1-09701-014-0	01	1	0803-0810	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (B) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-0810	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG<RDQ> (C) L=36	8-94224-891-1	01	1	0803-0810	●
483	CLIP; ENG HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	0811-	●	●
483	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	0811-	●	●
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0811-	●	●
488	CLIP; CABLE,TRAILER L=250 THA	5-09707-030-1	01	1	0803-0810	●
488	CLIP; CABLE,TRAILER L=250 THA	5-09707-030-1	01	1	0811-	●	●
617	STRAP; BAND L=140 THA	8-97920-656-0	01	1	1104-1106	●	●
617	STRAP; BAND L=140 THA	5-09707-031-1	01	1	1104-1106	●	●
617	STRAP; BAND 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> L=140 THA	5-09707-031-1	01	1	1107-1108		●

16 16 16 16 513 530 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (F) L=40.6 THA	8-97229-357-0	02	1	1004-1104	●	●
16	CLIP; HARNESS (F) L=40.6 THA	8-97229-357-0	02	1	1105-	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	0803-0810	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	0811-	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	0803-0810	●
16	CLIP; HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	0811-	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	0803-0810	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	0811-1003	●	●
16	CLIP; HARNESS CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA	8-97173-307-0	14	1	1004-1104	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA	8-97173-307-0	14	1	1004-1104	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	14	1	1105-	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	0811-1003	●	●
16	CLIP; HARNESS CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA	8-98052-679-0	02	1	1004-1104	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA	8-98052-679-0	02	1	1004-1104	●	●
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1105-	●	●
16	CLIP; HARNESS 4HK1-TCN ENG<RDQ> (E)	8-97101-436-0	01	1	0803-0810	●
16	CLIP; HARNESS (E)	8-97101-436-0	01	1	0811-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0810	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0811-	●	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	0803-0810	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0811-	●	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (J)	8-98094-629-0	01	1	0803-0810	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0811-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0803-0810	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0811-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0803-0810	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0811-	●	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0803-0805	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	0803-0810	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	0803-0810	●
53	BRACKET; HARNESS (B)	8-98051-457-0	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (G)	8-98052-804-0	01	1	0803-0810	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (I)	8-98055-636-0	01	1	0803-0810	●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	0811-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	0811-	●	●
513	TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1003	●	●
513	TAPE; SOFT,HARNESS EXC. VIN MODEL YEAR 2010<VZA> 70X45	8-97304-372-0	01	1	1004-1104	●	●
530	SEAL; HARNESS OD=32 BLACK	8-98031-126-0	01	1	0803-0810	●
530	SEAL; HARNESS OD=32 BLACK	8-98031-126-0	01	1	0811-	●	●

139 53 139 53 575 53 139 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98043-070-1	01	1	0803-0810	●
7	BRACKET; CONNECTOR	8-98043-070-1	01	1	0811-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0810	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0811-	●	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (D)	8-98077-504-0	01	1	0803-0810	●
53	BRACKET; HARNESS (D)	8-98077-504-0	01	1	0811-	●	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0803	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (J)	8-98094-629-0	01	1	0803-0810	●
53	BRACKET; HARNESS (J)	8-98094-629-0	01	1	0811-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0803-0810	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F)	8-98084-590-0	01	1	0811-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0803-0810	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98077-503-1	01	1	0811-	●	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0803-0805	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (C)	8-98018-900-2	01	1	0803-0810	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (B)	8-98051-457-0	01	1	0803-0810	●
53	BRACKET; HARNESS (B)	8-98051-457-0	01	1	0811-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (G)	8-98052-804-0	01	1	0803-0810	●
53	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (I)	8-98055-636-0	01	1	0803-0810	●
53	BRACKET; HARNESS (G)	8-98052-804-0	01	1	0811-	●	●
53	BRACKET; HARNESS (I)	8-98055-636-0	01	1	0811-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0803-0810	●
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0811-	●	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0810	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-	●	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0803-0805	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	0803-0810	●
313	BOLT; BRKT M6X16 FLANGE THA	0-28450-616-0	01	1	0811-	●	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	0803-0810	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
