Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#74644) — 176 parça

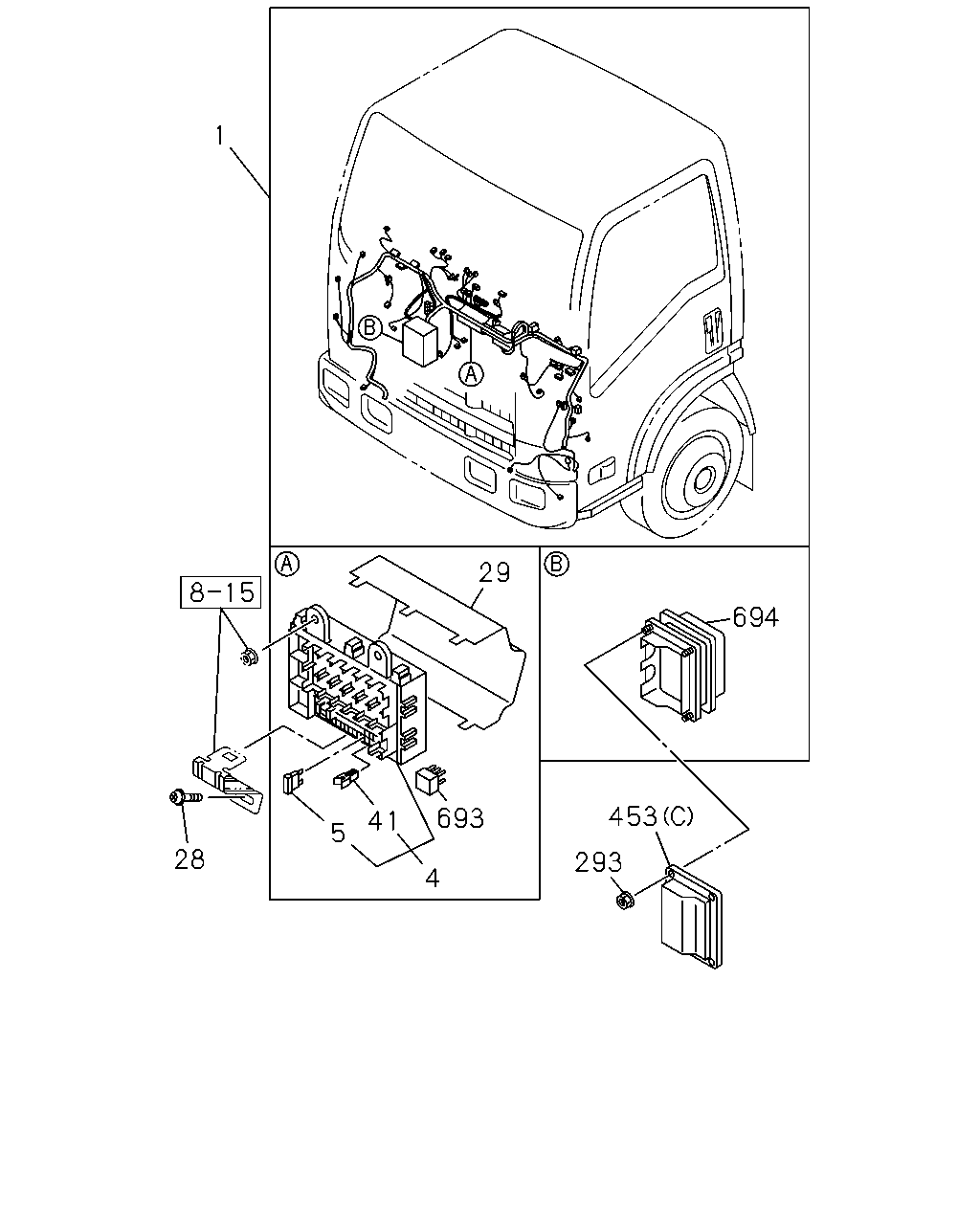

1 29 694 453 693 41 5 28 293 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB THA	8-98207-452-0	01	1	1202-1208	●	●
1	HARNESS; CAB THA	8-98202-738-0	01	1	1209-	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98167-167-0	01	1	1004-1104	●
1	HARNESS; CAB 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98167-167-0	01	1	1004-1104		●
1	HARNESS; CAB THA	8-98167-167-0	01	1	1105-1109	●	●
1	HARNESS; CAB THA	8-98202-738-0	01	1	1110-1201	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> THA	8-98097-261-2	01	1	0803-0810	●
1	HARNESS; CAB THA	8-98097-261-2	01	1	0811-1003	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98097-261-2	01	1	1004-1104	●
1	HARNESS; CAB 4HK1-TCS ENG<RJS> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98097-261-2	01	1	1004-1104		●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG<RDQ> THA	8-98067-619-1	01	1	0803-0810	●
4	BOX ASM; FUSE,HARNESS THA	8-98067-619-1	01	1	0811-	●	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG<RDQ> 10A RED THA	8-98054-257-0	AR	1	0803-0810	●
5	FUSE; FACIA HARNESS 10A RED THA	8-98054-257-0	AR	1	0811-	●	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG<RDQ> 15A BLUE THA	8-98054-258-0	AR	1	0803-0810	●
5	FUSE; FACIA HARNESS 15A BLUE THA	8-98054-258-0	AR	1	0811-	●	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG<RDQ> 20A YELLOW THA	8-98054-259-0	AR	1	0803-0810	●
5	FUSE; FACIA HARNESS 20A YELLOW THA	8-98054-259-0	AR	1	0811-	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0810	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-	●	●
29	COVER; FUSE BOX 4HK1-TCN ENG<RDQ> THA	8-98056-968-0	01	1	0803-0810	●
29	COVER; FUSE BOX THA	8-98056-968-0	01	1	0811-	●	●
41	PULLER; FUSE 4HK1-TCN ENG<RDQ> THA	8-98054-260-0	01	1	0803-0810	●
41	PULLER; FUSE THA	8-98054-260-0	01	1	0811-	●	●
293	NUT M6 FLANGE THA	0-91180-106-0	04	1	0803-0810	●
293	NUT M6 FLANGE THA	0-91180-106-0	04	1	0811-	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0803-0810	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0811-	●	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (A) THA	8-94417-716-0	01	1	0803-0810	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (A) THA	8-94417-716-0	01	1	0811-	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (A) THA	8-94417-716-0	01	1	0811-		●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (B) THA	8-98031-620-1	01	1	0803-0810	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (B) THA	8-98031-620-1	01	1	0811-	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) THA	8-98031-620-1	01	1	0811-		●
693	RELAY; FUSE BOX 4HK1-TCN ENG<RDQ> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0803-0810	●
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0811-	●	●
694	BOX ASM; CONNECTOR 4HK1-TCN ENG<RDQ> THA	8-98057-772-0	01	1	0803-0810	●
694	BOX ASM; CONNECTOR THA	8-98057-772-0	01	1	0811-	●	●

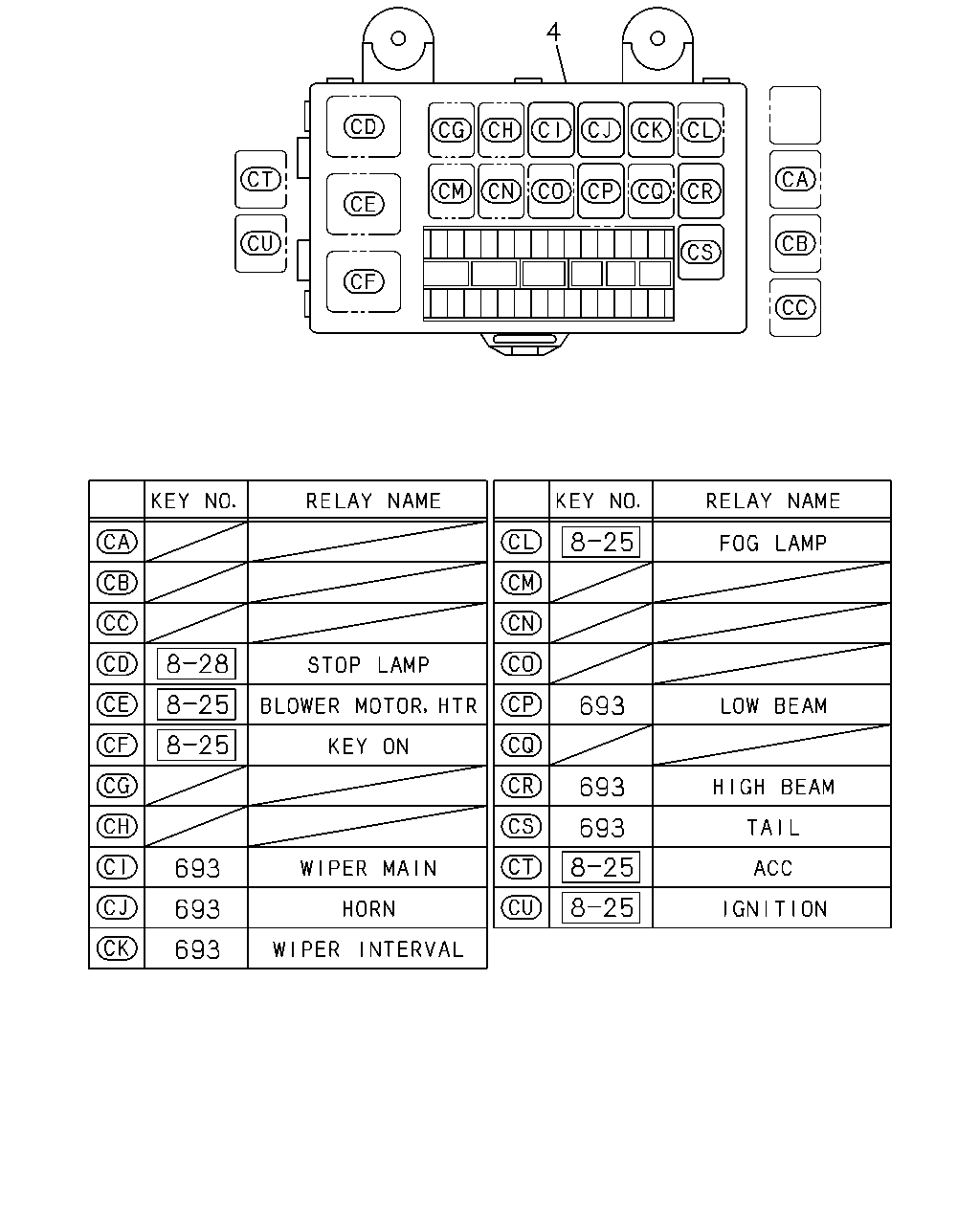

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG<RDQ> THA	8-98067-619-1	01	1	0803-0810	●
4	BOX ASM; FUSE,HARNESS THA	8-98067-619-1	01	1	0811-	●	●
693	RELAY; FUSE BOX 4HK1-TCN ENG<RDQ> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0803-0810	●
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0811-	●	●

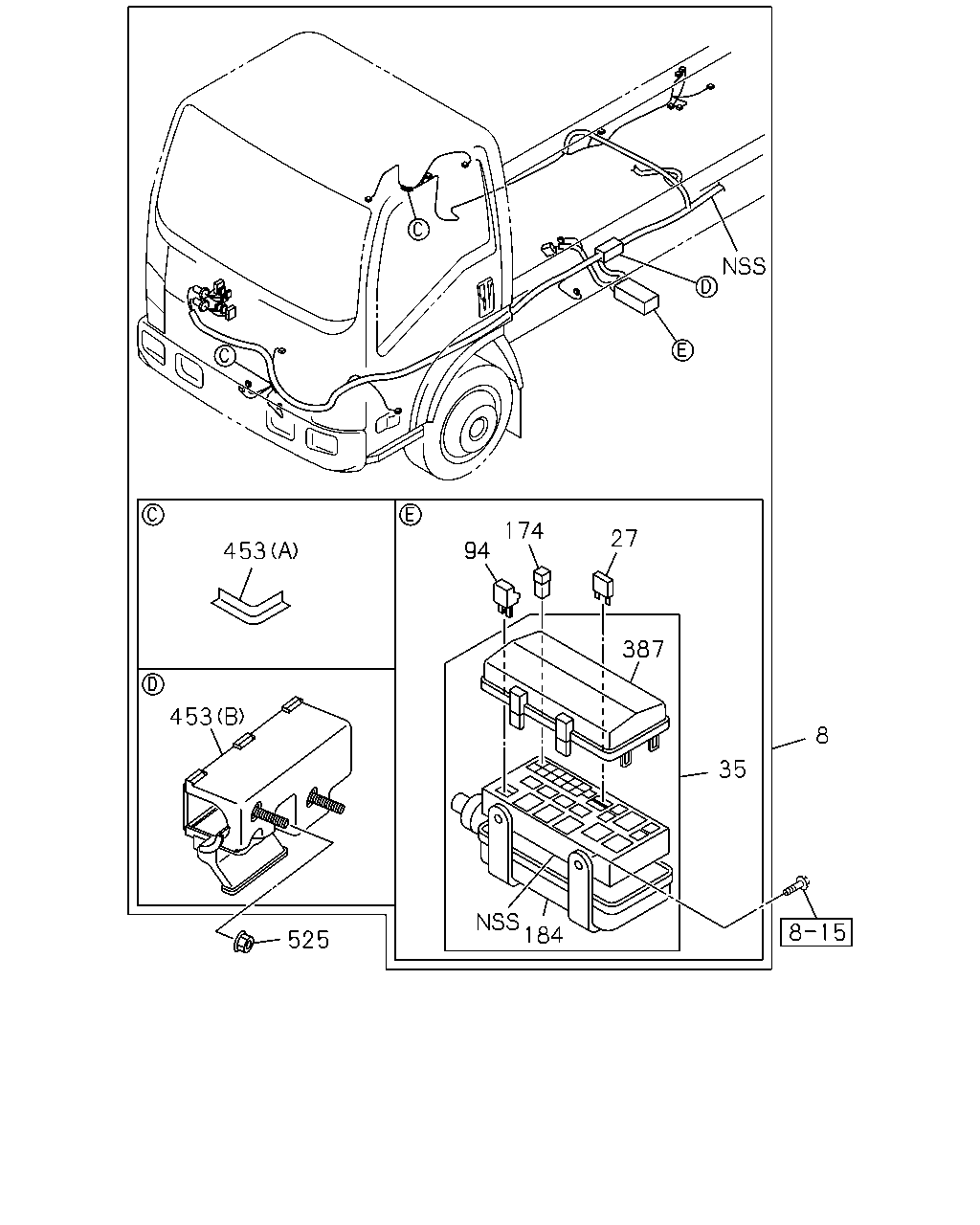

174 27 94 453 387 453 8 35 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA	8-97924-464-0	01	1	0811-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-97924-463-0	01	1	0803-	●
27	FUSE UNIT 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 10A RED THA	8-98054-257-0	AR	1	0803-0810	●
27	FUSE UNIT 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 10A RED THA	8-98054-257-0	AR	1	0811-	●
27	FUSE UNIT 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> 10A RED THA	8-98054-257-0	AR	1	0811-		●
35	BOX; RELAY & FUSE 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-98030-763-0	01	1	0803-0810	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-98030-763-0	01	1	0811-	●
35	BOX; RELAY & FUSE 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA	8-98030-763-0	01	1	0811-		●
94	DIODE; FRAME HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> BLACK 2P-1.5A THA	8-94422-639-1	01	1	0803-0810	●
94	DIODE; FRAME HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> BLACK 2P-1.5A THA	8-94422-639-1	01	1	0811-	●
94	DIODE; FRAME HARNESS 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> BLACK 2P-1.5A THA	8-94422-639-1	01	1	0811-		●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 30A PINK THA	8-98079-191-0	AR	1	0803-0810	●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 30A PINK THA	8-98079-191-0	AR	1	0811-	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> 30A PINK THA	8-98079-191-0	AR	1	0811-		●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 40A GREEN THA	8-98079-192-0	AR	1	0803-0810	●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 40A GREEN THA	8-98079-192-0	AR	1	0811-	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> 40A GREEN THA	8-98079-192-0	AR	1	0811-		●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 50A RED THA	8-98079-193-0	AR	1	0803-0810	●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 50A RED THA	8-98079-193-0	AR	1	0811-	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> 50A RED THA	8-98079-193-0	AR	1	0811-		●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 60A YELLOW THA	8-97219-407-0	AR	1	0803-0810	●
174	FUSE; SLOW BLOW 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> 60A YELLOW THA	8-97219-407-0	AR	1	0811-	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> 60A YELLOW THA	8-97219-407-0	AR	1	0811-		●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-98030-766-0	01	1	0803-0810	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-98030-766-0	01	1	0811-	●
184	COVER; RELAY & FUSE BOX 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA	8-98030-766-0	01	1	0811-		●
387	COVER; RELAY BOX	8-98081-367-0	01	1	0803-0810	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	0811-	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0803-0810	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0811-	●	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (A) THA	8-94417-716-0	01	1	0803-0810	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (A) THA	8-94417-716-0	01	1	0811-	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (A) THA	8-94417-716-0	01	1	0811-		●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (B) THA	8-98031-620-1	01	1	0803-0810	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> (B) THA	8-98031-620-1	01	1	0811-	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) THA	8-98031-620-1	01	1	0811-		●
525	NUT; CLIP 4HK1-TCN ENG<RDQ> M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●

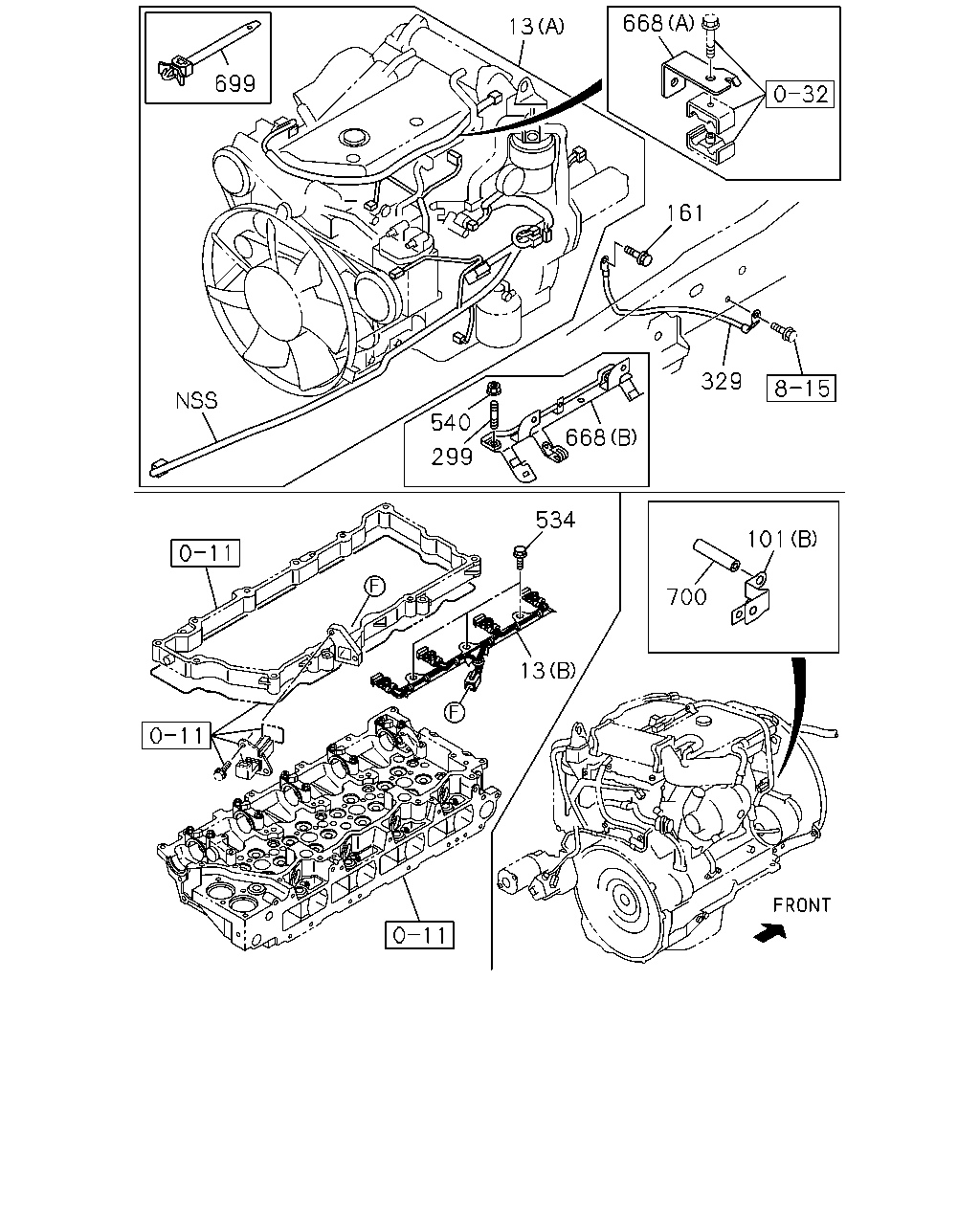

13 161 668 329 668 540 299 534 101 700 13 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2010<VZA> GENERATOR 24V80A<7YN> (A)	8-98170-267-0	01	1	1004-1104	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2010<VZA> GENERATOR 24V80A<7YN> (A)	8-98170-267-0	01	1	1004-1104		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2010<VZA> EXC. GENERATOR 24V80A<7YN> (A)	8-98170-266-0	01	1	1004-1104	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2010<VZA> EXC. GENERATOR 24V80A<7YN> (A)	8-98170-266-0	01	1	1004-1104		●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> GENERATOR 24V80A<7YN> (A)	8-98075-587-1	01	1	0811-0902		●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> GENERATOR 24V80A<7YN> (A)	8-98136-480-0	01	1	0903-1012		●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> GENERATOR 24V80A<7YN> (A)	8-98178-540-0	01	1	1101-		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> GENERATOR 24V80A<7YN> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98136-480-0	01	1	1004-1104	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V80A<7YN> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98136-480-0	01	1	1004-1104		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> GENERATOR 24V80A<7YN> (A)	8-98136-480-0	01	1	1105-1106	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V80A<7YN> (A)	8-98136-480-0	01	1	1105-1106		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> GENERATOR 24V80A<7YN> (A)	8-98178-540-0	01	1	1107-	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V80A<7YN> (A)	8-98178-540-0	01	1	1107-		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> EXC. GENERATOR 24V80A<7YN> (A)	8-98075-586-1	01	1	0803-0810	●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> EXC. GENERATOR 24V80A<7YN> (A)	8-98075-586-1	01	1	0811-0902	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> EXC. GENERATOR 24V80A<7YN> (A)	8-98075-586-1	01	1	0811-0902		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> EXC. VIN MODEL YEAR 2010<VZA>,GENERATOR 24V80A<7YN> (A)	8-98136-479-0	01	1	1004-1104	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> EXC. VIN MODEL YEAR 2010<VZA>,GENERATOR 24V80A<7YN> (A)	8-98136-479-0	01	1	1004-1104		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> EXC. GENERATOR 24V80A<7YN> (A)	8-98136-479-0	01	1	1105-1106	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> EXC. GENERATOR 24V80A<7YN> (A)	8-98136-479-0	01	1	1105-1106		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> EXC. GENERATOR 24V80A<7YN> (A) THA	8-98178-539-0	01	1	1107-	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> EXC. GENERATOR 24V80A<7YN> (A) THA	8-98178-539-0	01	1	1107-		●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (B)	8-97332-133-2	01	1	0803-0810	●
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0811-1007	●	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-	●	●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (A)	8-98136-479-0	01	1	0903-1012	●
13	HARNESS; ENG 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (A) THA	8-98178-539-0	01	1	1101-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	0803-0810	●
101	BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	0811-	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG<RDQ> (B)	8-98052-805-0	01	1	0803-0810	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	0811-	●	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE THA	0-28050-816-0	01	1	0803-0810	●
161	BOLT; GROUND,HARNESS 4HK1-TCN ENG<RDQ> M8X16 FLANGE THA	0-28050-816-0	01	1	0803-0810	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE THA	0-28050-816-0	01	1	0811-	●	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE THA	0-28050-816-0	01	1	0811-	●	●
299	STUD; BRKT VIN MODEL YEAR 2010<VZA> M6X20 L=28	0-41010-620-0	02	1	1004-1104	●	●
329	CABLE; ENG TO FRAME THA	8-97924-248-0	01	1	0803-0810	●
329	CABLE; ENG TO FRAME THA	8-97924-248-0	01	1	0811-	●	●
534	BOLT 4HK1-TCN ENG<RDQ> M10X55 FLANGE THA	8-94399-863-1	03	1	0803-0805	●
534	BOLT 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> M10X55 FLANGE	8-97365-449-0	03	1	0806-0810	●
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	0811-	●	●
540	NUT; BRKT FIX VIN MODEL YEAR 2010<VZA> M6 FLANGE THA	0-91180-106-0	02	1	1004-1104	●	●
668	BRACKET; HARNESS VIN MODEL YEAR 2010<VZA> (B)	8-98061-805-2	01	1	1004-1104	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> (A)	8-98001-095-0	01	1	0803-0810	●
668	BRACKET; HARNESS 4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (A)	8-98001-095-0	01	1	0803-0810	●
668	BRACKET; HARNESS (A)	8-98001-095-0	01	1	0811-	●	●
699	CLIP; ENG HARNESS L=213.5	8-98000-506-1	02	1	0903-	●	●
700	TUBE; DISTANCE 4HK1-TCN ENG<RDQ> EXC. COOLER WO/HEATER<C65> L=105	8-98084-726-0	01	1	0803-0810	●
700	TUBE; DISTANCE EXC. COOLER WO/HEATER<C65> L=105	8-98084-726-0	01	1	0811-	●	●

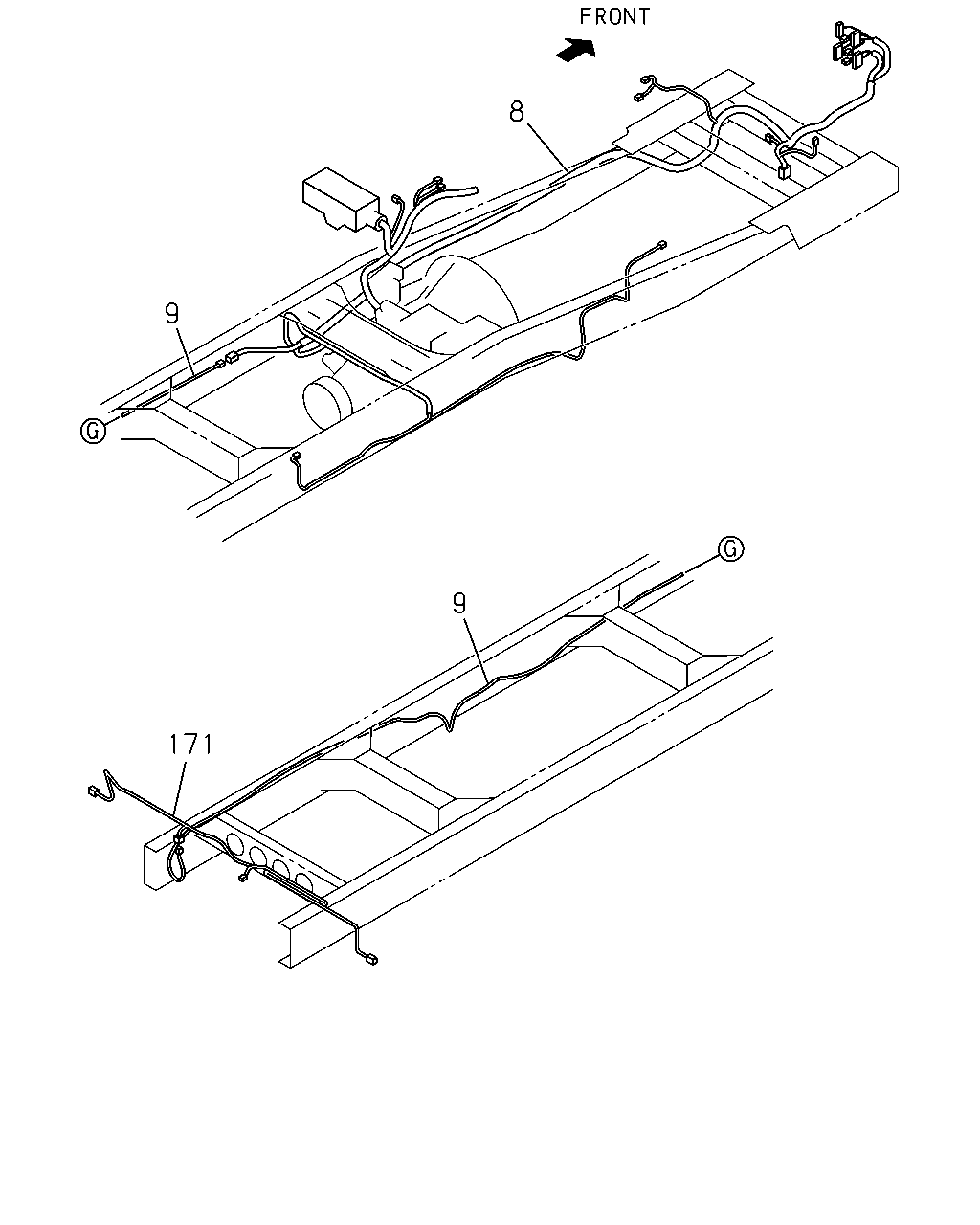

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> THA	8-97924-464-0	01	1	0811-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> THA	8-97924-463-0	01	1	0803-	●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM<41W> THA	8-97923-932-1	01	1	0811-		●
9	HARNESS; FRAME,RR WHEEL BASE 3400MM<34W> THA	8-97923-930-1	01	1	0803-0810	●
9	HARNESS; FRAME,RR WHEEL BASE 3400MM<34W> THA	8-97923-930-1	01	1	0811-	●	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM<38W> THA	8-97923-931-1	01	1	0803-	●
171	HARNESS; CABLE,TAIL LAMP THA	8-98008-095-3	01	1	0803-0810	●
171	HARNESS; CABLE,TAIL LAMP THA	8-98008-095-3	01	1	0811-	●	●

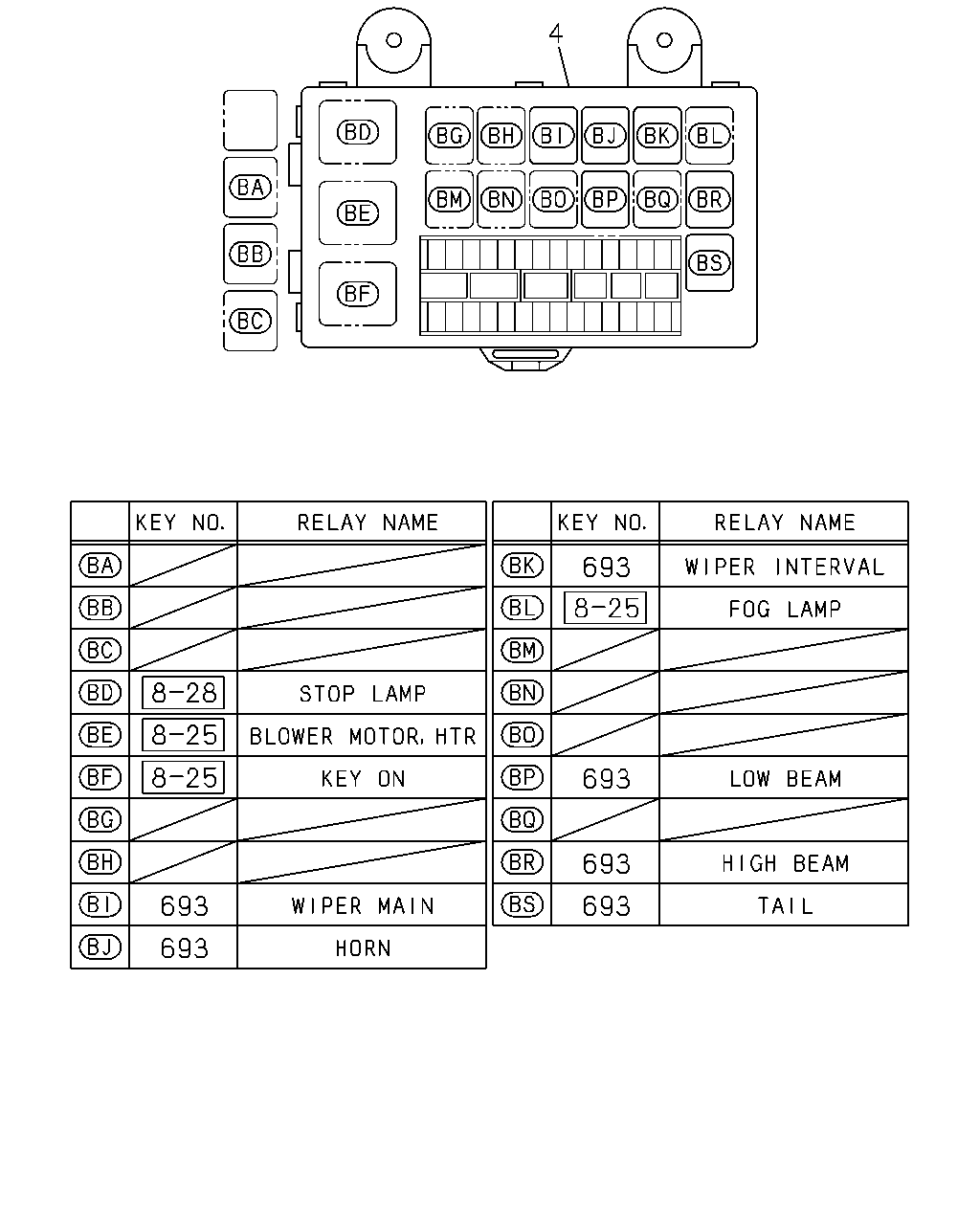

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG<RDQ> THA	8-98067-619-1	01	1	0803-0810	●
4	BOX ASM; FUSE,HARNESS THA	8-98067-619-1	01	1	0811-	●	●
693	RELAY; FUSE BOX 4HK1-TCN ENG<RDQ> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0803-0810	●
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0811-	●	●

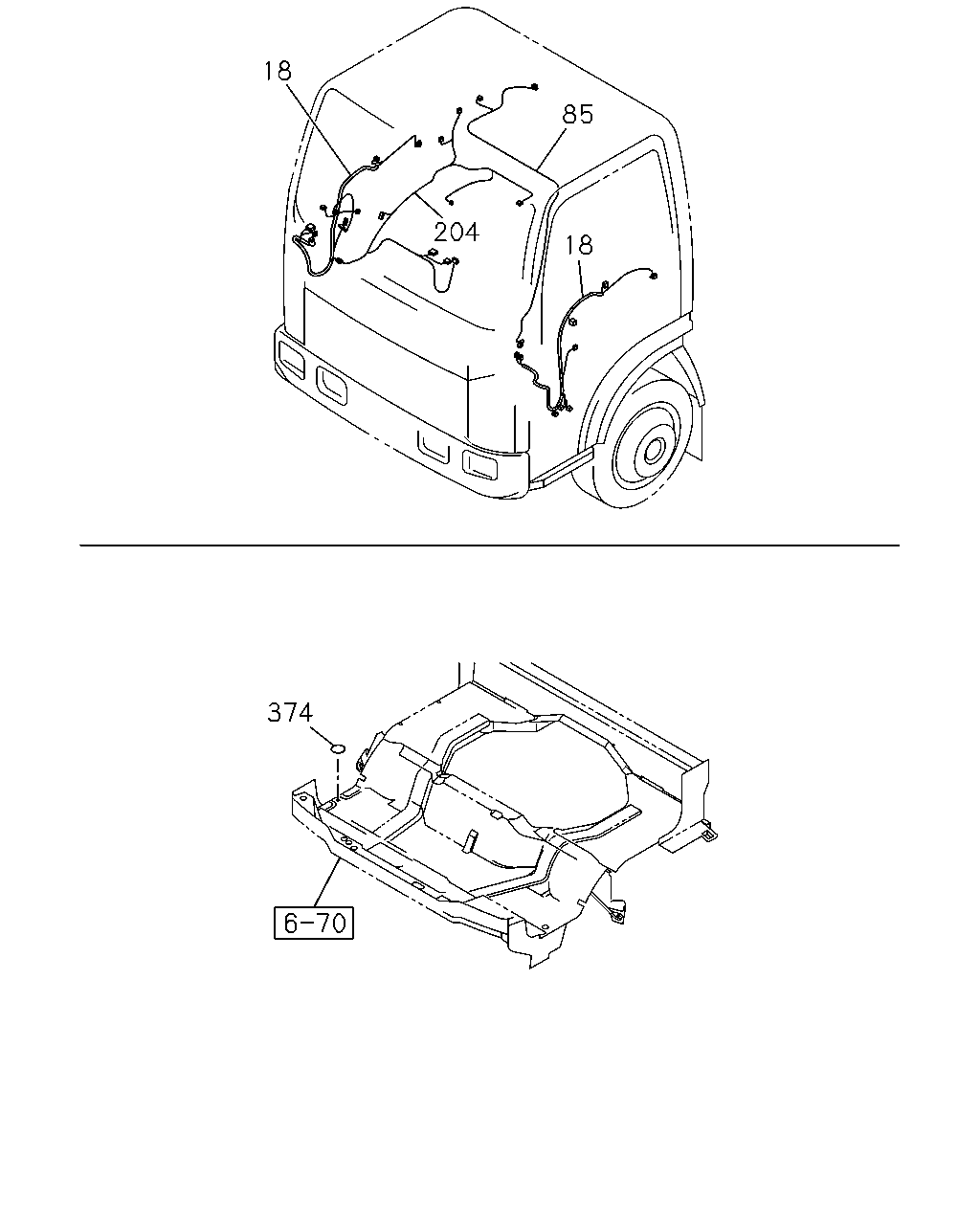

18 85 204 18 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98071-075-2	01	1	1004-1104	●	●
18	HARNESS; DOOR THA	8-98071-075-2	01	1	1105-	●	●
18	HARNESS; DOOR VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98071-083-2	01	1	1004-1104	●	●
18	HARNESS; DOOR THA	8-98071-083-2	01	1	1105-	●	●
18	HARNESS; DOOR	8-98046-749-2	01	1	0803-0810	●
18	HARNESS; DOOR	8-98046-749-2	01	1	0811-1003	●	●
18	HARNESS; DOOR CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA>	8-98046-749-2	01	1	1004-1104	●	●
18	HARNESS; DOOR	8-98046-744-2	01	1	0803-0810	●
18	HARNESS; DOOR	8-98046-744-2	01	1	0811-1003	●	●
18	HARNESS; DOOR CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA>	8-98046-744-2	01	1	1004-1104	●	●
85	HARNESS; ROOM LAMP	8-98047-149-2	01	1	0803-0810	●
85	HARNESS; ROOM LAMP	8-98047-149-2	01	1	0811-	●	●
204	HARNESS; CABLE,FLOOR 4HK1-TCN ENG<RDQ>	8-98070-787-2	01	1	0803-0810	●
204	HARNESS; CABLE,FLOOR	8-98070-787-2	01	1	0811-	●	●
374	PLUG; HARNESS CONNECTOR OD=32 BLACK	8-98031-126-0	01	1	0803-0810	●
374	PLUG; HARNESS CONNECTOR OD=32 BLACK	8-98031-126-0	01	1	0811-	●	●

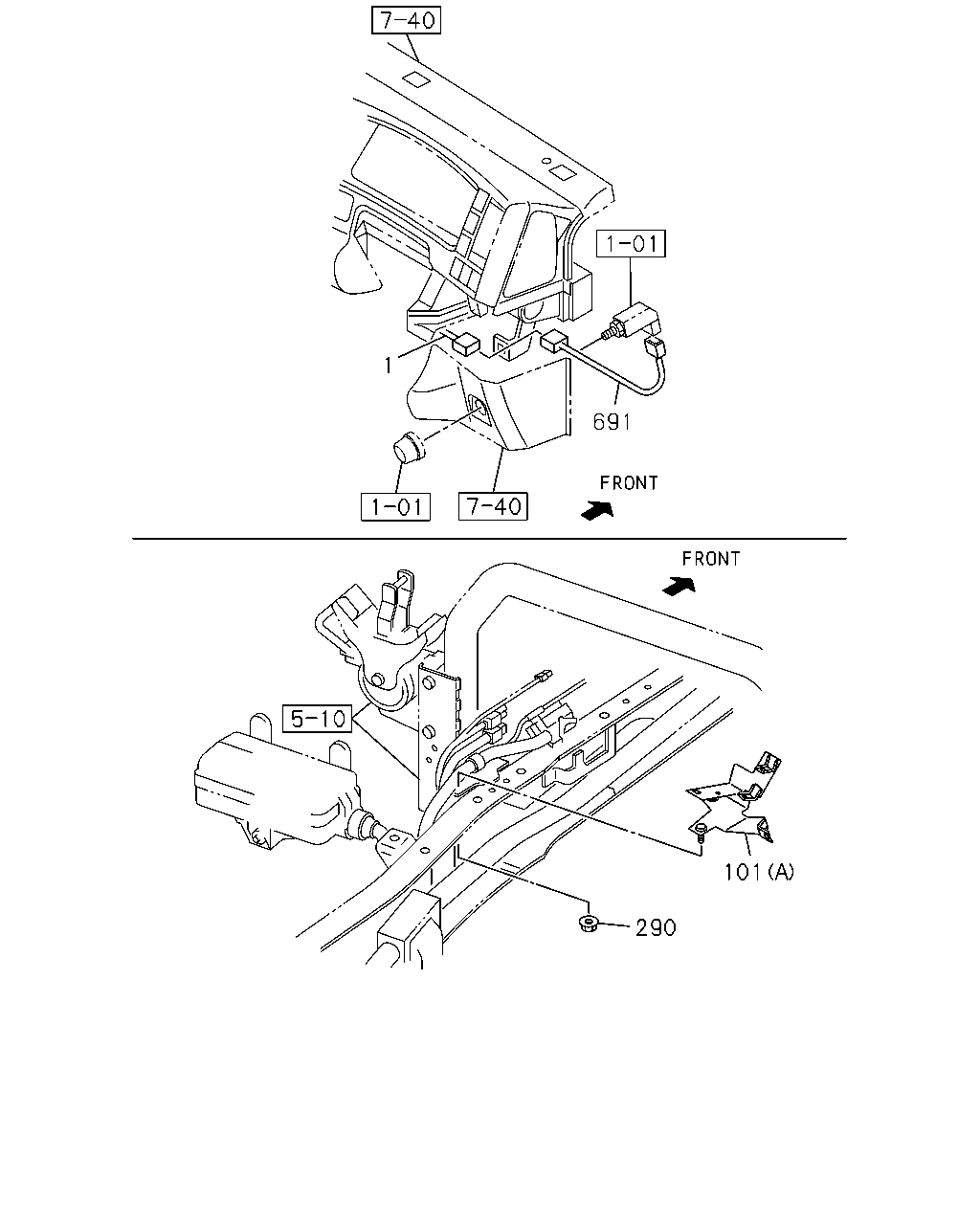

1 691 101 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB THA	8-98207-452-0	01	1	1202-1208	●	●
1	HARNESS; CAB THA	8-98202-738-0	01	1	1209-	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98167-167-0	01	1	1004-1104	●
1	HARNESS; CAB 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA	8-98167-167-0	01	1	1004-1104		●
1	HARNESS; CAB THA	8-98167-167-0	01	1	1105-1109	●	●
1	HARNESS; CAB THA	8-98202-738-0	01	1	1110-1201	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> THA	8-98097-261-2	01	1	0803-0810	●
1	HARNESS; CAB THA	8-98097-261-2	01	1	0811-1003	●	●
1	HARNESS; CAB 4HK1-TCN ENG<RDQ> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98097-261-2	01	1	1004-1104	●
1	HARNESS; CAB 4HK1-TCS ENG<RJS> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98097-261-2	01	1	1004-1104		●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	0803-0810	●
101	BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	0811-	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG<RDQ> (B)	8-98052-805-0	01	1	0803-0810	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	0811-	●	●
290	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0803	●
290	NUT; BRKT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0810	●
290	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
691	HARNESS; IDLE CONT 4HK1-TCN ENG<RDQ> SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0803-0810	●
691	HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
