◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#7464) — 33 parça

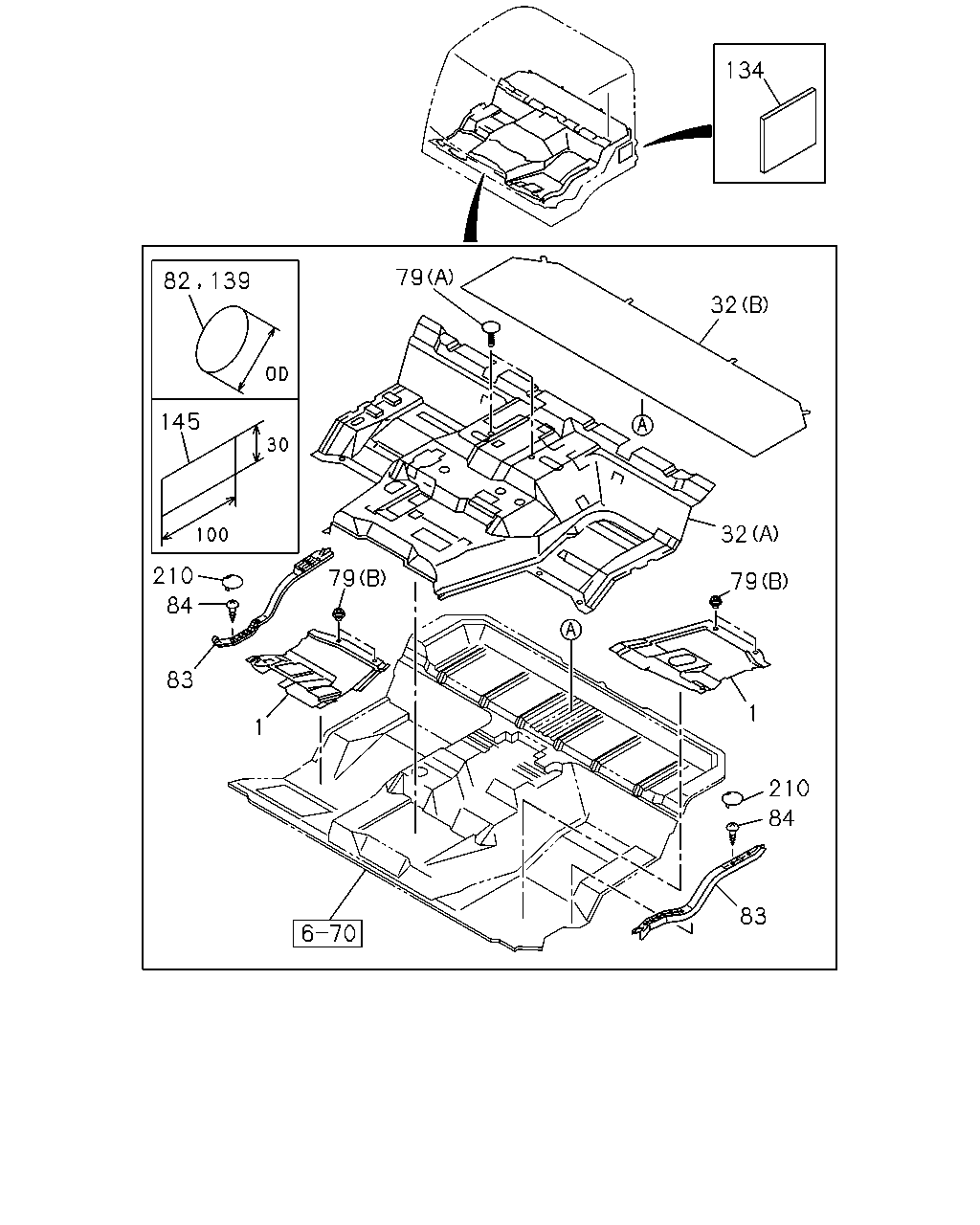

çizim 43531
134 79 82 139 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9812-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9812-
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-605-6 01 1 9812-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-519-9 01 1 9812-0103
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-760-1 01 1 0104-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9812-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9812-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9812-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9812-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9812-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9812-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9812-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9812-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9812-
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9812-9903
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9812-

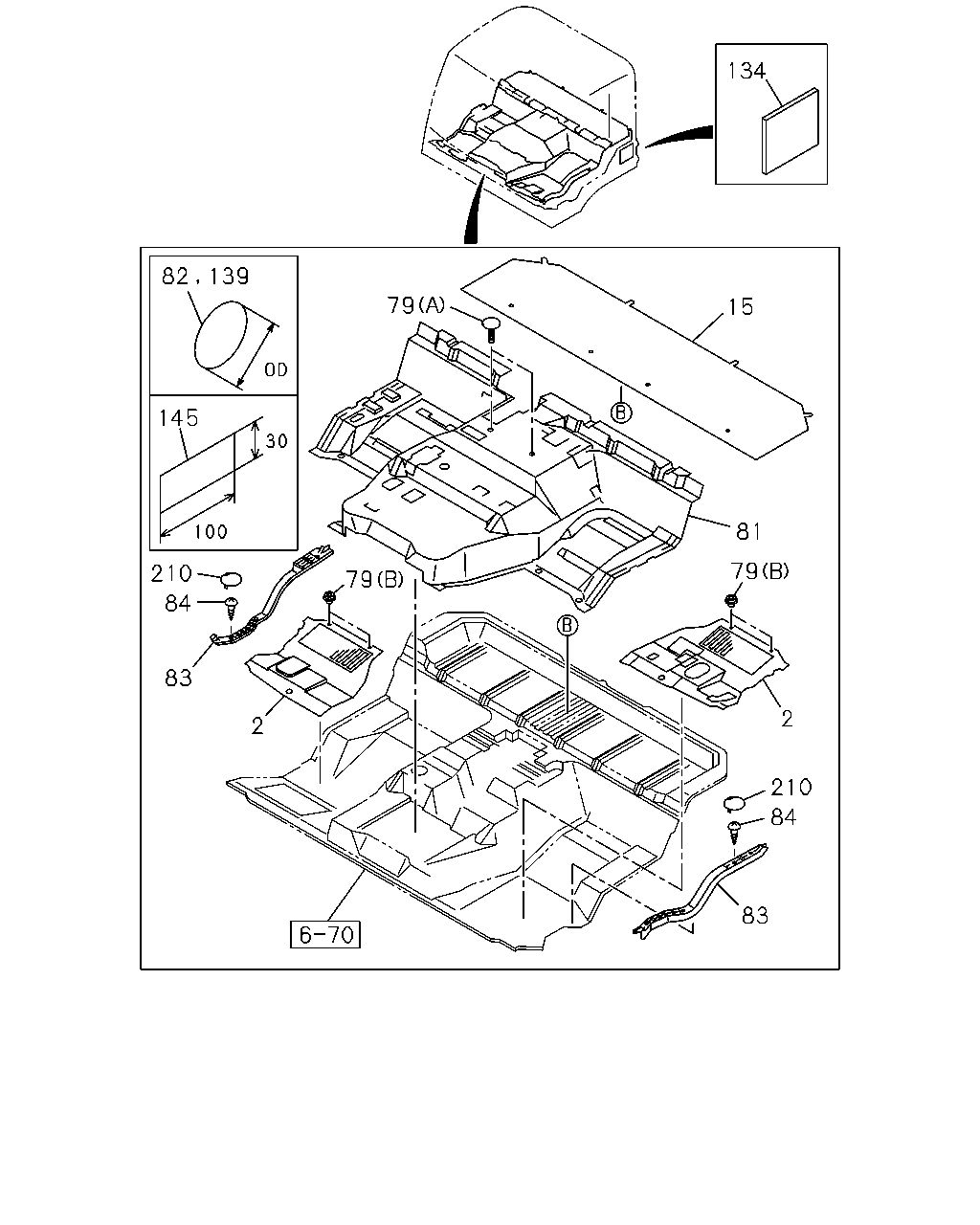

çizim 44707
134 82 139 79 15 145 81 79 79 210 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9812-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9812-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9812-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9812-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9812-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-621-3 01 1 9812-
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2> 		1-73237-606-6 01 1 9812-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9812-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9812-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9812-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9812-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9812-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9812-
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9812-9903
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9812-
