◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#74634) — 28 parça

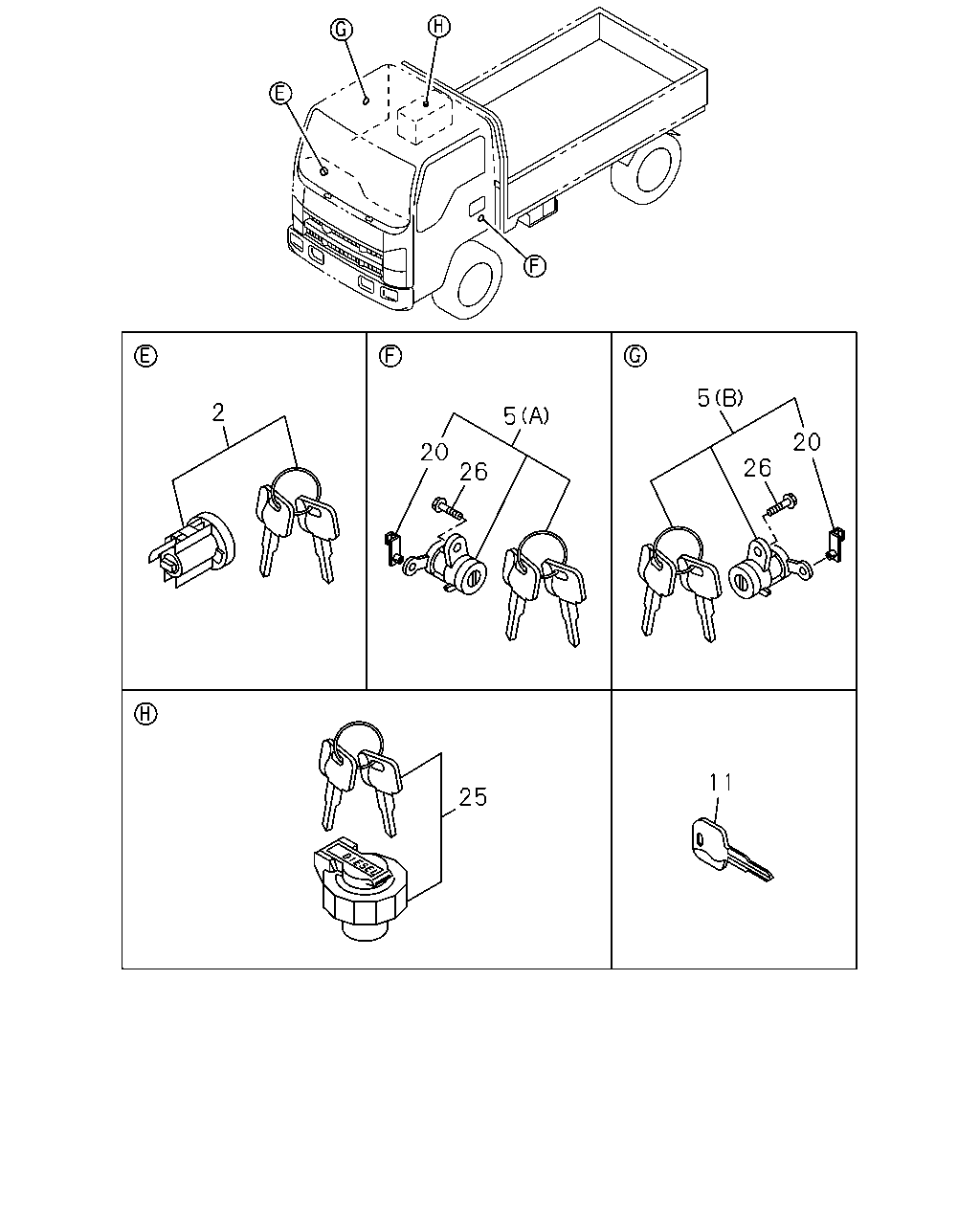

çizim 133118
5 2 5 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98055-148-0 01 1 0803-1010 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 1011-1212 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-98201-342-0 01 1 1301- ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-98201-342-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> (B) THA 		8-98055-149-0 01 1 0803-1010 ● ●
5 CYLINDER ASM; DOOR LOCK
(B) THA 		8-98055-149-0 01 1 1011- ● ●
5 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> (A) THA 		8-98055-150-0 01 1 0803-1010 ● ●
5 CYLINDER ASM; DOOR LOCK
(A) THA 		8-98055-150-0 01 1 1011- ● ●
11 KEY; BLANK
FUEL TANK CAP W/LOCK<N05> THA 		8-98055-170-0 AR 1 0803-1010 ● ●
11 KEY; BLANK
THA 		8-98055-170-0 AR 1 1011- ● ●
20 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> THA 		8-98055-181-0 01 1 0803-1010 ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-181-0 01 1 1011- ● ●
20 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> THA 		8-98055-182-0 01 1 0803-1010 ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-182-0 01 1 1011- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> THA 		8-98088-979-0 01 1 0803-0810 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> THA 		8-98088-979-0 01 1 0811- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0803-0810 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0811- ● ●
çizim 133187
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98097-287-1 01 1 0803-1212 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> THA 		8-98201-197-0 01 1 1301- ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> THA 		8-98201-197-0 01 1 1204- ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-98097-288-1 01 1 0803-1212 ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-98201-198-0 01 1 1301- ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-98201-198-0 01 1 1204- ● ●
20 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> THA 		8-98055-181-0 01 1 0803-1010 ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-181-0 01 1 1011- ● ●
20 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> THA 		8-98055-182-0 01 1 0803-1010 ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-182-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
