7-20 — MIRROR AND MIRROR STAY (#74633) — 148 parça

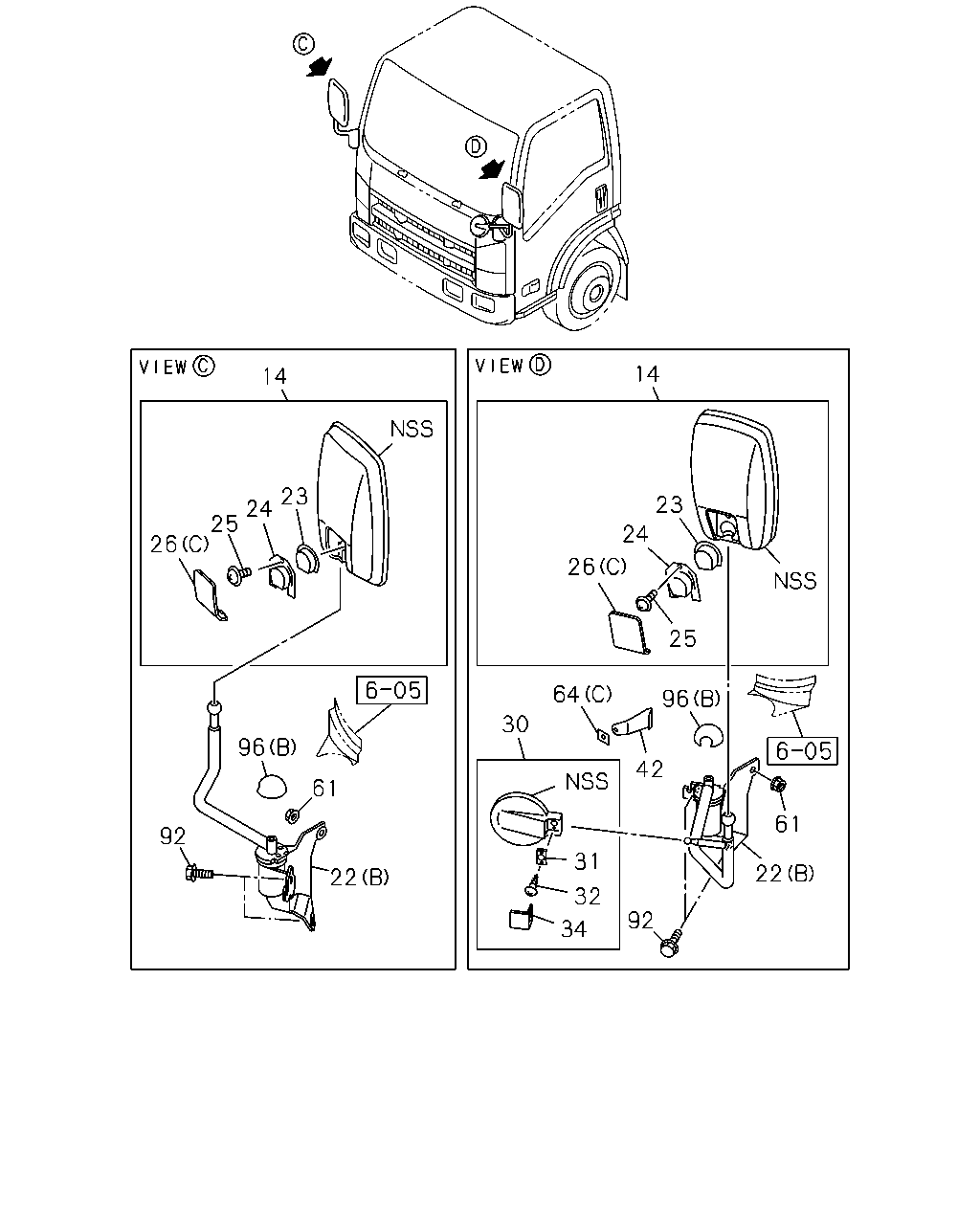

çizim 133180
14 14 23 24 25 26 23 24 26 25 64 96 30 96 42 61 61 92 31 22 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105- ● ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>, O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98147-082-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> EXC. UNDER MIRROR<RR9> (B) 		8-98180-412-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98180-413-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0811-1104 ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1105- ● ●
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1105- ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1105- ● ●
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1105- ● ●
42 ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> 		8-98180-419-0 01 1 1105- ● ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1105- ● ●
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0803 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105- ● ●
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M8X25 FLANGE THA 		0-28650-825-0 04 1 1105- ● ●
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> M8X25 FLANGE THA 		0-28650-825-0 05 1 1105- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 01 1 1105- ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0803-0810 ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0811-1003 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104 ● ●
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105- ● ●
çizim 133210
96 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date A B
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 0803-0810 ●
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 0811-1011 ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 1012-1104 ● ●
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 0803-0810 ●
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 0811-1011 ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 1012-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>, O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98147-082-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> EXC. UNDER MIRROR<RR9> (B) 		8-98180-412-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98180-413-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0803-0810 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0811-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0811-1104 ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0803-0810 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0811-1104 ● ●
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 		8-97310-216-1 08 1 0803-0810 ●
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 		8-97310-216-1 08 1 0811-1104 ● ●
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0803 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105- ● ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0803-0810 ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0811-1104 ● ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0803-0810 ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0811-1104 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 0803-0810 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 0811-1104 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 0803-0810 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 0811-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0803-0810 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0811-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0803-0810 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0811-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0803-0810 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0811-1104 ● ●
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 0803-0810 ●
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 0811-1104 ● ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0803-0810 ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0811-1104 ● ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0803-0810 ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0811-1104 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0803-0810 ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0811-1003 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104 ● ●
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105- ● ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 0803-0810 ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 0811-1104 ● ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 0803-0810 ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 0811-1104 ● ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 0803-0810 ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 0811-1104 ● ●

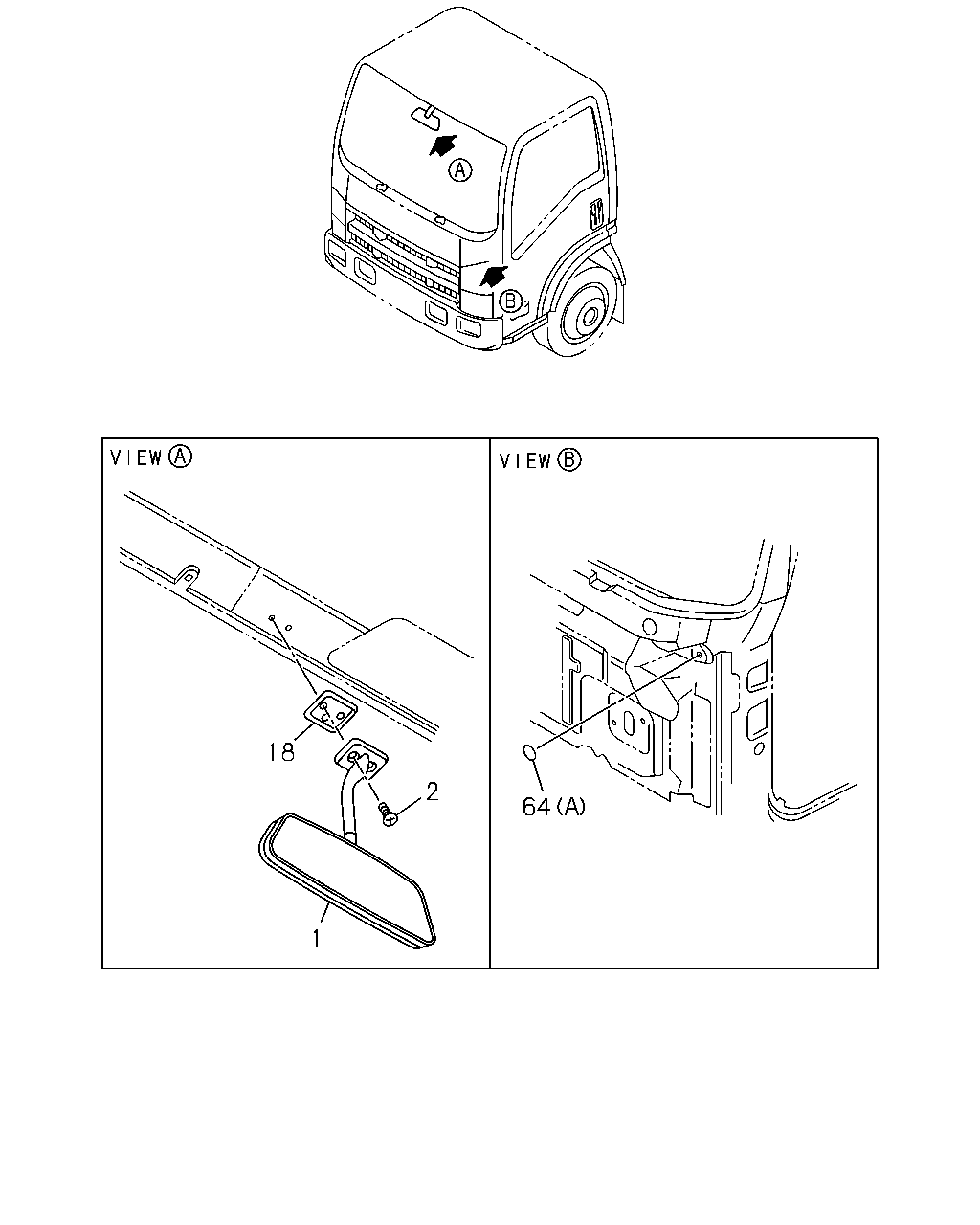

çizim 185657
18 2 64 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 0803-0810 ●
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 0811- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0803-0810 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0811- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0803-0810 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0811-1003 ● ●
18 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1004-1104 ● ●
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0803 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0803-0810 ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0811-1104 ● ●
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
