◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#7463) — 93 parça

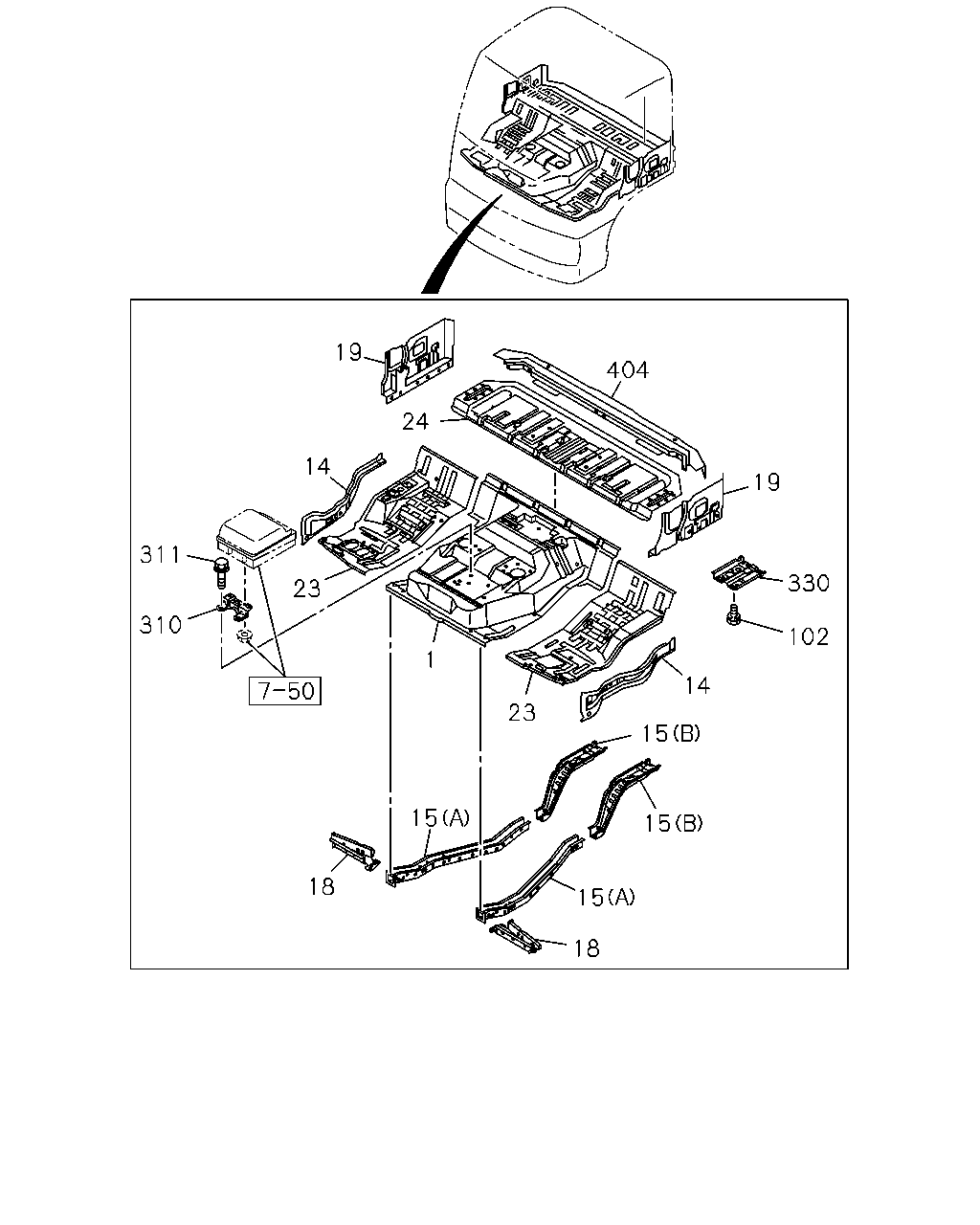

çizim 43132
19 404 24 14 19 311 330 23 310 102 1 14 23 15 15 15 18 15 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62172-627-4 01 1 9812-9901
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-4 01 1 9902-9904
1 PANEL; FLOOR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-627-4 01 1 9905-
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-4 01 1 9905-
1 PANEL; FLOOR
TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-614-4 01 1 9902-9904
1 PANEL; FLOOR
TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-614-4 01 1 9905-
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-614-4 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62482-918-6 01 1 9812-9901
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9902-9904
14 PANEL; FLOOR SIDE,FRT
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-918-6 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-918-6 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62482-918-6 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62482-917-6 01 1 9812-9901
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9902-9904
14 PANEL; FLOOR SIDE,FRT
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-917-6 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-917-6 01 1 9905-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62482-917-6 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U) (A) 		1-62472-670-1 01 1 9812-9901
15 FRAME; UNDER
(A) 		1-62472-670-2 01 1 9902-9904
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-670-2 01 1 9905-
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-670-2 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) 		1-62472-670-2 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U) (B) 		1-62472-680-1 01 1 9812-9901
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 9902-9904
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-680-1 01 1 9905-
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-680-1 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) 		1-62472-680-1 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U) (B) 		1-62472-598-6 01 1 9812-9901
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 9902-9904
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-598-6 01 1 9905-
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-598-6 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) 		1-62472-598-6 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U) (A) 		1-62472-669-1 01 1 9812-9901
15 FRAME; UNDER
(A) 		1-62472-669-2 01 1 9902-9904
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-669-2 01 1 9905-
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-669-2 01 1 9905-
15 FRAME; UNDER
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) 		1-62472-669-2 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62483-105-3 01 1 9812-9901
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-4 01 1 9902-9904
18 FRAME; FLOOR,CENTER SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62483-105-4 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62483-105-4 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62483-105-4 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62472-671-2 01 1 9812-9901
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-2 01 1 9902-9904
18 FRAME; FLOOR,CENTER SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-671-2 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62472-671-2 01 1 9905-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62472-671-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62472-659-2 01 1 9812-9901
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9902-9904
19 PANEL; FLOOR SIDE,REAR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A> 		1-62472-659-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62472-659-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9812-9901
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9902-9904
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> ISUZU M/T<X9A> 		1-62472-615-4 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9812-9901
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9902-9904
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62172-615-4 01 1 9812-9901
23 PANEL; FLOOR,SIDE 1-62172-615-4 01 1 9902-9903
23 PANEL; FLOOR,SIDE 1-62172-801-0 01 1 9904-9904
23 PANEL; FLOOR,SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-801-0 01 1 9905-0101
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-801-0 01 1 9905-0101
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-801-0 01 1 9905-0101
23 PANEL; FLOOR,SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-805-0 01 1 0102-
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-805-0 01 1 0102-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-805-0 01 1 0102-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62183-272-4 01 1 9812-9901
23 PANEL; FLOOR,SIDE 1-62183-272-4 01 1 9902-9903
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 9904-9904
23 PANEL; FLOOR,SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-800-0 01 1 9905-
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-800-0 01 1 9905-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-800-0 01 1 9905-
24 PANEL; BED PAN
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62172-540-7 01 1 9812-9901
24 PANEL; BED PAN 1-62172-540-9 01 1 9902-9904
24 PANEL; BED PAN
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-540-9 01 1 9905-
24 PANEL; BED PAN
ISUZU M/T<X9A> 		1-62172-540-9 01 1 9905-
24 PANEL; BED PAN
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-540-9 01 1 9905-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9812-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9812-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9812-
330 REINFORCEMENT; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62172-585-5 01 1 9812-9901
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9902-9904
330 REINFORCEMENT; FLOOR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-585-5 01 1 9905-
330 REINFORCEMENT; FLOOR
ISUZU M/T<X9A> 		1-62172-585-5 01 1 9905-
330 REINFORCEMENT; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-585-5 01 1 9905-
404 RAIL ASM; MTG,RR
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-62472-596-7 01 1 9812-9901
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9902-9904
404 RAIL ASM; MTG,RR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-596-8 01 1 9905-
404 RAIL ASM; MTG,RR
ISUZU M/T<X9A> 		1-62472-596-8 01 1 9905-
404 RAIL ASM; MTG,RR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62472-596-8 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
