Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

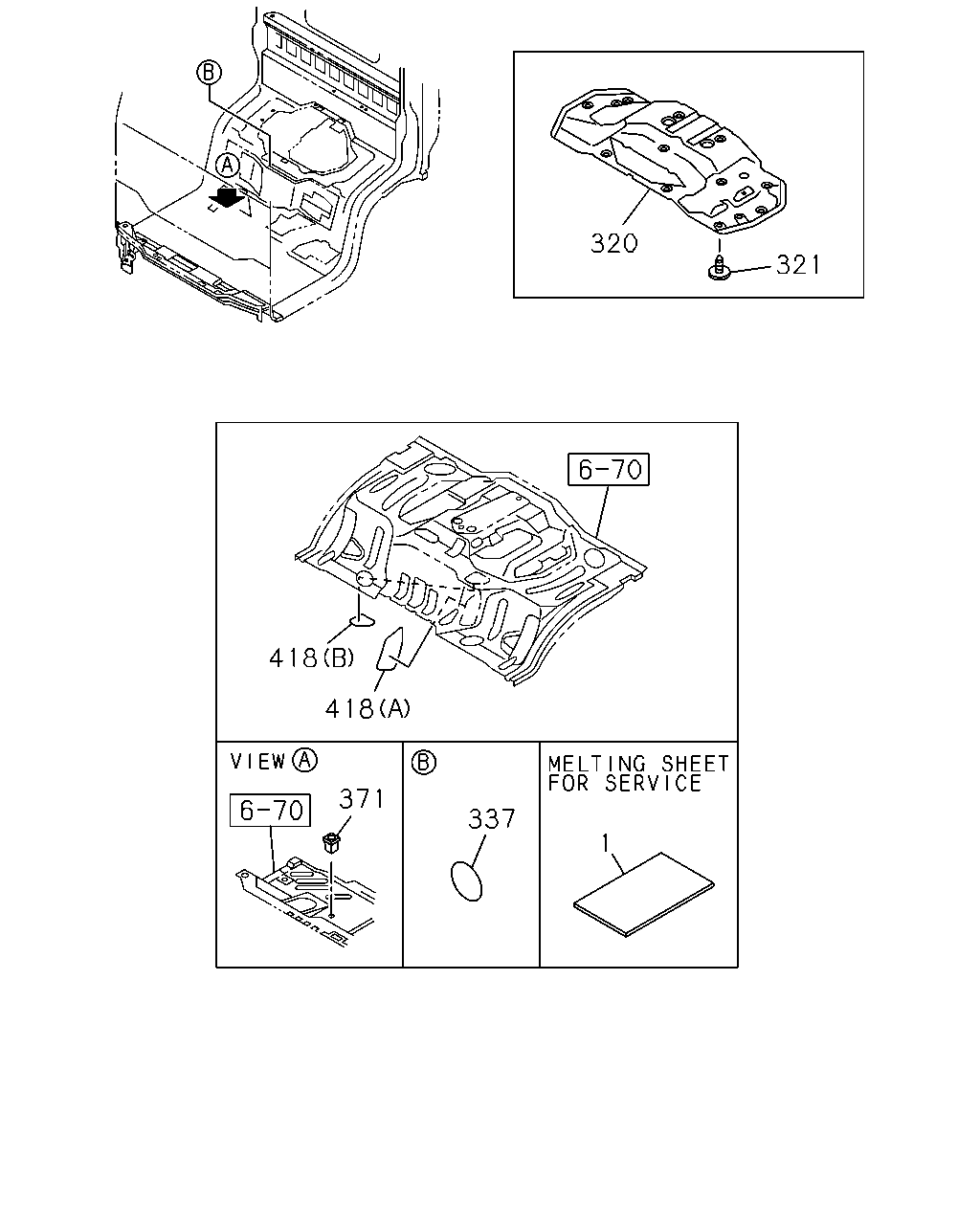

6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#74625) — 18 parça
Tümü
A - NPR5SN
B - NPR5SS
320
321
418
418
371
337
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
0803-0810
●
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
0811-
●
●
320
INSULATOR; FLOOR,FRT
THA
8-97924-157-0
01
1
0803-0810
●
320
INSULATOR; FLOOR,FRT
THA
8-97924-157-0
01
1
0811-1405
●
●
320
INSULATOR; FLOOR,FRT
THA
8-98285-272-0
01
1
1406-
●
●
321
CLIP; INSULATOR,FLOOR
ID=6.2 L=11.4 THA
8-97808-623-0
15
1
0803-0810
●
321
CLIP; INSULATOR,FLOOR
ID=6.2 L=11.4 THA
8-97808-623-0
15
1
0811-
●
●
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
03
1
0803-0810
●
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
03
1
0811-0812
●
●
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
04
1
0901-
●
●
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
08
1
0803-0810
●
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
08
1
0811-
●
●
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK
8-94279-714-0
02
1
0803-0810
●
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK
8-94279-714-0
02
1
0811-
●
●
418
SEAL; PROTECTOR
(B) THA
8-98138-276-1
01
1
0812-
●
●
418
SEAL; PROTECTOR
(B) THA
8-98138-277-1
01
1
0812-
●
●
418
SEAL; PROTECTOR
(A) THA
8-98090-191-1
01
1
0803-
●
●
418
SEAL; PROTECTOR
(A) THA
8-98090-192-1
01
1
0803-
●
●
