6-70 — FLOOR PANEL (#74623) — 111 parça

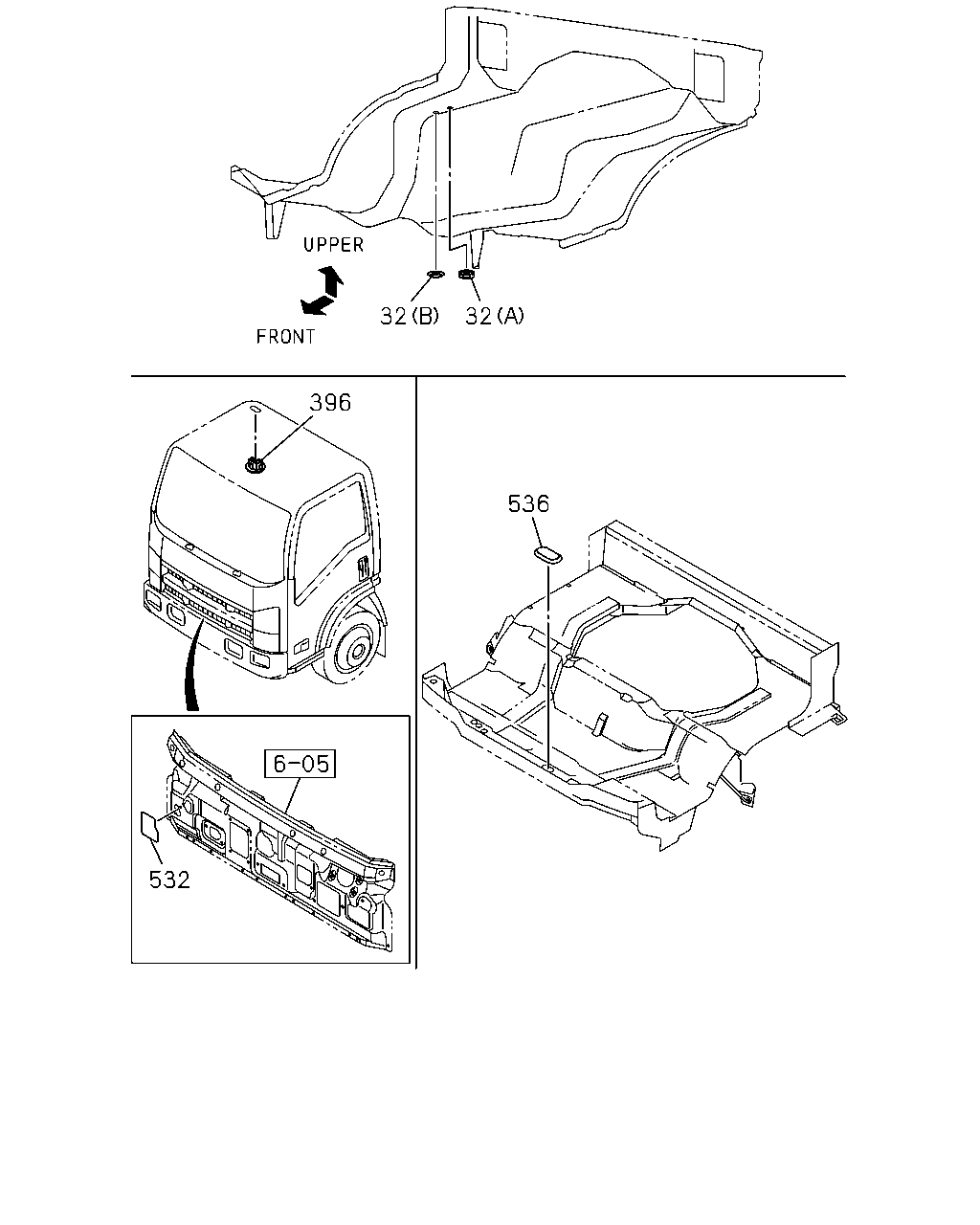

çizim 131927
32 32 396 536 532
BalonParca AdiParca NoAdetTipApplied Date A B
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=16.2 		8-94492-493-0 02 1 0803-0810 ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=16.2 		8-94492-493-0 02 1 0811-0908 ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 0803-0810 ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 0811- ● ●
396 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1004-1005 ● ●
396 GROMMET; LOCATION HOLE
VIN MODEL YEAR 2010<VZA> 		8-98054-990-0 02 1 1006-1104 ● ●
396 GROMMET; LOCATION HOLE
EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1006-1104 ● ●
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1105- ● ●
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL<6WC> 		8-98042-432-1 01 1 0803-0810 ●
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL<6WC> 		8-98042-432-1 01 1 0811- ● ●
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 0803-0810 ●
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 0811- ● ●

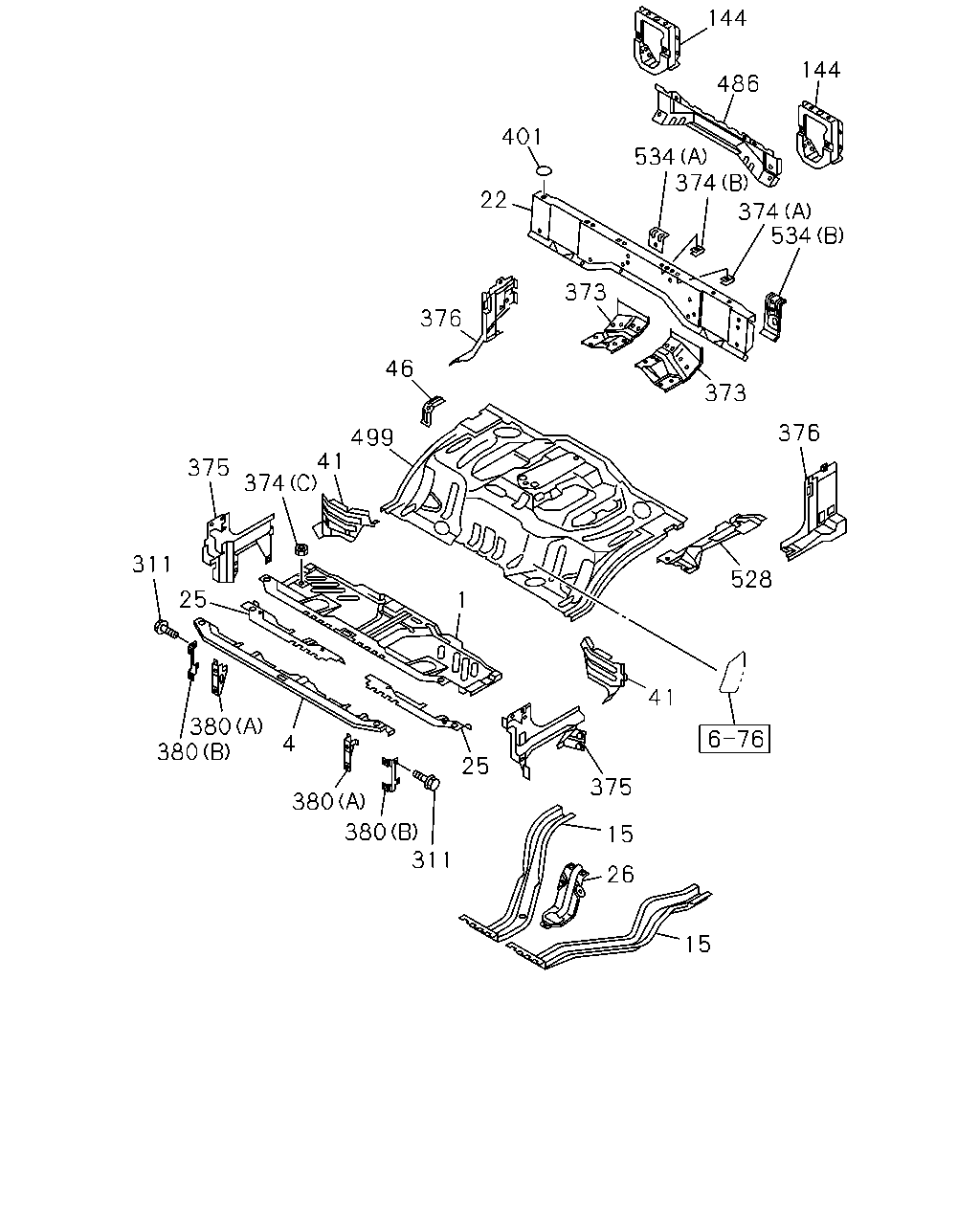

çizim 185658
144 144 486 401 534 374 22 374 534 373 376 46 373 376 499 41 374 375 311 528 25 1 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-98112-870-0 01 1 1207- ● ●
1 PANEL; FLOOR 8-97583-820-4 01 1 0803-0803 ●
1 PANEL; FLOOR 8-98112-870-0 01 1 0804-0810 ●
1 PANEL; FLOOR 8-98112-870-0 01 1 0811-1206 ● ●
4 FRAME; FLOOR,FRT 8-98059-495-0 01 1 0803-0805 ●
4 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0806-0810 ●
4 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0811-1206 ● ●
4 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1207- ● ●
15 FRAME; UNDER
THA 		8-98059-498-1 01 1 0803-0810 ●
15 FRAME; UNDER
THA 		8-98059-498-1 01 1 0811-1206 ● ●
15 FRAME; UNDER
THA 		8-98059-498-1 01 1 1207- ● ●
15 FRAME; UNDER
THA 		8-98059-497-1 01 1 0803-0810 ●
15 FRAME; UNDER
THA 		8-98059-497-1 01 1 0811-1206 ● ●
15 FRAME; UNDER
THA 		8-98059-497-1 01 1 1207- ● ●
22 FRAME; FLOOR REAR 8-97583-848-4 01 1 0803-0810 ●
22 FRAME; FLOOR REAR 8-97583-848-4 01 1 0811-1206 ● ●
22 FRAME; FLOOR REAR 8-97583-848-4 01 1 1208- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0803-0810 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0811-1206 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1207- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-822-1 01 1 0803-0803 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0804-0810 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0811-1206 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1207- ● ●
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0803-0810 ●
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0811-1206 ● ●
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1207- ● ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0803-0810 ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0811-1206 ● ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 1207- ● ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0803-0810 ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0811-1206 ● ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 1207- ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0803-0810 ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0811-1206 ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1207- ● ●
144 BRACKET; MTG,RR 8-97589-544-2 02 1 0803-0810 ●
144 BRACKET; MTG,RR 8-97589-544-2 02 1 0811-1206 ● ●
144 BRACKET; MTG,RR 8-97589-544-3 02 1 1208- ● ●
311 BOLT; BRKT
M6X16 THA 		0-52000-616-0 04 1 0803-0804 ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0805-0810 ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0811- ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-524-2 01 1 0803-0810 ●
373 REINFORCEMENT; SEAT BELT 8-98014-524-2 01 1 0811-1206 ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-524-2 01 1 1207- ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-523-2 01 1 0803-0810 ●
373 REINFORCEMENT; SEAT BELT 8-98014-523-2 01 1 0811-1206 ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-523-2 01 1 1207- ● ●
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 0803-0810 ●
374 NUT; FLOOR
4HK1-TCN ENG<RDQ> (A) M8 THA 		1-09984-111-0 01 1 0803-0810 ●
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 0811-0902 ● ●
374 NUT; FLOOR
4HK1-TCN ENG<RDQ> (A) M8 THA 		1-09984-111-0 01 1 0811-0902 ●
374 NUT; FLOOR
4HK1-TCS ENG<RJS> (A) M8 THA 		1-09984-111-0 01 1 0811-0902 ●
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 0903-1206 ● ●
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 1207- ● ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0803-0810 ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0811-1206 ● ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1207- ● ●
374 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 0803- ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 0803-0810 ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 0811-1206 ● ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 1208- ● ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 0803-0810 ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 0811-1206 ● ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 1208- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 0803-0810 ●
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 0811-1206 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 1207- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 0803-0810 ●
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 0811-1206 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 1207- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-385-3 01 1 0803-0810 ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-385-3 01 1 0811-1206 ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-385-3 01 1 1207- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-384-4 01 1 0803-0810 ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-384-4 01 1 0811-1206 ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-384-4 01 1 1207- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0803-0810 ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0811- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0803-0810 ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0811- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0803-0810 ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0811- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 0803-0810 ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 0811-1206 ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 1207- ● ●
499 PANEL; FLOOR,RR 8-97583-828-6 01 1 0803-0810 ●
499 PANEL; FLOOR,RR 8-97583-828-6 01 1 0811-1206 ● ●
499 PANEL; FLOOR,RR 8-98206-873-0 01 1 1208- ● ●
528 REINFORCEMENT; PARKING BRAKE 8-97584-619-4 01 1 0803-0810 ●
528 REINFORCEMENT; PARKING BRAKE 8-97584-619-4 01 1 0811-1206 ● ●
528 REINFORCEMENT; PARKING BRAKE 8-97584-619-4 01 1 1207- ● ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0803-0810 ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0811-1206 ● ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1207- ● ●
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 0803-0810 ●
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 0811-1206 ● ●
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 1208- ● ●
