Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

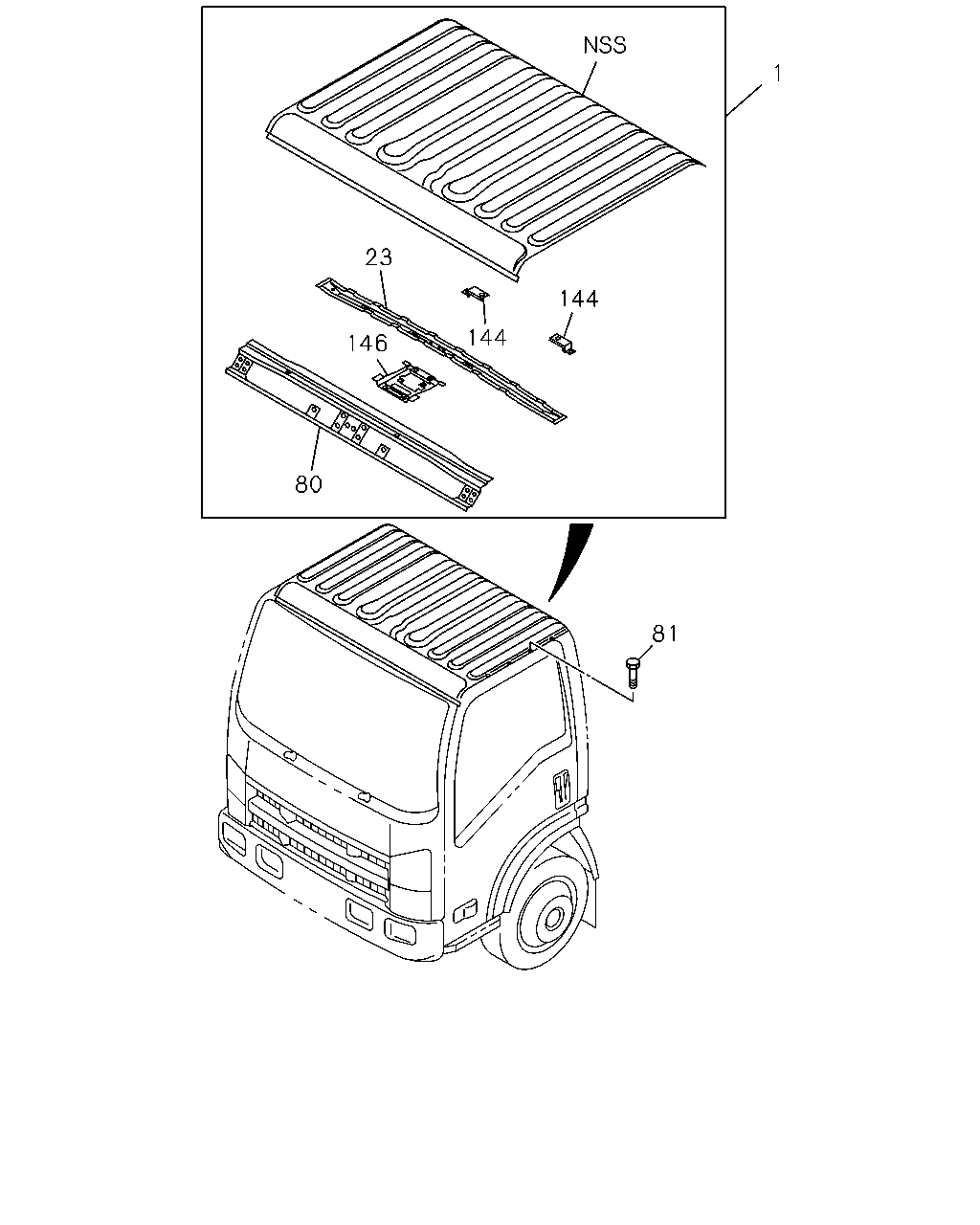

6-60 — ROOF PANEL
(#74621) — 13 parça
Tümü
A - NPR5SN
B - NPR5SS
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
8-98024-941-6
01
1
0803-0810
●
1
PANEL; ROOF
8-98024-941-6
01
1
0811-
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
THA
8-98013-502-0
01
1
0803-0810
●
23
REINFORCEMENT; ROOF PANEL,FRT
THA
8-98013-502-0
01
1
0811-
●
●
80
PANEL; HEADER,ROOF
THA
8-97584-190-4
01
1
0803-0810
●
80
PANEL; HEADER,ROOF
THA
8-97584-190-4
01
1
0811-
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0803-0810
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0811-0910
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
●
●
144
BRACKET; ROOF
8-98013-931-1
02
1
0803-0810
●
144
BRACKET; ROOF
8-98013-931-1
02
1
0811-
●
●
146
REINFORCEMENT; ROOM LAMP
THA
8-98075-827-0
01
1
0803-0810
●
146
REINFORCEMENT; ROOM LAMP
THA
8-98075-827-0
01
1
0811-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
