◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#7462) — 57 parça

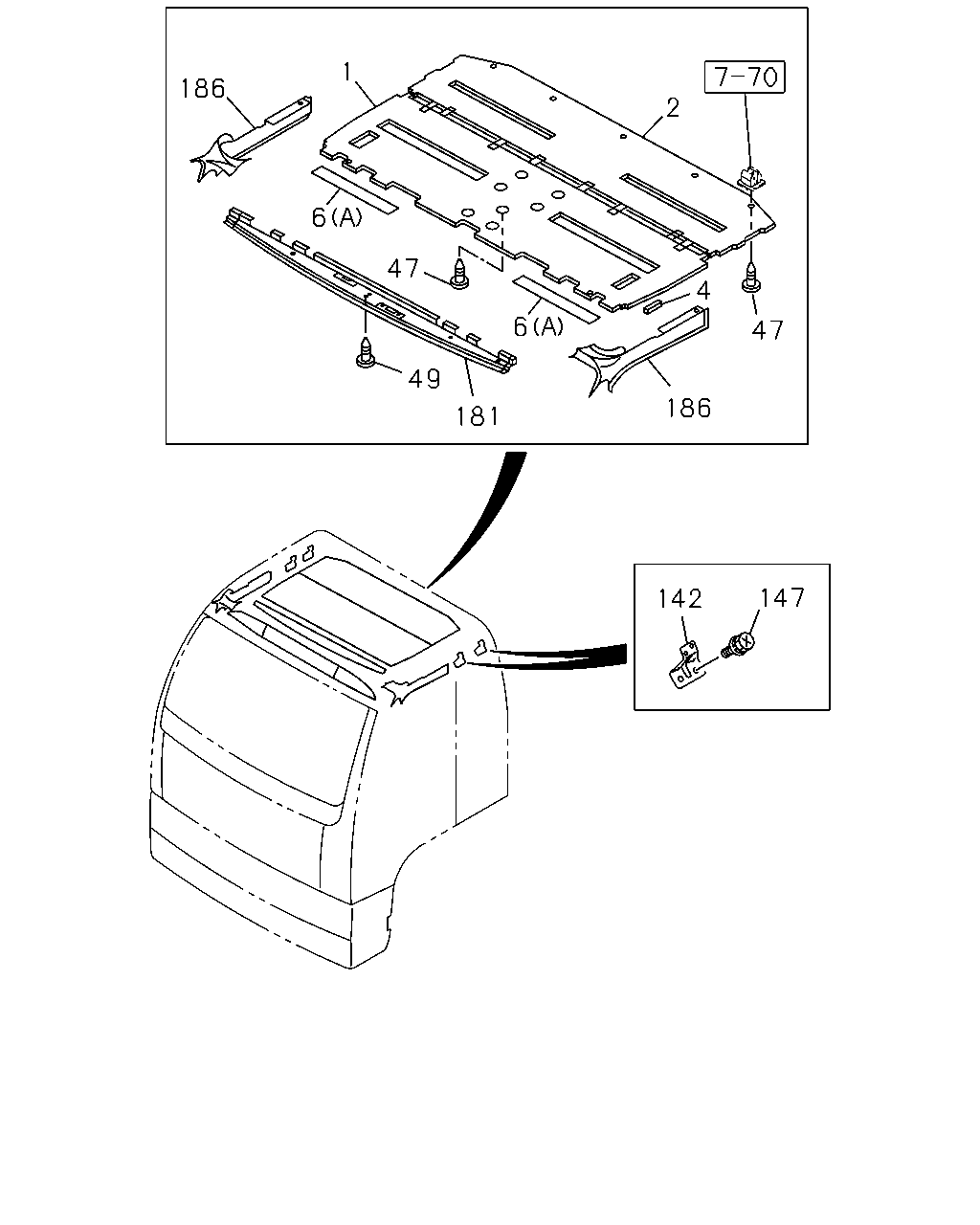

çizim 7729
1 186 2 6 47 4 6 47 49 186 181 147 142
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-426-1 01 1 9812-9909
1 LINING; HD
HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG> 		1-73317-426-1 01 1 9910-
1 LINING; HD
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> 		1-73317-376-2 01 1 9812-9909
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> 		1-73317-376-2 01 1 9910-
1 LINING; HD
LOW ROOF<6XQ> LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-377-2 01 1 9812-9909
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> 		1-73317-377-2 01 1 9910-
1 LINING; HD
LOW ROOF<6XQ> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-342-2 01 1 9812-9909
1 LINING; HD
EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> 		1-73317-342-2 01 1 9910-
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> 		1-73317-373-1 01 1 9812-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73317-344-2 01 1 9812-
4 LINING; ROOF,FRT 1-73317-436-0 02 1 9812-
6 SPACER; HD LINING
HIGH ROOF<S2F> (A) 		1-73317-434-0 02 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (B) 130X300 		1-73317-435-0 01 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (A) 		1-73317-430-0 01 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (A) 140X800 		1-73317-429-0 01 1 9812-
47 CLIP; HEADLINING
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 13 1 9812-
47 CLIP; HEADLINING
LOW ROOF<6XQ> D6X23 LIGHT GRAY 		1-73318-629-0 16 1 9812-
49 CLIP; TRIM COVER
D6X23 DARK GRAY 		1-09987-238-0 01 1 9812-
142 BRACKET ASM; ROOF COVER
HIGH ROOF<S2F> 		1-61170-747-3 04 1 9812-
147 BOLT; SUPPORT BRKT
HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 16 1 9812-
181 TRIM; ROOM,HEADER
AUTO ROUND CURTAIN<TAR> 		1-73907-291-5 01 1 9812-
181 TRIM; ROOM,HEADER
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-422-0 01 1 9812-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9812-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9812-

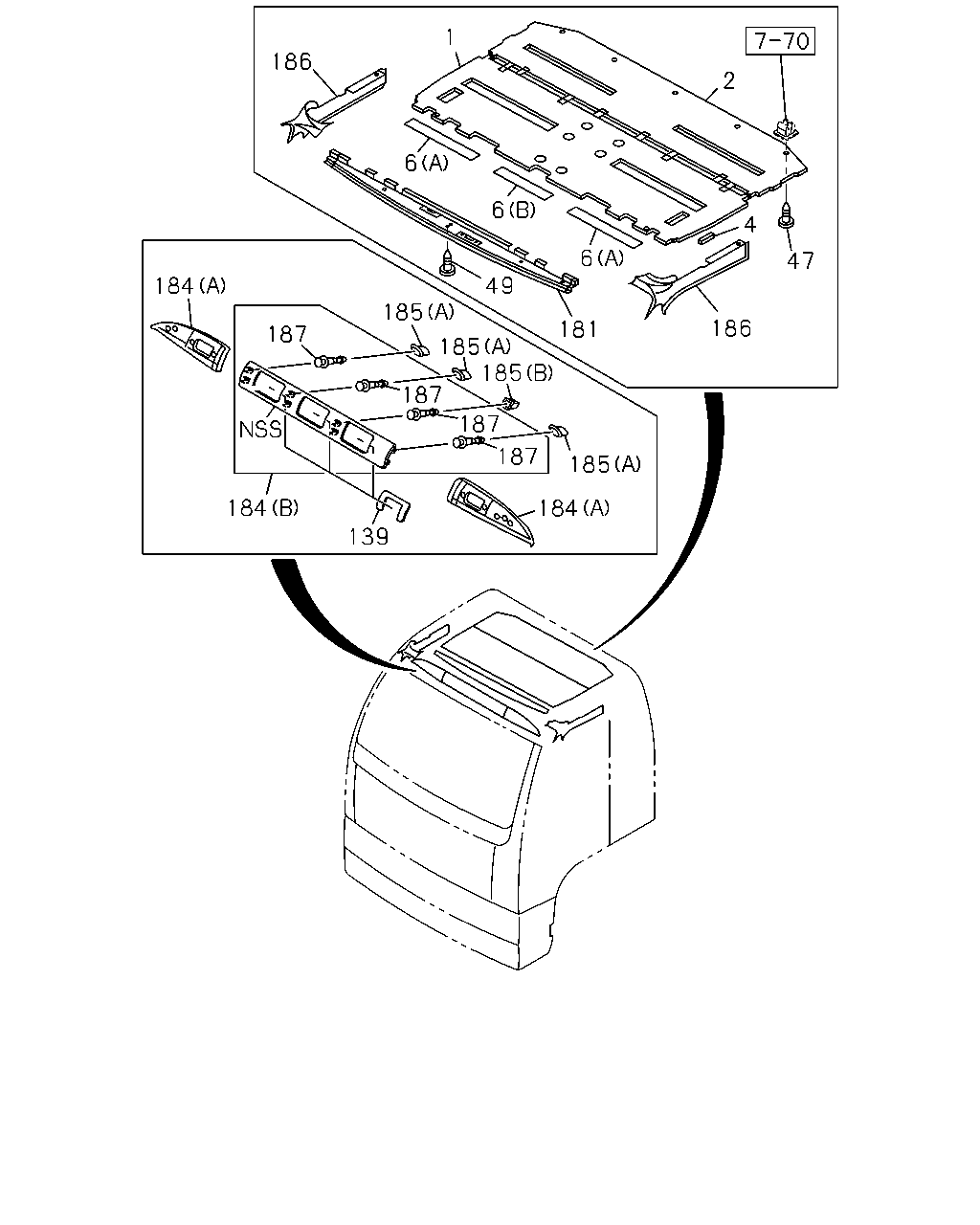

çizim 43745
1 186 2 6 6 4 6 47 49 184 185 186 181 187 185 185 187 187 187 185 184 184 139
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-426-1 01 1 9812-9909
1 LINING; HD
HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG> 		1-73317-426-1 01 1 9910-
1 LINING; HD
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> 		1-73317-376-2 01 1 9812-9909
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> 		1-73317-376-2 01 1 9910-
1 LINING; HD
LOW ROOF<6XQ> LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-377-2 01 1 9812-9909
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> 		1-73317-377-2 01 1 9910-
1 LINING; HD
LOW ROOF<6XQ> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-73317-342-2 01 1 9812-9909
1 LINING; HD
EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> 		1-73317-342-2 01 1 9910-
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> 		1-73317-373-1 01 1 9812-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73317-344-2 01 1 9812-
4 LINING; ROOF,FRT 1-73317-436-0 02 1 9812-
6 SPACER; HD LINING
HIGH ROOF<S2F> (A) 		1-73317-434-0 02 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (B) 130X300 		1-73317-435-0 01 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (A) 		1-73317-430-0 01 1 9812-
6 SPACER; HD LINING
LOW ROOF<6XQ> (A) 140X800 		1-73317-429-0 01 1 9812-
47 CLIP; HEADLINING
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 13 1 9812-
47 CLIP; HEADLINING
LOW ROOF<6XQ> D6X23 LIGHT GRAY 		1-73318-629-0 16 1 9812-
49 CLIP; TRIM COVER
D6X23 DARK GRAY 		1-09987-238-0 01 1 9812-
139 SEAL; ROOF
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> 		1-73318-562-0 03 1 0005-
181 TRIM; ROOM,HEADER
AUTO ROUND CURTAIN<TAR> 		1-73907-291-5 01 1 9812-
181 TRIM; ROOM,HEADER
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-422-0 01 1 9812-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (B) 		1-73318-626-0 01 1 9812-0004
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (B) 		1-73318-626-0 01 1 0005-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-388-0 01 1 9812-9907
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-388-0 02 1 9908-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-387-0 01 1 9812-9907
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-387-0 02 1 9908-
184 ORNAMENT; ROOF
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) 		1-73318-590-0 01 1 0005-
185 GROMMET; ORNAMENT
LOW ROOF<6XQ> (A) 		1-79198-012-0 06 1 9812-
185 GROMMET; ORNAMENT
LOW ROOF<6XQ> (B) 		1-79198-013-0 02 1 9812-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9812-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9812-
187 PIN; ORNAMENT
LOW ROOF<6XQ> D4.2X13 		1-09983-161-0 08 1 9812-
