◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#74619) — 31 parça

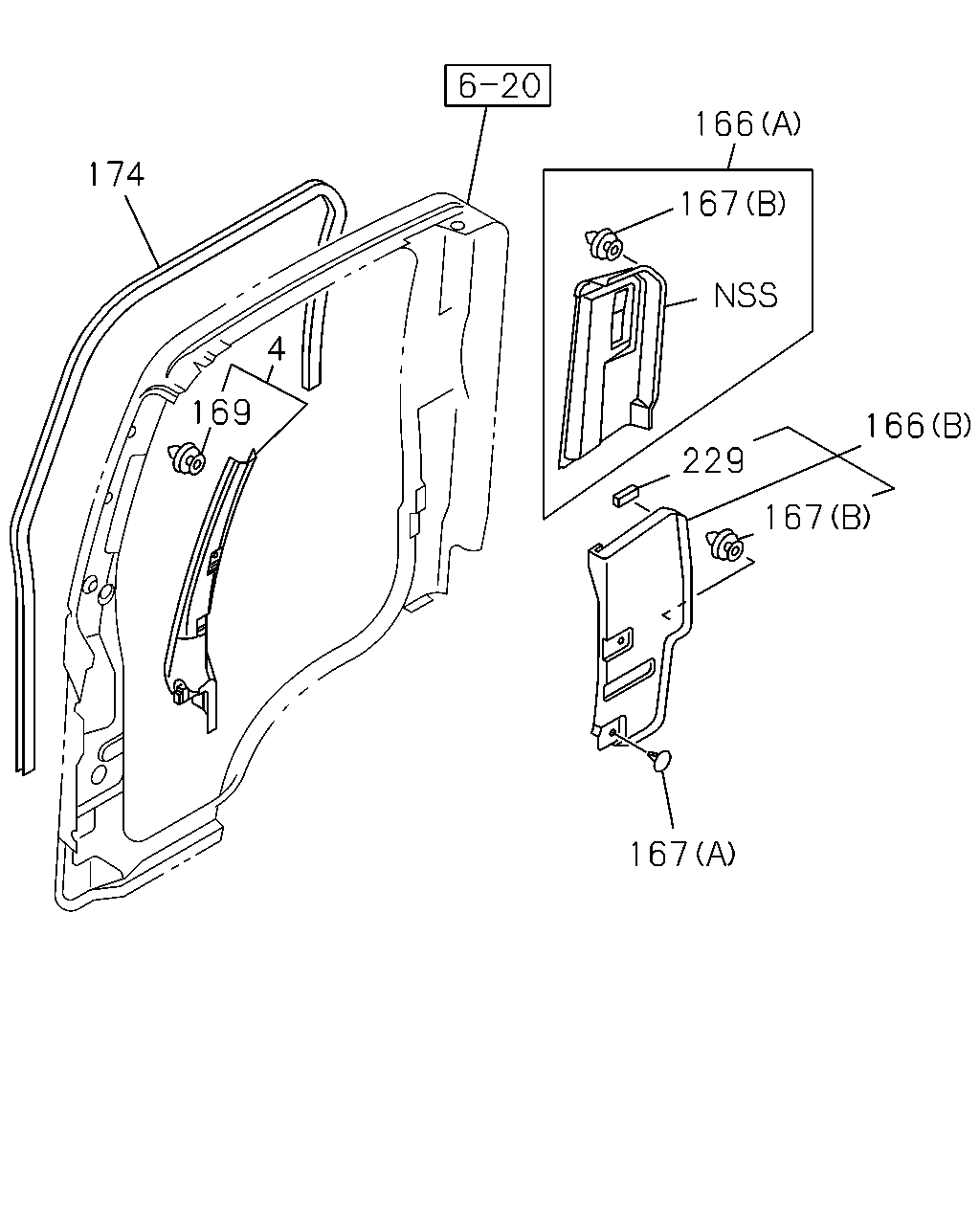

çizim 130659
166 174 167 4 169 166 229 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0803-0810 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0811- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0803-0810 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0811- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 0803-0810 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 0811- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 0803-0810 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 0811-1003 ● ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 1004-1104 ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 0803-0810 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 0811-1003 ● ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 1004-1104 ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 0803-0810 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 0811- ● ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0803-0810 ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0811- ● ●
167 CLIP; TRIM,RR PILLAR
(B) THA 		8-98059-610-0 04 1 0803-0810 ●
167 CLIP; TRIM,RR PILLAR
(B) THA 		8-98059-610-0 04 1 0811-1003 ● ●
167 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA 		8-98059-610-0 04 1 1004-1104 ● ●
167 CLIP; TRIM,RR PILLAR
(B) THA 		8-98059-610-0 06 1 0803-0810 ●
167 CLIP; TRIM,RR PILLAR
(B) THA 		8-98059-610-0 06 1 0811- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0803-0810 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0811- ● ●
174 FINISHER; BODY SIDE
VIN MODEL YEAR 2010<VZA> L=2609 		8-98154-665-0 01 1 1004-1104 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1105- ● ●
174 FINISHER; BODY SIDE
VIN MODEL YEAR 2010<VZA> L=2609 		8-98154-666-0 01 1 1004-1104 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1105- ● ●
174 FINISHER; BODY SIDE
EXC. VIN MODEL YEAR 2010<VZA> DARK GRAY 		8-97405-283-3 01 1 1004-1104 ● ●
174 FINISHER; BODY SIDE
EXC. VIN MODEL YEAR 2010<VZA> DARK GRAY 		8-97405-288-3 01 1 1004-1104 ● ●
229 SEAL 8-98081-818-0 01 1 0803-0810 ●
229 SEAL 8-98081-818-0 01 1 0811- ● ●
