6-31 — FRONT DOOR GLASS AND REGULATOR (#74616) — 53 parça

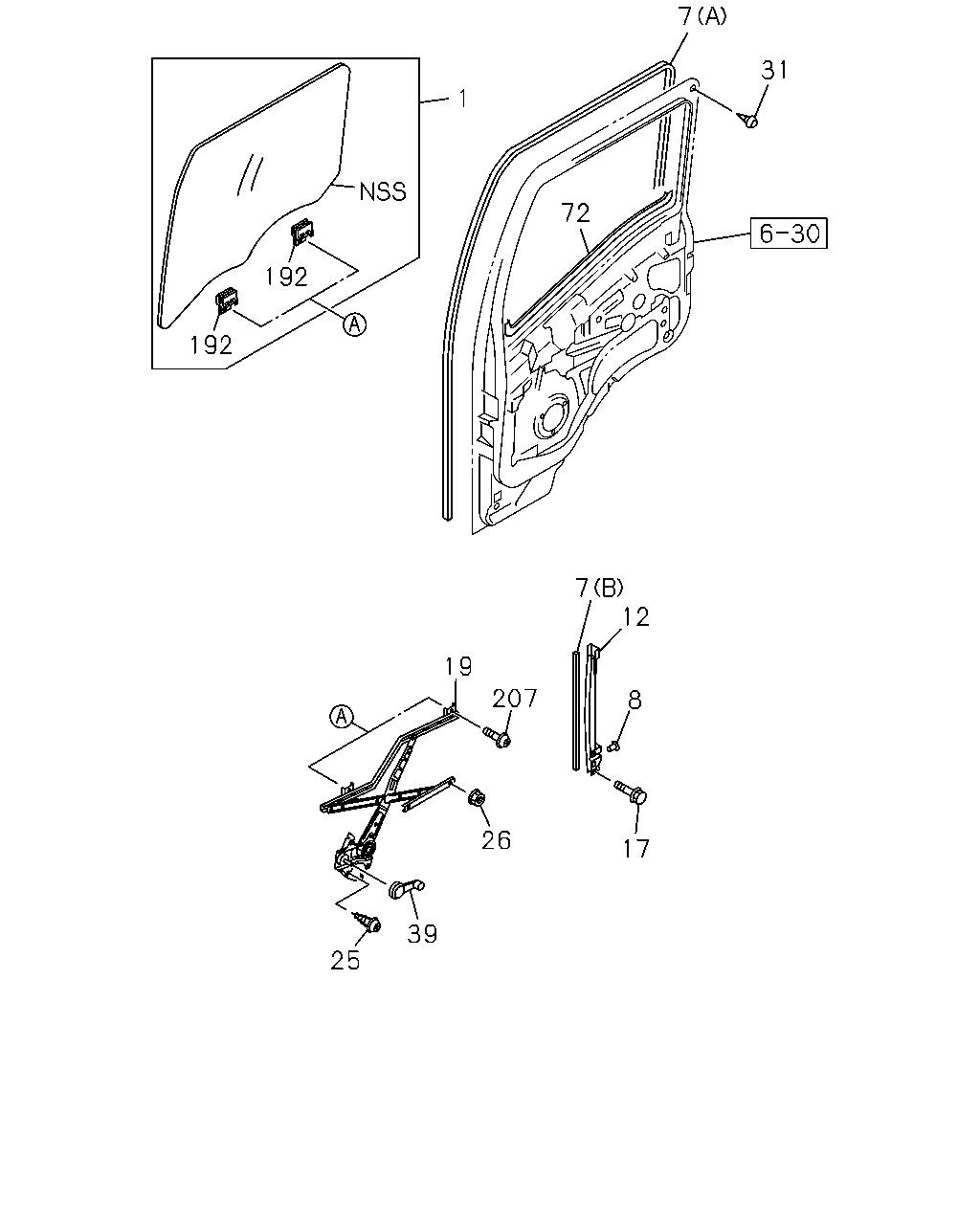

çizim 131163
7 31 1 72 192 192 7 12 19 207 8 26 17 39 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 0803-0810 ●
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 0811- ● ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 0803-0810 ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 0811- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0803-0810 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0811- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0803-0810 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0811- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0803-0810 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0811- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0803-0810 ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0811- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0803-0810 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0811-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0803-0810 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0811-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106- ● ●
17 SCREW; RR CHANNEL
M6X10 FLANGE 		8-98032-500-0 04 1 0803-0803 ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0803-0810 ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0811- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-234-3 01 1 0803-0810 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-234-3 01 1 0811- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-233-3 01 1 0803-0810 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-233-3 01 1 0811- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		8-98032-500-0 08 1 0803-0803 ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 0803-0810 ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 0811- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 0803-0810 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 0811- ● ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 0803-0810 ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 0811- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 0803-0810 ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 0811- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0803-0810 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0811- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0803-0810 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0811- ● ●
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 0803- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		8-98032-500-0 04 1 0803-0803 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 0803-0810 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 0811- ● ●

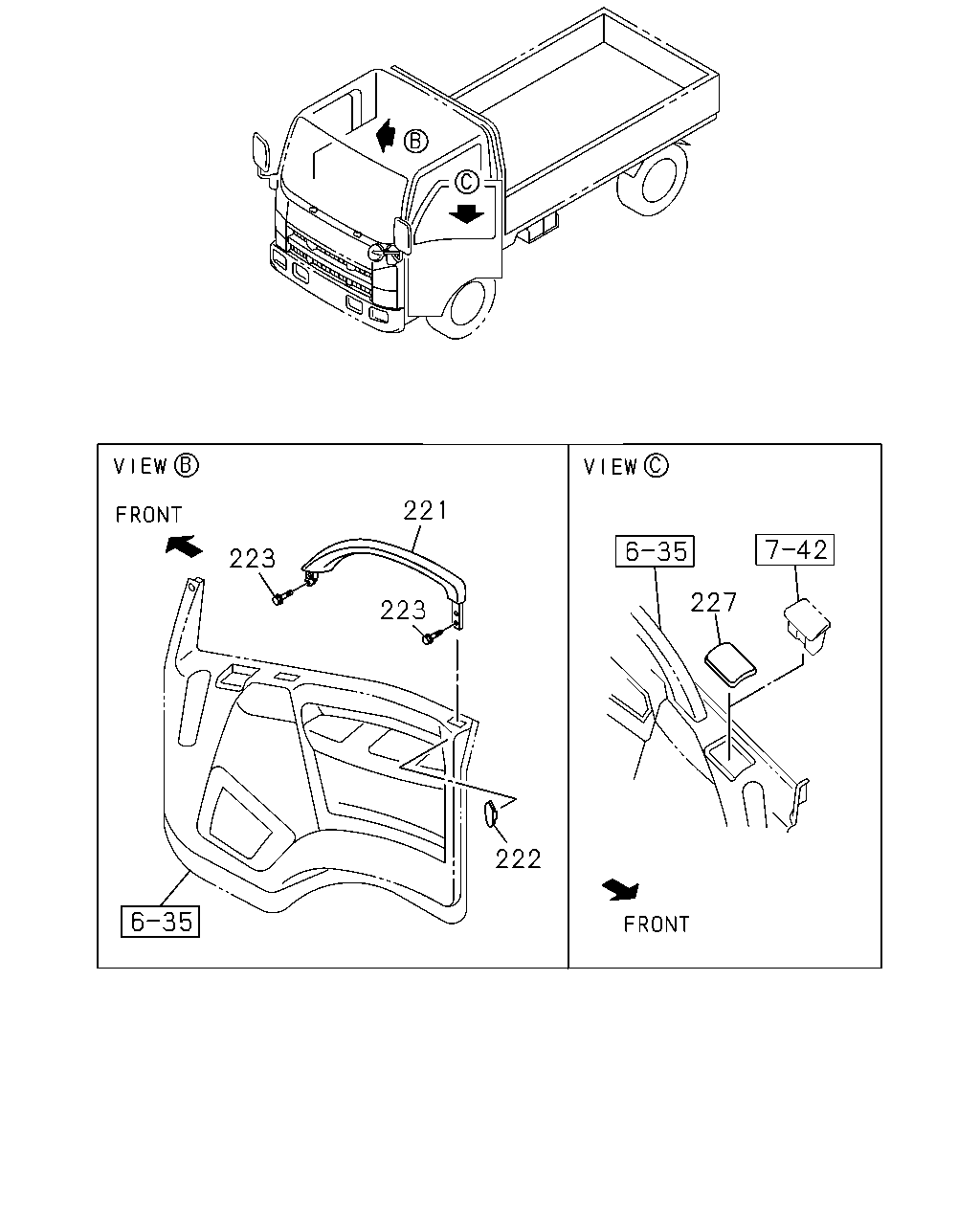

çizim 185649
221 223 227 223 222
BalonParca AdiParca NoAdetTipApplied Date A B
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 0803- ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 0803- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0803-0810 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0811- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0803-0810 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0811- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0803-0810 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0811- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY ASSIST DOOR<8LX> GRAY 		8-97405-321-0 01 1 0803-0810 ●
227 RUBBER; SHUTTER
EXC. ASH TRAY ASSIST DOOR<8LX> GRAY 		8-97405-321-0 01 1 0811-1104 ● ●
227 RUBBER; SHUTTER
GRAY 		8-97405-321-0 01 1 1105- ● ●
