6-20 — SIDE PANEL AND STEP (#74614) — 132 parça

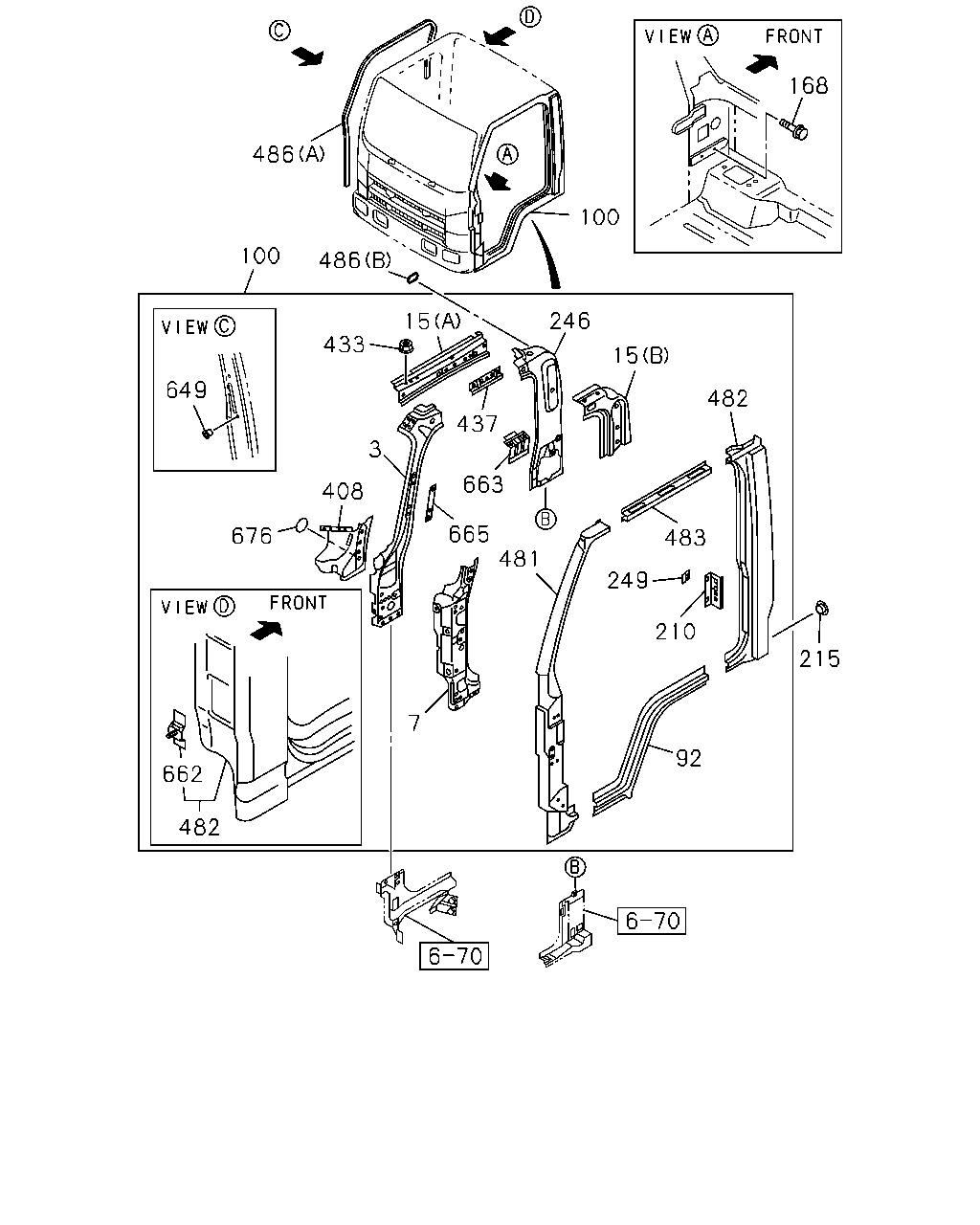

çizim 126654
168 486 100 486 100 246 15 433 15 649 482 437 3 663 408 665 481 676 483 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0803-0810 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0811- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0803-0810 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0811- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0803-0810 ●
7 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0803-0810 ●
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 0811-1309 ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310- ●
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 0811-1309 ●
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1310- ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-295-2 01 1 0803-0810 ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-295-2 01 1 0811- ● ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-294-2 01 1 0803-0810 ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-294-2 01 1 0811- ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-302-1 01 1 0803-0810 ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-302-1 01 1 0811- ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-303-2 01 1 0803-0810 ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-303-2 01 1 0811- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0803-0810 ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0811- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0803-0810 ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0811- ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97585-200-9 01 1 0803-0810 ●
100 PANEL ASM; BODY SIDE
THA 		8-97585-200-9 01 1 0811-1104 ● ●
100 PANEL ASM; BODY SIDE
THA 		8-98180-846-0 01 1 1105-1309 ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-573-2 01 1 1310- ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97586-023-5 01 1 0803-0810 ●
100 PANEL ASM; BODY SIDE
THA 		8-97586-023-5 01 1 0811-1309 ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-556-2 01 1 1310- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0803-0803 ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 0804-0810 ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 0811- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1401- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1401- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0803-0810 ●
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0811- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0803-0810 ●
210 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0811- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0803-0810 ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0811- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 0803-0810 ●
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 0811- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 0803-0810 ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 0811- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1310-1312 ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1401- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1401- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1310-1312 ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1401- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1401- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1401- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1401- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 0803-0810 ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 0811-1011 ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1012- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1012- ● ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 1401- ● ●
408 GUSSET; PILLAR
THA 		8-98180-850-0 01 1 1401- ● ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 0803-0810 ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 0811- ● ●
408 GUSSET; PILLAR 8-97585-317-4 01 1 0803-0810 ●
408 GUSSET; PILLAR 8-97585-317-4 01 1 0811-1104 ● ●
408 GUSSET; PILLAR
THA 		8-98180-850-0 01 1 1105- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1310-1312 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1310-1312 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 0803-0810 ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 0811-1011 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1012- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1012- ● ●
437 BRACKET; ROOF RAIL
THA 		8-98039-019-0 01 1 1401- ● ●
437 BRACKET; ROOF RAIL
THA 		8-98039-020-0 01 1 1401- ● ●
437 BRACKET; ROOF RAIL
THA 		8-98039-019-0 01 1 0803-0810 ●
437 BRACKET; ROOF RAIL
THA 		8-98039-019-0 01 1 0811- ● ●
437 BRACKET; ROOF RAIL
THA 		8-98039-020-0 01 1 0803-0810 ●
437 BRACKET; ROOF RAIL
THA 		8-98039-020-0 01 1 0811- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 0803-0810 ●
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 0811- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0803-0810 ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0811- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0803-0810 ●
482 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0811- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-472-0 01 1 0803-0810 ●
482 PANEL; SIDE RR PILLAR 8-98055-472-0 01 1 0811-0811 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0812- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0803-0810 ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0811- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0803-0810 ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0811- ● ●
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE<951> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1005-1104 ● ●
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE<951> (B) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1105- ● ●
486 SEAL; BODY SIDE
(A) DARK GRAY 		8-97405-288-3 01 1 0803-0810 ●
486 SEAL; BODY SIDE
(A) DARK GRAY 		8-97405-288-3 01 1 0811-1003 ● ●
486 SEAL; BODY SIDE
(A) DARK GRAY 		8-97405-283-3 01 1 0803-0810 ●
486 SEAL; BODY SIDE
(A) DARK GRAY 		8-97405-283-3 01 1 0811-1003 ● ●
486 SEAL; BODY SIDE
BODY COLOR TRANS BLUE<999> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1004-1104 ● ●
486 SEAL; BODY SIDE
BODY COLOR TRANS BLUE<999> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1105- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1401- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 0803-0810 ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 0811- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0803-0810 ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0811- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0803-0810 ●
663 BRACKET; AIR 8-97585-208-2 01 1 0811- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0803-0810 ●
663 BRACKET; AIR 8-97585-207-2 01 1 0811- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1401- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1401- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 0803-0810 ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 0811-1011 ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1012- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1012- ● ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0803-0810 ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0811- ● ●

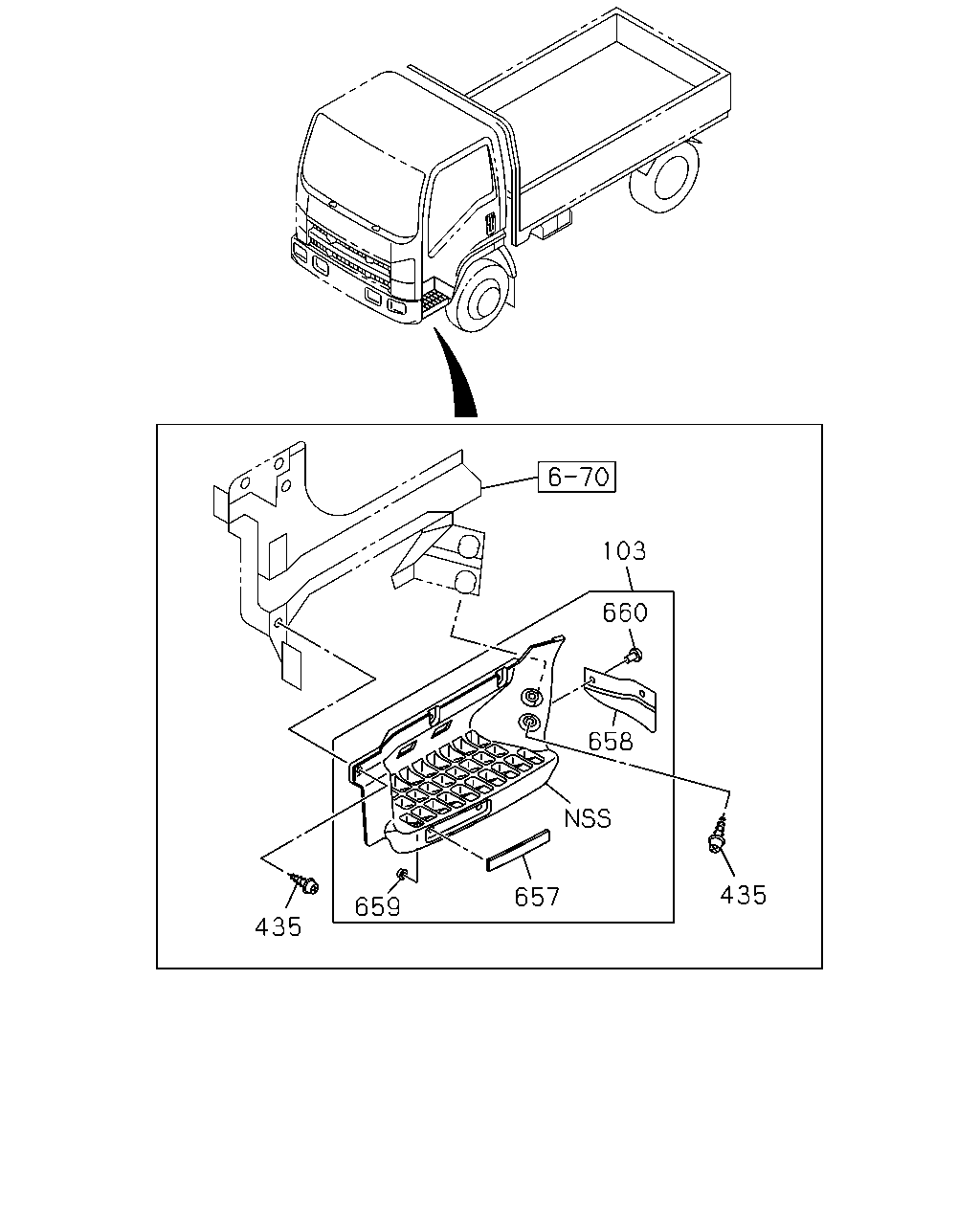

çizim 130545
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98022-775-3 01 1 0803-0810 ●
103 PLATE; STEP 8-98022-775-3 01 1 0811- ● ●
103 PLATE; STEP 8-98022-774-3 01 1 0803-0810 ●
103 PLATE; STEP 8-98022-774-3 01 1 0811- ● ●
435 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0803-0810 ●
435 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0811- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0803-0810 ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0811- ● ●
658 FLAP; STEP 8-98037-560-1 02 1 0803-0810 ●
658 FLAP; STEP 8-98037-560-1 02 1 0811- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0803-0810 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0811- ● ●
660 CLIP; FLAP
OD=8.3 		8-97997-832-0 04 1 0803-0803 ●
660 CLIP; FLAP 8-98111-558-0 04 1 0804-0810 ●
660 CLIP; FLAP 8-98111-558-0 04 1 0811- ● ●
