◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#74613) — 29 parça

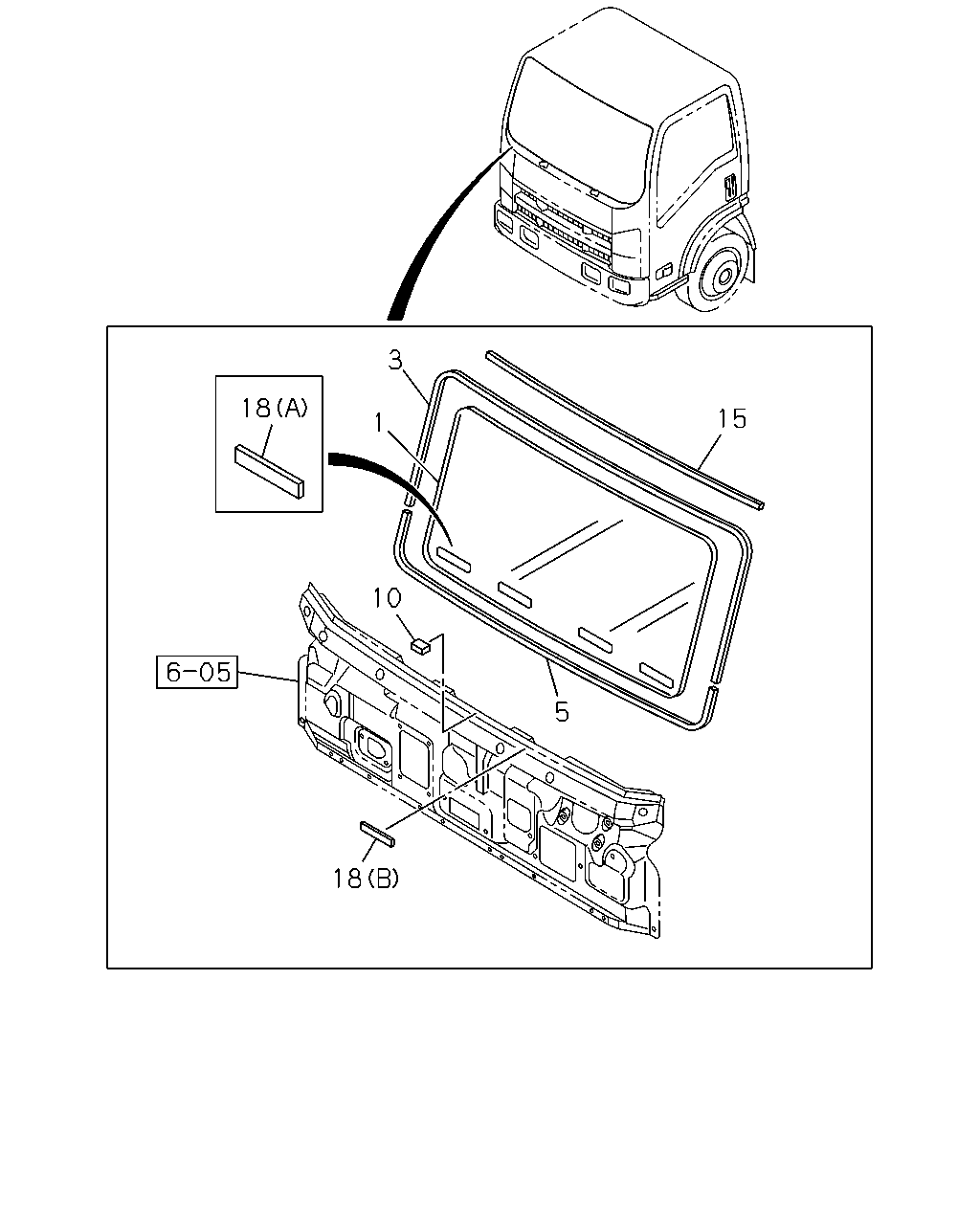

çizim 185648
3 18 15 1 10 5 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD
THA 		8-97923-954-3 01 1 0803-0810 ●
1 GLASS; WINDSHIELD
THA 		8-97923-954-3 01 1 0811-1212 ● ●
1 GLASS; WINDSHIELD
THA 		8-97926-586-0 01 1 1301- ● ●
3 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0803-0810 ●
3 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0811- ● ●
5 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0803-0810 ●
5 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0811- ● ●
10 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0803-0810 ●
10 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0811- ● ●
15 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 1004-1004 ● ●
15 FINISHER; WINDSHIELD
VIN MODEL YEAR 2010<VZA> DARK GRAY 		8-97412-958-0 01 1 1005-1104 ● ●
15 FINISHER; WINDSHIELD
EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 1005-1104 ● ●
15 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 1105- ● ●
18 SEAL; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1004-1004 ● ●
18 SEAL; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. VIN MODEL YEAR 2010<VZA> (A) L=100 B=8 		8-98029-086-1 09 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1004-1004 ● ●
18 SEAL; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. VIN MODEL YEAR 2010<VZA> (B) L=100 B=10 		8-98083-198-1 09 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 09 1 0803-0810 ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 09 1 0811-1003 ● ●
18 SEAL; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 1004-1004 ● ●
18 SEAL; WINDSHIELD
VIN MODEL YEAR 2010<VZA> (A) L=100 B=8 		8-98029-086-1 04 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 04 1 1105- ● ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 09 1 0803-0810 ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 09 1 0811-1003 ● ●
18 SEAL; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 1004-1004 ● ●
18 SEAL; WINDSHIELD
VIN MODEL YEAR 2010<VZA> (B) L=100 B=10 		8-98083-198-1 04 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1005-1104 ● ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 04 1 1105- ● ●
