◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#74612) — 192 parça

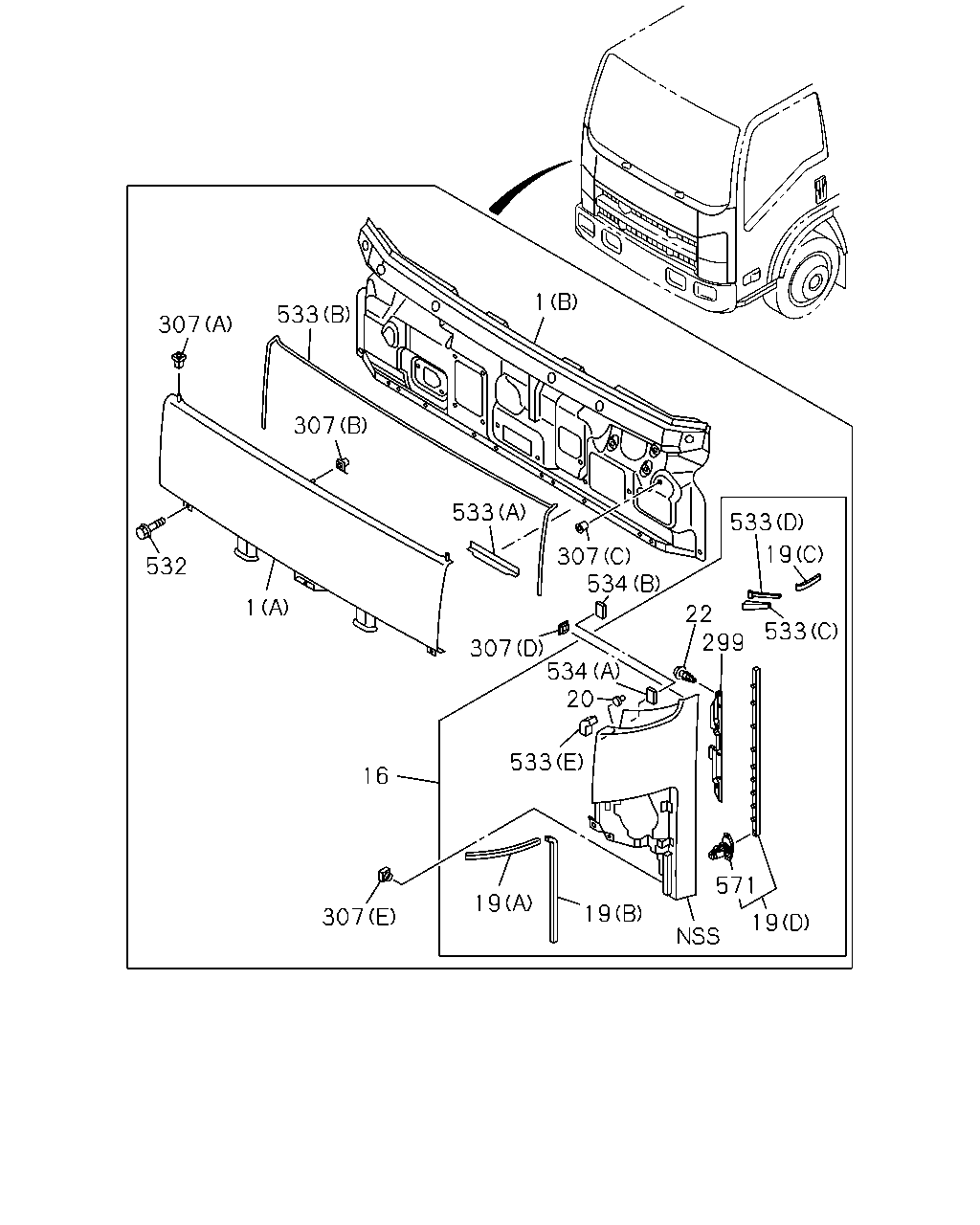

çizim 126334
1 533 307 307 533 533 307 534 19 532 1 22 299 533 307 534 20 533 16 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0803-0807 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-0810 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0811- ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0803-0810 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98182-390-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-884-0 01 1 1105- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0803-0810 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98181-027-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-882-0 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-871-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-871-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-874-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-869-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-869-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-873-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-872-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-872-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE THA 		8-97405-624-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-870-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-870-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE THA 		8-97405-620-8 01 1 1105- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0811- ● ●
20 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0803-0810 ●
20 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0811- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0803-0810 ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0811- ● ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0803-0810 ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0811- ● ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0803-0810 ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0803-0810 ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0811- ● ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0803-0810 ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0811- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0803-0810 ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0811- ● ●
307 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1105- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 0803-0810 ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 0811- ● ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 0811- ● ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0811-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0811- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0811- ● ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0803-0810 ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0811- ● ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0803-0810 ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0811- ● ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0803-0810 ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0811-1104 ● ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0803-0810 ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0811-1104 ● ●
534 FASTENER
(A) 20X30 		8-98059-208-1 02 1 1105- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0803-0810 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0811- ● ●

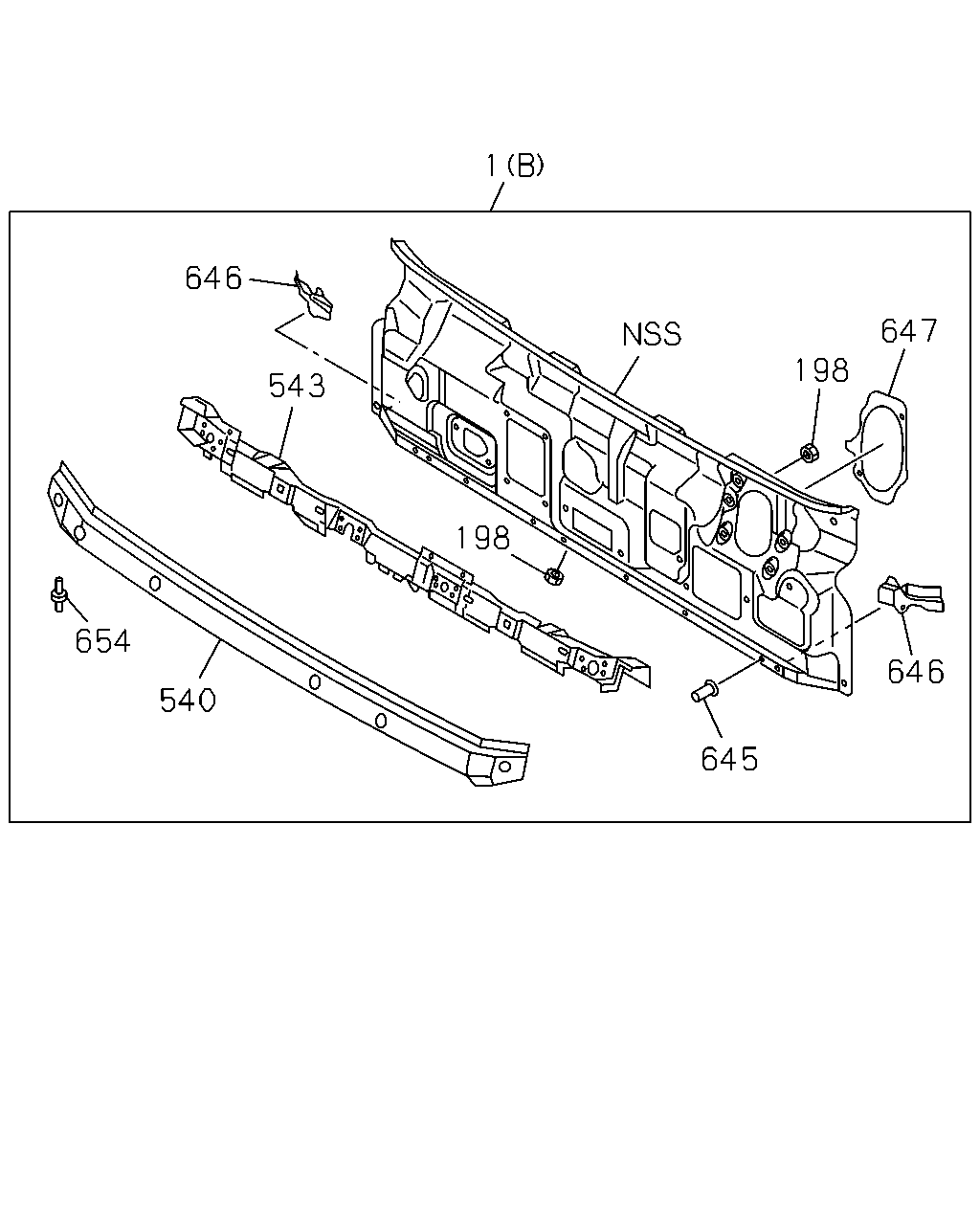

çizim 126446
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0803-0807 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-0810 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0811- ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0803-0810 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98182-390-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-884-0 01 1 1105- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0803-0810 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98181-027-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-882-0 01 1 1105- ● ●
198 NUT; PANEL
PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 06 1 1103- ● ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 04 1 1103- ● ●
198 NUT; PANEL
PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 06 1 0803-0810 ●
198 NUT; PANEL
PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 06 1 0811-1102 ● ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 04 1 0803-0810 ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 04 1 0811-1102 ● ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 0803-0810 ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 0811-1102 ● ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1103- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 0803-0810 ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 0811-1102 ● ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1103- ● ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0803-0810 ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0811-1102 ● ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1103- ● ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 0803-0810 ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 0811-1102 ● ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 1103- ● ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 0803-0810 ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 0811-1102 ● ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 1103- ● ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0803-0810 ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0811-1102 ● ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1103- ● ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 0803-0810 ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 0811-1102 ● ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 1103- ● ●

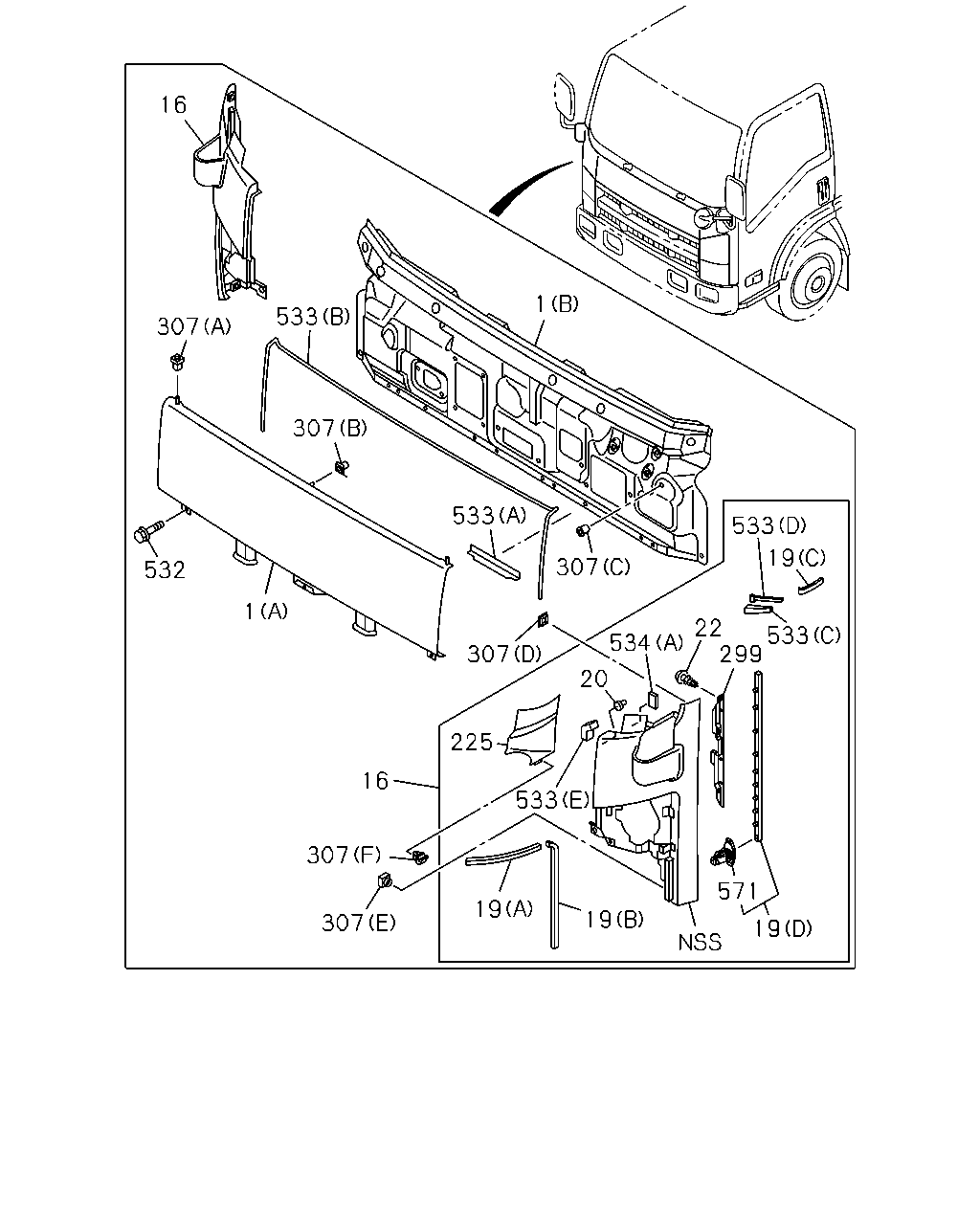

çizim 126540
16 1 533 307 307 533 533 19 307 532 1 22 533 299 534 20 307 225 16 533 307 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0803-0807 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-0810 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0811- ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0803-0810 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98042-897-7 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) 		8-98182-390-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-884-0 01 1 1105- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0803-0810 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-97585-324-9 01 1 0811-1102 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98181-027-0 01 1 1103-1104 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) THA 		8-98183-882-0 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-871-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-871-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-874-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-869-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-869-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE THA 		8-97409-873-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-872-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-872-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE THA 		8-97405-624-8 01 1 1105- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-870-9 01 1 0803-0810 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE 		8-97409-870-9 01 1 0811-1104 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE<999> BLUE THA 		8-97405-620-8 01 1 1105- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0811- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0803-0810 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0811- ● ●
20 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0803-0810 ●
20 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0811- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0803-0810 ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0811- ● ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1105- ● ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1105- ● ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0803-0810 ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0811- ● ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0803-0810 ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0803-0810 ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0811- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0803-0810 ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0811- ● ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0803-0810 ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0811- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0803-0810 ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0811- ● ●
307 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1105- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 0803-0810 ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 0811- ● ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 0811- ● ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0811-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0811- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0803-0810 ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0811- ● ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0803-0810 ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0811- ● ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0803-0810 ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0811- ● ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0803-0810 ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0811-1104 ● ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0803-0810 ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0811-1104 ● ●
534 FASTENER
(A) 20X30 		8-98059-208-1 02 1 1105- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0803-0810 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
