6-01 — FRONT BUMPER (#74610) — 24 parça

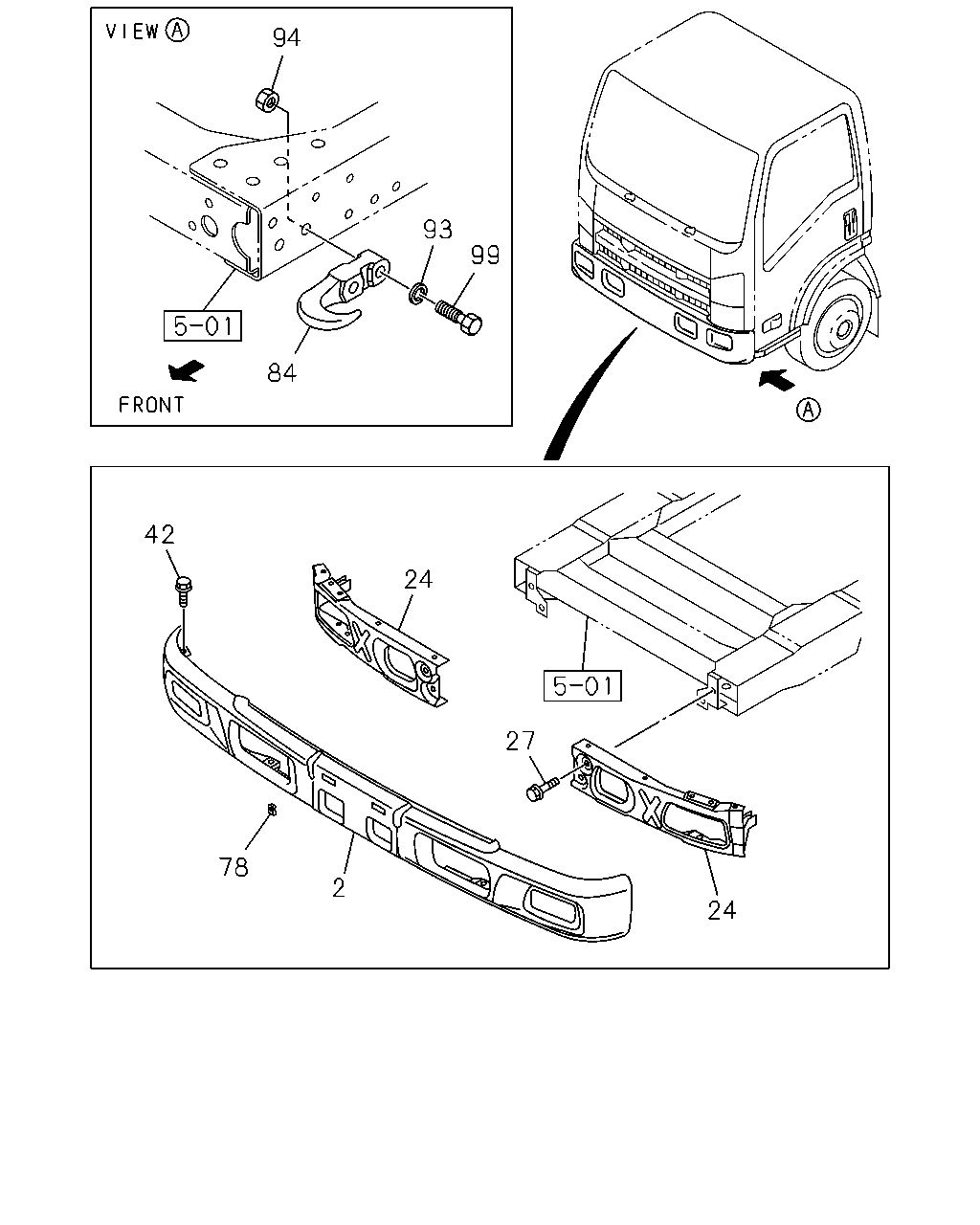

çizim 125974
94 93 99 84 42 24 27 78 2 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE<951> WHITE 		8-97409-889-5 01 1 0803-0810 ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE<951> WHITE 		8-97409-889-5 01 1 0811- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE<999> PRIMER THA 		8-98055-079-2 01 1 0803-0810 ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE<999> PRIMER THA 		8-98055-079-2 01 1 0811- ● ●
24 BAR; FRT BUMPER 8-98025-185-5 01 1 0803-0810 ●
24 BAR; FRT BUMPER 8-98025-185-5 01 1 0811- ● ●
24 BAR; FRT BUMPER 8-98025-184-5 01 1 0803-0810 ●
24 BAR; FRT BUMPER 8-98025-184-5 01 1 0811- ● ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 0803-0810 ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 0811- ● ●
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0803-0810 ●
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0811- ● ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 0803-0810 ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 0811- ● ●
84 HOOK 8-97387-665-0 01 1 0803-0810 ●
84 HOOK 8-97387-665-0 01 1 0811- ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0803-0810 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0811- ● ●
94 NUT; HOOK
M14 THA 		0-91110-514-0 01 1 0803-0810 ●
94 NUT; HOOK
M14 THA 		0-91110-514-0 01 1 0811- ● ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0803-0810 ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0811-1001 ● ●
99 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1103 ● ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104- ● ●
