5-15 — CAB MOUNTING; CAB SIDE (#74607) — 110 parça

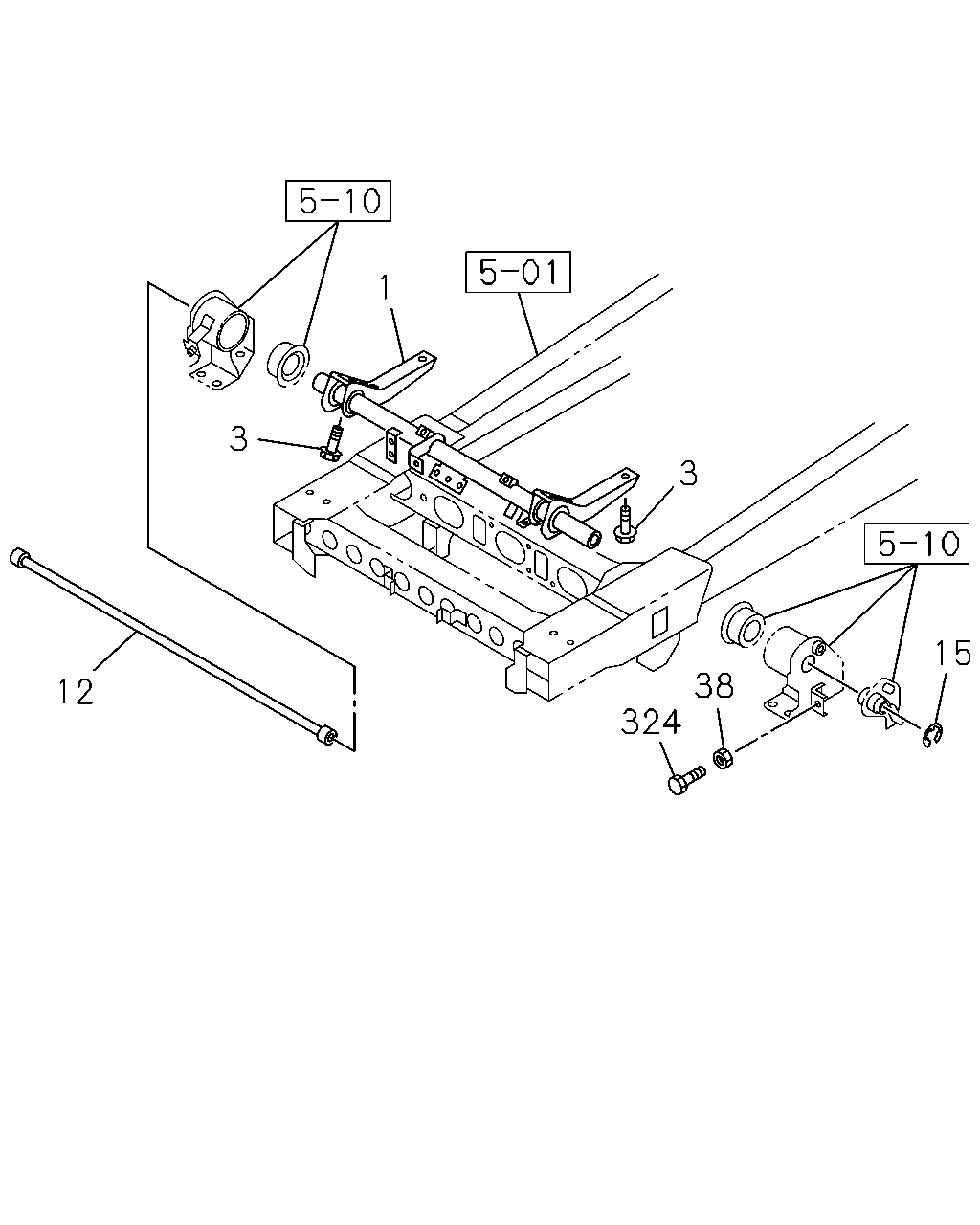

1 3 3 15 38 324 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	8-98074-174-1	01	1	0803-0810	●
1	LEVER; TORSION BAR	8-98074-174-1	01	1	0811-	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0803-0810	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0811-	●	●
12	BAR; TORSION,UPR	8-97261-871-0	01	1	0803-0810	●
12	BAR; TORSION,UPR	8-97261-871-0	01	1	0811-1005	●	●
12	BAR; TORSION,UPR	8-98166-027-0	01	1	1006-	●	●
15	RING; SNAP,TORSION BAR	8-97359-034-0	01	1	0803-0810	●
15	RING; SNAP,TORSION BAR	8-97359-034-0	01	1	0811-	●	●
38	NUT; LK M14	8-98039-988-0	01	1	0803-0810	●
38	NUT; LK M14	8-98039-988-0	01	1	0811-	●	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	0803-0810	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	0811-	●	●

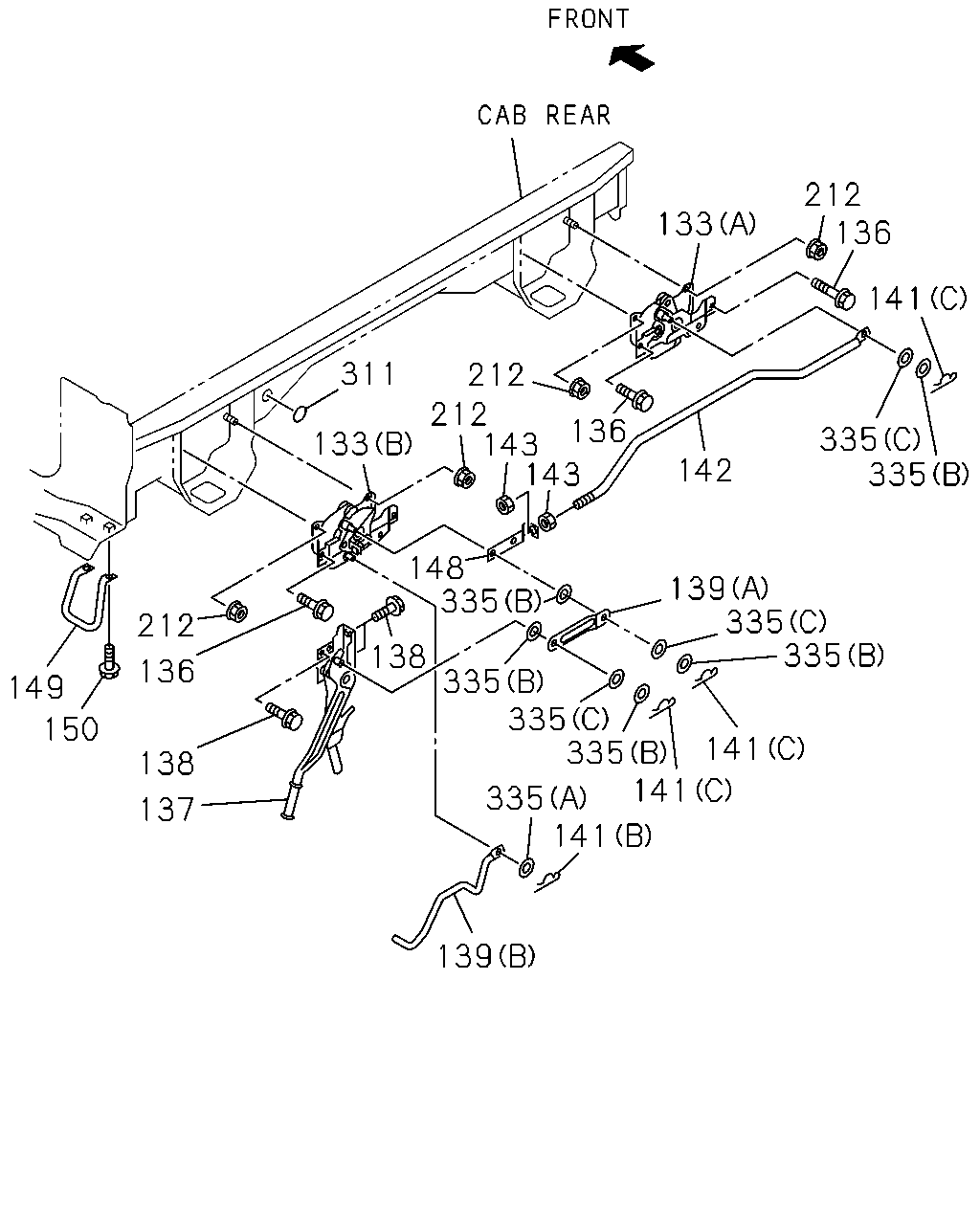

212 136 133 141 311 212 212 143 143 136 335 335 133 142 148 335 139 335 335 212 138 136 335 335 335 141 149 150 141 138 335 141 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (B)	8-97410-270-2	01	1	0803-0810	●
133	LOCK ASM; CAB (B)	8-97410-270-2	01	1	0811-	●	●
133	LOCK ASM; CAB (A)	8-97584-486-4	01	1	0803-0810	●
133	LOCK ASM; CAB (A)	8-97584-486-4	01	1	0811-1105	●	●
133	LOCK ASM; CAB (A)	8-98182-353-0	01	1	1106-	●	●
136	BOLT; CAB LK M8X20 FLANGE THA	0-28650-820-0	04	1	0803-0810	●
136	BOLT; CAB LK M8X20 FLANGE THA	0-28650-820-0	04	1	0811-	●	●
137	CONTROL UNIT; CAB LOCK	8-97584-469-3	01	1	0803-0810	●
137	CONTROL UNIT; CAB LOCK	8-97584-469-3	01	1	0811-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE THA	0-28650-820-0	03	1	0803-0810	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE THA	0-28650-820-0	03	1	0811-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B)	8-97410-269-1	01	1	0803-0810	●
139	ROD; CAB LOCK,LEVER TO HOOK (B)	8-97410-269-1	01	1	0811-0811	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-202-0	01	1	0811-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	0803-0810	●
139	ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0803-0810	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0803-0810	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	8-98062-280-0	01	1	0803-0807	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0808-0810	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0811-	●	●
142	ROD; HOOK TO HOOK	8-97410-633-0	01	1	0803-0810	●
142	ROD; HOOK TO HOOK	8-97410-633-0	01	1	0811-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10 THA	0-91110-510-0	02	1	0803-0810	●
143	NUT; JAW JOINT,HOOK TO HOOK M10 THA	0-91110-510-0	02	1	0811-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0803-0810	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0811-	●	●
149	HANDLE; TILT	8-98067-938-0	01	1	0803-0810	●
149	HANDLE; TILT	8-98067-938-0	01	1	0811-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE THA	0-28650-820-0	02	1	0803-0810	●
150	BOLT; TILT HANDLE M8X20 FLANGE THA	0-28650-820-0	02	1	0811-1103	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE THA	0-28650-825-0	02	1	1104-	●	●
212	NUT; BRKT,CAB LOCK M8 FLANGE THA	0-91180-108-0	04	1	0803-0810	●
212	NUT; BRKT,CAB LOCK M8 FLANGE THA	0-91180-108-0	04	1	0811-	●	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	0803-0810	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	0811-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=22	0-91610-512-0	05	1	0803-0810	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=22	0-91610-512-0	05	1	0811-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.8 OD=12.5	8-98060-837-0	01	1	0803-0810	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=14	5-09550-002-0	01	1	0811-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	0803-0810	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	0811-	●	●

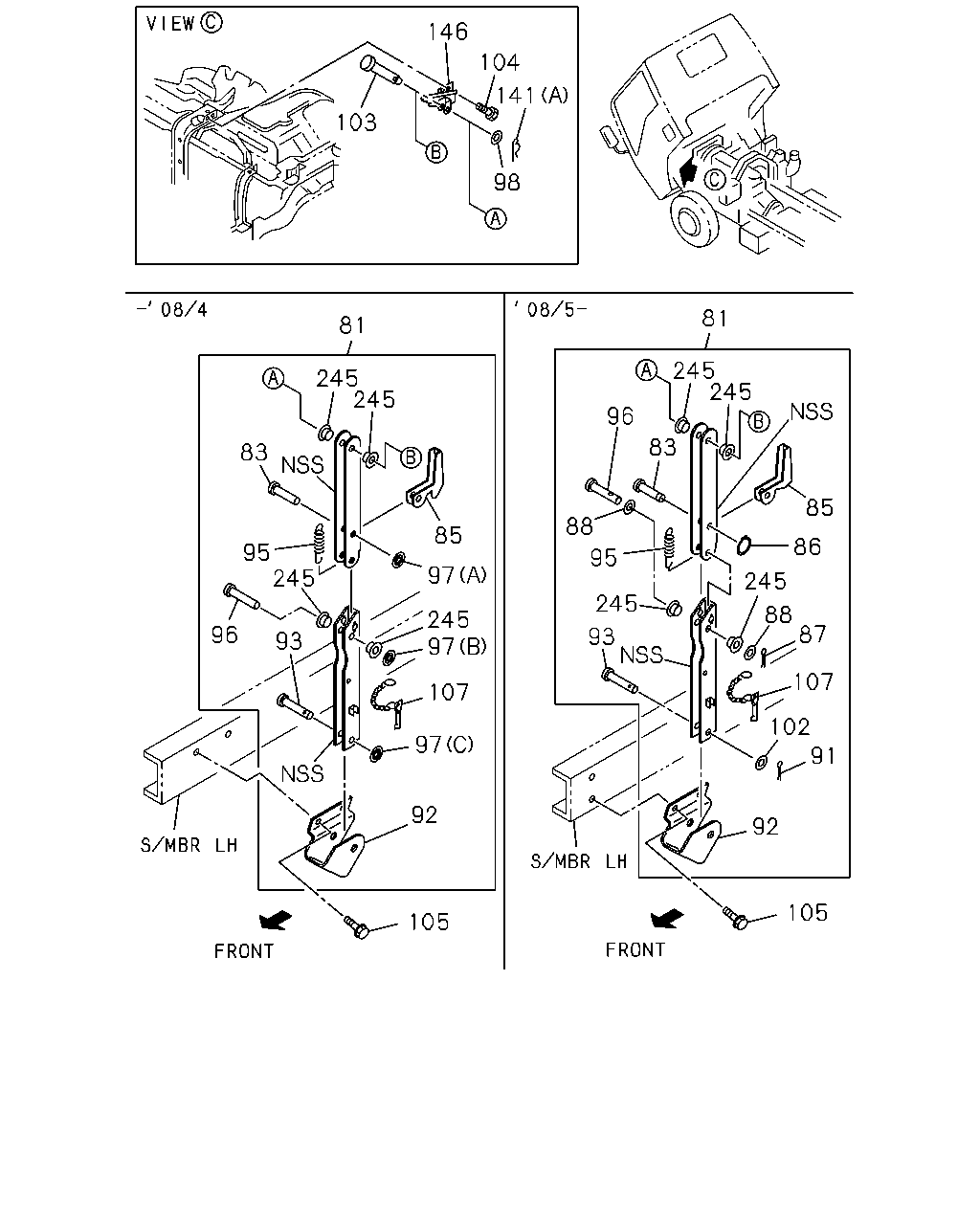

146 104 141 103 98 81 81 245 245 245 245 96 83 83 85 88 95 245 85 86 95 97 245 245 88 87 245 97 96 93 93 107 107 102 97 91 92 92 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ>	8-98123-310-0	01	1	0805-0810	●
81	STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ>	8-98123-310-0	01	1	0811-	●	●
81	STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ>	8-98006-488-3	01	1	0803-0804	●
83	PIN; JOINT,CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=8 L=32	8-97039-548-0	01	1	0803-0804	●
83	PIN; JOINT,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	0805-0810	●
83	PIN; JOINT,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	0811-	●	●
85	LEVER; LOCK,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	0803-0810	●
85	LEVER; LOCK,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	0811-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=6	0-91805-506-0	01	1	0805-0810	●
86	RING; SNAP,LOCK LEVER,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=6	0-91805-506-0	01	1	0811-	●	●
87	PIN; SPLIT,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> OD=2.8 L=20	0-81123-020-0	01	1	0805-0810	●
87	PIN; SPLIT,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> OD=2.8 L=20	0-81123-020-0	01	1	0811-	●	●
88	WASHER; PL,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0805-0810	●
88	WASHER; PL,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0811-	●	●
91	PIN; SPLIT,CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=3.7 L=20	0-81124-020-0	01	1	0805-0810	●
91	PIN; SPLIT,CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=3.7 L=20	0-81124-020-0	01	1	0811-	●	●
92	BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-98011-317-0	01	1	0803-0810	●
92	BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-98011-317-0	01	1	0811-	●	●
93	PIN; CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=12 L=53	8-97218-926-0	01	1	0803-0804	●
93	PIN; CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	0805-0810	●
93	PIN; CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	0811-	●	●
95	SPRING; RETURN,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	0803-0810	●
95	SPRING; RETURN,CAB STAY FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	0811-	●	●
96	PIN; JOINT FRAME STRAIGHT TYPE<7KJ> OD=10 L=36	8-97096-661-0	01	1	0803-0804	●
96	PIN; JOINT FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	0805-0810	●
96	PIN; JOINT FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	0811-	●	●
97	NUT; CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0803-0804	●
97	NUT; CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0803-0804	●
97	NUT; CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0803-0804	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0803-0810	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0811-	●	●
102	WASHER; PL,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=26	0-91610-612-0	01	1	0805-0810	●
102	WASHER; PL,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=26	0-91610-612-0	01	1	0811-	●	●
103	PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	0803-0810	●
103	PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	0811-	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28660-820-0	03	1	0803-0810	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28660-820-0	03	1	0811-	●	●
105	BOLT; CAB STAY M10X35 FLANGE THA	0-28651-035-0	02	1	0803-0807	●
105	BOLT; CAB STAY M10X30 FLANGE THA	0-28651-030-0	02	1	0808-0810	●
105	BOLT; CAB STAY M10X30 FLANGE THA	0-28651-030-0	02	1	0811-	●	●
107	PIN; LK LEVER FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	0803-0810	●
107	PIN; LK LEVER FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0803-0810	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0803-0810	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0811-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	8-98062-280-0	01	1	0803-0807	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0808-0810	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0811-	●	●
146	BRACKET ASM; CAB STAY UPR	8-97387-328-2	01	1	0803-0810	●
146	BRACKET ASM; CAB STAY UPR	8-97387-328-2	01	1	0811-	●	●
245	BUSHING; CAB STAY FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	0803-0810	●
245	BUSHING; CAB STAY FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	0811-	●	●
