5-01 — FRAME AND OTHER PARTS (#74605) — 175 parça

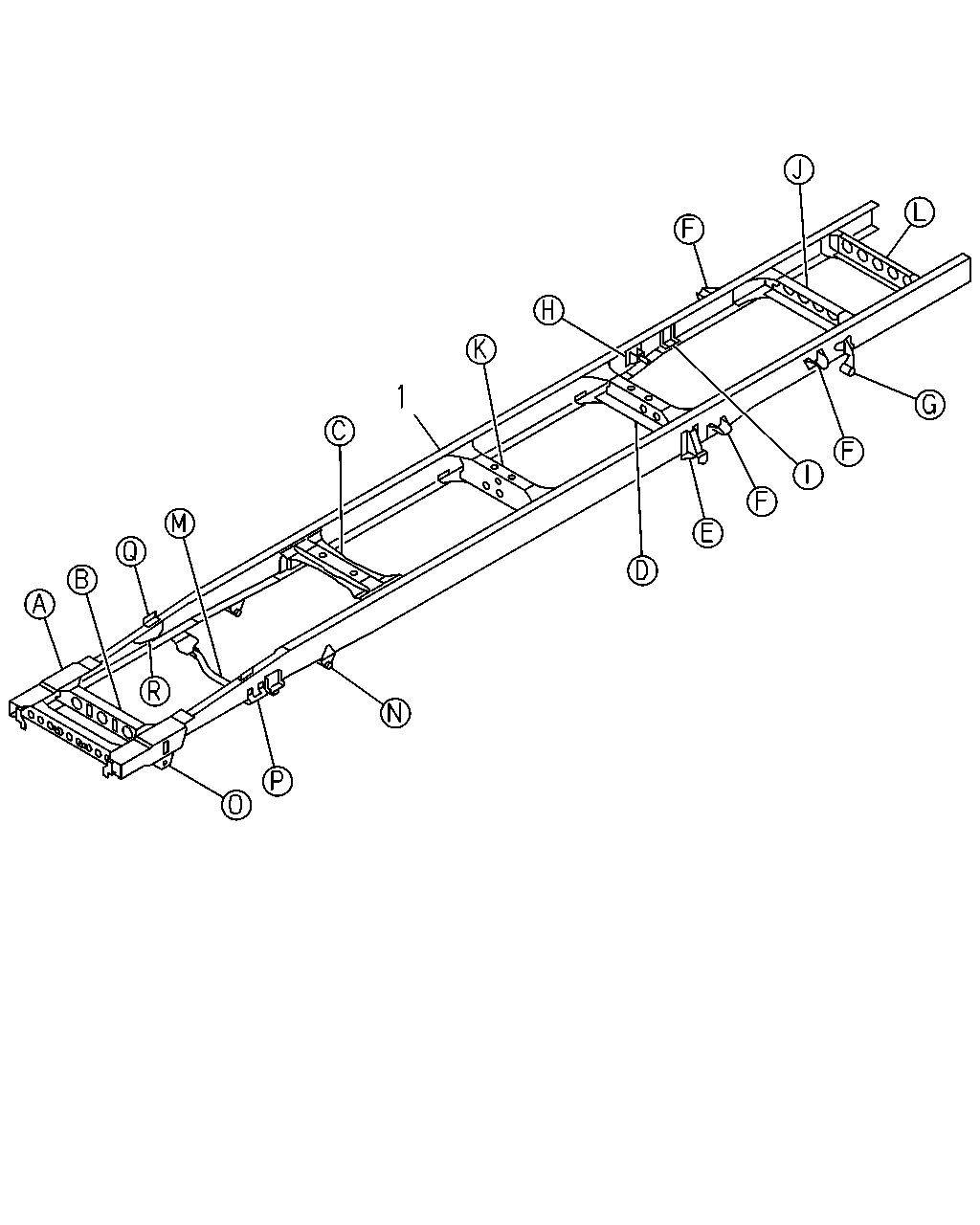

çizim 125164
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
WHEEL BASE 3400MM<34W> THA 		8-97924-589-3 01 1 0811- ●
1 FRAME ASM
WHEEL BASE 4100MM<41W> THA 		8-97924-590-4 01 1 0811- ●
1 FRAME ASM
WHEEL BASE 3400MM<34W> THA 		8-97924-308-5 01 1 0803- ●
1 FRAME ASM
WHEEL BASE 3800MM<38W> THA 		8-97924-309-5 01 1 0803- ●
çizim 125258
51 423 423 42 51 24 31 39 31 103 140 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1210- ● ●
24 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 0803-1209 ● ●
31 BUSHING; FRT SPR,RR
THA 		8-97184-699-1 04 1 1210- ● ●
31 BUSHING; FRT SPR,RR
THA 		8-97184-699-1 04 1 0803-1209 ● ●
39 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1210- ● ●
39 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 0803-1209 ● ●
42 MEMBER; CROSS,ENG MTG
THA 		8-97924-327-0 01 1 0803-0810 ●
42 MEMBER; CROSS,ENG MTG
THA 		8-97924-327-0 01 1 0811-1112 ● ●
42 MEMBER; CROSS,ENG MTG
THA 		8-97924-327-0 01 1 1209-1309 ● ●
51 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1210- ● ●
51 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 0803-1209 ● ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 1210- ● ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1210- ● ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 0803-0810 ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 0811-1209 ● ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0803-0810 ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0811-1209 ● ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1210- ● ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 1210- ● ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 0803-0810 ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 0811-1209 ● ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-0 02 1 0803-0810 ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 0811-1209 ● ●
141 STIFFENER 8-98064-354-2 01 1 0803- ● ●
141 STIFFENER 8-98064-355-2 01 1 0803- ● ●
423 PATCH
THA 		8-97924-496-0 02 1 1310- ● ●
423 PATCH
THA 		8-97924-496-0 02 1 0803-1309 ● ●
çizim 125290
140 217 198 139 198 74 201 344 130 74 201
BalonParca AdiParca NoAdetTipApplied Date A B
74 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER THA 		8-97924-484-0 02 1 1310- ● ●
74 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER THA 		8-97924-485-0 02 1 1310- ● ●
74 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER THA 		8-97924-485-0 02 1 0803-1309 ● ●
74 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER THA 		8-97924-484-0 02 1 0803-1309 ● ●
130 MEMBER; CROSS,END
(A) THA 		8-97924-337-0 01 1 1310- ●
130 MEMBER; CROSS,END
WHEEL BASE 3400MM<34W> (A) THA 		8-97924-337-0 01 1 1310- ●
130 MEMBER; CROSS,END
(A) THA 		8-97924-337-0 01 1 0803-1309 ●
130 MEMBER; CROSS,END
WHEEL BASE 3400MM<34W> (A) THA 		8-97924-337-0 01 1 0803-1309 ●
130 MEMBER; CROSS,END
WHEEL BASE 4100MM<41W> (B) THA 		8-97913-618-0 01 1 0811- ●
139 MEMBER; CROSS,6TH
THA 		8-97924-335-0 01 1 1311- ● ●
139 MEMBER; CROSS,6TH
THA 		8-97924-335-0 01 1 0803-1309 ● ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1210- ● ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 1210- ● ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 0803-0810 ●
140 BRACKET; S/ABS,RR
(B) THA 		8-97302-511-0 02 1 0811-1209 ● ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-0 02 1 0803-0810 ●
140 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 0811-1209 ● ●
198 GUSSET; 6TH C/MBR
THA 		8-97924-336-0 02 1 1201- ● ●
198 GUSSET; 6TH C/MBR
THA 		8-97924-336-0 02 1 0803-0810 ●
198 GUSSET; 6TH C/MBR
THA 		8-97924-336-0 02 1 0811-1112 ● ●
201 GUSSET; C/MBR
THA 		8-97924-338-0 02 1 1310- ●
201 GUSSET; C/MBR
WHEEL BASE 3400MM<34W> THA 		8-97924-338-0 02 1 1310- ●
201 GUSSET; C/MBR
THA 		8-97924-338-0 02 1 0803-1309 ●
201 GUSSET; C/MBR
WHEEL BASE 3400MM<34W> THA 		8-97924-338-0 02 1 0803-1309 ●
217 BRACKET; HELPER RUBBER,RR SPRING
THA 		8-97202-417-0 02 1 1210- ● ●
217 BRACKET; HELPER RUBBER,RR SPRING
THA 		8-97202-417-0 02 1 0803-0810 ●
217 BRACKET; HELPER RUBBER,RR SPRING
THA 		8-97202-417-0 02 1 0811-1209 ● ●
344 MEMBER; CROSS,4TH
THA 		8-97924-330-0 01 1 1310- ● ●
344 MEMBER; CROSS,4TH
THA 		8-97924-330-0 01 1 0803-1309 ● ●
çizim 125585
376 376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 316 296 118 222 67 317
BalonParca AdiParca NoAdetTipApplied Date A B
67 NUT; C/MBR
M10 FLANGE THA 		0-91180-210-0 18 1 1201- ●
67 NUT; C/MBR
M10 FLANGE THA 		0-91180-210-0 18 1 0803-1112 ●
67 NUT; C/MBR
M10 FLANGE THA 		0-91180-210-0 17 1 0811-1309 ●
67 NUT; C/MBR
M10 FLANGE THA 		0-91180-210-0 17 1 1311- ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 1210- ● ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0803-0810 ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0811-1209 ● ●
176 BOLT; C/MBR,ENG MTG
(A) M10X30 FLANGE THA 		0-28051-030-0 08 1 1210- ● ●
176 BOLT; C/MBR,ENG MTG
(A) M10X30 FLANGE THA 		0-28051-030-0 08 1 0803-0810 ●
176 BOLT; C/MBR,ENG MTG
(B) M10X35 FLANGE THA 		0-28651-035-0 08 1 0803-0902 ●
176 BOLT; C/MBR,ENG MTG
(A) M10X30 FLANGE THA 		0-28051-030-0 08 1 0811-1209 ● ●
221 BOLT; RAD MTG BRKT,FRAME
M8X25 FLANGE THA 		0-28650-825-0 02 1 1210- ● ●
221 BOLT; RAD MTG BRKT,FRAME
M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
221 BOLT; RAD MTG BRKT,FRAME
M8X25 FLANGE THA 		0-28650-825-0 02 1 0811-1209 ● ●
222 NUT; RAD MTG BRKT,FRAME
M8 FLANGE THA 		0-91180-208-0 02 1 1210- ● ●
222 NUT; RAD MTG BRKT,FRAME
M8 FLANGE THA 		0-91180-208-0 02 1 0803-0810 ●
222 NUT; RAD MTG BRKT,FRAME
M8 FLANGE THA 		0-91180-208-0 02 1 0811-1209 ● ●
296 BOLT; 3RD C/MBR
M10X30 FLANGE THA 		0-28651-030-0 16 1 1210- ● ●
296 BOLT; 3RD C/MBR
M10X30 FLANGE THA 		0-28651-030-0 16 1 0803-0810 ●
296 BOLT; 3RD C/MBR
M10X30 FLANGE THA 		0-28651-030-0 16 1 0811-1209 ● ●
316 BOLT; STIFFENER
M12X35 W/LK WASHER 		0-50541-235-0 16 1 1210- ● ●
316 BOLT; STIFFENER
M12X35 W/LK WASHER 		0-50541-235-0 16 1 0803-0810 ●
316 BOLT; STIFFENER
M12X35 W/LK WASHER 		0-50541-235-0 16 1 0811-1209 ● ●
317 NUT; STIFFENER
M12 FLANGE THA 		0-91180-212-0 16 1 1210- ● ●
317 NUT; STIFFENER
M12 FLANGE THA 		0-91180-212-0 16 1 0803-0810 ●
317 NUT; STIFFENER
M12 FLANGE THA 		0-91180-212-0 16 1 0811-1209 ● ●
376 RIVET; FRAME
(A) D8X24 TAPER END 		9-06750-824-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(A) D8X24 TAPER END 		9-06750-824-0 AR 1 0811- ● ●
376 RIVET; FRAME
(B) D8X26 TAPER END 		9-06750-826-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(B) D8X26 TAPER END 		9-06750-826-0 AR 1 0811- ● ●
376 RIVET; FRAME
(C) D10X22 TAPER END 		9-06751-022-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(C) D10X22 TAPER END 		9-06751-022-0 AR 1 0811- ● ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0811- ● ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0811- ● ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0811- ● ●
376 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 0811- ● ●
376 RIVET; FRAME
(H) D10X36 TAPER END 		9-06751-036-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(H) D10X36 TAPER END 		9-06751-036-0 AR 1 0811- ● ●
376 RIVET; FRAME
(I) D11X26 TAPER END 		9-06751-126-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(I) D11X26 TAPER END 		9-06751-126-0 AR 1 0811- ● ●
376 RIVET; FRAME
(J) D11X30 TAPER END 		9-06751-130-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(J) D11X30 TAPER END 		9-06751-130-0 AR 1 0811- ● ●
376 RIVET; FRAME
(K) D12X30 TAPER END 		9-06751-230-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(K) D12X30 TAPER END 		9-06751-230-0 AR 1 0811- ● ●
376 RIVET; FRAME
(L) D12X36 TAPER END 		9-06751-236-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(L) D12X36 TAPER END 		9-06751-236-0 AR 1 0811- ● ●
376 RIVET; FRAME
(M) D12X40 TAPER END 		9-06751-240-0 AR 1 0803-0810 ●
376 RIVET; FRAME
(M) D12X40 TAPER END 		9-06751-240-0 AR 1 0811- ● ●

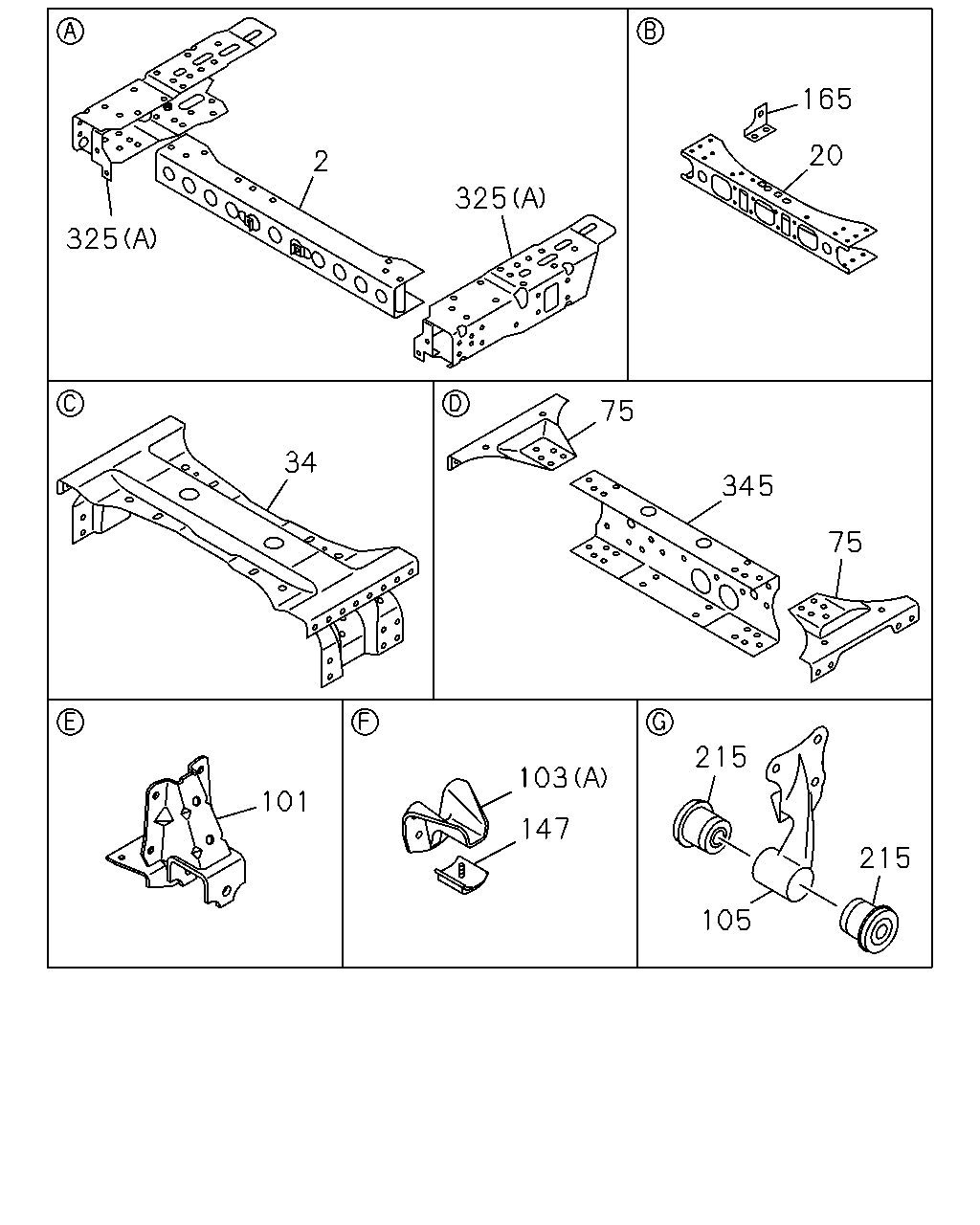

çizim 125715
165 20 2 325 325 75 34 345 75 215 103 101 147 215 105
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST
THA 		8-97925-349-0 01 1 1201- ● ●
2 MEMBER; CROSS,1ST
THA 		8-97925-349-0 01 1 0803-1112 ● ●
20 MEMBER; CROSS,2ND
THA 		8-97925-350-0 01 1 1201- ● ●
20 MEMBER; CROSS,2ND
THA 		8-97925-350-0 01 1 0803-1112 ● ●
34 MEMBER; CROSS,3RD
THA 		8-98072-038-1 01 1 0811- ●
34 MEMBER; CROSS,3RD
THA 		8-98074-639-4 01 1 0803- ●
75 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 0803-0810 ●
75 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 0811- ● ●
75 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 0803-0810 ●
75 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 0811- ● ●
101 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 1210- ● ●
101 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0803-0810 ●
101 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0811-1209 ● ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 1210- ● ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1210- ● ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 0803-0810 ●
103 STOPPER; SUB SPR
(B) 		8-97079-659-1 02 1 0811-1209 ● ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0803-0810 ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0811-1209 ● ●
105 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1210- ● ●
105 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1210- ● ●
105 BRACKET; RR SPR,RR 8-98032-488-0 01 1 0803-0810 ●
105 BRACKET; RR SPR,RR 8-98032-488-0 01 1 0811-1209 ● ●
105 BRACKET; RR SPR,RR 8-98032-489-0 01 1 0803-0810 ●
105 BRACKET; RR SPR,RR 8-98032-489-0 01 1 0811-1209 ● ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 1210- ● ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 0803-0810 ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 0811-1209 ● ●
165 BRACKET; RAD STAY 8-98000-886-0 01 1 1210- ● ●
165 BRACKET; RAD STAY 8-98000-886-0 01 1 0803-0810 ●
165 BRACKET; RAD STAY 8-98000-886-0 01 1 0811-1209 ● ●
215 BUSHING; BRKT,RR SPRING
THA 		8-97184-699-1 04 1 1310- ● ●
215 BUSHING; BRKT,RR SPRING
THA 		8-97184-699-1 04 1 0803-0810 ●
215 BUSHING; BRKT,RR SPRING
THA 		8-97184-699-1 04 1 0811-1209 ● ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1210- ● ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1210- ● ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 0803-0810 ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 0811-1209 ● ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 0803-0810 ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 0811-1209 ● ●
325 EXTENSION; FRAME
WHEEL BASE 4100MM<41W> (B) THA 		8-97912-457-3 01 1 0811- ●
325 EXTENSION; FRAME
WHEEL BASE 4100MM<41W> (B) THA 		8-97912-458-1 01 1 0811- ●
345 MEMBER; CROSS,5TH
THA 		8-97924-330-0 01 1 1310- ● ●
345 MEMBER; CROSS,5TH
THA 		8-97924-330-0 01 1 0803-1309 ● ●
çizim 185642
201 131 325 130 201 132 325
BalonParca AdiParca NoAdetTipApplied Date A B
130 MEMBER; CROSS,END
(A) THA 		8-97924-337-0 01 1 1310- ●
130 MEMBER; CROSS,END
WHEEL BASE 3400MM<34W> (A) THA 		8-97924-337-0 01 1 1310- ●
130 MEMBER; CROSS,END
(A) THA 		8-97924-337-0 01 1 0803-1309 ●
130 MEMBER; CROSS,END
WHEEL BASE 3400MM<34W> (A) THA 		8-97924-337-0 01 1 0803-1309 ●
130 MEMBER; CROSS,END
WHEEL BASE 4100MM<41W> (B) THA 		8-97913-618-0 01 1 0811- ●
131 BOLT; END C/MBR
WHEEL BASE 4100MM<41W> M10X25 FLANGE THA 		0-28661-025-0 08 1 0811- ●
132 NUT; END C/MBR
WHEEL BASE 4100MM<41W> M10 FLANGE THA 		0-91180-110-0 08 1 0811- ●
201 GUSSET; C/MBR
THA 		8-97924-338-0 02 1 1310- ●
201 GUSSET; C/MBR
WHEEL BASE 3400MM<34W> THA 		8-97924-338-0 02 1 1310- ●
201 GUSSET; C/MBR
THA 		8-97924-338-0 02 1 0803-1309 ●
201 GUSSET; C/MBR
WHEEL BASE 3400MM<34W> THA 		8-97924-338-0 02 1 0803-1309 ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1210- ● ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1210- ● ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 0803-0810 ●
325 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 0811-1209 ● ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 0803-0810 ●
325 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 0811-1209 ● ●
325 EXTENSION; FRAME
WHEEL BASE 4100MM<41W> (B) THA 		8-97912-457-3 01 1 0811- ●
325 EXTENSION; FRAME
WHEEL BASE 4100MM<41W> (B) THA 		8-97912-458-1 01 1 0811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
