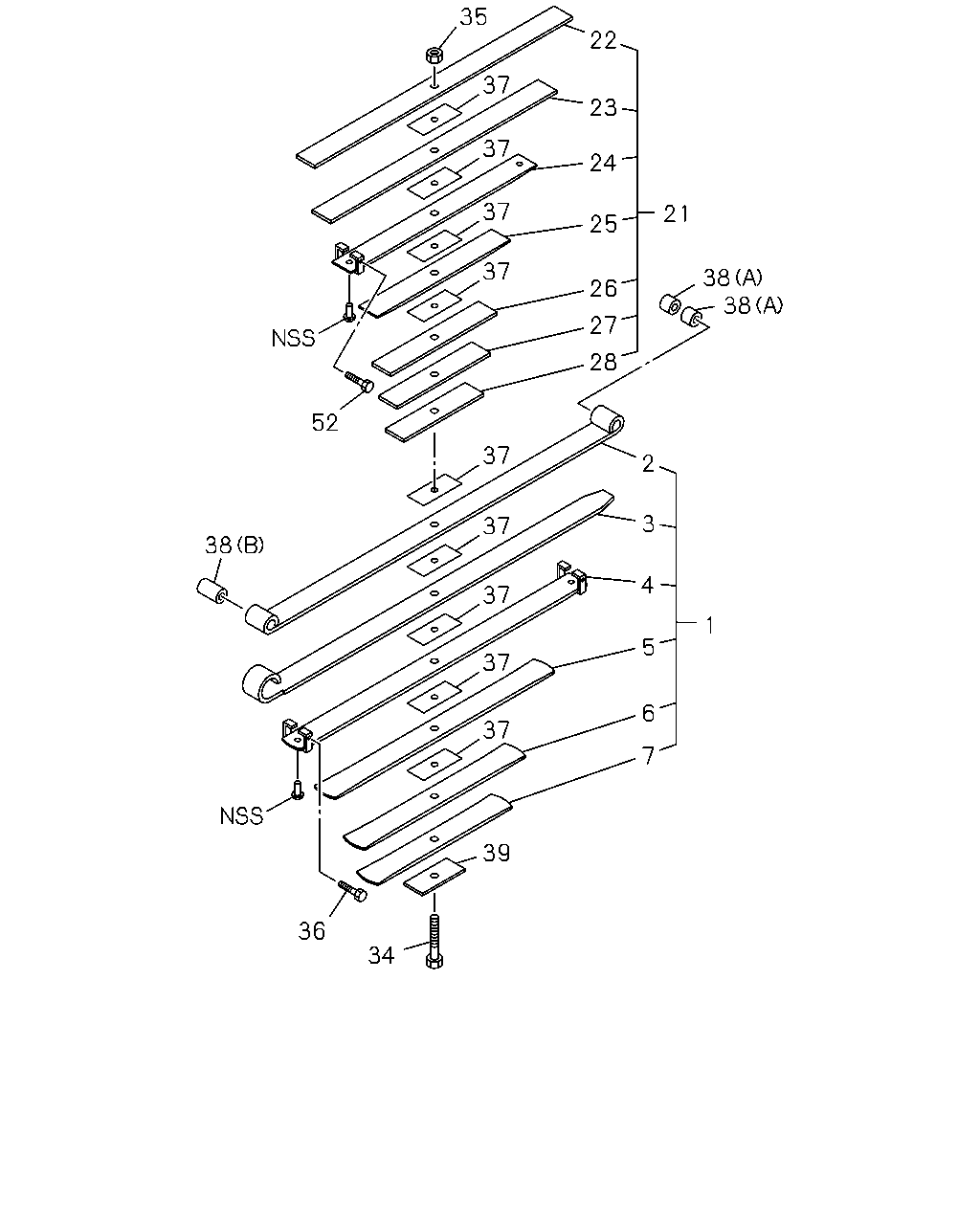

4-65 — REAR LEAF SPRING (#74603) — 39 parça

35 22 37 23 37 24 37 21 25 37 38 38 26 27 28 52 37 2 3 37 38 4 37 1 5 37 6 37 7 39 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN THA ASM PART: A = 8-97924-380-0	8-97924-552-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN THA ASM PART: B = 8-97924-798-0	8-97924-811-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97924-798-0	8-98094-353-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97924-380-0	8-98094-384-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97924-380-0	8-97924-437-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97924-798-0	8-97924-813-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97924-798-0	8-98094-355-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97924-380-0	8-98094-386-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97924-798-0	8-98094-356-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97924-380-0	8-98094-387-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: B = 8-97924-798-0	8-98094-357-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: A = 8-97924-380-0	8-98094-388-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN THA ASM PART: B = 8-97924-798-0	8-98094-358-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN THA ASM PART: A = 8-97924-380-0	8-98094-389-0	01	1	-
21	SPRING ASM; LEAF,RR SUB THA ASM PART: A = 8-97924-380-0	8-97924-553-0	01	1	-
21	SPRING ASM; LEAF,RR SUB THA ASM PART: B = 8-97924-798-0	8-97924-812-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-360-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-391-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-361-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-392-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-362-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-393-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB THA ASM PART: A = 8-97924-380-0	8-97924-438-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB THA ASM PART: B = 8-97924-798-0	8-97924-814-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-364-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-395-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-365-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-396-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB THA ASM PART: B = 8-97924-798-0	8-98094-366-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB THA ASM PART: A = 8-97924-380-0	8-98094-397-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-98040-310-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-98040-332-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-97084-102-0	09	1	-
38	BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=40 L=43.7 ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-97074-826-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=8, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-98040-779-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M8X89, THA ASM PART: A = 8-97924-380-0, B = 8-97924-798-0	8-98040-332-0	01	1	-
