Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

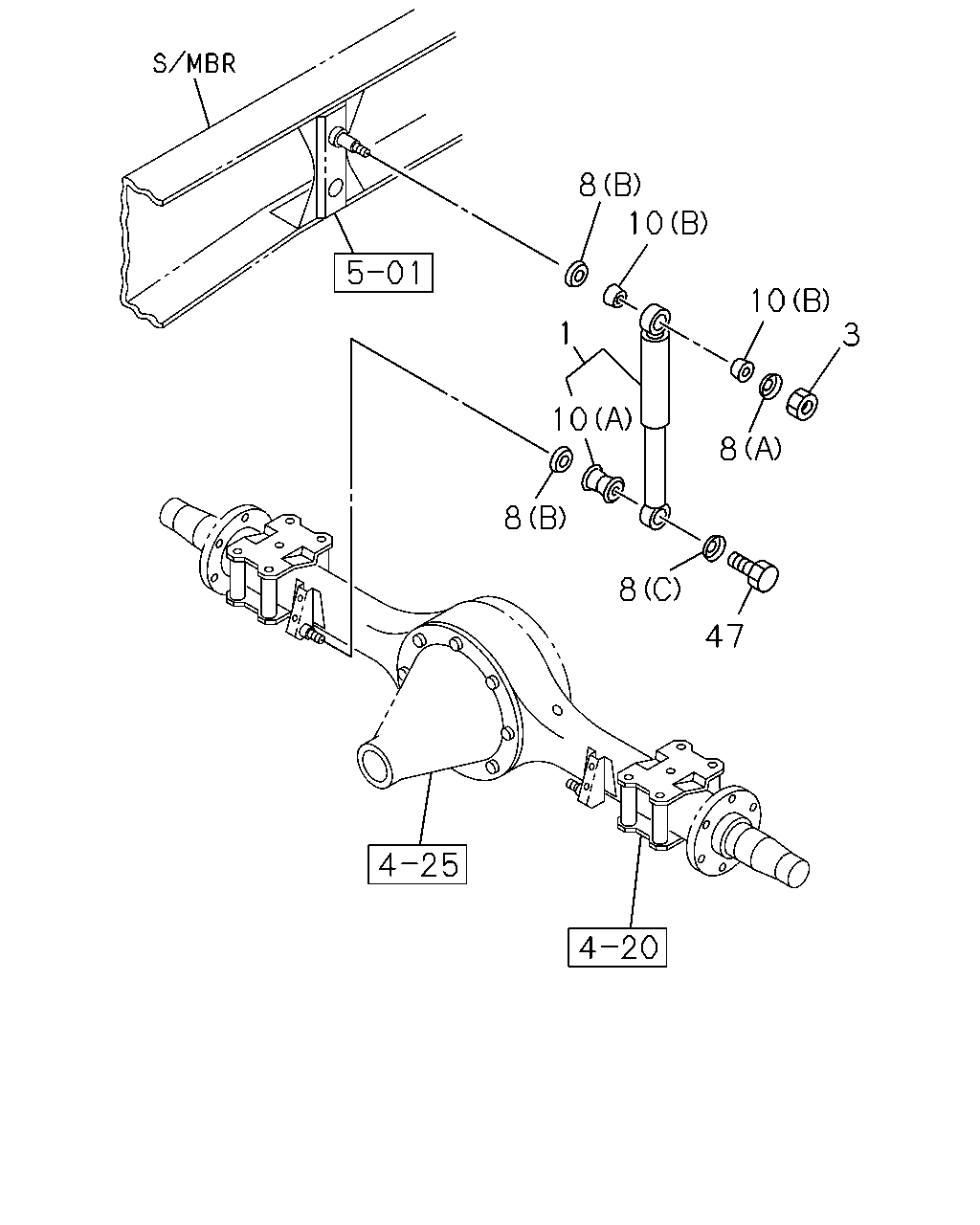

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#74602) — 18 parça
Tümü
A - NPR5SN
B - NPR5SS
8
10
10
3
1
10
8
8
8
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ABSORBER ASM; SHOCK,RR
THA
8-97924-230-0
01
1
0803-0810
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97924-230-0
01
1
0803-0810
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97924-230-0
02
1
0811-
●
●
1
ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS THA
5-87610-133-0
02
1
1209-
●
●
3
NUT; S/ABS
M14 THA
0-91110-514-0
02
1
0803-0810
●
3
NUT; S/ABS
M14 THA
0-91110-514-0
02
1
0811-
●
●
8
WASHER; S/ABS
(A) ID=15
8-97360-056-0
02
1
0803-0810
●
8
WASHER; S/ABS
(A) ID=15
8-97360-056-0
02
1
0811-
●
●
8
WASHER; S/ABS
(B) ID=20.0
8-97360-057-0
04
1
0803-0810
●
8
WASHER; S/ABS
(B) ID=20.0
8-97360-057-0
04
1
0811-
●
●
8
WASHER; S/ABS
(C) ID=10.5
8-97360-058-0
02
1
0803-0810
●
8
WASHER; S/ABS
(C) ID=10.5
8-97360-058-0
02
1
0811-
●
●
10
BUSHING; RUBBER,S/ABS
(A) TOKICO THA
8-94382-149-0
02
1
0803-0810
●
10
BUSHING; RUBBER,S/ABS
(A) TOKICO THA
8-94382-149-0
02
1
0811-
●
●
10
BUSHING; RUBBER,S/ABS
(B) TOKICO THA
9-51631-014-0
04
1
0803-0810
●
10
BUSHING; RUBBER,S/ABS
(B) TOKICO THA
9-51631-014-0
04
1
0811-
●
●
47
PIN; S/ABS SETTING
M10X20 FLANGE THA
0-28651-020-0
02
1
0803-0810
●
47
PIN; S/ABS SETTING
M10X20 FLANGE THA
0-28651-020-0
02
1
0811-
●
●
