Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#7460) — 274 parça

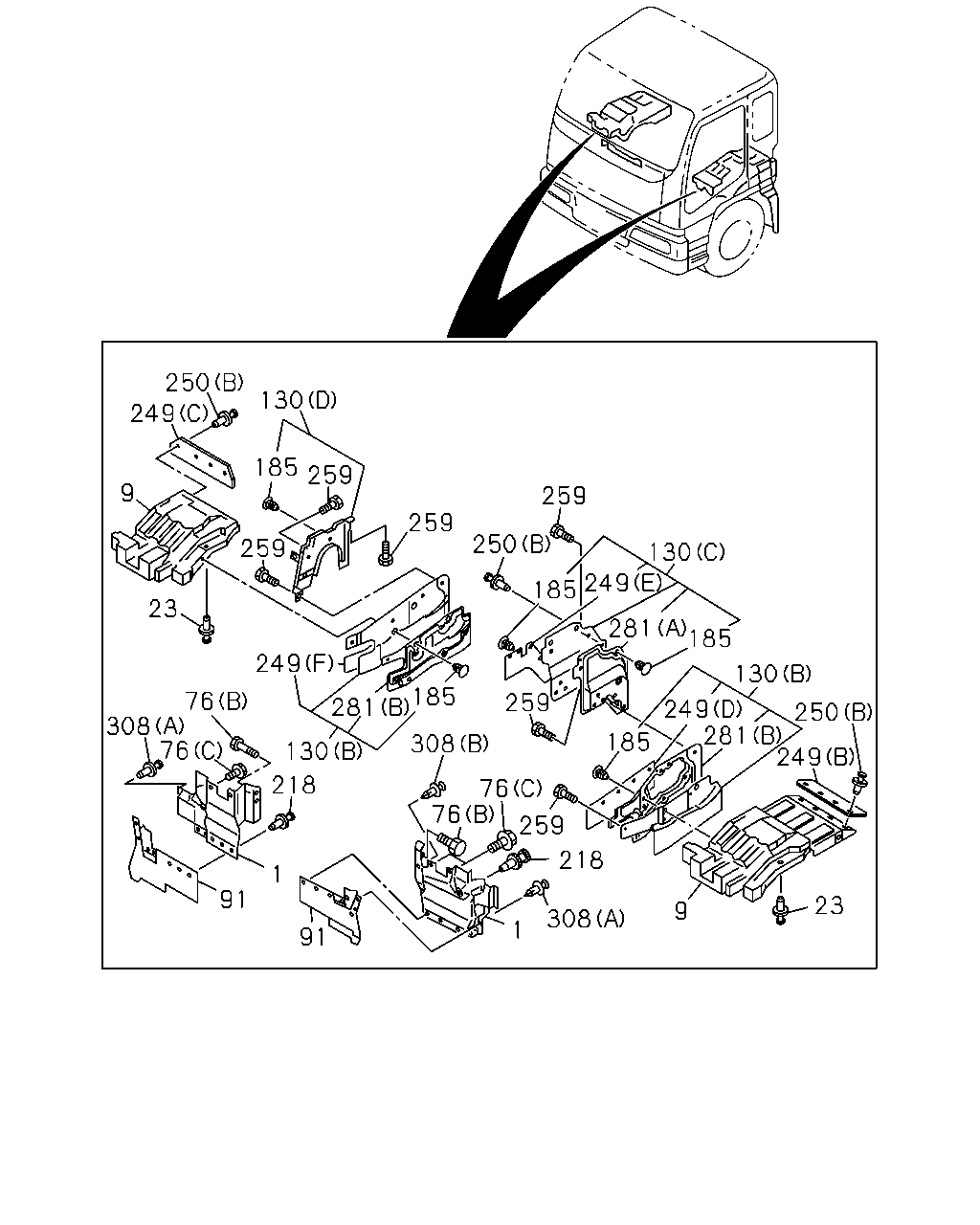

250 130 249 185 259 9 259 259 259 130 23 281 185 130 250 185 281 259 76 308 76 250 281 185 259 130 249 218 308 76 76 218 1 91 23 9 308 1 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9812-
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9812-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	9812-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	9812-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9812-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9812-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9812-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9812-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9812-9904
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9905-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9909-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9812-9904
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9905-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9909-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9812-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9812-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9905-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9905-
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9812-9904
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-329-1	01	1	9905-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9812-
130	PANEL; SHUTTER NOISE RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-685-0	01	1	9905-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	18	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	08	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9812-
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9812-
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9812-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9812-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9812-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9812-
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9812-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9812-
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9812-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9812-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9812-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9812-

225 250 105 99 134 243 80 267 175 175 281 104 74 103 249 99 134 105 175 225 94 265 183 253 73 76 250 103 185 80 137 227 267 175 250 104 253 76 73 185 245 74 94 94 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT M8X16 FLANGE	0-28280-816-0	08	1	9812-9901
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9812-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9812-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9812-
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	9812-
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9812-9901
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9812-9901
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9902-
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	9812-
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	9812-
103	BRACKET ASM; RR MUD FLAP	1-79931-347-1	01	1	9812-
103	BRACKET ASM; RR MUD FLAP	1-79931-307-1	01	1	9812-
104	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	9812-9903
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	08	1	9904-
105	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	9812-
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	9812-
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9812-
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	9812-
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	9812-
183	INSULATOR; HEAT,BED PAN	1-71907-539-2	01	1	9812-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	18	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	08	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9812-
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	9812-
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	9812-
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	9812-
245	RUBBER; SHUTTER,RAD	1-79937-949-0	01	1	9812-
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9812-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9812-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9812-
253	GUARD; MUD	1-79931-067-7	01	1	9812-
253	GUARD; MUD	1-79931-065-7	01	1	9812-
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	9812-9901
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	9812-9901
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	9902-
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	9812-
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9812-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9812-
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9812-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9812-

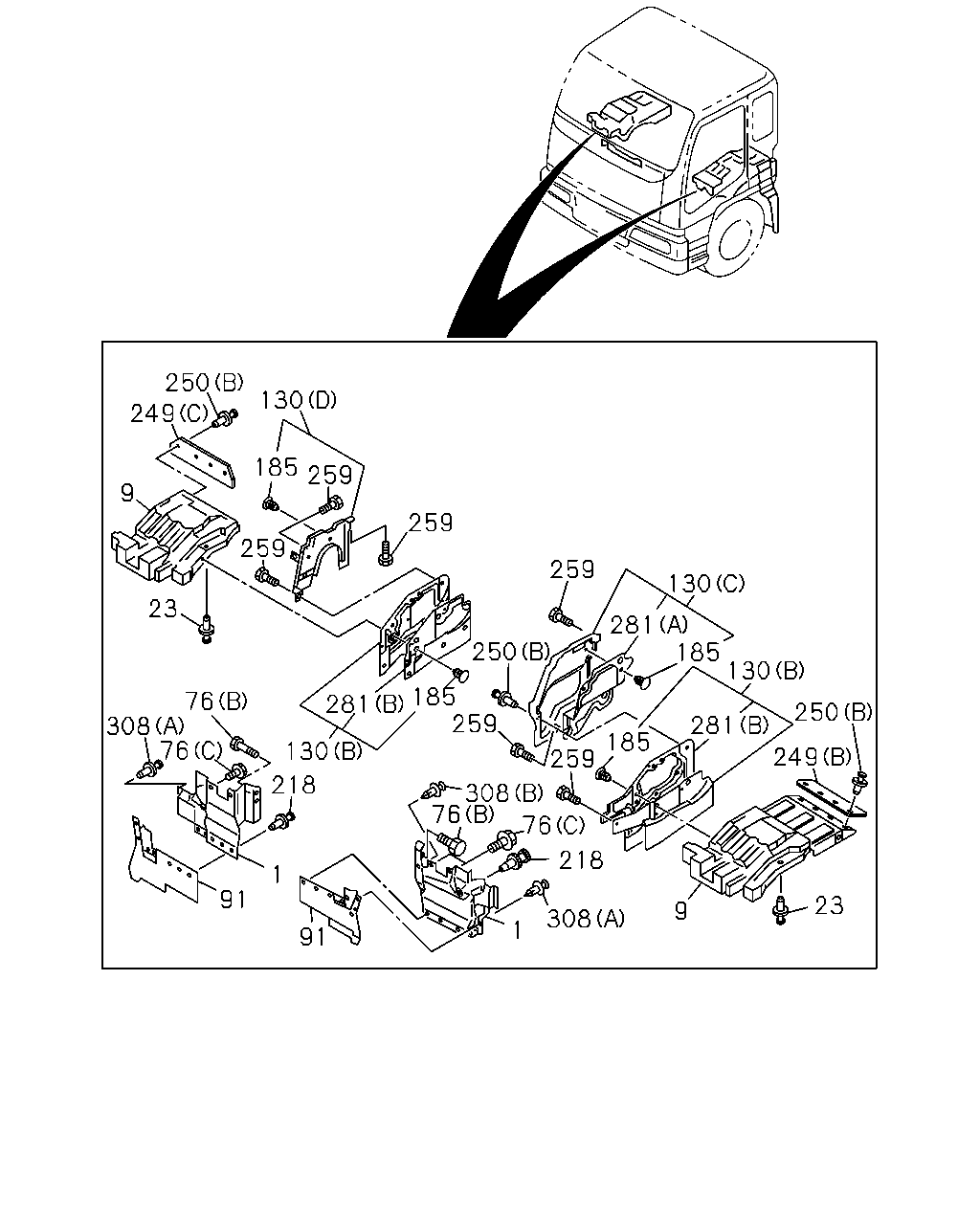

250 130 249 185 259 9 259 259 250 259 130 249 185 23 281 185 249 130 185 281 259 76 308 76 249 281 249 250 185 308 130 218 76 76 259 218 1 91 23 9 308 1 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9812-
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9812-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	9812-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	9812-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9812-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9812-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9812-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9812-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9812-9904
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9905-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9909-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9812-9904
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9905-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9909-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9812-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9812-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9905-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9905-
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9812-9904
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-329-1	01	1	9905-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9812-
130	PANEL; SHUTTER NOISE RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-685-0	01	1	9905-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	18	1	9812-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	08	1	9812-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9812-
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9812-
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9812-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9812-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9812-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9812-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9812-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9812-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9812-
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9812-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9812-
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9812-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9812-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9812-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9812-

140 140 131 130 131 73 73 73 163 74 162 73 251 130 162 163 251 74 131 135 131 133 135 133 114 73 73 73 73 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT M8X16 FLANGE	0-28280-816-0	08	1	9812-9901
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	9812-
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9902-9904
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9905-
114	BOLT RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	9905-
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9812-9904
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-329-1	01	1	9905-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9812-
130	PANEL; SHUTTER NOISE RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-685-0	01	1	9905-
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9812-
133	BOLT; FRAME M8X35 FLANGE	0-28680-835-0	04	1	9812-9904
133	BOLT; FRAME RADIATOR HEAVY DUTY<V05> M8X35 FLANGE	0-28680-835-0	02	1	9905-
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X35 FLANGE	0-28680-835-0	04	1	9905-
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	9812-9904
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	9905-
135	BRACKET; SIDE PANEL (A)	1-53441-509-0	01	1	9812-9901
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9902-0012
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-598-0	01	1	0101-
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9902-
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	01	1	9903-
140	BOLT; SIDE PANEL (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-
162	BRACKET	1-53441-520-0	02	1	9812-
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9812-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	9812-

140 140 131 163 74 73 130 73 73 73 131 251 131 162 162 131 74 251 163 135 133 135 133 73 73 73 131 73 114 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT M8X16 FLANGE	0-28280-816-0	08	1	9812-9901
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9812-9901
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9812-9901
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	9812-
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9902-9904
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9905-
114	BOLT RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	9905-
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9812-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9812-9904
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-329-1	01	1	9905-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9812-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9812-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9812-
130	PANEL; SHUTTER NOISE RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-685-0	01	1	9905-
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9812-
133	BOLT; FRAME M8X35 FLANGE	0-28680-835-0	04	1	9812-9904
133	BOLT; FRAME RADIATOR HEAVY DUTY<V05> M8X35 FLANGE	0-28680-835-0	02	1	9905-
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X35 FLANGE	0-28680-835-0	04	1	9905-
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	9812-9904
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	9905-
135	BRACKET; SIDE PANEL (A)	1-53441-509-0	01	1	9812-9901
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9902-0012
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-598-0	01	1	0101-
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9902-
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	01	1	9903-
140	BOLT; SIDE PANEL (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-
162	BRACKET	1-53441-520-0	02	1	9812-
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9812-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	9812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
