4-50 — FRONT SUSPENSION (#74599) — 96 parça

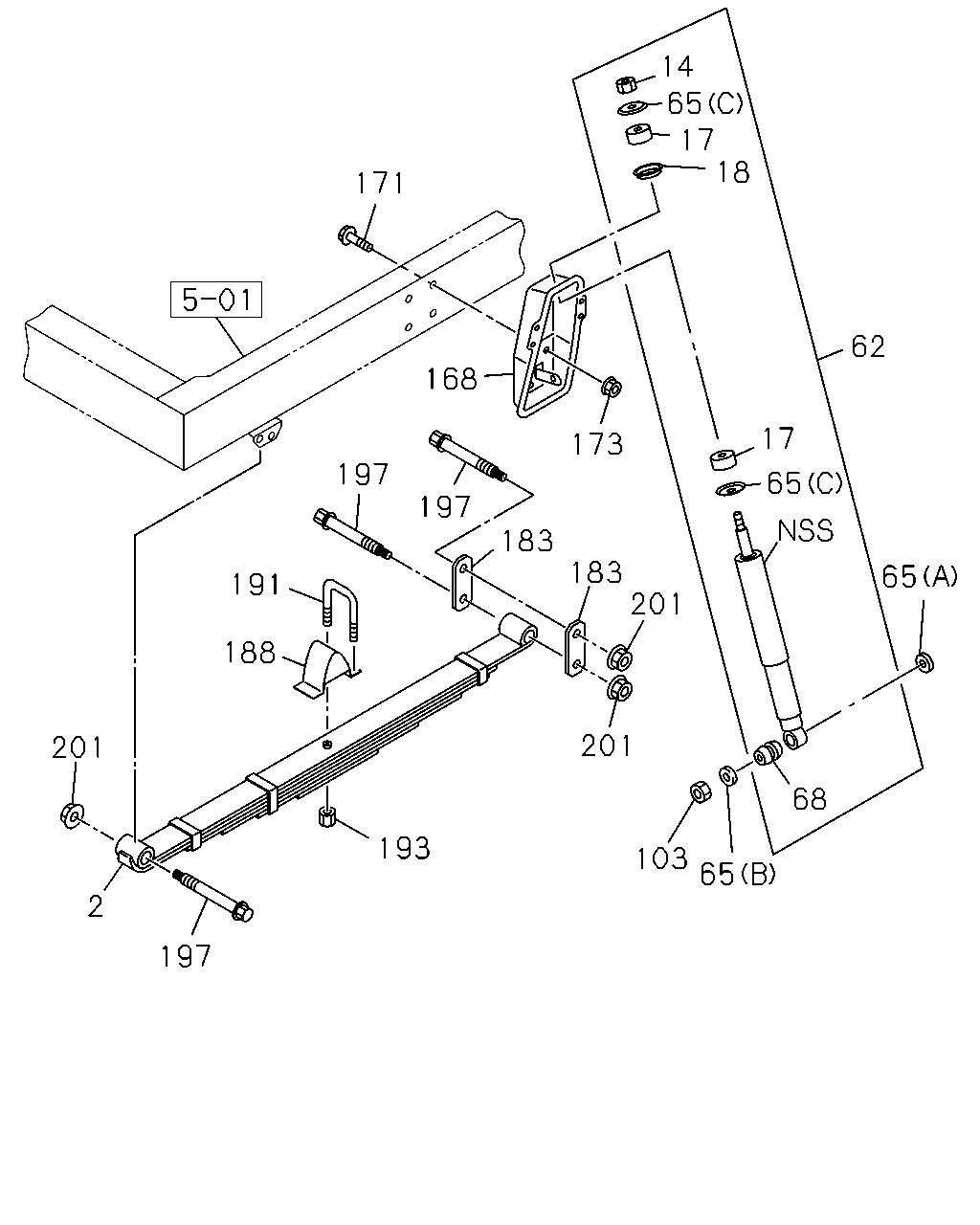

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 193 103 65 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98025-026-0	01	1	0811-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98025-027-0	01	1	0811-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98079-923-0	01	1	0803-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98079-924-0	01	1	0803-		●
14	NUT; S/ABS,UPR M10 T=8 THA	9-09640-020-0	02	1	0803-0810		●
14	NUT; S/ABS,UPR M10 T=8 THA	9-09640-020-0	02	1	0811-	●	●
17	BUSHING; RUBBER,S/ABS TOKICO THA	9-51631-603-0	04	1	0803-0810		●
17	BUSHING; RUBBER,S/ABS TOKICO THA	9-51631-603-0	04	1	0811-	●	●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-94412-791-0	02	1	0803-0810		●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-94412-791-0	02	1	0811-	●	●
62	ABSORBER ASM; SHOCK,FRT	8-98079-867-1	02	1	0811-	●
62	ABSORBER ASM; SHOCK,FRT THA	8-97924-227-0	01	1	0803-		●
62	ABSORBER ASM; SHOCK,FRT THA	8-97924-227-0	01	1	0803-		●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS THA	5-87610-153-0	02	1	1209-		●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0803-0810		●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0811-	●	●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0803-0810		●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0811-	●	●
65	WASHER; S/ABS (C) OD=40 THA	9-51631-614-0	04	1	0803-0810		●
65	WASHER; S/ABS (C) OD=40 THA	9-51631-614-0	04	1	0811-	●	●
68	BUSHING; S/ABS TOKICO THA	8-94382-149-0	02	1	0803-0810		●
68	BUSHING; S/ABS TOKICO THA	8-94382-149-0	02	1	0811-	●	●
103	NUT; S/ABS TO LWR LINK M14 THA	0-91110-514-0	02	1	0803-0810		●
103	NUT; S/ABS TO LWR LINK M14 THA	0-91110-514-0	02	1	0811-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0803-0810		●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0811-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0803-0810		●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0811-	●	●
171	BOLT; S/ABS BRKT M12X35 FLANGE THA	0-28651-235-0	08	1	0803-0810		●
171	BOLT; S/ABS BRKT M12X35 FLANGE THA	0-28651-235-0	08	1	0811-	●	●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0803-0810		●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0811-	●	●
183	SHACKLE; FRT SUSP THA	8-94110-399-3	04	1	0803-0810		●
183	SHACKLE; FRT SUSP THA	8-94110-399-3	04	1	0811-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRAME STRAIGHT TYPE<7KJ> THA	8-97925-249-0	02	1	0803-	●	●
191	U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=165 THA	8-97913-488-0	04	1	0811-	●
191	U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-		●
193	NUT; U BOLT FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	0811-	●
193	NUT; U BOLT FRAME STRAIGHT TYPE<7KJ> M14 FLANGE	8-97360-124-0	08	1	0803-		●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0803-0810		●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0811-	●	●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0803-0810		●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0811-	●	●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 THA	0-91110-516-0	06	1	0803-0810		●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 THA	0-91110-516-0	06	1	0811-	●	●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0803-0810		●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0811-	●	●

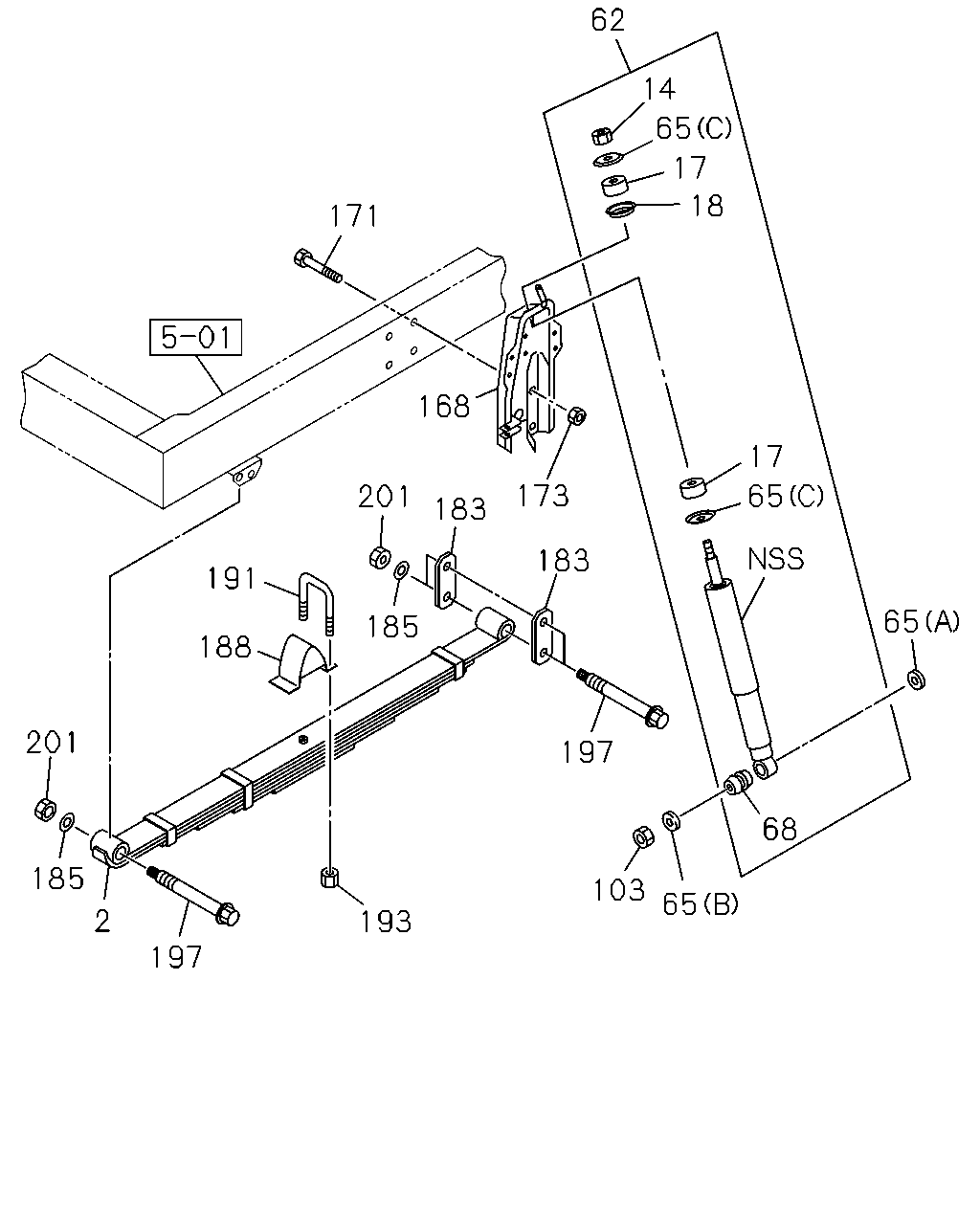

62 14 65 17 18 171 168 17 173 65 201 183 183 191 65 185 188 201 197 68 185 103 65 2 193 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98025-026-0	01	1	0811-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98025-027-0	01	1	0811-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98079-923-0	01	1	0803-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA	8-98079-924-0	01	1	0803-		●
14	NUT; S/ABS,UPR M10 T=8 THA	9-09640-020-0	02	1	0803-0810		●
14	NUT; S/ABS,UPR M10 T=8 THA	9-09640-020-0	02	1	0811-	●	●
17	BUSHING; RUBBER,S/ABS TOKICO THA	9-51631-603-0	04	1	0803-0810		●
17	BUSHING; RUBBER,S/ABS TOKICO THA	9-51631-603-0	04	1	0811-	●	●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-94412-791-0	02	1	0803-0810		●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-94412-791-0	02	1	0811-	●	●
62	ABSORBER ASM; SHOCK,FRT	8-98079-867-1	02	1	0811-	●
62	ABSORBER ASM; SHOCK,FRT THA	8-97924-227-0	01	1	0803-		●
62	ABSORBER ASM; SHOCK,FRT THA	8-97924-227-0	01	1	0803-		●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS THA	5-87610-153-0	02	1	1209-		●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0803-0810		●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0811-	●	●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0803-0810		●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0811-	●	●
65	WASHER; S/ABS (C) OD=40 THA	9-51631-614-0	04	1	0803-0810		●
65	WASHER; S/ABS (C) OD=40 THA	9-51631-614-0	04	1	0811-	●	●
68	BUSHING; S/ABS TOKICO THA	8-94382-149-0	02	1	0803-0810		●
68	BUSHING; S/ABS TOKICO THA	8-94382-149-0	02	1	0811-	●	●
103	NUT; S/ABS TO LWR LINK M14 THA	0-91110-514-0	02	1	0803-0810		●
103	NUT; S/ABS TO LWR LINK M14 THA	0-91110-514-0	02	1	0811-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0803-0810		●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0811-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0803-0810		●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0811-	●	●
171	BOLT; S/ABS BRKT M12X35 FLANGE THA	0-28651-235-0	08	1	0803-0810		●
171	BOLT; S/ABS BRKT M12X35 FLANGE THA	0-28651-235-0	08	1	0811-	●	●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0803-0810		●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0811-	●	●
183	SHACKLE; FRT SUSP THA	8-94110-399-3	04	1	0803-0810		●
183	SHACKLE; FRT SUSP THA	8-94110-399-3	04	1	0811-	●	●
185	WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0803-0810		●
185	WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0811-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRAME STRAIGHT TYPE<7KJ> THA	8-97925-249-0	02	1	0803-	●	●
191	U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=165 THA	8-97913-488-0	04	1	0811-	●
191	U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-		●
193	NUT; U BOLT FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	0811-	●
193	NUT; U BOLT FRAME STRAIGHT TYPE<7KJ> M14 FLANGE	8-97360-124-0	08	1	0803-		●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0803-0810		●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0811-	●	●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0803-0810		●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0811-	●	●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 THA	0-91110-516-0	06	1	0803-0810		●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 THA	0-91110-516-0	06	1	0811-	●	●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0803-0810		●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
