4-36 — POWER STEERING CONTROL; ENGINE SIDE (#74596) — 10 parça

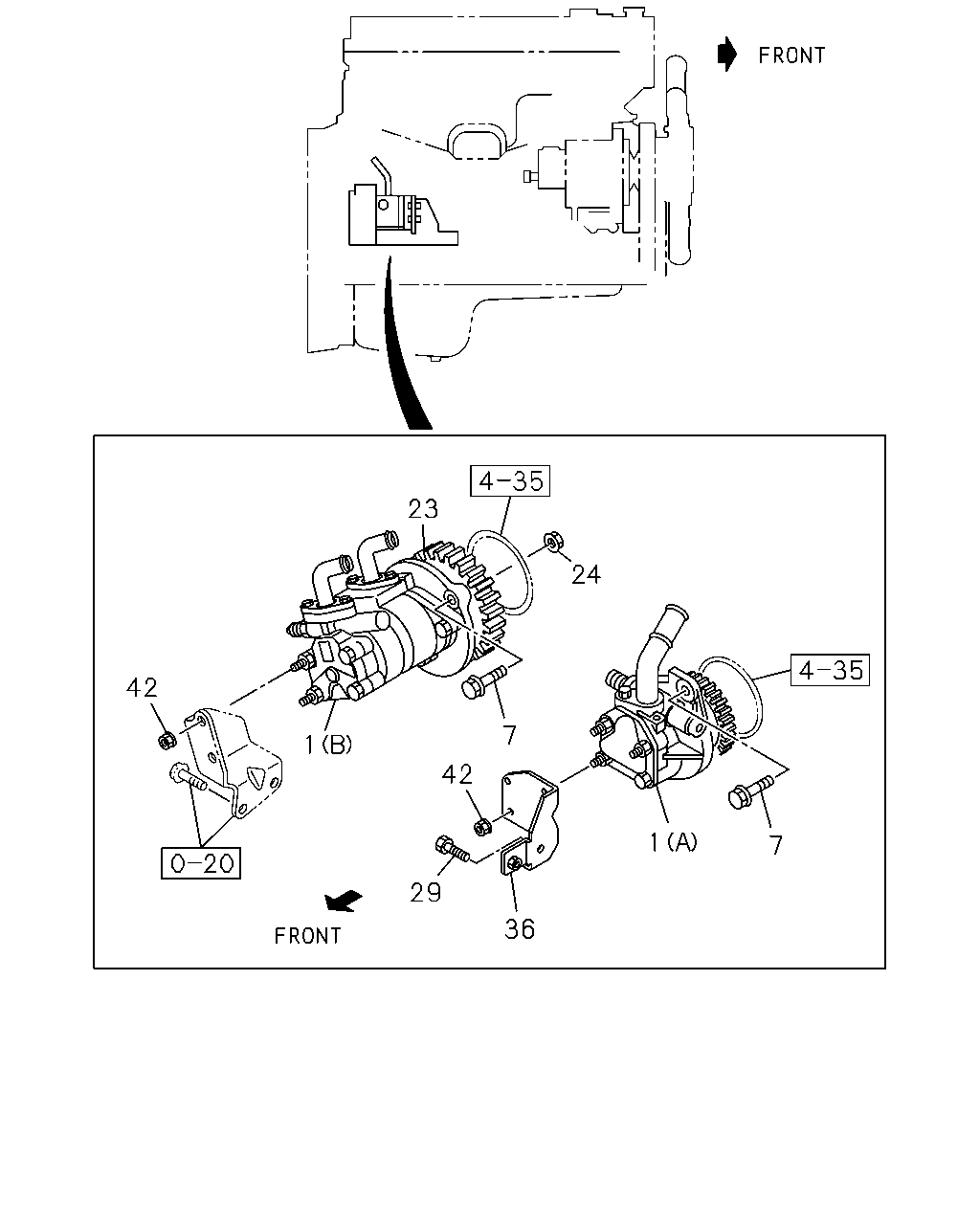

çizim 124289
23 24 42 7 1 42 1 7 29 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 0811- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-4 01 1 0803- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 0803-0810 ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 0811- ● ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0811- ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE THA 		0-91180-212-0 01 1 0811- ●
29 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 0803- ●
36 BRACKET; PLATE,P/S PUMP 8-98036-532-0 01 1 0803- ●
42 NUT; ADJ PLATE
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ●
42 NUT; ADJ PLATE
M8 FLANGE THA 		0-91180-108-0 02 1 0803- ●
