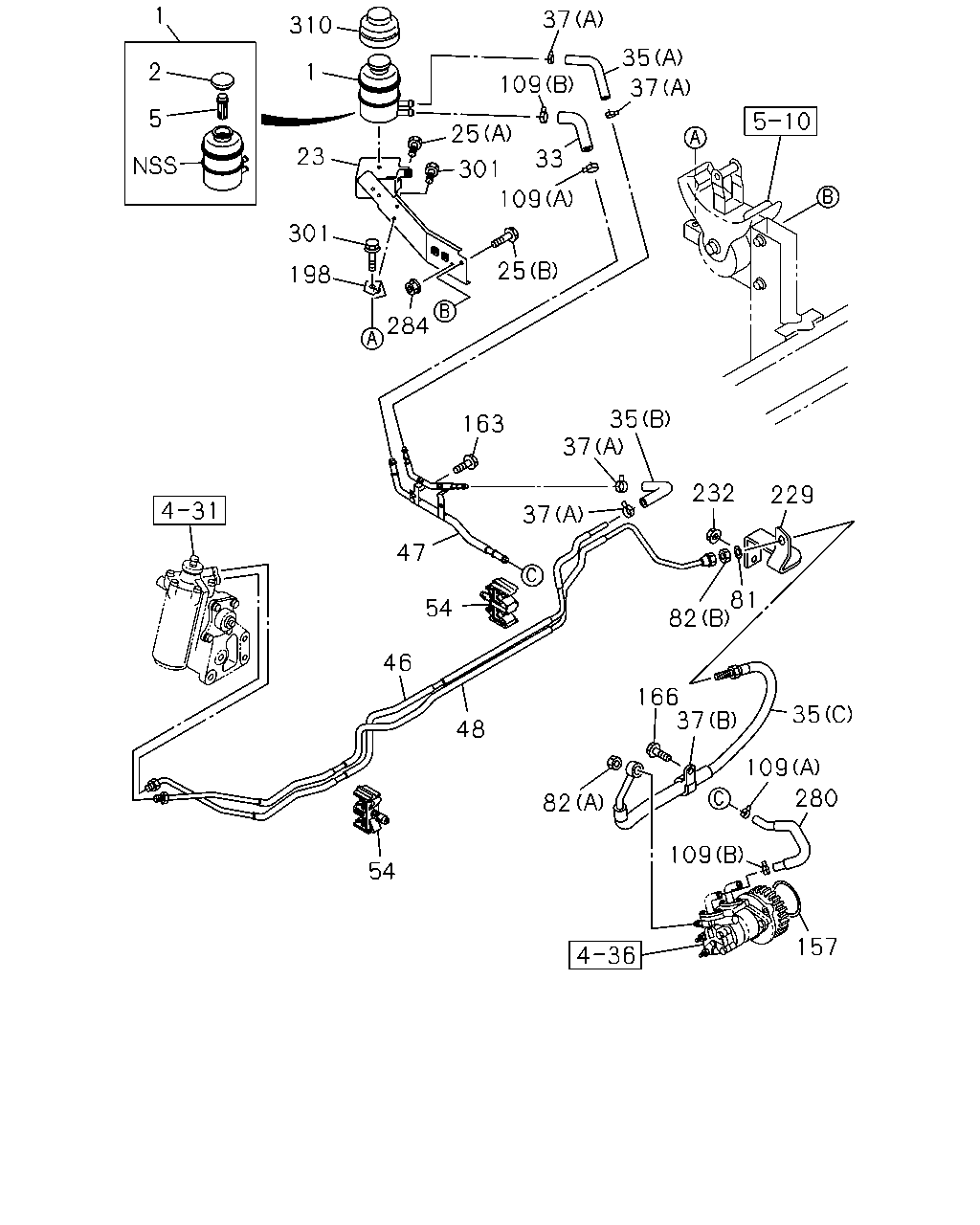

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#74595) — 68 parça

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 35 37 163 232 229 37 47 81 82 54 46 166 37 35 48 109 280 82 109 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-0810	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0811-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0803-0810	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0811-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-0810	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0811-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0803-0810	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0811-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-0810	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
33	HOSE; RUBBER,POWER STRG FRAME STRAIGHT TYPE<7KJ> THA	8-97389-811-0	01	1	0803-0810	●
33	HOSE; RUBBER,POWER STRG FRAME STRAIGHT TYPE<7KJ> THA	8-97389-811-0	01	1	0811-	●	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97389-832-2	01	1	0803-0810	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97389-832-2	01	1	0811-	●	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (A)	8-97389-842-1	01	1	0803-0810	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (A)	8-97389-842-1	01	1	0811-	●	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (B)	8-98000-701-1	01	1	0803-0810	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (B)	8-98000-701-1	01	1	0811-	●	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	0803-0810	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	0811-	●	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	04	1	0803-0810	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	04	1	0811-0911	●	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-98008-098-0	04	1	0912-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> THA	8-98041-184-3	01	1	0803-0810	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> THA	8-98041-184-3	01	1	0811-	●	●
47	PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98083-166-0	01	1	0803-0810	●
47	PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> THA	8-98083-166-1	01	1	0811-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> THA	8-98041-185-4	01	1	0803-0810	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> THA	8-98041-185-4	01	1	0811-	●	●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=37.5	8-97018-546-0	02	1	0803-0810	●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=37.5	8-97018-546-0	02	1	0811-	●	●
81	WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0803-0810	●
81	WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0811-	●	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	0803-0810	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	0811-	●	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) M12 SELF LOCK	8-97028-390-1	01	1	0803-0810	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) M12 SELF LOCK	8-97028-390-1	01	1	0811-	●	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21 THA	8-94242-034-0	03	1	0803-0810	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21 THA	8-94242-034-0	03	1	0811-0911	●	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-98150-355-0	03	1	0912-	●	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=22	8-94382-401-0	01	1	0803-0810	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=22	8-94382-401-0	01	1	0811-1003	●	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0803-0810	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0811-	●	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0807	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0808-0810	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
166	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
166	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0803-0810	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0811-	●	●
229	BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ>	8-98079-341-0	01	1	0803-0810	●
229	BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ>	8-98079-341-0	01	1	0811-	●	●
232	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
232	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ>	8-98082-972-0	01	1	0811-		●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	0803-	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0808-0810	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0810	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0803-0810	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0811-	●	●
