Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

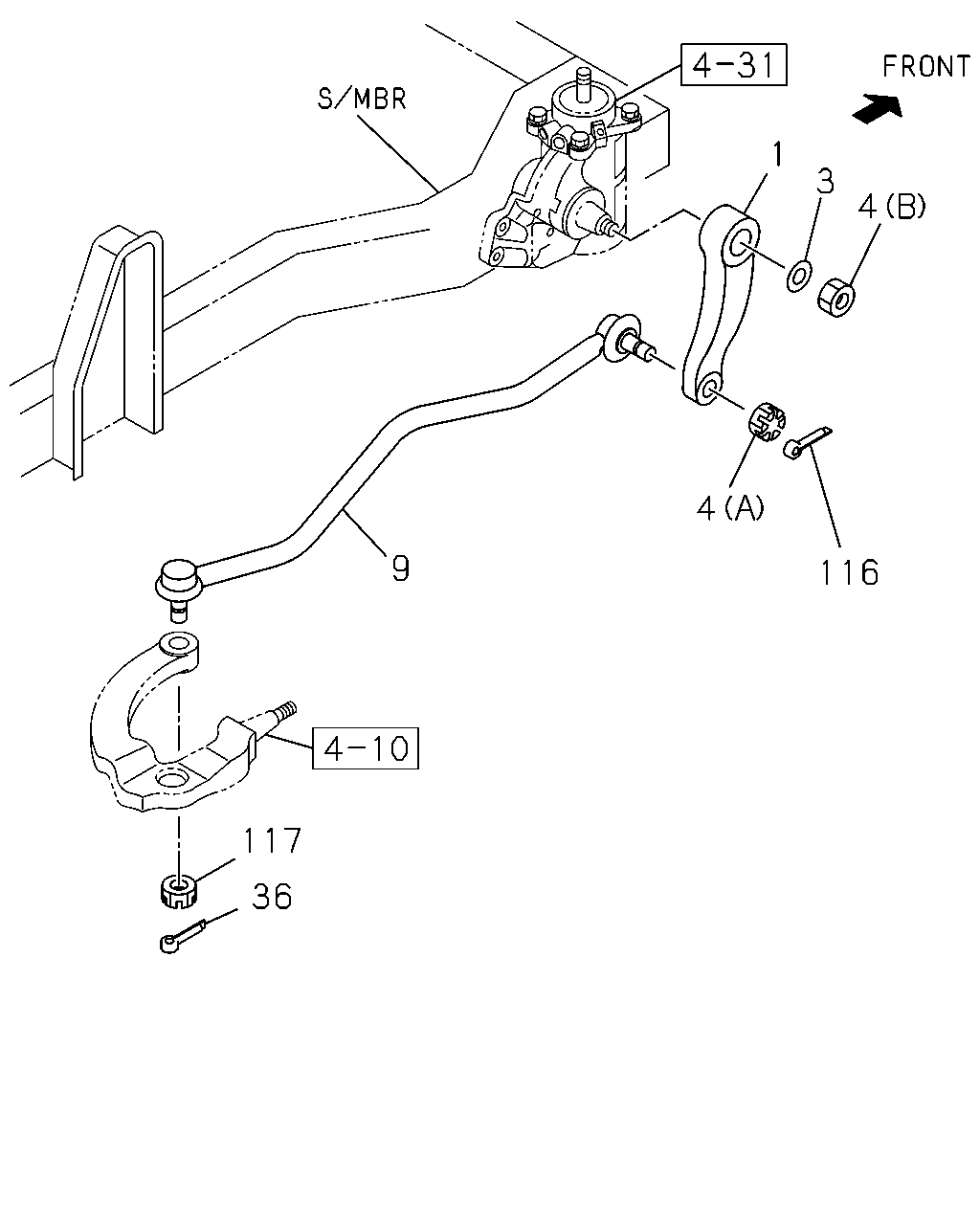

4-33 — STEERING LINKAGE
(#74594) — 18 parça
Tümü
A - NPR5SN
B - NPR5SS
1
3
4
4
9
116
117
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
8-97037-746-1
01
1
0803-0810
●
1
ARM; PITMAN,STRG
8-97037-746-1
01
1
0811-
●
●
3
WASHER; LK,PITMAN ARM
ID=27.5
0-91510-527-0
01
1
0803-0810
●
3
WASHER; LK,PITMAN ARM
ID=27.5
0-91510-527-0
01
1
0811-
●
●
4
NUT; PITMAN ARM
(A) M18 SLOTTED
8-97017-761-0
01
1
0803-0805
●
4
NUT; PITMAN ARM
(A) M18 SLOTTED THA
8-97245-632-0
01
1
0806-0810
●
4
NUT; PITMAN ARM
(A) M18 SLOTTED THA
8-97245-632-0
01
1
0811-
●
●
4
NUT; PITMAN ARM
(B) M27
8-97359-616-0
01
1
0803-0810
●
4
NUT; PITMAN ARM
(B) M27
8-97359-616-0
01
1
0811-
●
●
9
LINK; DRAG
8-98025-642-0
01
1
0803-0810
●
9
LINK; DRAG
8-98025-642-1
01
1
0811-
●
●
36
PIN; SPLIT,DRAG LINK
L=19
8-97349-766-0
01
1
0803-0804
●
36
PIN; SPLIT,DRAG LINK
L=19
8-98098-024-0
01
1
0805-0810
●
36
PIN; SPLIT,DRAG LINK
L=19
8-98098-024-0
01
1
0811-
●
●
116
PIN; SPLIT,TRACK ROD,CENTER
L=19
8-97349-766-0
01
1
0803-0810
●
116
PIN; SPLIT,TRACK ROD,CENTER
L=19
8-97349-766-0
01
1
0811-
●
●
117
NUT; DRAG LINK
M18 SLOTTED THA
8-97245-632-0
01
1
0803-0810
●
117
NUT; DRAG LINK
M18 SLOTTED THA
8-97245-632-0
01
1
0811-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
