4-25 — REAR FINAL DRIVE (#74591) — 112 parça

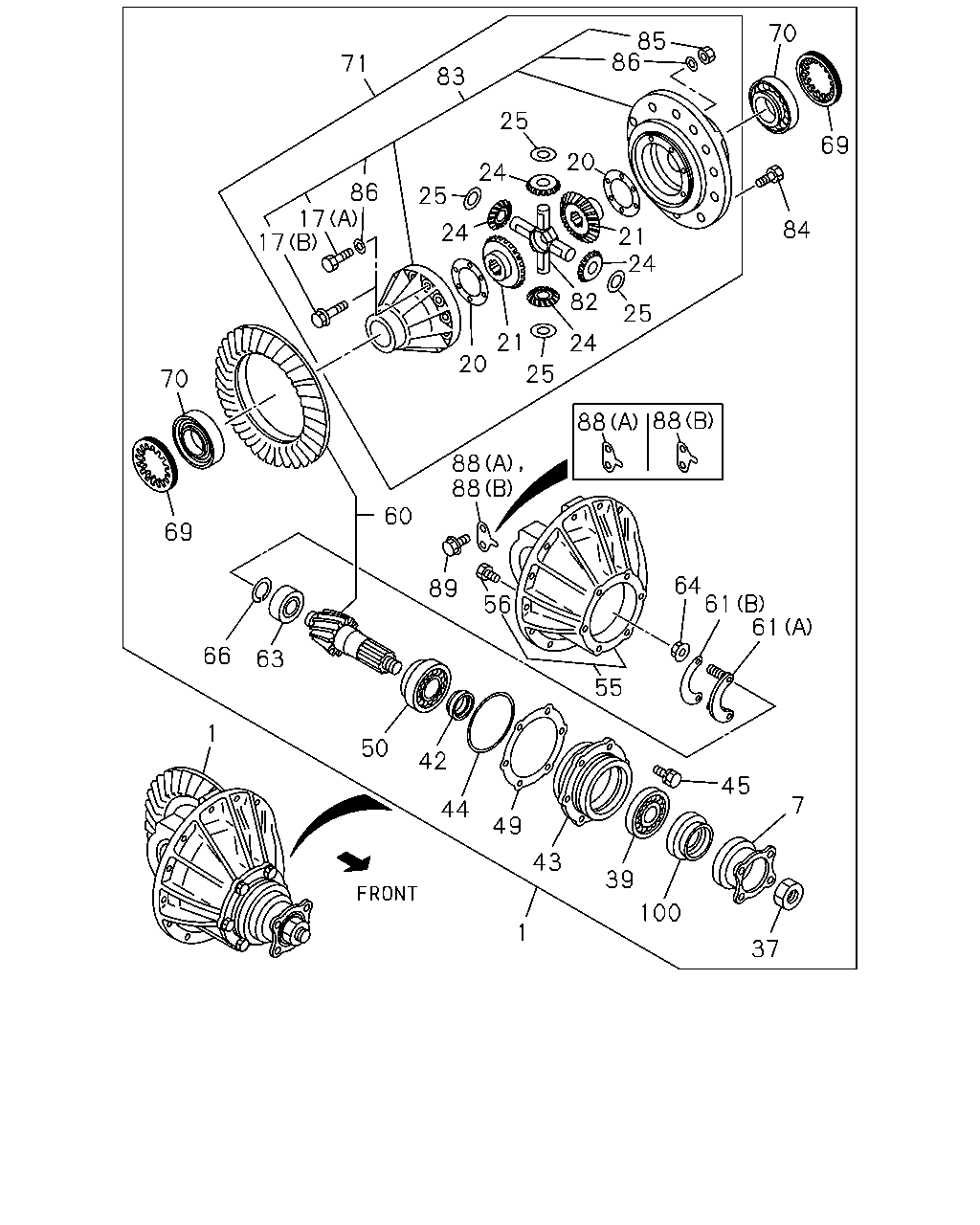

çizim 185641
37 100 39 43 49 44 42 50 1 7 45 55 61 61 64 56 89 60 63 1 66 69 70 88 88 88 88 24 82 25 21 20 25 24 21 20 25 24 24 25 86 17 17 71 83 84 86 85 69 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10<GT5> 41/10 		8-97388-700-0 01 1 0811- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9<S2J> 43/9 		8-97388-703-0 01 1 0803- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9<HC6> 41/9 		8-97388-702-0 01 1 0803-0810 ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9<HC6> 41/9 		8-97388-702-0 01 1 0811- ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10<S7C> 43/10 		8-97388-701-0 01 1 0803- ●
7 FLANGE; FINAL 8-97047-095-2 01 1 0803-0810 ●
7 FLANGE; FINAL 8-97047-095-2 01 1 0811- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M12X90 		8-97047-295-0 12 1 0803-0810 ●
17 BOLT; DIFF CAGE SETTING
(A) M12X90 		8-97047-295-0 12 1 0811-1208 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M12X90 		8-98219-448-0 12 1 1209- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0811- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0803-0810 ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0811- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-093-0 02 1 0803-0810 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-093-0 02 1 0811-1004 ● ●
21 GEAR; SIDE,DIFF
Z=16 		8-98165-935-0 02 1 1005- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0803-0810 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0811-1004 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-050-0 04 1 1005- ● ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0803-0810 ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0811- ● ●
37 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 0803-0810 ●
37 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 0811- ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1002- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0803-0810 ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0811-1002 ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1003- ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 0803-0810 ●
42 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 0811- ● ●
43 CAGE; FINAL PINION 8-97047-098-0 01 1 0803-0810 ●
43 CAGE; FINAL PINION 8-97047-098-0 01 1 0811- ● ●
44 GASKET; PINION CAGE 8-97048-053-0 01 1 0803-0810 ●
44 GASKET; PINION CAGE 8-97048-053-0 01 1 0811- ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50071-240-0 06 1 0803-0810 ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50071-240-0 06 1 0811-0909 ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50571-240-0 06 1 0910-1209 ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		8-98220-227-0 06 1 1210- ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 0803-0810 ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 0811- ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 0803-0810 ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 0811- ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 0803-0810 ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 0811- ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 0803-0810 ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 0811- ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.50 		8-97048-419-0 AR 1 0803-0810 ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.50 		8-97048-419-0 AR 1 0811- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0803-0810 ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0811- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0803-0810 ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0811- ● ●
55 CARRIER; DIFF 8-97094-637-0 01 1 0803-0810 ●
55 CARRIER; DIFF 8-97094-637-0 01 1 0811- ● ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0803-0810 ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0811- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10<GT5> 41/10 		8-97061-846-0 01 1 0811- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9<S2J> 43/9 		8-97061-850-0 01 1 0803-1505 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9<S2J> 43/9 		8-98092-146-0 01 1 1506- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9<HC6> 41/9 		8-97078-635-1 01 1 0803-0810 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9<HC6> 41/9 		8-97078-635-1 01 1 0811- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10<S7C> 43/10 		8-97047-115-0 01 1 0803- ●
61 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 0803-0810 ●
61 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 0811- ● ●
61 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 0803-0810 ●
61 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 0811- ● ●
63 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 0803-0810 ●
63 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 0811- ● ●
63 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 0803-0810 ●
63 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 0811- ● ●
64 NUT; RET
M6 FLANGE THA 		0-91180-106-0 02 1 0803-0810 ●
64 NUT; RET
M6 FLANGE THA 		0-91180-106-0 02 1 0811- ● ●
66 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 0803-0810 ●
66 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 0811- ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 0803-0810 ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 0811- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0803-0810 ●
70 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0811- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97047-099-1 01 1 0803-0810 ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97047-099-4 01 1 0811- ● ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 0803-0810 ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 0811-1004 ● ●
82 SPIDER; DIFF PINION 1-41521-062-0 01 1 1005-1309 ● ●
82 SPIDER; DIFF PINION 1-41521-035-2 01 1 1310- ● ●
83 CAGE ASM; DIFF 8-97047-101-1 01 1 0803-0810 ●
83 CAGE ASM; DIFF 8-97047-101-2 01 1 0811-1208 ● ●
83 CAGE ASM; DIFF 8-98219-705-0 01 1 1209- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 0803-0810 ●
84 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 0811- ● ●
85 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 0803-0810 ●
85 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 0811- ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 0803-0810 ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 0811-1208 ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 12 1 1209- ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		8-97087-821-0 AR 1 0803-0810 ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		8-97087-821-0 AR 1 0811- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		9-41124-015-0 AR 1 0803-0810 ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		9-41124-015-0 AR 1 0811- ● ●
89 BOLT; LK PLATE
M8X16 FLANGE THA 		0-28050-816-0 04 1 0803-0810 ●
89 BOLT; LK PLATE
M8X16 FLANGE THA 		0-28050-816-0 04 1 0811- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0803-0810 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0811- ● ●
