Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

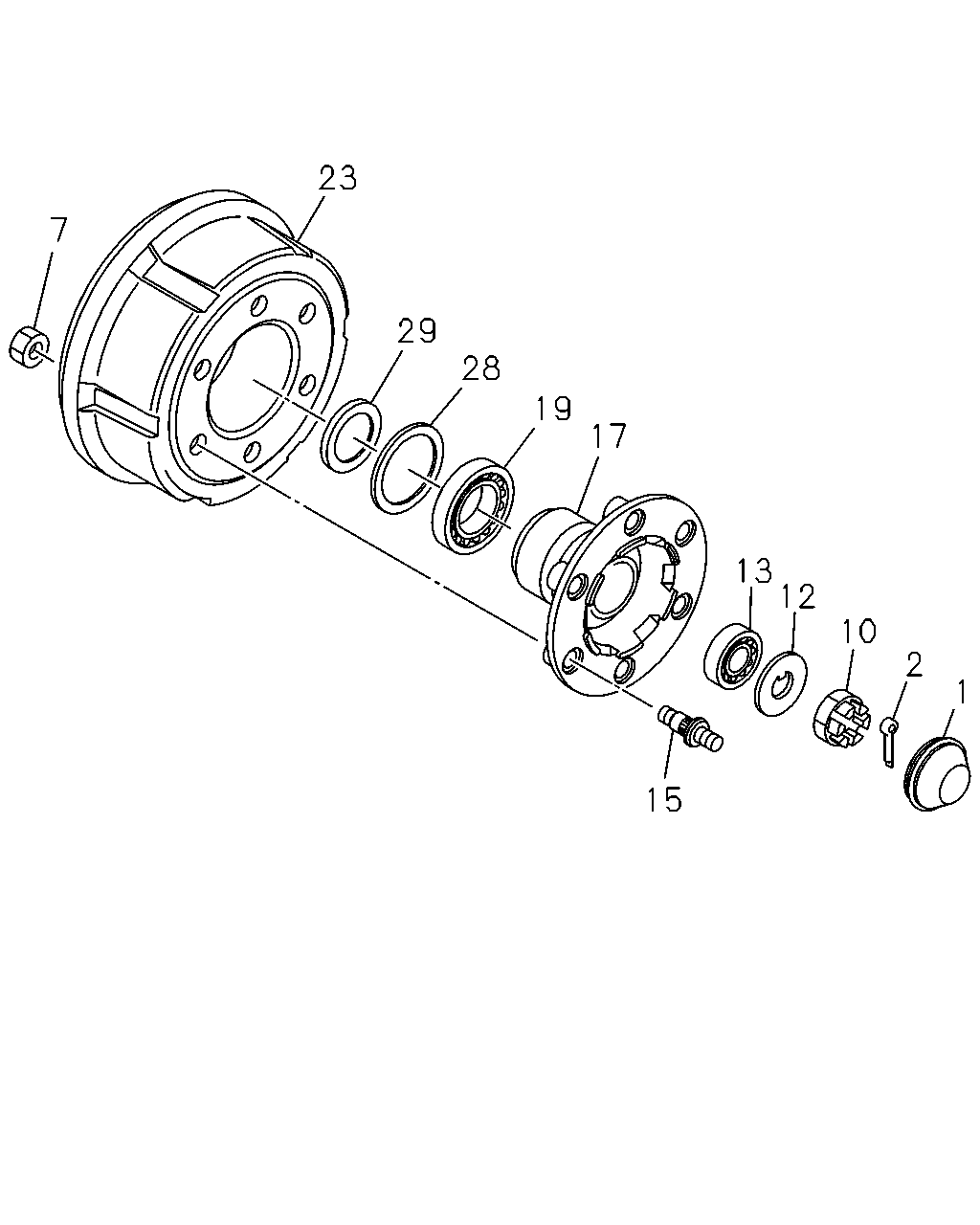

4-11 — FRONT HUB AND DRUM OR ROTOR
(#74589) — 39 parça
Tümü
A - NPR5SN
B - NPR5SS
23
7
29
28
19
17
13
12
10
2
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAP; HUB,FRT AXLE
8-97360-101-0
02
1
0803-0810
●
1
CAP; HUB,FRT AXLE
8-97360-101-0
02
1
0811-1407
●
●
1
CAP; HUB,FRT AXLE
8-98276-604-0
02
1
1408-
●
●
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
0803-0810
●
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
0811-
●
●
7
NUT; FRT HUB
M22
0-91110-522-0
12
1
0803-0810
●
7
NUT; FRT HUB
M22
0-91110-522-0
12
1
0811-
●
●
10
NUT; FRT HUB BRG
8-94247-357-1
02
1
0803-0810
●
10
NUT; FRT HUB BRG
8-94247-357-1
02
1
0811-
●
●
12
WASHER; LK,FRT HUB BRG
8-94247-356-1
02
1
0803-0810
●
12
WASHER; LK,FRT HUB BRG
8-94247-356-1
02
1
0811-1502
●
●
12
WASHER; LK,FRT HUB BRG
8-98282-435-0
02
1
1503-
●
●
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
0803-0810
●
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
0811-
●
●
13
BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
0803-0810
●
13
BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
0811-
●
●
15
PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD
8-97081-585-2
06
1
0803-0810
●
15
PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD
8-97081-585-4
06
1
0811-
●
●
15
PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD
8-97081-584-2
06
1
0803-0810
●
15
PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD
8-97081-584-4
06
1
0811-
●
●
17
HUB; FRT AXLE
THA
8-97940-275-0
02
1
0803-
●
17
HUB; FRT AXLE
THA
8-97940-276-0
02
1
0811-
●
17
HUB; FRT AXLE
THA
8-97940-276-0
02
1
0811-1206
●
17
HUB; FRT AXLE
THA
8-97940-276-0
04
1
1207-1209
●
17
HUB; FRT AXLE
THA
8-97940-275-0
02
1
0803-1206
●
17
HUB; FRT AXLE
THA
8-97940-275-0
04
1
1207-1209
●
19
BEARING; HUB INNER,FRT AXLE
JTEKT
8-94248-088-2
02
1
0803-0810
●
19
BEARING; HUB INNER,FRT AXLE
JTEKT
8-94248-088-2
02
1
0811-1009
●
●
19
BEARING; HUB INNER,FRT AXLE
JTEKT
8-98171-254-0
02
1
1010-
●
●
19
BEARING; HUB INNER,FRT AXLE
NSK
9-00093-149-0
02
1
0803-0810
●
19
BEARING; HUB INNER,FRT AXLE
NSK
9-00093-149-0
02
1
0811-1009
●
●
19
BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1010-
●
●
19
BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1010-1402
●
●
23
DRUM; BRK,FRT
THA
8-97940-558-0
02
1
0811-
●
23
DRUM; BRK,FRT
THA
8-97940-557-0
02
1
0803-
●
28
SEAL; OIL,FRT HUB
8-94248-117-1
02
1
0803-0810
●
28
SEAL; OIL,FRT HUB
8-94248-117-1
02
1
0811-
●
●
29
DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
0803-0810
●
29
DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
0811-
●
●
