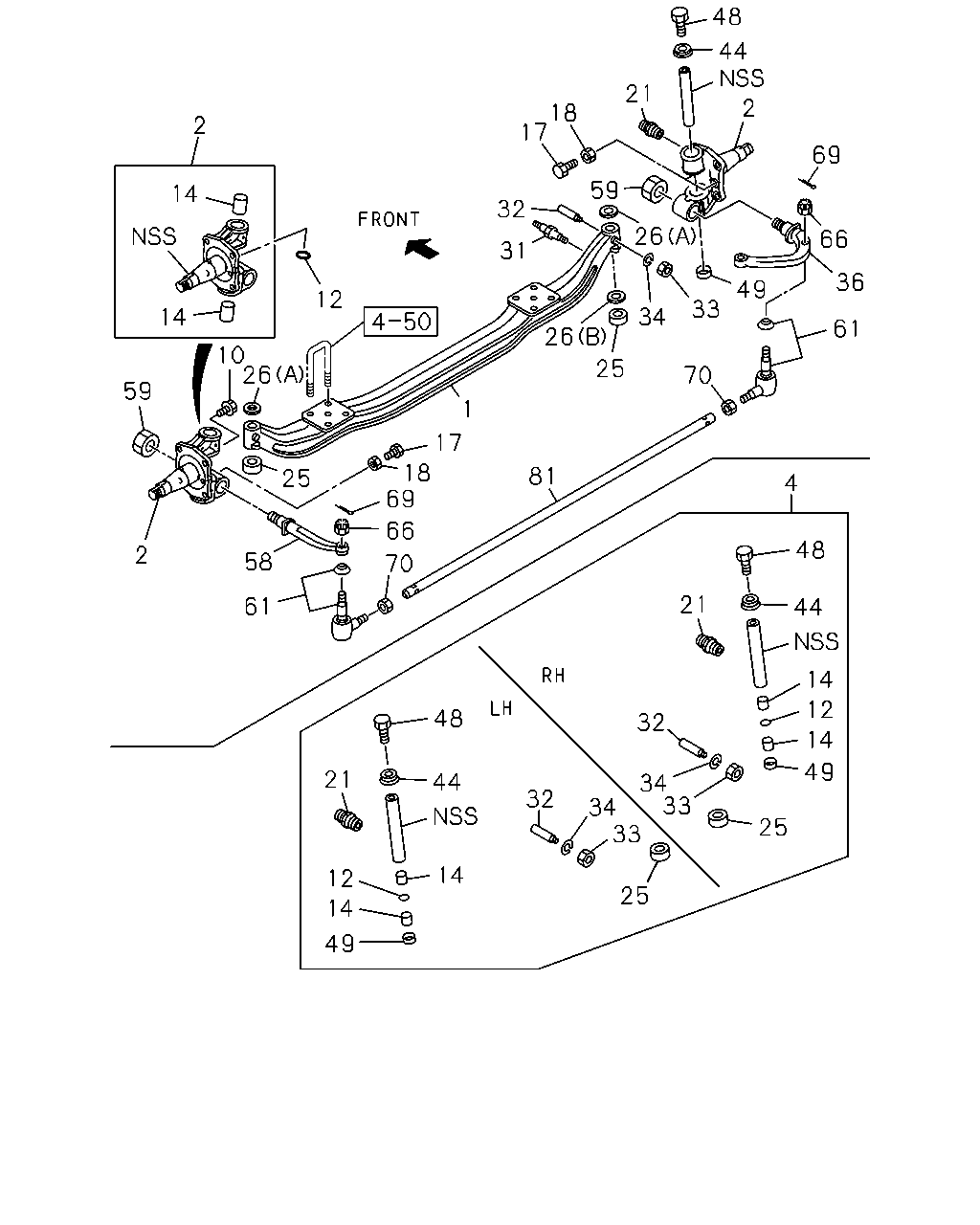

4-10 — FRONT AXLE (#74588) — 77 parça

48 44 2 21 18 17 2 69 59 4 32 26 66 31 26 36 49 12 33 34 14 61 10 26 25 70 59 1 17 18 69 81 25 4 66 48 2 58 70 21 61 44 14 12 48 32 14 49 21 44 34 33 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-98038-384-0	01	1	0803-0810	●
1	AXLE; FRT	8-98038-384-3	01	1	0811-	●	●
2	KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0803-0810	●
2	KNUCKLE; FRT AXLE	8-97261-550-2	01	1	0811-	●	●
2	KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0803-0810	●
2	KNUCKLE; FRT AXLE	8-97261-549-2	01	1	0811-	●	●
4	KING PIN KIT	5-87832-219-1	01	1	0803-0810	●
4	KING PIN KIT	5-87832-219-2	01	1	0811-	●	●
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0803-0810	●
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0811-	●	●
12	GASKET; KNUCKLE	8-98084-500-0	02	1	0803-0810	●
12	GASKET; KNUCKLE	8-98084-500-0	02	1	0811-	●	●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0803-0809	●
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0803-0810	●
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0811-	●	●
17	BOLT; STOPPER KNUCKLE M12X27.5	8-98016-968-0	03	1	1403-		●
17	BOLT; STOPPER KNUCKLE M12X27.5	8-98016-968-0	03	1	0811-		●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0803-	●
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0803-0810	●
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0811-	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT THA	0-90301-406-0	04	1	0803-0810	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT THA	0-90301-406-0	04	1	0811-	●	●
25	BEARING; THRUST,KING PIN	8-94248-883-2	02	1	0803-0810	●
25	BEARING; THRUST,KING PIN	8-94248-883-3	02	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (B) T=1.95	8-94168-490-0	02	1	0803-0810	●
26	SHIM; KING PIN,BRG (B) T=1.95	8-94168-490-0	02	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0811-	●	●
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0803-0810	●
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0811-	●	●
31	PIN; S/ABS,LWR	8-97145-460-0	02	1	0803-0810	●
31	PIN; S/ABS,LWR	8-97145-460-0	02	1	0811-	●	●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	0803-0810	●
32	BOLT; KEY,KING PIN	8-97141-945-2	02	1	0811-	●	●
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0803-0810	●
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0811-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0803-0810	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0811-	●	●
36	ARM; KNUCKLE	8-97202-776-3	01	1	0803-0810	●
36	ARM; KNUCKLE	8-97202-776-4	01	1	0811-	●	●
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0803-0810	●
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0811-	●	●
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0803-0810	●
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0811-	●	●
49	CAP; KNUCKLE	8-97360-024-0	02	1	0803-0810	●
49	CAP; KNUCKLE	8-97360-024-0	02	1	0811-	●	●
58	ARM; TIE ROD	8-97138-304-0	01	1	0803-0810	●
58	ARM; TIE ROD	8-97138-304-1	01	1	0811-	●	●
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0803-0810	●
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0811-	●	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0803-0810	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0811-1310	●	●
61	ROD END; TIE ROD	8-97107-349-2	01	1	1311-	●	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0803-0810	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0811-1310	●	●
61	ROD END; TIE ROD	8-97107-348-2	01	1	1311-	●	●
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0803-0810	●
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0811-1204	●	●
66	NUT; TIE ROD END M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0803-0810	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0811-	●	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0803-0810	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0811-	●	●
70	NUT; TIE ROD END M20	8-98043-530-0	01	1	0803-0810	●
70	NUT; TIE ROD END M20	8-98043-530-0	01	1	0811-	●	●
81	ROD; TIE	8-97061-869-0	01	1	0803-0810	●
81	ROD; TIE	8-97061-869-0	01	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
