◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#74585) — 616 parça

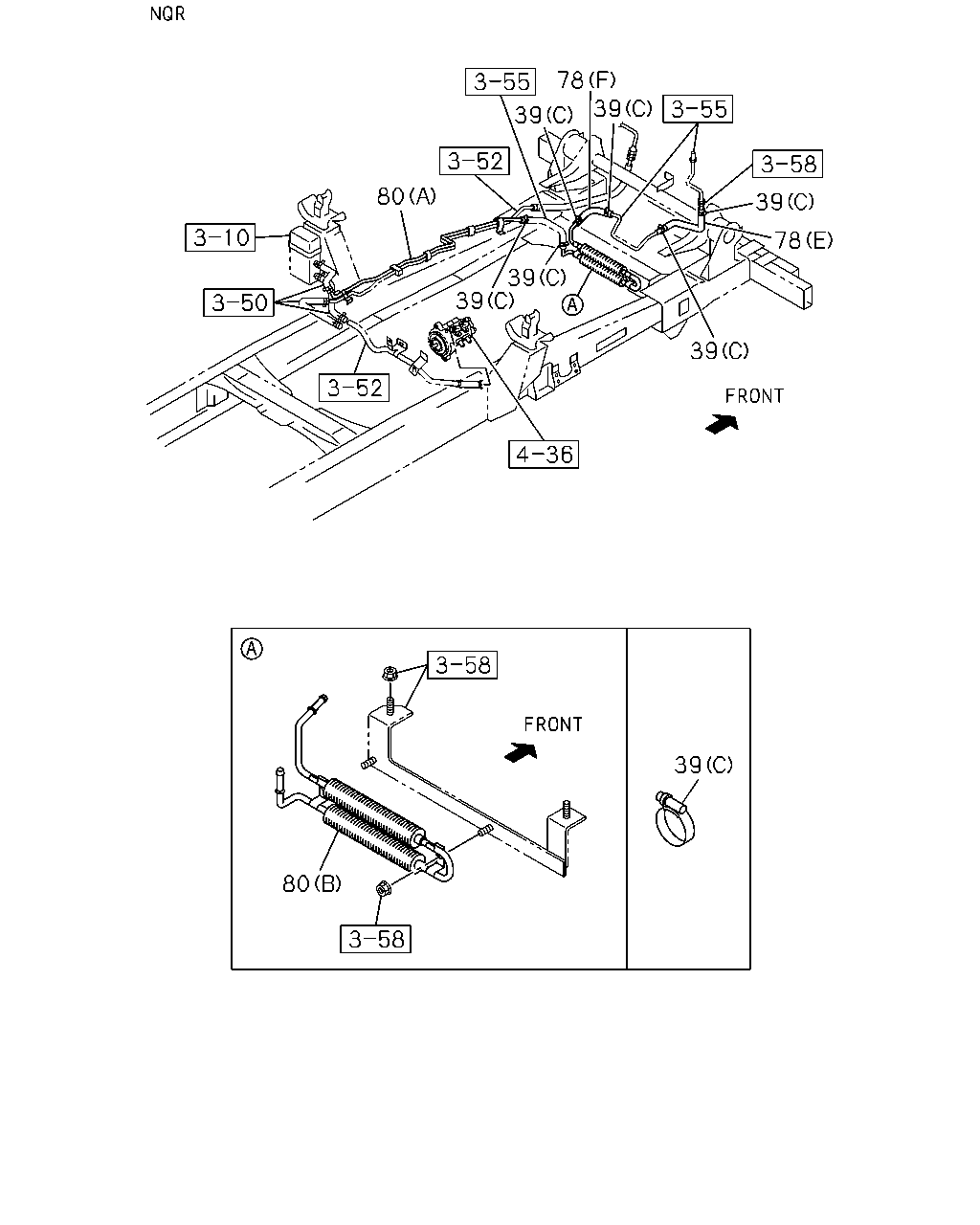

çizim 121277
78 39 39 80 39 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98129-223-0 01 1 0811-0909 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 0910- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0811- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0811-1003 ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1004- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0811- ● ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97386-605-0 01 1 0811- ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98097-788-0 01 1 0811- ●

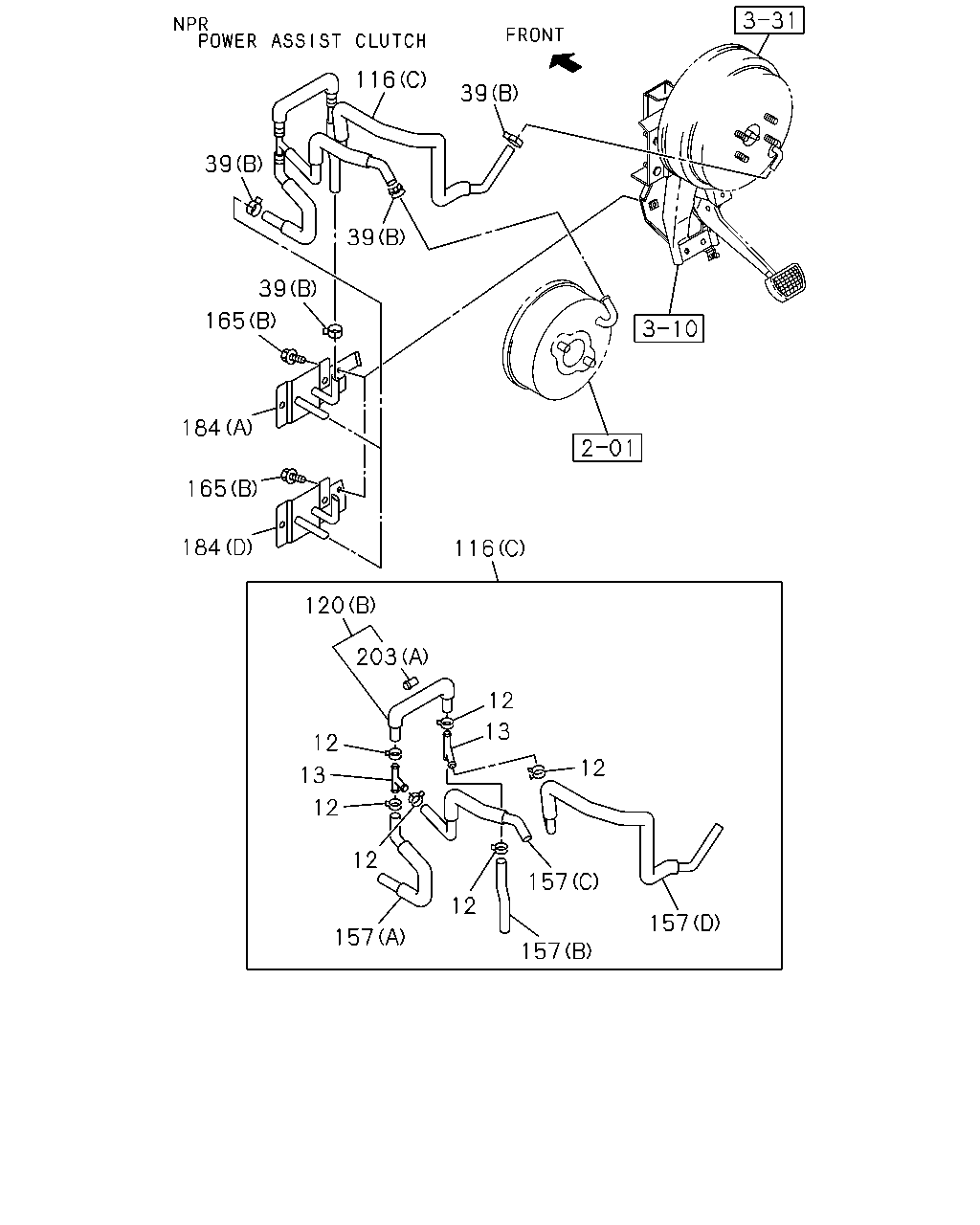

çizim 121371
116 39 39 39 39 165 184 165 184 116 120 203 12 13 12 12 13 12 12 157 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0803- ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0803-0810 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0803- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0810- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0803-0810 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0803- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0803- ●
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0803- ●

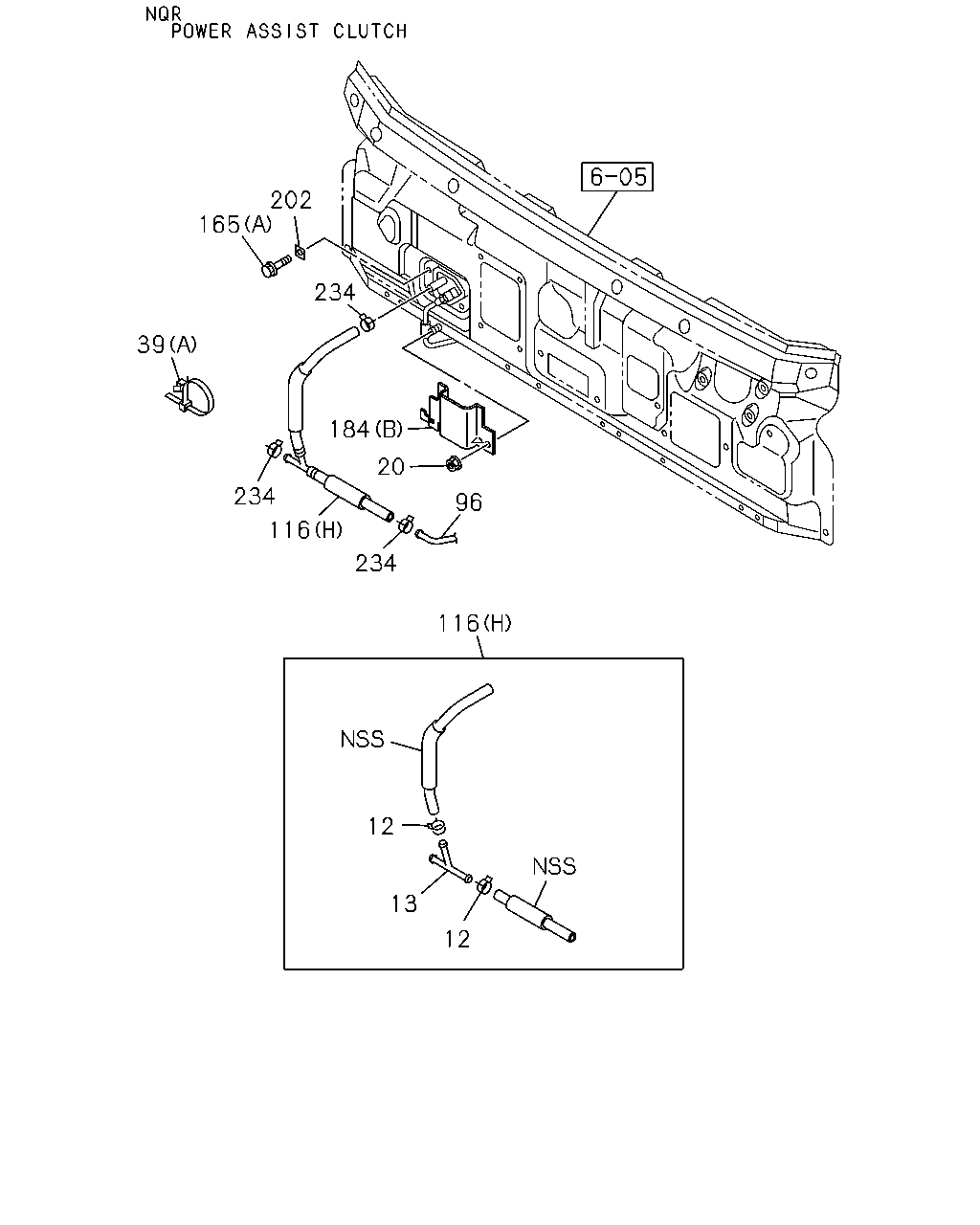

çizim 121377
202 165 234 39 184 20 234 96 116 234 116 12 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0803- ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0803-0810 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0803- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0810- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0803-0810 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0803-0810 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0811- ● ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0803-0810 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●
202 SEAL 8-97856-616-0 02 1 0803-0810 ●
202 SEAL 8-97856-616-0 02 1 0811- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0803- ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0803-0810 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●

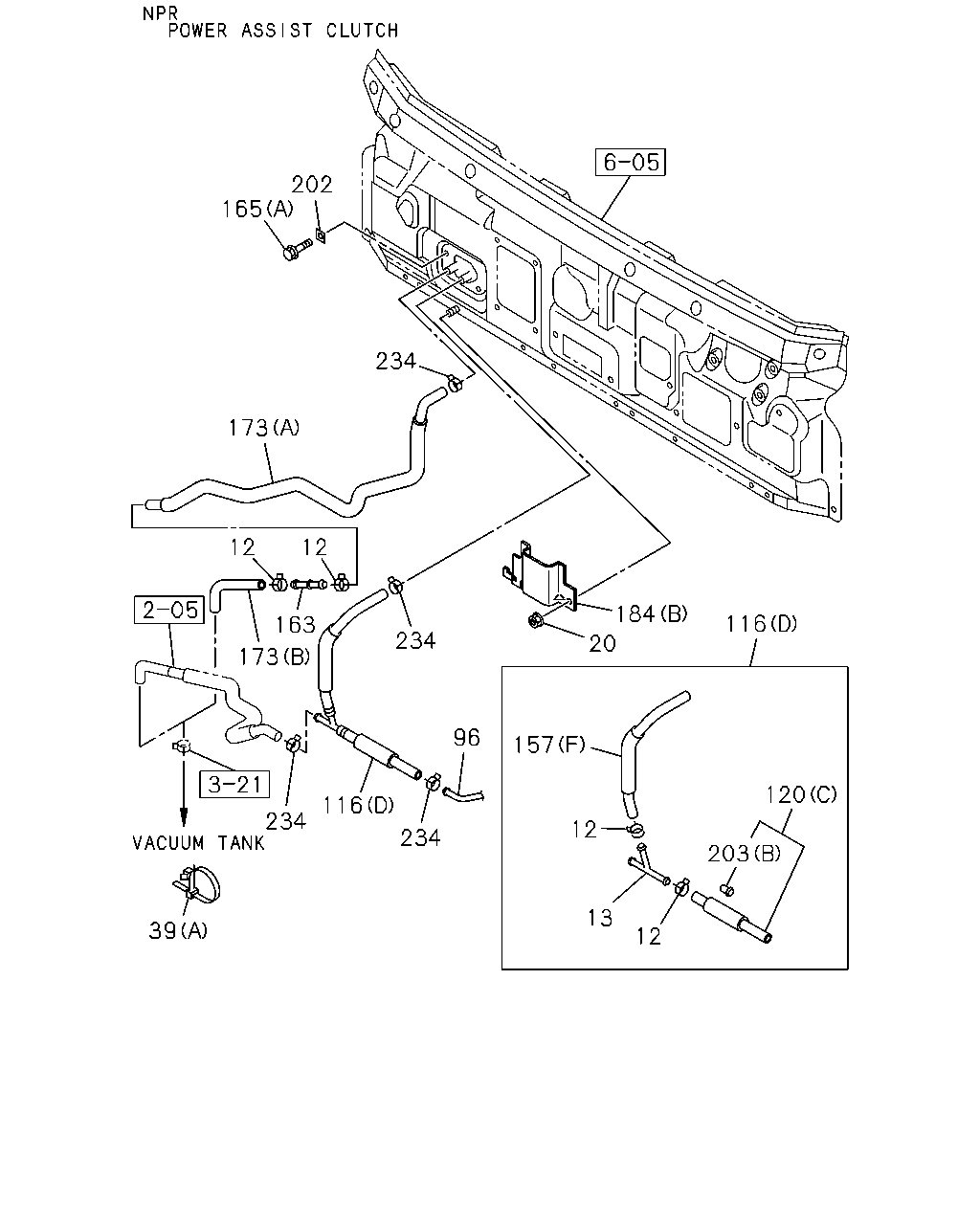

çizim 121414
202 165 234 173 12 12 184 116 163 234 20 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0803- ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0803-0810 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0803- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0810- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0803-0810 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0803-0810 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0811- ● ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0803-0810 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0803- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0803- ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH<S2T> 		8-97353-668-0 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0803-1012 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101- ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0803-1012 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101- ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0803-1009 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1010- ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●
202 SEAL 8-97856-616-0 02 1 0803-0810 ●
202 SEAL 8-97856-616-0 02 1 0811- ● ●
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0803- ●
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0803- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0803- ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0803-0810 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●

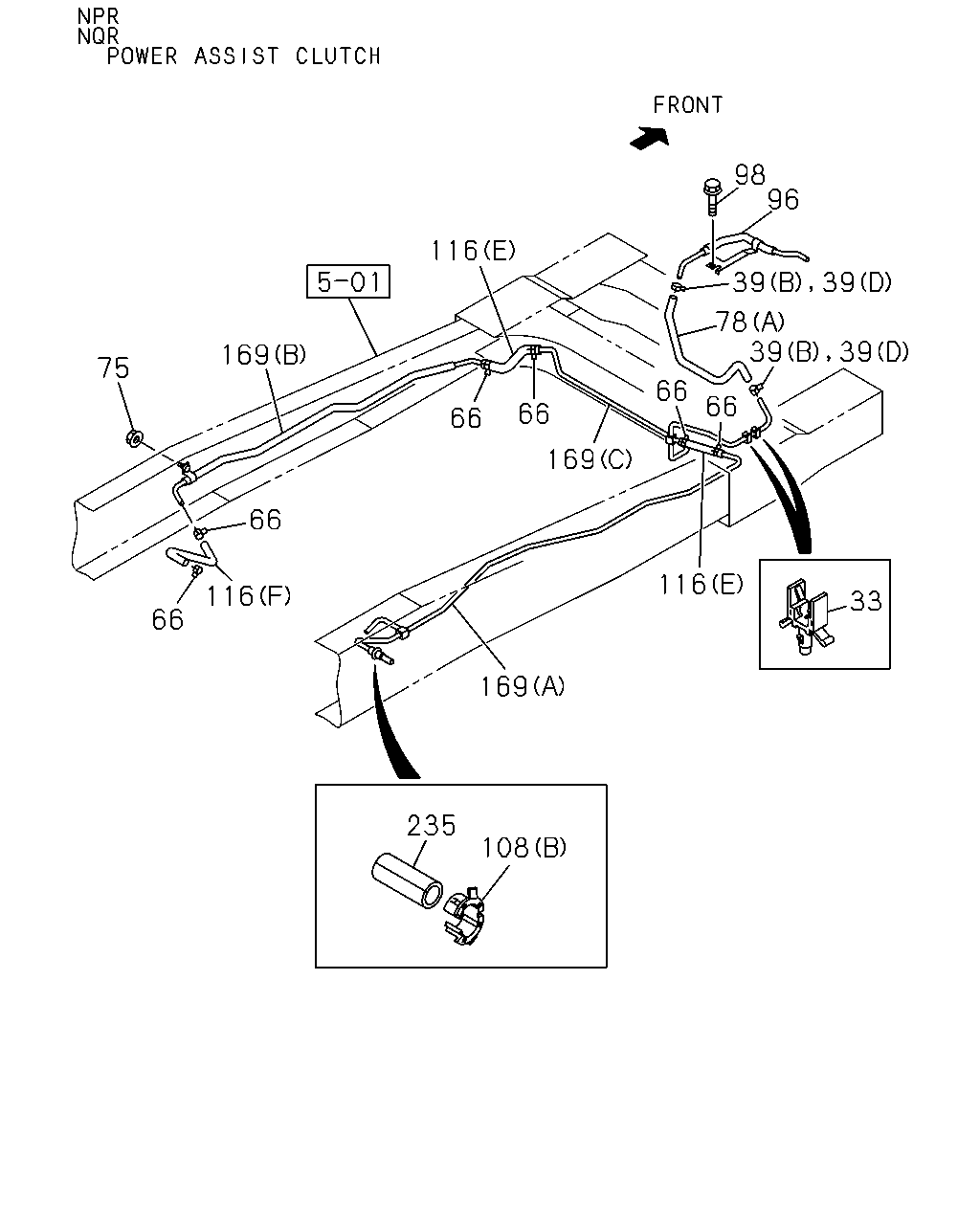

çizim 121418
116 169 75 66 66 116 66 169 116 66 66 66 169 235 108
BalonParca AdiParca NoAdetTipApplied Date A B
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0803-0810 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0811-0901 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 02 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 06 1 0803-0803 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0811-0901 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 04 1 0912- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 02 1 0803-0803 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0803-0810 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH<S2T> (E) THA 		8-98048-901-0 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH<S2T> (D) THA 		8-98048-903-0 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 0811- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0811- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 02 1 0803-0803 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
çizim 121441
39 116 165 39 184 165 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●

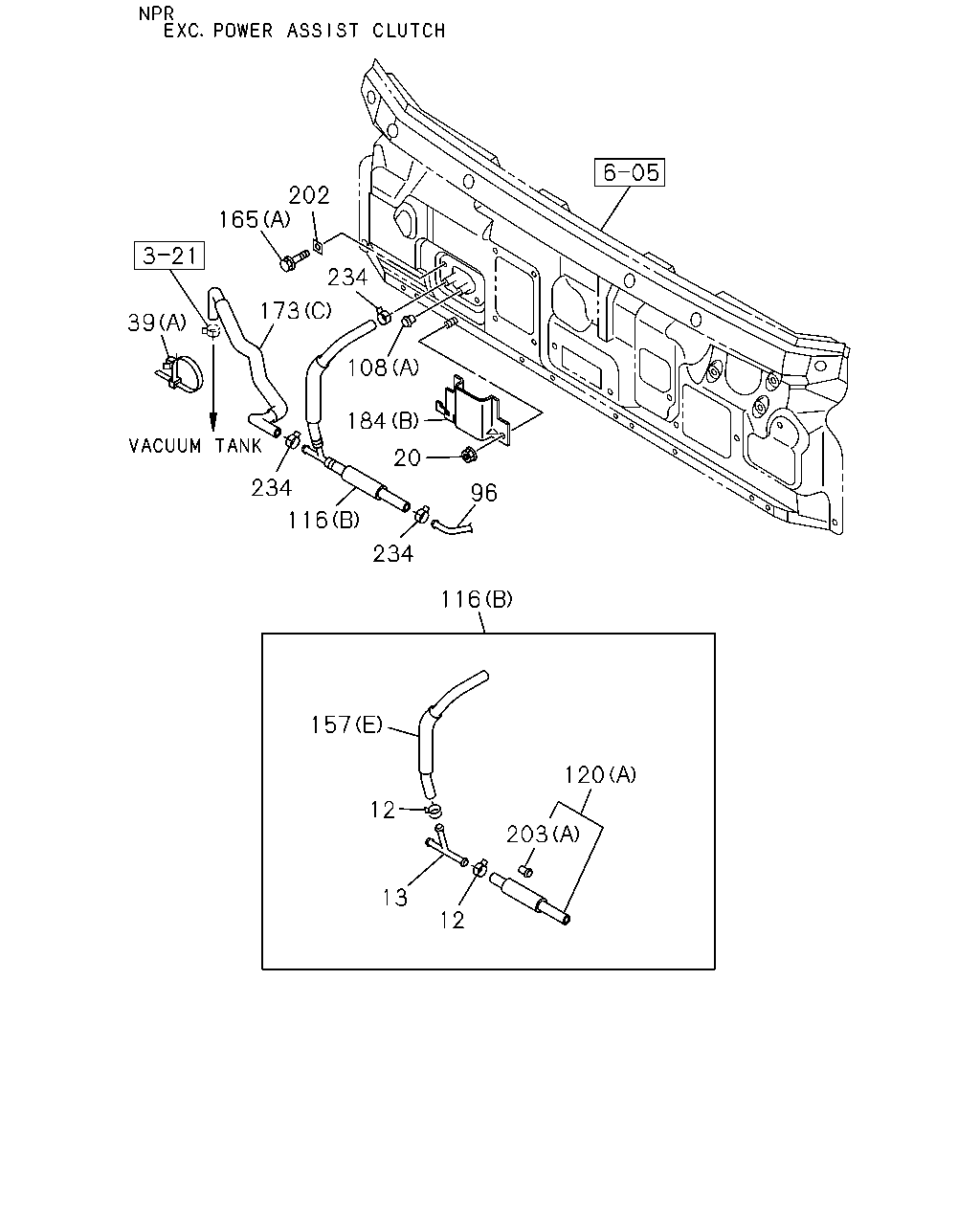

çizim 121447
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0803- ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0803-0810 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0803- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0810- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0803-0810 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 01 1 0811- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0803-0810 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0811- ● ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0803-0810 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 02 1 0803-0803 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0803-0810 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0803- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0803- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0803- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0803-1012 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101- ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0803-1012 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101- ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0803-1009 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1010- ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●
202 SEAL 8-97856-616-0 02 1 0803-0810 ●
202 SEAL 8-97856-616-0 02 1 0811- ● ●
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0803- ●
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0803- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0803- ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0803-0810 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0811- ●
çizim 121657
235 122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98057-425-1 01 1 0803-0810 ●
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98057-425-1 01 1 0811- ● ●
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98070-194-0 01 1 0803-0810 ●
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98070-194-0 01 1 0811- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98129-223-0 01 1 0811-0909 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 0910- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0811- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0811-1003 ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1004- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0811- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0803-0810 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0811-1103 ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> THA 		8-98189-104-0 01 1 1104- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0811-0911 ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 02 1 0912- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 06 1 0803-0810 ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 06 1 0811-0911 ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 06 1 0912- ● ●
158 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 		8-97061-603-0 01 1 0803-0810 ●
158 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 		8-97061-603-0 01 1 0811- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 02 1 0803-0803 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
236 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
236 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
çizim 121723
98 96 116 78 169 75 66 66 66 66 169 66 116 116 33 66 169 235 108 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
33 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0803-0810 ●
33 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0811- ●
33 CLIP; VAC PIPE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0811- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0803-0810 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0811-0901 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 02 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 06 1 0803-0803 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 02 1 0811-0901 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 04 1 0912- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98129-223-0 01 1 0811-0909 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 0910- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 0811- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-819-2 01 1 0811-1003 ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1004- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0811- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0803-0810 ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 0811- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0803-0810 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0811-1205 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0803-0810 ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0811- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M6X12 FLANGE THA 		0-28050-612-0 01 1 0811- ●
98 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH<S2T> M6X12 FLANGE THA 		0-28050-612-0 01 1 0811- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 02 1 0803-0803 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0803-0810 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0811- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0803-0810 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH<S2T> (E) THA 		8-98048-901-0 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH<S2T> (D) THA 		8-98048-903-0 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 0811- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0803-0810 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0811- ●
169 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0811- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 02 1 0803-0803 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0803-0810 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0811- ● ●
çizim 185721
116 39 39 165 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-98008-098-0 02 1 0912-1205 ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (D) ID=16 THA 		8-97329-628-0 02 1 1206- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-19.5 		8-94426-597-0 08 1 0811-1005 ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0803-0810 ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (A) L=170.3 THA 		1-09987-182-0 01 1 0811- ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0803-0810 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0811-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (G) 		8-98067-702-0 01 1 0811- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (H) 		8-98081-002-2 01 1 0811- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0811- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0803-0810 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-276-2 01 1 0811-0910 ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) THA 		8-98158-378-0 01 1 0911- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0803- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0803- ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0811-0910 ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0911- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0803-0810 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811- ● ●
184 BRACKET; UNION FIX
(F) 		8-98156-526-0 01 1 1002- ●
184 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0811-1001 ●
184 BRACKET; UNION FIX
(E) 		8-98155-991-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(E) 		8-98183-472-1 01 1 1103-1103 ●
184 BRACKET; UNION FIX
(E) 		8-98193-145-0 01 1 1104- ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0803-1001 ●
184 BRACKET; UNION FIX
(D) 		8-98155-345-0 01 1 1002-1102 ●
184 BRACKET; UNION FIX
(D) 		8-98183-467-1 01 1 1103- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0803-0810 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 0811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
