◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#74584) — 49 parça

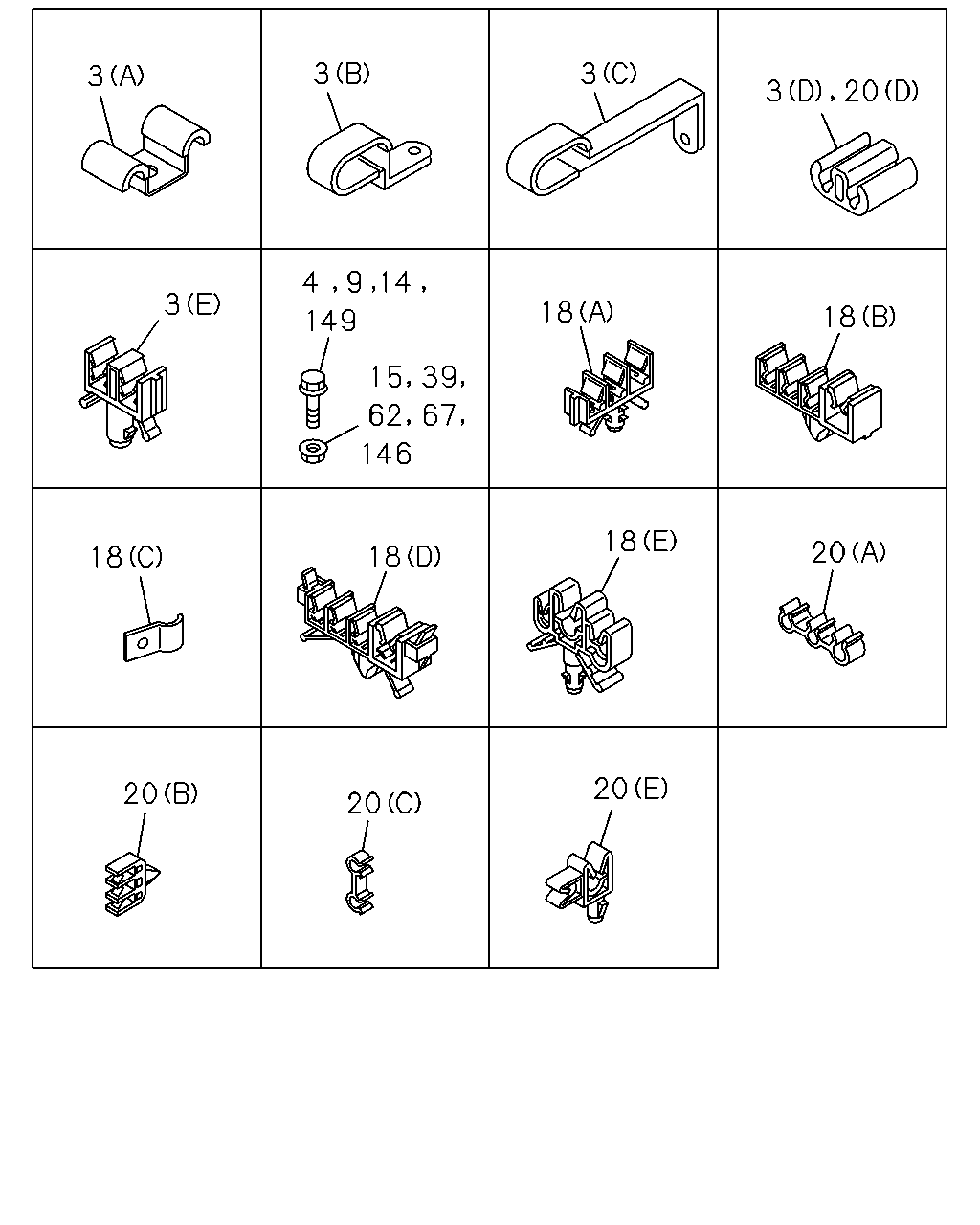

çizim 121433
3 3 3 4 3 18 18 149 146 18 20 18 18 20 20 20 9 14 15 39 67 62 3 20
BalonParca AdiParca NoAdetTipApplied Date A B
3 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0811- ●
3 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0811- ●
3 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0811- ●
3 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22 THA 		8-94252-455-2 04 1 0811- ●
3 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (E) ID=10X2 H=37.5 		8-97018-546-0 03 1 0811- ●
4 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10X25 FLANGE THA 		0-28651-025-0 01 1 0811- ●
4 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
4 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ● ●
9 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
9 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
14 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
14 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ● ●
15 NUT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
15 NUT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●
18 CLIP; BRK PIPE
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 0811- ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) B=18 L=20 		1-09700-372-0 02 1 0803-0810 ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) B=18 L=20 		1-09700-372-0 02 1 0811- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0803-0805 ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0806-0810 ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0806-0810 ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0811- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0811- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 4.76X3 		8-97168-819-0 03 1 0803-0810 ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 4.76X3 		8-97168-819-0 03 1 0811- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 0803-0810 ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 0811- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (E) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0803-0810 ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (E) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0811- ● ●
18 CLIP; BRK PIPE
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 0803-0810 ●
18 CLIP; BRK PIPE
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 0811- ● ●
18 CLIP; BRK PIPE
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 0803- ●
20 CLIP; BRK PIPE
(D) ID=6.35 & 6.35 		8-94474-113-0 03 1 0811- ●
20 CLIP; BRK PIPE
(E) ID=12 & 6.35 		8-97215-437-0 01 1 0811- ●
20 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0803- ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0803-0810 ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0811- ● ●
20 CLIP; BRK PIPE
(C) 		8-94338-104-0 01 1 0803- ●
39 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
39 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
62 NUT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 02 1 0811- ●
67 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M14 		0-91111-514-0 01 1 0811- ●
67 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 01 1 0811- ●
146 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ●
146 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 02 1 0811- ●
149 BOLT; HOSE
FRAME STRAIGHT TYPE<7KJ> M6X20 FLANGE THA 		0-28650-620-0 01 1 0811- ●
çizim 185718
49 19 49
BalonParca AdiParca NoAdetTipApplied Date A B
19 BRACKET; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-97389-845-2 01 1 0803-0810 ●
19 BRACKET; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-97389-845-2 01 1 0811- ● ●
49 BRACKET; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98033-802-1 01 1 0811- ●
49 BRACKET; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-600-0 01 1 0811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
