◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#74583) — 17 parça
çizim 119683
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
THA 		8-97308-913-0 01 1 0803-0810 ●
1 HOSE; FLEX,RR BRK
THA 		8-97308-913-0 01 1 0811- ● ●
3 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 0803-0810 ●
3 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 0811- ● ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0803-0810 ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0811- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98026-057-0 01 1 0803-0810 ●
9 PIPE; BRK,RR AXLE
THA 		8-98026-057-0 01 1 0811- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA 		8-97359-748-0 01 1 0811- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA 		8-97359-746-0 01 1 0803- ●
25 CONNECTOR
FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT 		0-92107-005-0 01 1 0803-0810 ●
25 CONNECTOR
FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT 		0-92107-005-0 01 1 0811- ● ●

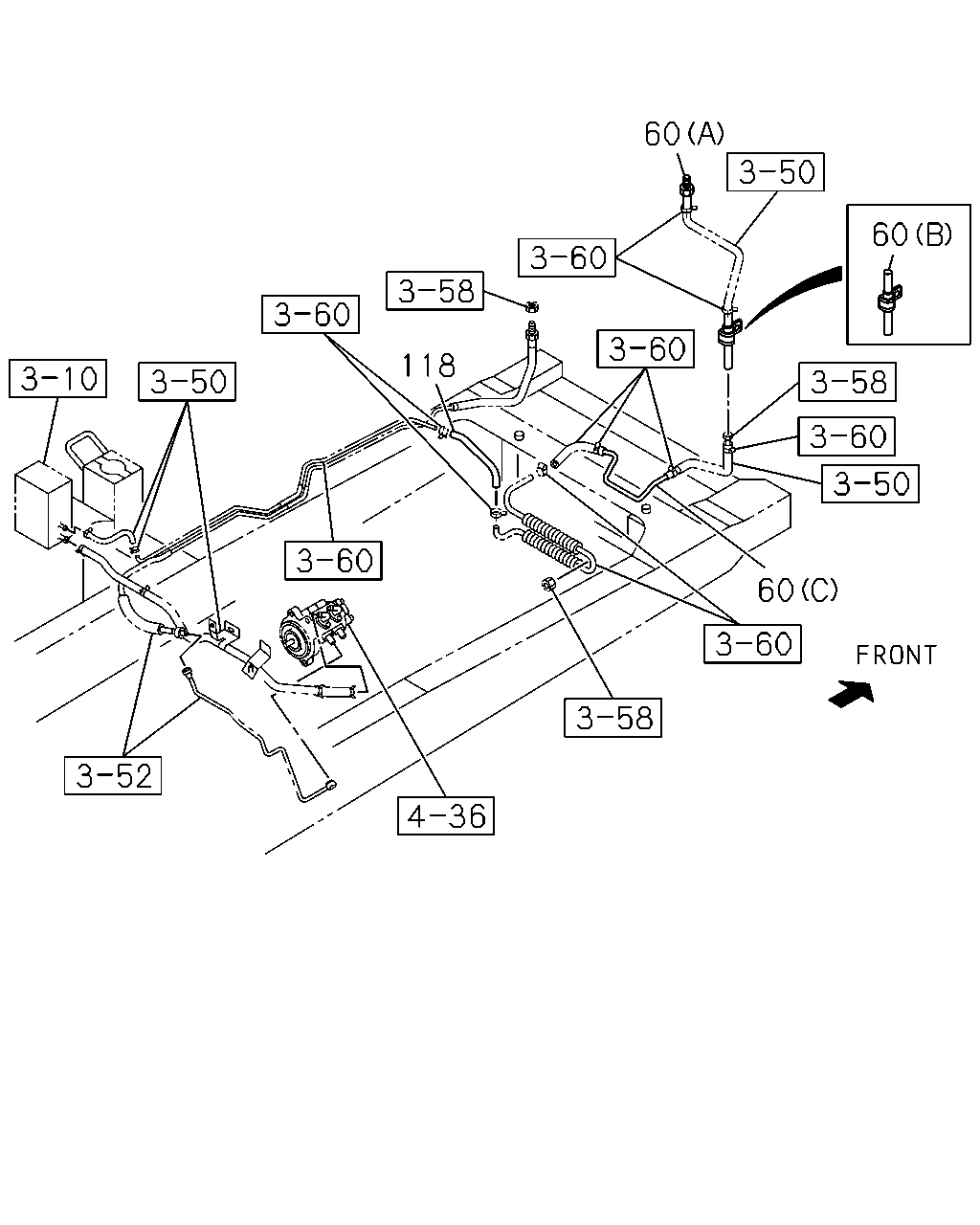

çizim 121098
60 60 118 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 PIPE ASM; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-549-0 01 1 0811- ●
60 PIPE ASM; BRK
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-326-1 01 1 0811- ●
60 PIPE ASM; BRK
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98088-313-1 01 1 0811- ●
118 HOSE; PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-97181-217-2 01 1 0811-1001 ●
118 HOSE; PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98158-200-0 01 1 1002- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
