◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#74582) — 33 parça

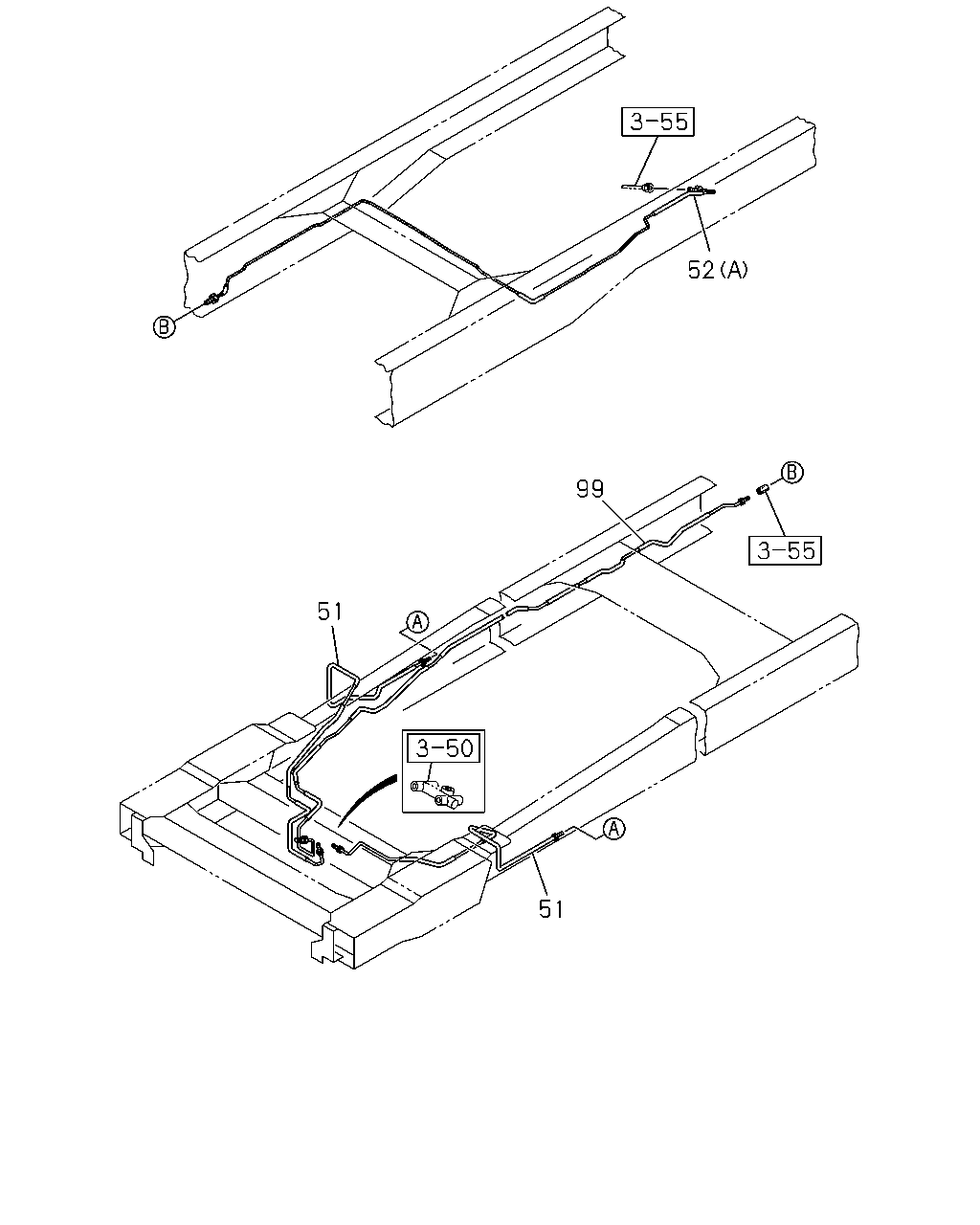

çizim 119764
52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-766-1 01 1 0803-0810 ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-766-1 01 1 0811- ● ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-765-1 01 1 0803-0810 ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-765-1 01 1 0811- ● ●
52 PIPE; BRK
(B) THA 		8-97924-251-0 01 1 0811- ●
52 PIPE; BRK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-264-0 01 1 0811- ●
52 PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-262-0 01 1 0803-0810 ●
52 PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-262-0 01 1 0811- ● ●
52 PIPE; BRK
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-263-0 01 1 0803- ●
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR THA 		8-98057-259-0 01 1 0803-0810 ●
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR THA 		8-98057-259-0 01 1 0811- ● ●

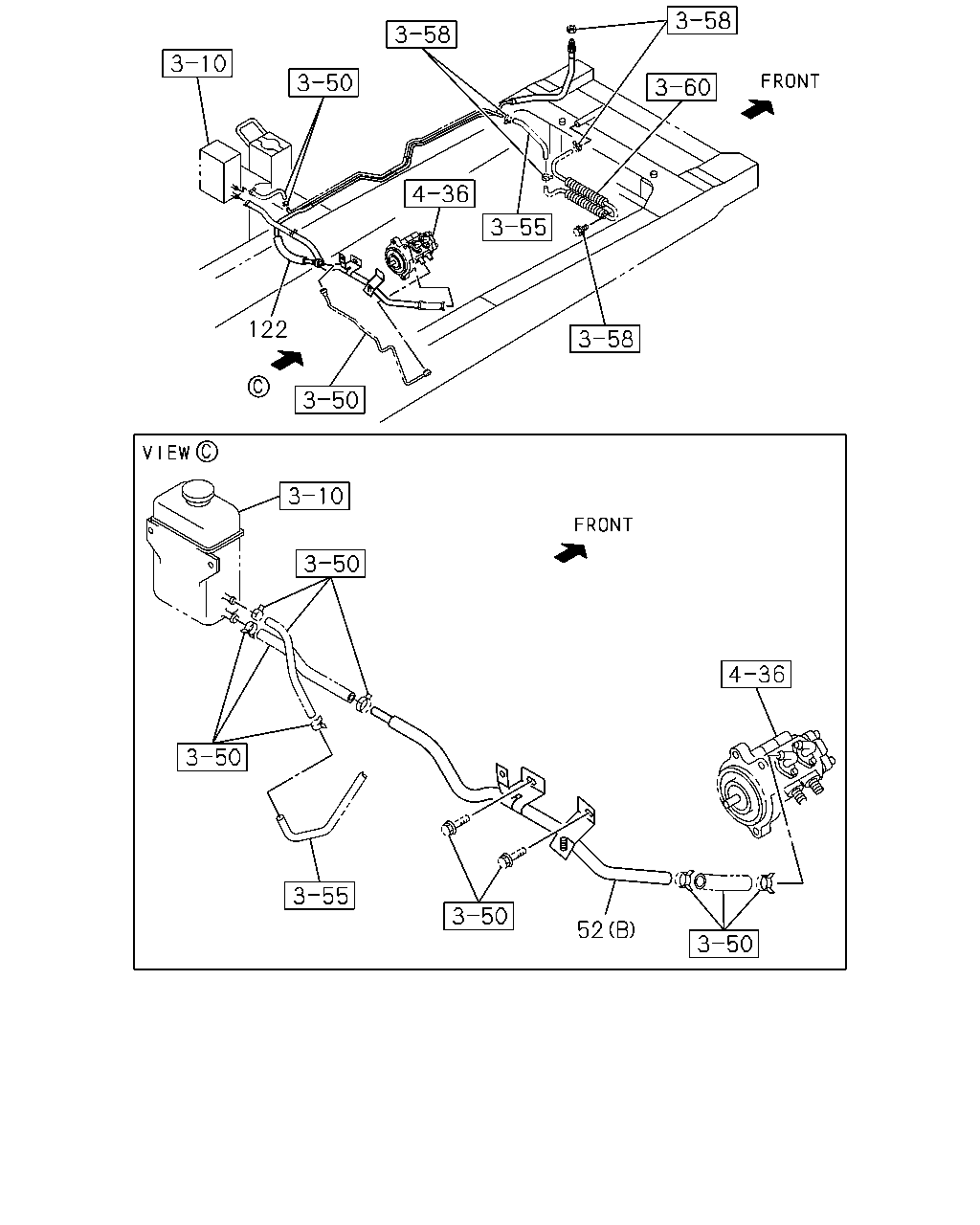

çizim 119867
122 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 PIPE; BRK
(B) THA 		8-97924-251-0 01 1 0811- ●
52 PIPE; BRK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-264-0 01 1 0811- ●
52 PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-262-0 01 1 0803-0810 ●
52 PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-262-0 01 1 0811- ● ●
52 PIPE; BRK
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-263-0 01 1 0803- ●
122 PIPE ASM; BRK,2 WAY
FRAME STRAIGHT TYPE<7KJ> 		8-98041-325-3 01 1 0811-0909 ●
122 PIPE ASM; BRK,2 WAY
FRAME STRAIGHT TYPE<7KJ> L=1839 		8-98136-573-0 01 1 0910- ●
çizim 119919
1 9 9 94 102 102
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0803-0810 ●
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0811- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0810 ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0810 ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0811-1402 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0811-1402 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1403- ● ●
9 CLIP; FLEX HOSE,FRT BRK
4HK1-TCN ENG<RDQ> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRAME STRAIGHT TYPE<7KJ> 		8-97360-054-0 02 1 1403- ●
9 CLIP; FLEX HOSE,FRT BRK
4HK1-TCS ENG<RJS> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRAME STRAIGHT TYPE<7KJ> 		8-97360-054-0 02 1 1403- ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-705-0 02 1 0803-0810 ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-705-0 02 1 0811- ● ●
102 CLIP; PIPE 8-97022-086-0 02 1 0803-0810 ●
102 CLIP; PIPE 8-97022-086-0 02 1 0811- ● ●

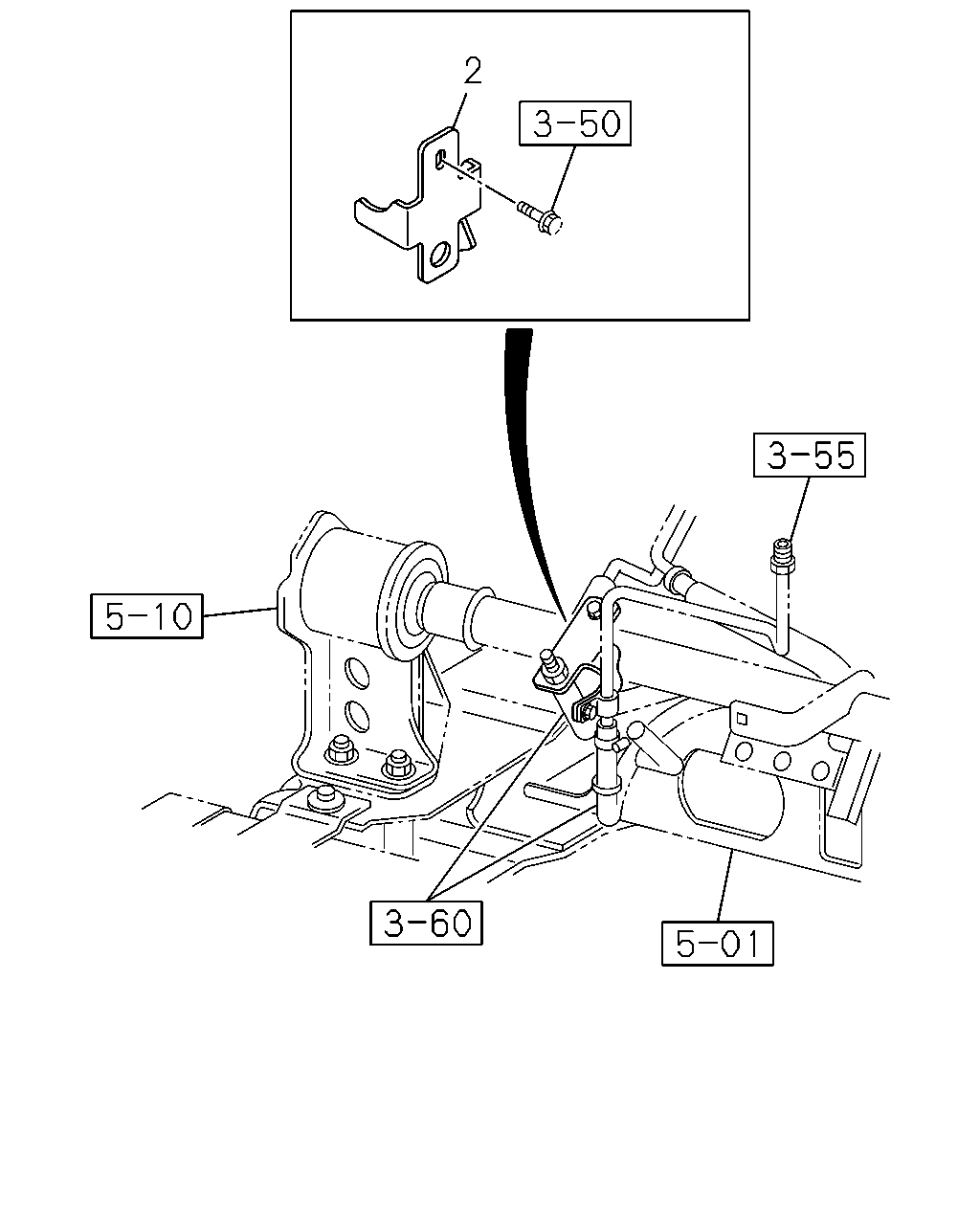

çizim 185715
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98042-478-1 01 1 0811-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98136-577-0 01 1 0910- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
