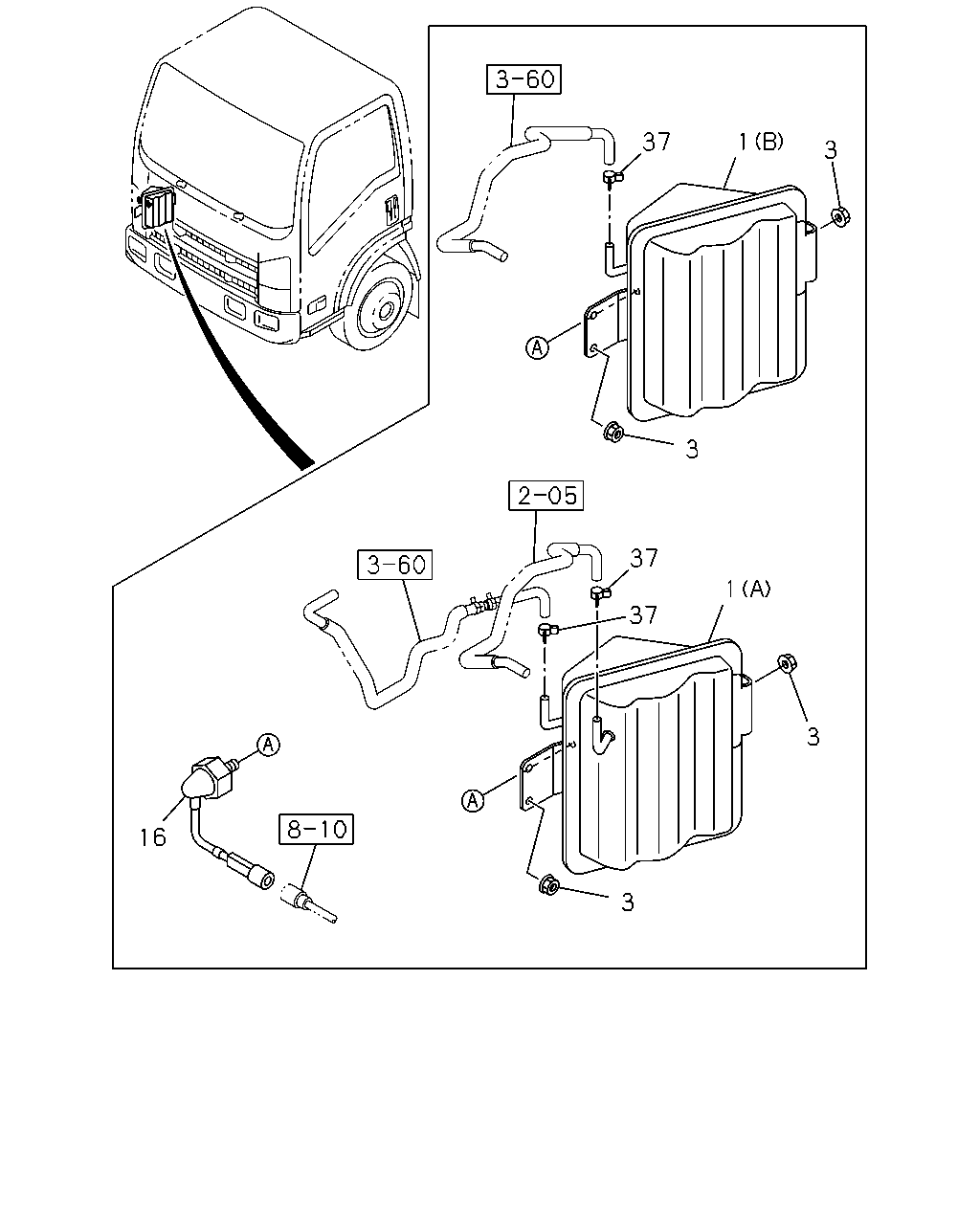

3-21 — VACUUM TANK
(#74578) — 18 parça
Tümü
A - NPR5SS
B - NPR5SN
◀
[321A] NQR (7 parça)
[321A] NPR (11 parça)
▶
37
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> (C)
8-98032-291-0
01
1
0811-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> (A)
8-98009-121-2
01
1
0803-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH<S2T> (B)
8-98009-122-2
01
1
0803-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
02
1
0803-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0803-0810
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0811-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0811-
●
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> (C)
8-98032-291-0
01
1
0811-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> (A)
8-98009-121-2
01
1
0803-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH<S2T> (B)
8-98009-122-2
01
1
0803-
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
0803-0810
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
0811-
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH<S2T>
8-98008-071-0
03
1
0811-
●
16
SWITCH; VAC
8-98049-417-0
01
1
0803-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
02
1
0803-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0803-0810
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0811-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5
8-94367-944-0
01
1
0811-
●
