3-11 — PARKING BRAKE CONTROL (#74577) — 111 parça

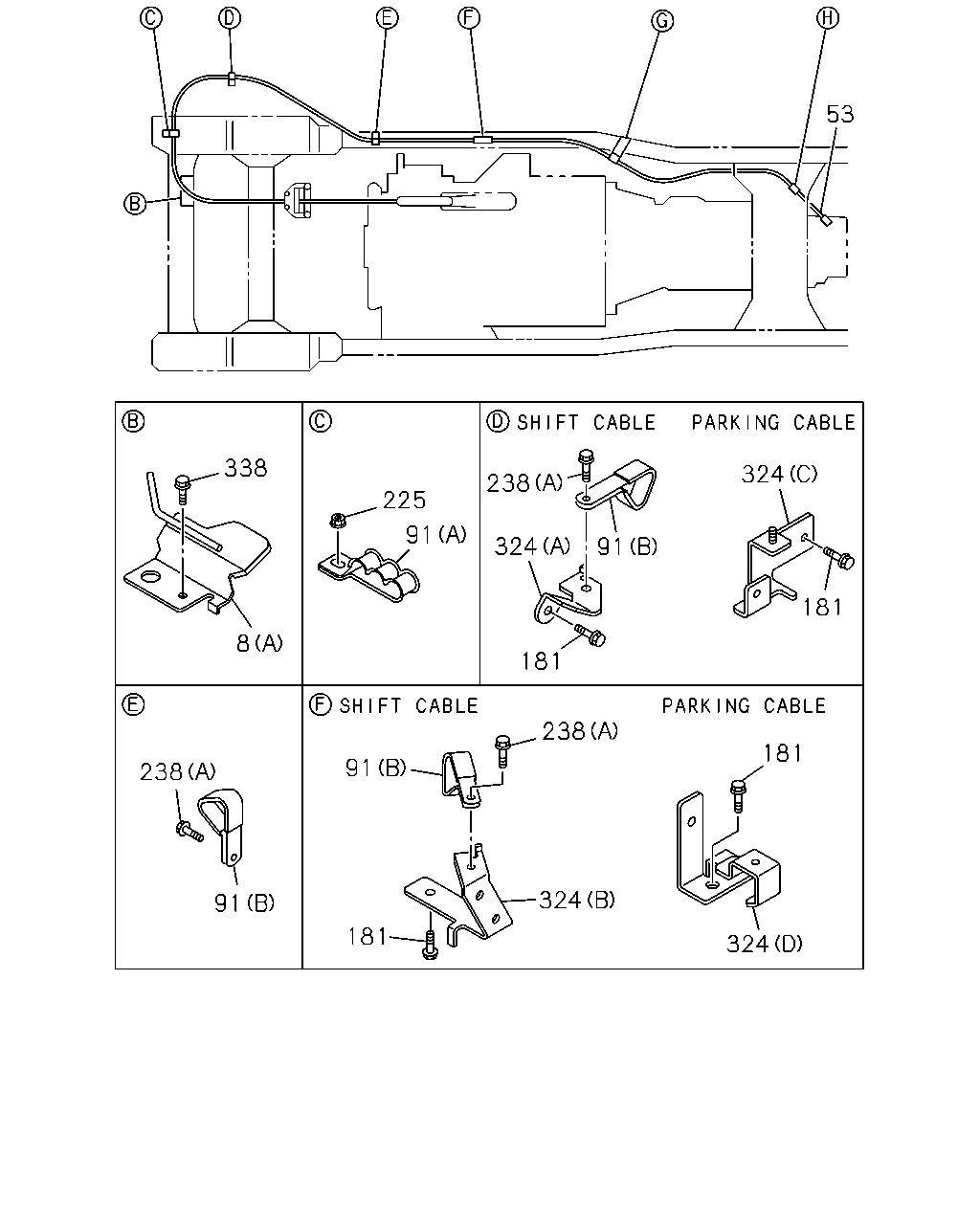

53 338 324 238 225 91 324 91 181 8 181 238 181 91 238 324 91 181 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	0803-0810	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	0811-	●	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	0803-0810	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	0811-	●	●
53	CABLE; PARK BRK,FRT LWR THA	8-98062-232-3	01	1	0811-		●
53	CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	0803-	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	0803-0810	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	0811-	●	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0811-	●	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	0811-	●	●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0811-	●	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0803-0810	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0811-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	03	1	0803-0808	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0809-0810	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0810-0810	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
238	BOLT; CLIP TO BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0811-		●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	0803-0810	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	0811-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0810	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0811-	●	●
324	BRACKET (A)	8-98034-115-0	01	1	0803-0810	●
324	BRACKET (A)	8-98034-115-0	01	1	0811-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-185-1	01	1	0803-0810	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-185-1	01	1	0811-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	0803-0810	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	0811-1508	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98111-394-1	01	1	0803-0810	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98111-394-1	01	1	0811-	●	●
338	SCREW; GUIDE FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE	8-98046-876-0	01	1	0803-0810	●
338	SCREW; GUIDE FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE	8-98046-876-0	01	1	0811-	●	●

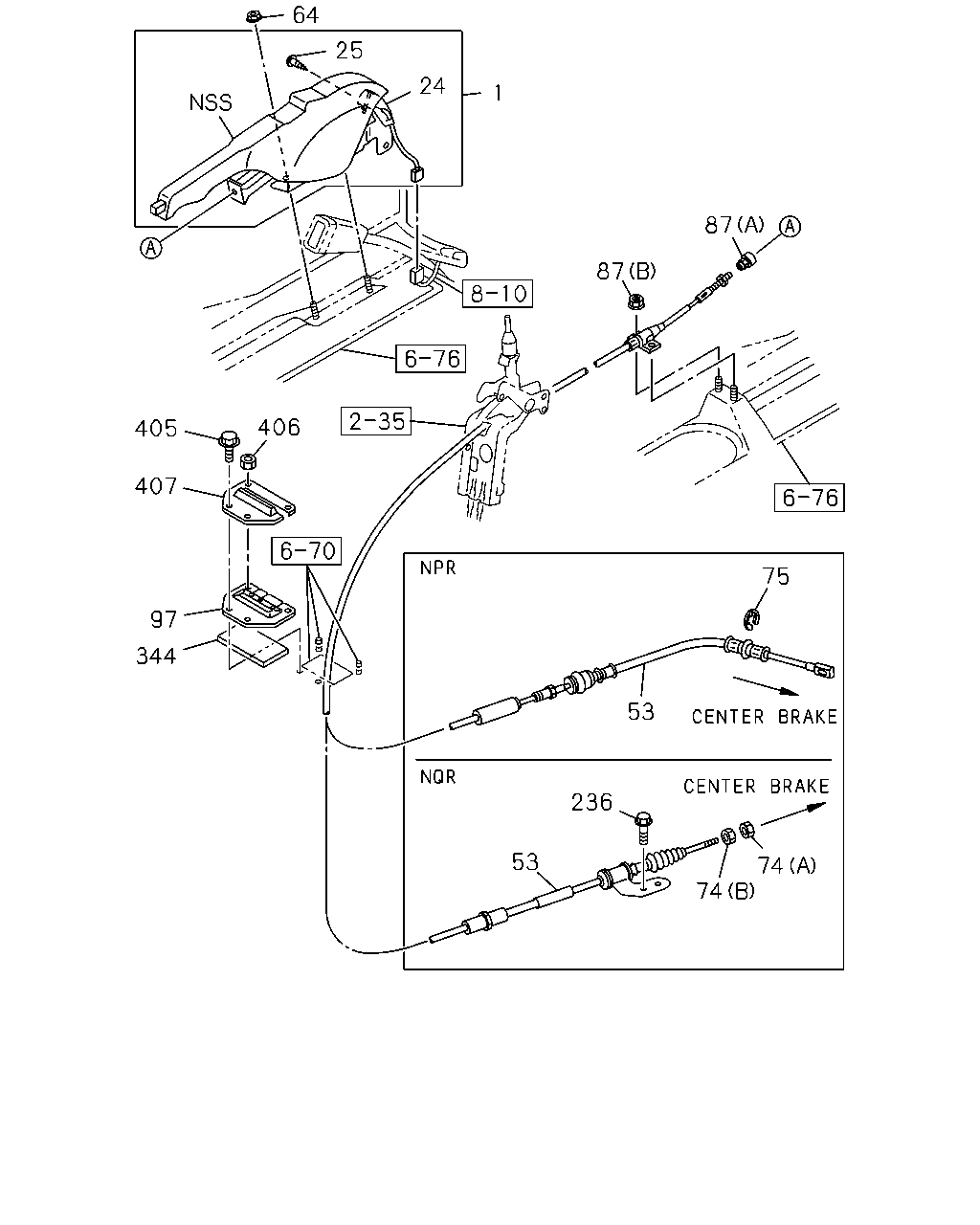

64 25 24 1 87 87 406 405 407 75 97 344 53 236 53 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0803-0810	●
1	STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0811-1303	●	●
1	STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●
24	SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0803-0810	●
24	SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0811-1303	●	●
24	SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0803-0810	●
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0811-	●	●
53	CABLE; PARK BRK,FRT LWR THA	8-98062-232-3	01	1	0811-		●
53	CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	0803-	●
64	NUT; PARKING BRK M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0803-0810	●
64	NUT; PARKING BRK M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0811-	●	●
74	NUT; CONT WIRE (A) M8 THA	0-91110-508-0	01	1	0811-		●
74	NUT; CONT WIRE (B) M8 FLANGE	9-46259-016-0	01	1	0811-		●
75	RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0803-	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (A) M6	8-98034-313-1	01	1	0803-0810	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (A) M6	8-98034-313-1	01	1	0811-	●	●
97	GROMMET; PARKING BRK CABLE	8-97065-212-1	01	1	0803-0810	●
97	GROMMET; PARKING BRK CABLE	8-97065-212-1	01	1	0811-	●	●
236	BOLT; BRKT TO FRAME M10X30 FLANGE THA	0-28651-030-0	02	1	0811-		●
344	GASKET; DASH LWR	8-97096-753-0	01	1	0803-0810	●
344	GASKET; DASH LWR	8-97096-753-0	01	1	0811-	●	●
405	BOLT; GROMMET M6X20 FLANGE	0-28450-620-0	02	1	0803-0810	●
405	BOLT; GROMMET M6X20 FLANGE	0-28450-620-0	02	1	0811-	●	●
406	NUT; GROMMET M6 FLANGE THA	0-91180-106-0	02	1	0803-0810	●
406	NUT; GROMMET M6 FLANGE THA	0-91180-106-0	02	1	0811-	●	●
407	RETAINER; GROMMET	1-33657-674-0	01	1	0803-0810	●
407	RETAINER; GROMMET	1-33657-674-0	01	1	0811-	●	●

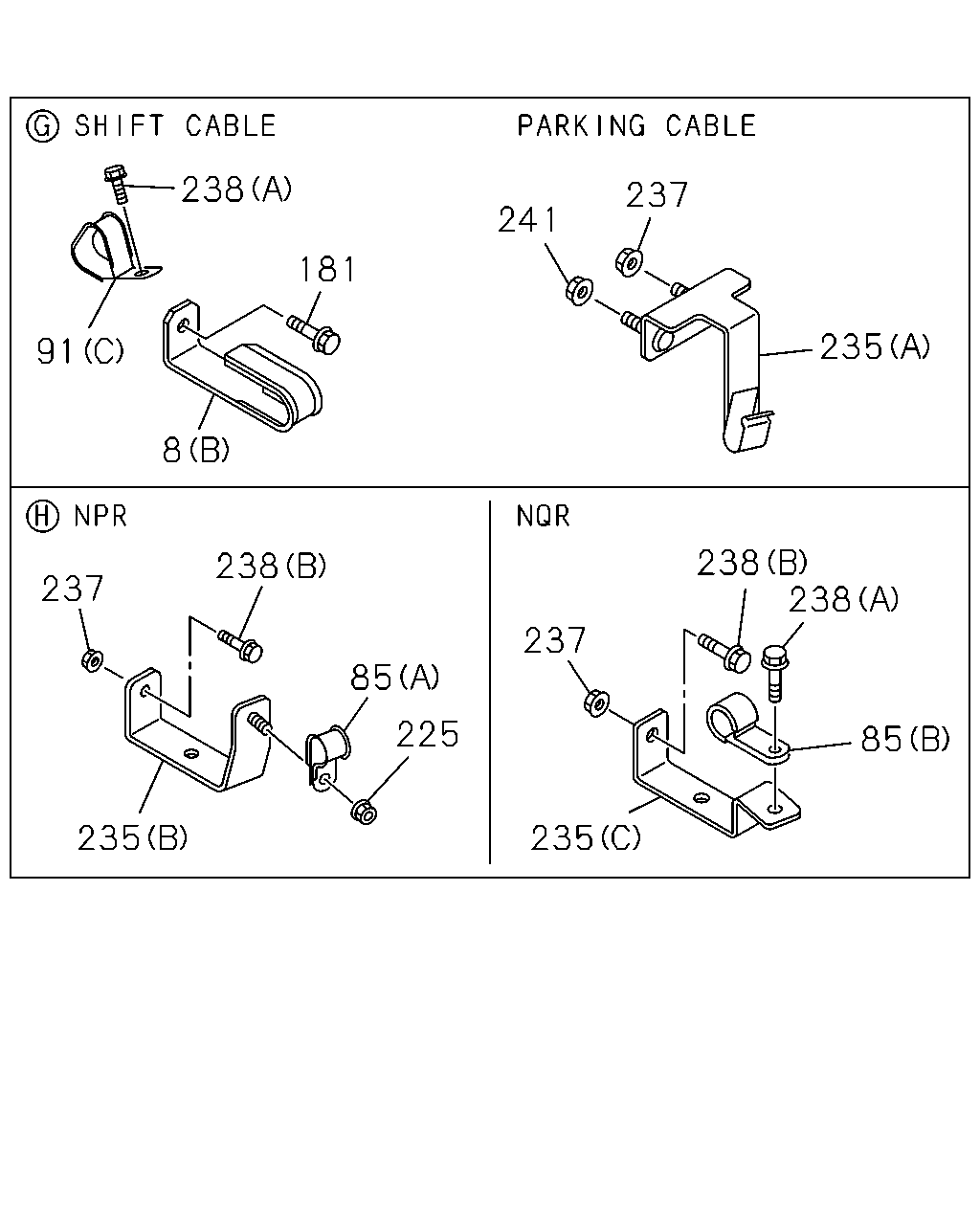

238 237 241 181 235 91 8 238 238 238 237 237 85 225 85 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	0803-0810	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	0811-	●	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	0803-0810	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	0811-	●	●
85	CLIP; BRKT (B) ID=13 L=20	0-95235-236-0	01	1	0811-		●
85	CLIP; BRKT (A) ID=14.5 L=20	1-09701-012-0	01	1	0803-	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	0803-0810	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	0811-	●	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0811-	●	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	0811-	●	●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0803-0810	●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0811-	●	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0803-0810	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0811-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	03	1	0803-0808	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0809-0810	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0810-0810	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
235	BRACKET; CONT CABLE TO FRAME (C)	8-98033-907-0	01	1	0811-		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	0803-	●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	0803-0810	●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	0811-	●	●
237	NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
237	NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
238	BOLT; CLIP TO BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0811-		●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	0803-0810	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	0811-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0810	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0811-	●	●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0810	●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
